How to Hook Up an RFID Antenna to Arduino: Getting Your First Read

The idea of building your own RFID scanner with an Arduino is exciting. But when you unpack an RFID module and see a little squiggle of copper on the board, the question hits: how do I hook up this RFID antenna to my Arduino? Here’s the good news: for most hobbyist modules, the antenna is already connected for you. The real task is wiring the reader module (which has the antenna onboard) to the Arduino correctly. Let’s get you from a box of parts to a blinking LED on your first tag read.

The First Thing to Know: The Antenna is Already Attached

If you’re using a common, low-cost module like the MFRC522 (which works at 13.56 MHz, or HF), that flat, rectangular spiral of copper on the board is the antenna. It’s etched directly onto the PCB. You don’t connect it to anything; it’s part of the reader module itself. Your job is to connect the MFRC522 module’s pins to your Arduino.

The same goes for many other integrated reader boards. So, the core of how to hook up an RFID antenna to Arduino is really about connecting the reader module that houses the antenna.

The Step-by-Step Connection: MFRC522 Example

Here’s the most common setup for a basic Arduino RFID reader setup using the MFRC522 and an Arduino Uno:

1. Power Off: Always disconnect your Arduino from USB or power before wiring.
2. Make the Connections: Use female-to-male jumper wires to connect the module’s pins to the Arduino.
   • SDA (or SS) -> Digital Pin 10
   • SCK -> Digital Pin 13
   • MOSI -> Digital Pin 11
   • MISO -> Digital Pin 12
   • IRQ -> Not connected (for basic reading)
   • GND -> Arduino GND
   • RST -> Digital Pin 9
   • 3.3V -> Arduino 3.3V (Critical: Do NOT use 5V or you’ll damage the module!)
3. Secure Everything: Plug the module into a breadboard to keep the connections stable.

That’s it for hardware. You’ve now effectively connected the RC522 antenna to Arduino because the antenna is integrated on the module you just wired up.

The Software Side: Making It Talk

With hardware done, you need to tell the Arduino how to talk to the module.

1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries….
3. Search for “MFRC522” and install the library by Miguelão.
4. Go to File > Examples > MFRC522 > ReadNUID.
5. Upload this example sketch to your Arduino.

This sketch is your diagnostic tool. Open the Serial Monitor (Tools > Serial Monitor, set to 9600 baud). When you bring a compatible 13.56 MHz tag (like a credit card or white keycard) near the antenna coil on the module, you should see its unique ID number print on the screen.

When It Doesn’t Work: First-Level Troubleshooting

If you get nothing, don’t panic. Troubleshooting Arduino RFID antenna issues usually comes down to a few simple things:

• Power: Did you connect to 3.3V and not 5V? Double-check.
• Wiring: Are the wires fully seated? Is the pin mapping in your code exactly matching your physical connections? (The example sketch uses pins 10 and 9 by default).
• Distance: Hold the tag within 1-2 inches of the antenna coil on the module. It’s a very short range.
• Tag Type: Ensure you’re using a 13.56 MHz tag. A UHF tag (900 MHz) from a warehouse will not work with this module.
• Library: Did you install the correct MFRC522 library?

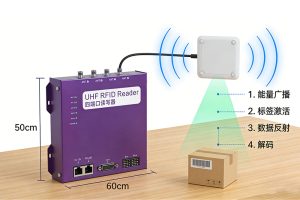

What About UHF? A Quick Reality Check

Most DIY RFID projects with an antenna use HF (like the RC522) because it’s cheap and simple. If you’re looking to read long-range UHF tags (like those on warehouse boxes), the setup is entirely different. You would need a separate UHF reader (like an RDM6300 or a more advanced USB RFID reader) that has its own external antenna ports. That’s a more complex and expensive project.

Getting that first successful read is a great moment. Once you have it, you can start building your project—a simple lock, an inventory logger, etc.

Remember, this hobbyist process for how to hook up an RFID antenna to Arduino is about prototyping and learning. For the high-performance, industrial-grade systems that run warehouses and retail stores, companies rely on integrated solutions from providers like CYKEO, where the RFID antenna, RFID reader, and software are engineered as one reliable unit. But for your workbench, the Arduino route is the perfect place to start.
