Guide How to Choose the Right RFID Antenna for System Integrators and Solution Providers

When You Are Make RFID antenna design, it’s not just about picking the right frequency or getting the right shape. It’s more like finding that sweet spot where all the technical stuff works out — the signal strength, the range, the durability. Honestly, as an RFID system integrator or RFID solution provider, you’re probably looking for something that fits perfectly in your system without being a headache later on. That means thinking beyond just the specs. I didn’t expect to find so many trade-offs when designing antennas, but after a while, it became pretty clear how much balance matters in this game.

The Basics of RFID Antenna Design: It’s About Compromise

I remember when I first started getting into RFID antenna design, I thought it would be all about picking the right frequency and calling it a day. But I quickly realized it’s not that simple. You’ll find that the process is more about compromise — making sure the antenna works in the environment it’s meant for, and still covers the necessary range. I didn’t expect that at first, but later found that a high-gain antenna might give you better coverage but also makes the system a lot more directional. It’s a balancing act between gain, beamwidth, and polarization.

When it comes to RFID antennas, one thing to always keep in mind is how the antenna is going to interact with its surroundings. For example, environments with a lot of metal or liquid will interfere with the signal. So, you can’t just look at the specs and be done with it. You really have to think about the real-world conditions. It’s a whole different ballgame when you’re working with something like a warehouse full of metal racks versus a clean, open office space.

The Different Types of Antennas: Pick the Right One

If you’re in the business of RFID system integration, you know that there’s no “one size fits all” when it comes to antennas. You need to match the antenna to the application. Circularly polarized antennas are great if you need flexibility, as they can receive signals from tags in any orientation. But they may not always give you the best performance if you don’t need that kind of flexibility. You might end up paying more for something that’s overkill for your application.

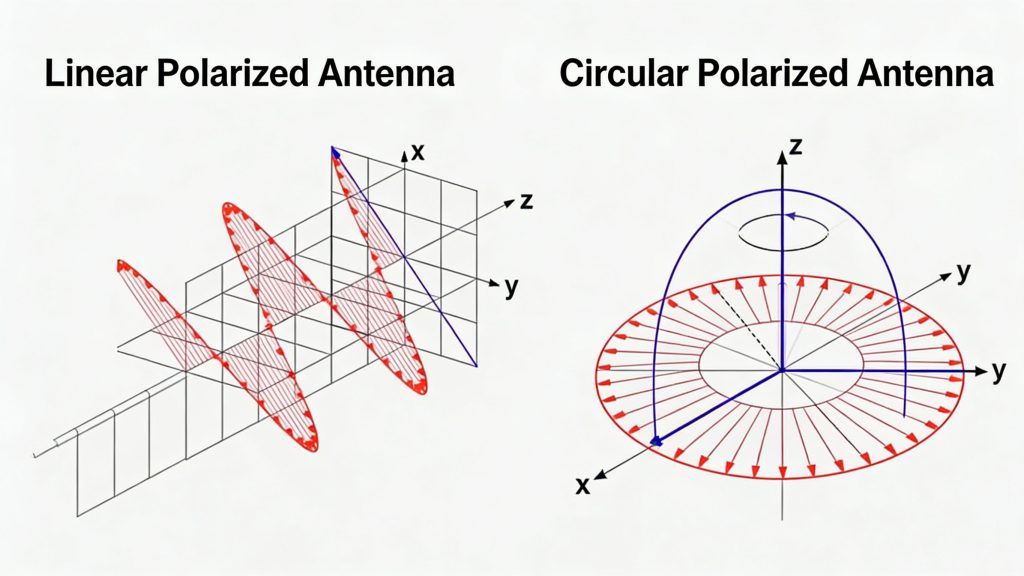

On the other hand, linearly polarized antennas can give you higher performance if you’re only working with tags that are oriented in a certain way. These are often used in more specific applications where you can control the tag orientation. So, you’ve got to think about how your system is going to be used in real life.

The type of antenna you choose is crucial, especially for RFID solution providers who have to ensure their systems are cost-effective and high-performance. Honestly, it can feel a bit overwhelming at first, but once you start seeing the patterns in different setups, it becomes easier to pick the right one. If you’re not sure where to start, I’d recommend checking out more details on RFID antenna design here.

What’s the Environment Like?

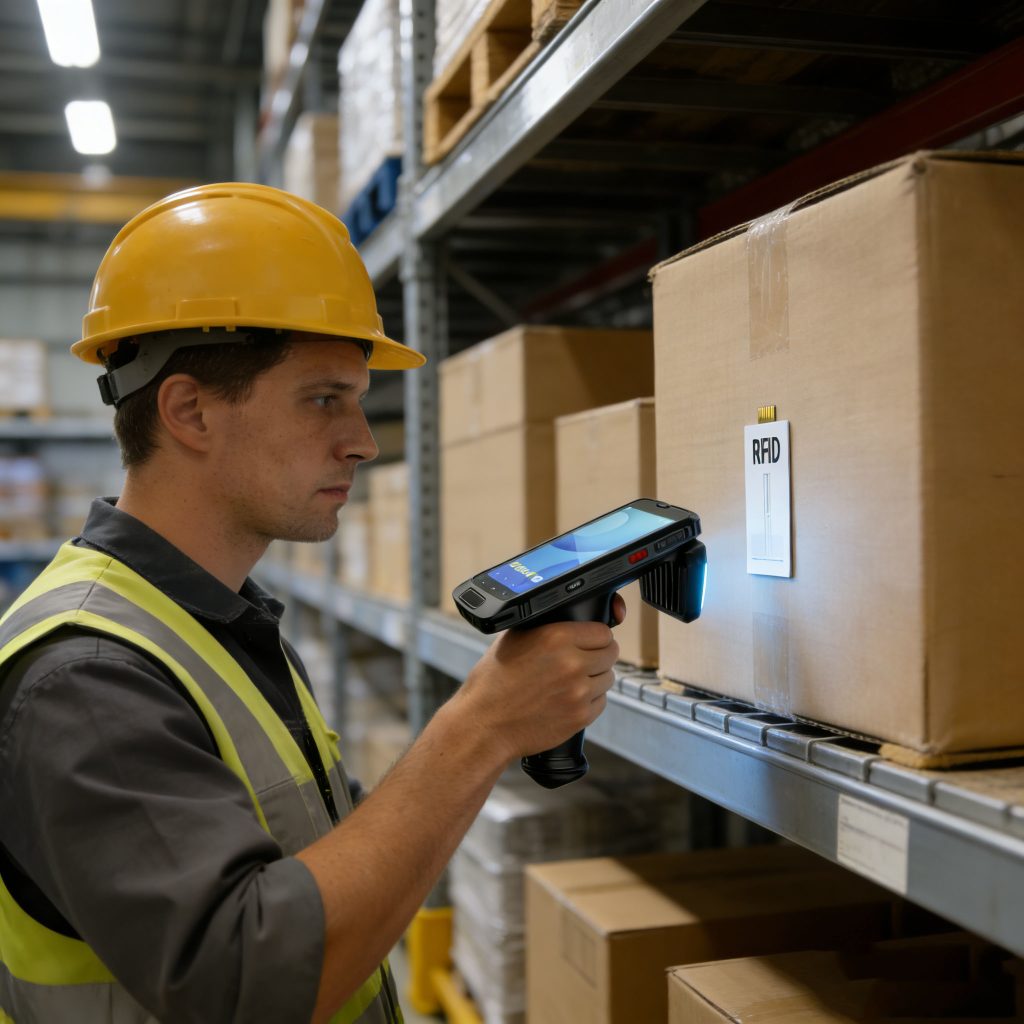

I’ve mentioned it before, but it’s so important to think about where the antenna will be used. If you’re dealing with warehouses, for example, the metal shelves are going to mess with the signal. That’s where knowing the exact environment comes in. In some cases, you may need to add more antennas just to cover certain blind spots, or you might need an antenna with a specific radiation pattern to minimize interference.

For RFID antenna wholesalers, this is a big deal. If your customers are working in harsh environments, they need antennas that can withstand those conditions. This isn’t just about picking something off the shelf; it’s about finding a solution that’s going to stand up to real-world usage. And the last thing you want is to recommend something that doesn’t do the job in the field. RFID system integrators will look at your product specs and make decisions based on things like antenna gain, polarization, and durability.

Designing for Compatibility

Another thing that I didn’t realize at first is just how much the antenna needs to be compatible with the whole RFID system. It’s not just about the reader and the tags; the antenna also needs to fit in the network. You might find that your antenna works perfectly with one type of reader but causes issues with another. RFID developers need to pay close attention to the whole system when designing and choosing antennas. Everything needs to sync up perfectly.

When you’re looking to wholesale RFID antennas, this is something to consider. You want to make sure that your antennas are compatible with a wide range of readers and tags, especially for RFID solution providers who may be working with a variety of devices. It’s definitely worth diving deeper into this, especially since many suppliers offer antenna systems that are designed to work across different standards.

Wrapping It Up

So, at the end of the day, RFID antenna design is about finding a good balance between performance, cost, and application needs. For RFID system integrators, RFID solution providers, and even those involved in wholesale antenna purchasing, this is a crucial part of getting a reliable system up and running. The environment, compatibility with other devices, and performance characteristics all play a role in making sure the system works as expected.

If you’re not sure where to go next, definitely check out our full guide on how to design an RFID antenna, and for more antenna options, have a look at our RFID antenna product page. There’s a lot more to it than just picking something off the shelf, and understanding these details can help you make a much more informed decision when sourcing antennas for your projects.
