An RFID antenna is the part of an RFID system that transmits radio energy to wake passive tags and receives the very small back-scatter signal the tag sends back. Technically it’s a transducer — converting electrical energy to electromagnetic waves and back — but on the floor it behaves like the microphone and loudspeaker in a crowded room: place it badly, and you’ll hear nothing useful.
How it actually works (the principle — not the brochure)

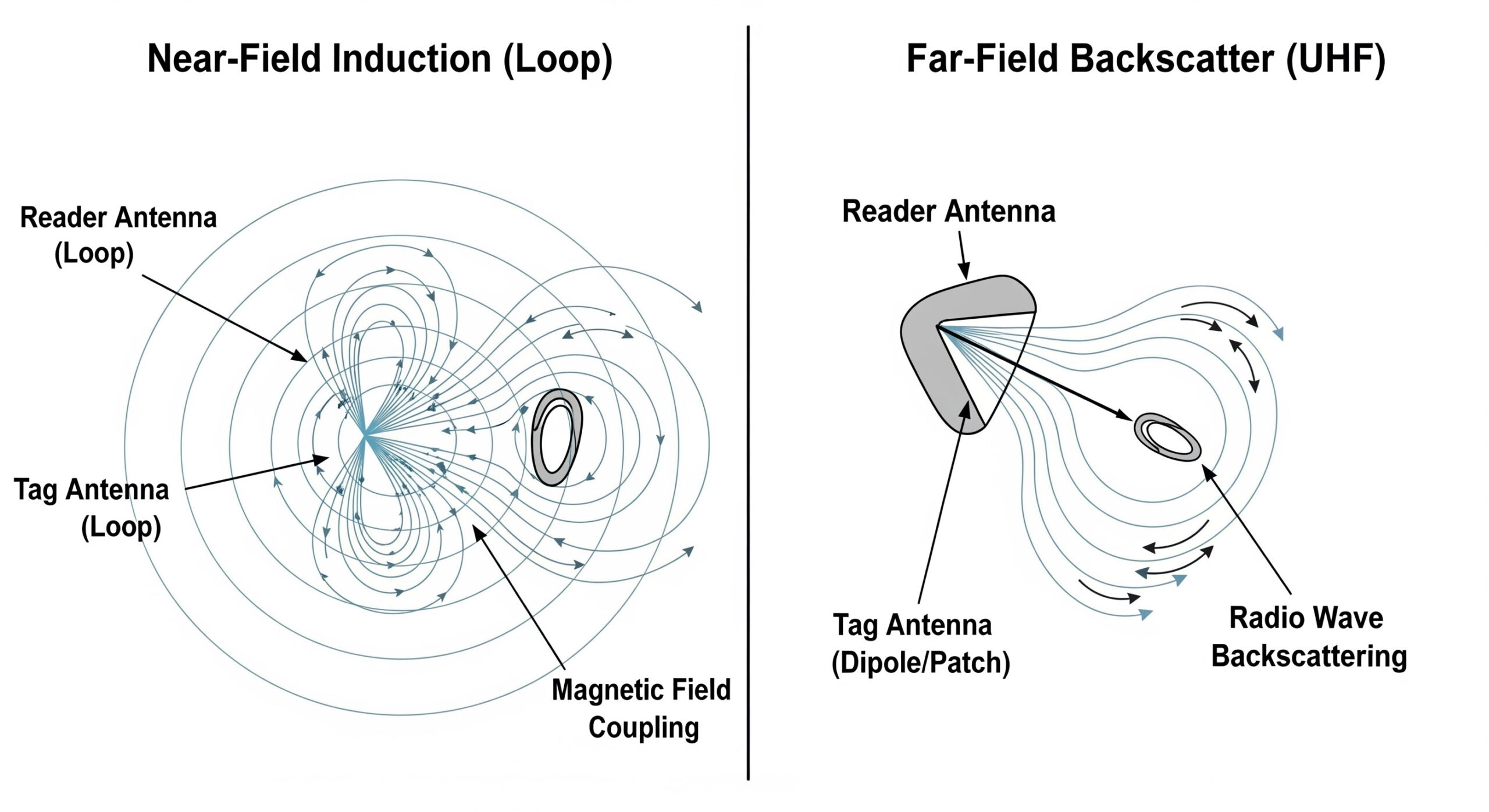

There are two practical regimes to understand:
Near-field (HF, ~13.56 MHz) — the reader and tag interact via magnetic induction (loop antennas). Think of two coils: the reader’s antenna induces current in the tag coil. Read range is short (centimeters to a couple meters at best), but very stable for close-proximity uses (access control, smart cards).
Far-field (UHF, ~860–960 MHz) — the reader’s antenna illuminates the tag with an EM wave; the tag backscatters a small portion of that wave modulated with its ID (EPC/ISO protocols). Read range is longer (meters), but you must wrestle with reflections, multipath, and polarization.
Two more practical points tied into the physics:
Backscatter link budget matters — reader transmit power, antenna gain (dBi), tag sensitivity, and path loss set whether the tag’s reply is detectable.
Polarization alignment affects coupling. If antenna polarization and tag antenna polarization are badly mismatched, read rates tank.
Key technical terms you’ll run into (and what they mean in the real world)
dBi (gain) — how strongly the antenna concentrates power in a direction. High dBi = longer reach in that direction, but more “spill” into places you might not want (cross-reads).
Polarization (linear vs circular) — linear is like a narrow flashlight beam (good when RFID tags are consistently oriented); circular is forgiving if tags are rotated.
VSWR / Return Loss — measures how well the antenna is impedance-matched to the feedline (ideally 50 Ω). Bad VSWR = wasted power, hot connectors, flaky reads.
Beamwidth & side-lobes — tells you the shape of the read zone; side-lobes are where you get annoying off-axis reads.

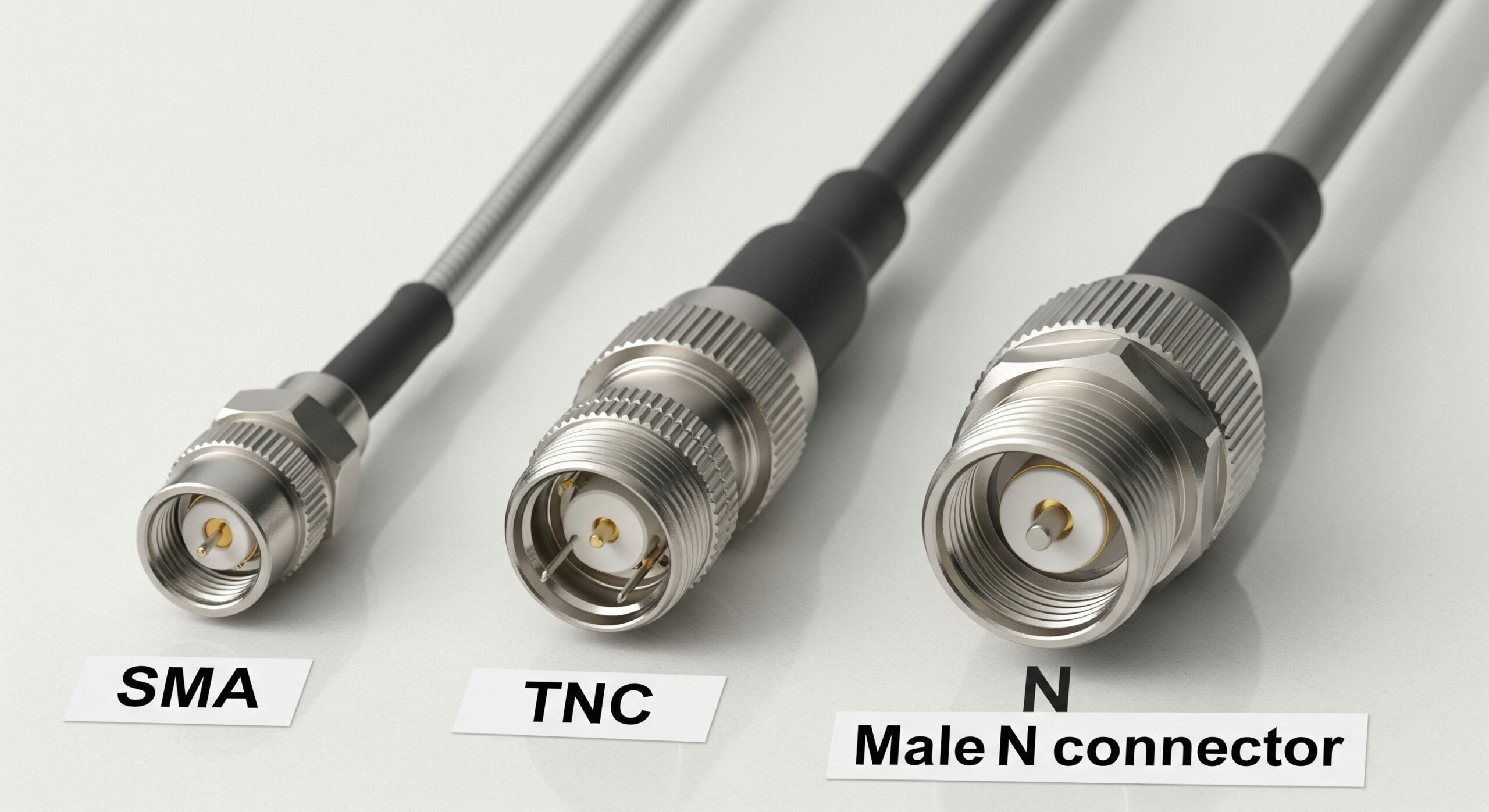

Connector types (SMA/TNC/N) and feedline loss — long coax runs cost you effective power; choose low-loss cable and factor loss into your link budget.
EIRP / Regulatory limits — reader transmit power is capped by region (don’t try to “overpower” the problem; you’ll just break rules and risk interference).
Types of RFID antennas and when I actually used them
Loop (HF) — used on card readers at the gate. Simple, compact, near-field coupling; very reliable for authentication.
Dipole / Linear panel (UHF) — common for fixed portals where tags are aligned; higher peak gain.
Patch / Panel with circular polarization (UHF) — my go-to for mixed-orientation pallets on docks (saved time in Ningbo when Supplier B’s tags were slapped sideways).
Monopole / omni (UHF) — for short-range omni coverage, like handheld read-stations.
Circular vs Linear — don’t let marketing slogans decide. Circular often wins in a messy dock; linear can be better on a conveyor where everything is neatly aligned.
Real commissioning and troubleshooting — my checklist (practical steps)
Site survey: do a physical walkthrough at peak load times. Note metal racks, water tanks, concrete pillars, wifi AP locations (interference matters).
Select antenna type & mount: choose polarization and beam based on tag orientation and zone geometry (doorway vs aisle vs dock).
Plan cable runs: use low-loss coax for runs >3–5 m; every meter costs dB. Factor connector loss.
Check VSWR with a VNA: get return loss low (aim for VSWR < 1.5 if possible). If high, try remount, swap the pigtail, or fit a different connector.
Power & EIRP: set reader power to meet but not exceed local limits. Start low, run test reads, then raise until you hit the desired read zone.
Tag farm test: use actual tags you’ll deploy (different inlays behave differently) and sweep the read zone at operator speed to build a heatmap.
Adjust angle & tilt: small tilt changes can close nulls and reduce bleed into adjacent aisles.
Document: take photos, note connector types, cable lengths, and final reader power. Someone will ask for this next month.
A note from the field: when I first installed an antenna above Dock 3 in Yiwu I set it “because it looked centered.” That was dumb — the dock door seals stuck out and created a null zone at pallet height. I moved it 20 cm and the read rate jumped. Human error; learn from mine.
Common pitfalls (the stuff that bites you after go-live)
High gain = hidden cross-reads. Your reports will suddenly show inventory in the wrong aisle. In Chicago freezer aisles we purposely lowered gain to keep reads local.
Orientation blindness. Assuming every tag is oriented the same is planning to fail once shift work hits.
Ignoring cable/connector loss. Long pigtails can eat 2–4 dB — that’s the difference between read and no-read.
Treating antennas as “install and forget.” Seasonal changes (packed vs empty racks), humidity, and added metal shelving change the RF environment.
A few messy truths and a tiny contradiction (because life isn’t consistent)
I tend to tell newbies: “Use circular for docks, linear for conveyors.” That’s my heuristic — it saved me hours. Yet I’ll admit, in one tight conveyor install in Busan, circular made the hand-held reads worse; linear with a little tilt fixed it. So yes — both rules are useful and both can fail. That’s human, not purposeful. I don’t have a magic checklist that works everywhere.
