RFID Parking Tags Explained: The Tag You Choose Can Matter More Than the Reader

When people talk about RFID parking systems, the conversation usually starts with readers.

How far can it read?

How many lanes can it cover?

Which chipset is inside?

Those questions are important, but after working on enough parking projects, you begin to notice something else. Quite a few “reader problems” eventually turn out to be tag problems.

A high-performance reader can’t compensate for an unsuitable vehicle tag. Even the best antenna struggles if the tag is installed in the wrong place or simply isn’t designed for that environment.

That’s why experienced system integrators often decide on the vehicle tag before they finalize the reader.

---

Not Every Parking Project Needs the Same RFID Tag

It’s easy to assume all vehicle RFID tags do the same job.

They don’t.

A residential community where every resident keeps the same vehicle for years has very different requirements from an airport, a logistics center, or a commercial parking garage with temporary visitors.

Some projects care about cost first.

Others care about tamper protection.

Some simply need the longest possible reading distance.

The tag should follow the project—not the other way around.

---

Windshield RFID Tags: Still the Most Common Choice

For most parking access systems, windshield tags remain the standard option.

They’re inexpensive, easy to distribute, and generally produce stable reading performance when installed correctly.

The recommended position is usually inside the windshield, close to the rear-view mirror or the upper corner, depending on the antenna layout.

That sounds straightforward until someone installs the tag behind a metallic sunshade strip.

We’ve seen perfectly good readers lose several meters of reading distance because of that small detail.

Typical Features

Item	Description
Installation	Inside windshield
Lifespan	5–10 years
Reading Distance	6–12 meters
Cost	Low
Tamper Resistance	Available with tamper-proof design

For apartment complexes, office buildings and factory parking, windshield tags are still the first choice in most projects.

---

Headlight RFID Tags: A Good Alternative for Special Vehicles

Some vehicles don’t have ideal windshield conditions.

Construction machinery.

Forklifts.

Electric carts.

Vehicles with heated or coated glass.

In those situations, headlight tags become a practical option.

Since they’re mounted externally, installation is usually easier for maintenance teams.

However, exposure to sunlight, rain, road debris and frequent washing means durability becomes much more important.

Choosing a cheap headlight tag often looks economical at first, but replacement costs tend to appear sooner than expected.

Typical Features

Item	Description
Installation	Headlight housing
Lifespan	3–8 years
Reading Distance	5–10 meters
Cost	Medium
Tamper Resistance	Medium to High

---

License Plate RFID Tags: Built for Higher Security

Some parking projects don’t just want identification.

They want stronger vehicle binding.

License plate RFID tags are physically attached to the vehicle registration plate, making unauthorized transfer much more difficult.

They’re increasingly seen in:

• Government facilities
• Corporate campuses
• Secure industrial parks
• Customs checkpoints

One advantage isn’t always mentioned in brochures.

When the RFID tag and the physical license plate stay together, security personnel can verify both much faster.

Of course, installation usually takes longer than a windshield sticker.

---

Typical Features

Item	Description
Installation	License plate
Lifespan	5–10 years
Reading Distance	6–10 meters
Cost	Medium to High
Tamper Resistance	Excellent

---

Hang Tags: Simple, Flexible, but Not Always Reliable

Hang tags are often used where vehicles change frequently.

Visitors.

Temporary contractors.

Hotel guests.

Rental vehicles.

The tag simply hangs from the rear-view mirror.

No permanent installation.

No adhesive.

No special tools.

That flexibility is useful, although it creates another issue.

Drivers don’t always hang the tag in exactly the same position.

Sometimes it’s upside down.

Sometimes it’s hidden behind decorations.

Sometimes it ends up in the glove compartment altogether.

Those small variations explain why hang tags usually show more inconsistent reading performance than fixed tags.

---

Typical Features

Item	Description
Installation	Hanging from mirror
Lifespan	Reusable
Reading Distance	4–8 meters
Cost	Low
Tamper Resistance	Low

---

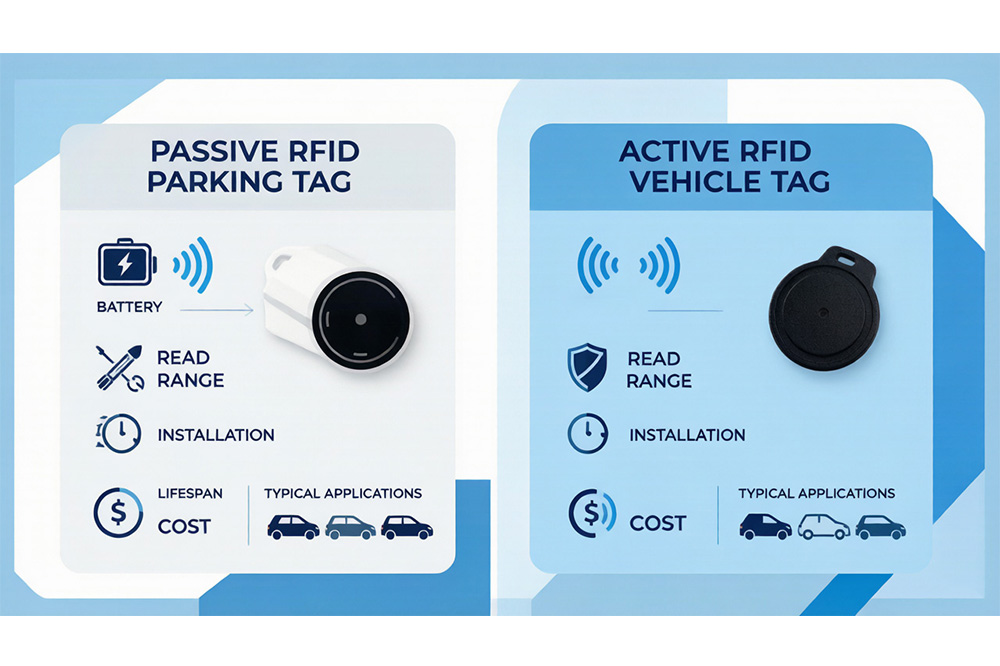

Active RFID Tags: Longer Range, Higher Cost

Active RFID tags contain an internal battery.

That immediately changes how the system behaves.

Reading distance becomes much longer.

Detection is generally faster.

Signal stability improves in large outdoor areas.

They’re commonly selected for:

• Airports
• Mining sites
• Container terminals
• Logistics parks
• Military facilities

Still, active RFID isn’t automatically the better option.

Batteries eventually need replacement.

Maintenance planning becomes part of the project.

For smaller residential parking lots, passive UHF rfid tags usually offer a much better balance between cost and performance.

---

Typical Features

Item	Description
Installation	Windshield or vehicle body
Lifespan	3–7 years (battery dependent)
Reading Distance	20–100 meters
Cost	High
Tamper Resistance	High

---

Installation Matters More Than Many Buyers Expect

During product demonstrations, tags are often installed perfectly.

Real parking lots tell another story.

We’ve seen tags placed:

• behind metallic window film
• under GPS devices
• beside dash cameras
• underneath ceramic coatings
• too close to metal frames

Every one of those decisions can reduce performance.

Sometimes only slightly.

Sometimes enough for drivers to stop directly in front of the barrier.

That’s why experienced installers usually provide a placement guide together with the tags rather than simply shipping the products.

---

Which RFID Parking Tag Fits Your Project?

Instead of asking, “Which tag reads the farthest?”, a better question might be:

“What kind of vehicles will use this parking system every day?”

If vehicles rarely change, windshield tags are usually the most economical solution.

If security comes first, license plate tags deserve serious consideration.

For visitor management, hang tags make daily operation easier.

Large industrial sites may justify active RFID despite the higher initial investment.

Different projects naturally lead to different answers.

---

A Few Things Procurement Teams Should Check Before Ordering

Beyond price, buyers often compare several practical details:

• Is the tag EPC Gen2 compatible?
• Does it support custom printing or laser marking?
• Is tamper detection available?
• Can the EPC number be pre-programmed?
• Will it work with existing RFID readers?
• Can OEM branding be added?
• Is the adhesive suitable for hot climates?

Those questions tend to become much more important after installation than during quotation.

---

Looking Beyond the Tag Itself

A parking RFID tag doesn’t work alone.

Reader performance, antenna alignment, controller response time and installation quality all influence the final reading distance.

In many successful projects, choosing the right combination proves more valuable than selecting the most expensive component.

That balance is usually what keeps a parking system running smoothly long after the opening ceremony.

---

Call to Action

Whether you’re developing a residential parking platform, an industrial vehicle management system, or a multi-site access control solution, selecting the right RFID tag is just as important as choosing the reader.

CYKEO supplies a complete range of UHF RFID parking tags, including windshield tags, headlight tags, license plate tags, hang tags, and active RFID vehicle tags. We also provide OEM/ODM customization, EPC encoding, logo printing, SDK-compatible testing, and engineering support for system integrators, parking solution providers, and distributors worldwide.
