RFID Antenna Installation Guide: Best Practices for Industrial Environments

2025-05-06Cykeo News RFID Industry Information 9660

Installing RFID antennas in industrial environments is like threading a needle while riding a rollercoaster—precision matters, but chaos is inevitable. From metal-clad warehouses to vibrating assembly lines, industrial settings demand a tactical approach to antenna placement. Here’s how to nail your installation and avoid costly do-overs.

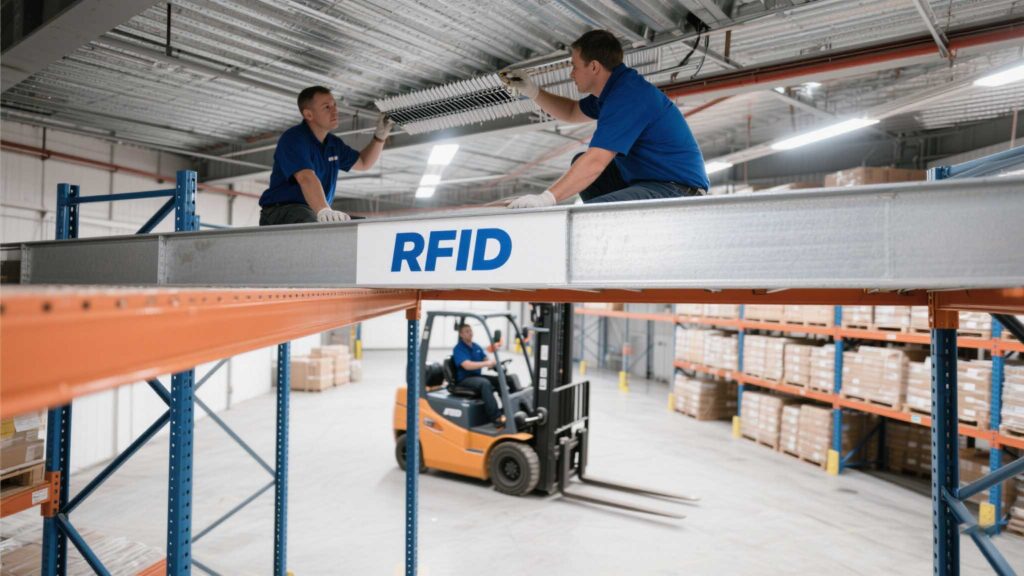

Technician installing an RFID antenna on a warehouse ceiling, with forklifts passing below.

1. Pre-Installation Site Analysis: Map the Battlefield

Before mounting a single bracket, answer these questions:

Metal Density: Are there machinery, racks, or beams that could block or reflect signals?
Tag Paths: How do assets move? Forklift routes, conveyor belts, and doorways dictate antenna sightlines.
Noise Sources: Identify nearby equipment emitting RF interference (e.g., microwaves, wireless routers).

Tool Tip: Use a spectrum analyzer to detect “dead zones” and competing frequencies.

2. Antenna Selection: Industrial-Grade or Bust

Not all antennas survive factory life. Prioritize:

IP Ratings: IP67 or higher for dust/water resistance in food processing or outdoor yards.
Temperature Tolerance: -40°C to 85°C ranges for foundries or cold storage.
Vibration Resistance: Shock-mounted brackets prevent loosening in high-vibration zones.

Case Study: A Cykeo ruggedized antenna in a cement plant endured 2+ years without failure, despite constant dust storms.

3. Positioning for Maximum Coverage

Golden Rules:

Height: Mount UHF antennas 3–6 meters high for dock doors; lower (1–2m) for conveyor belt item-level reads.
Angle: Tilt antennas 15–30° downward to focus energy on tagged items.
Spacing: Separate antennas by ≥3 meters to avoid signal overlap (or use directional antennas).

Pro Tip: For portals (e.g., dock doors), install antennas on both sides of the entryway at 45° angles for cross-polarization.

4. Conquering Metal Interference

Metal reflects RFID signals, creating blind spots and ghost reads. Solutions:

Anti-Metal Antennas: Use ferrite-loaded antennas or ground-plane models to minimize reflection.
Absorber Materials: Line nearby metal surfaces with RF-absorbent foam or carbon sheets.
Test Iteratively: Move tags through all possible paths to identify reflection-induced dead zones.

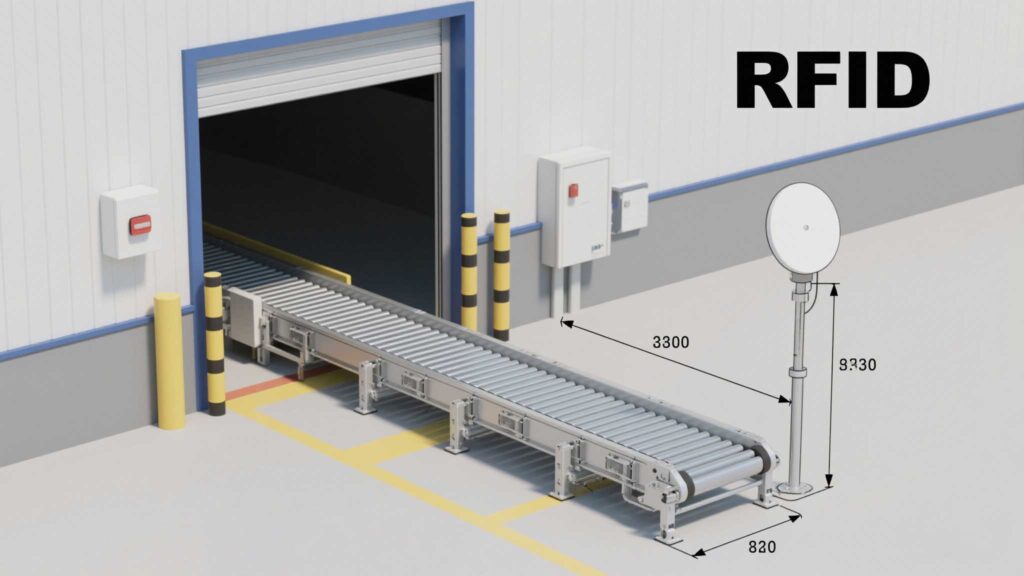

Diagram showing optimal antenna angles and heights for dock door vs. conveyor belt setups.

5. Power and Cable Management

Weak signals often trace back to poor cabling:

Cable Length: Keep under 30 meters to prevent signal loss. Use low-loss LMR-400 or equivalent cables.
Connector Care: Seal connectors with rubber boots to block moisture and dust.
Power Balance: Adjust reader output (e.g., 30 dBm to 33 dBm) if reads are inconsistent, but stay within legal limits.

6. Post-Installation Testing and Calibration

Your work isn’t done once antennas are mounted:

Baseline Test: Scan 100+ tags at various locations/orientations. Aim for ≥98% read rate.
Stress Test: Introduce real-world variables (e.g., forklifts, pallet stacks) to mimic daily chaos.
Fine-Tune: Adjust angles, power, or filters based on weak zones.

Quick Fix: If tags at edges are missed, swap omnidirectional antennas for directional ones.

Cykeo’s Industrial Installation Kits

Cykeo’s pre-configured kits include vibration-dampening mounts and interference-resistant antennas, cutting setup time by 40% for factories.

Costly Mistakes to Avoid

Ignoring Expansion: Leave ports/cable slack for future antenna additions.
Overlooking Maintenance: Schedule bi-annual checks for loose mounts or corroded connectors.
One-Size-Fits-All: Using identical antennas across varied zones (e.g., storage vs. loading areas).

Final Checklist

✅ Performed RF site survey
✅ Chose IP67+/temperature-rated antennas
✅ Angled antennas to target tag paths
✅ Tested with moving assets and interference

Takeaway: Industrial RFID antenna installation isn’t about perfection—it’s about resilience. By planning for chaos and testing ruthlessly, you’ll build a system that thrives where others fail.
