Hospital Parking System Using RFID: An Integrator’s View

From a system integrator’s perspective, a hospital parking system using RFID rarely goes exactly according to the original drawings.

Hospitals are active environments. Entrances change, temporary traffic lanes appear, and installation windows are usually short. What looks clean on a layout plan often turns into a compromise on site. Because of that, the RFID hardware itself needs to be flexible, not fragile.

Why Integrators Prefer Modular RFID Hardware

In actual projects, we often use a UHF RC522 RFID module paired with a CK-A5 5dBi RFID antenna instead of a bulky all-in-one reader.

The reason is simple: this combination lets us decide where and how to integrate RFID. The reader module can be placed inside an existing control cabinet or barrier gate housing, while the antenna can be positioned where the radio performance actually makes sense, not just where the device enclosure allows.

This approach aligns well with the experience shared in a fixed RFID reader that actually fits a hospital parking system, where the focus is on adapting RFID hardware to real hospital layouts rather than forcing standard designs onto them:https://www.cykeorfid.com/a-fixed-rfid-reader-that-actually-fits-a-hospital-parking-system/

On-Site Reality: Antenna Placement Matters More Than Specs

In hospital parking entrances, antenna placement usually determines success or failure.

Vehicle speed varies. Some cars stop briefly, others roll through slowly. Nearby metal structures, fences, or even parked vehicles can affect reading performance. A CK-A5 5dBi RFID antenna gives enough directionality to focus on the lane without flooding adjacent areas, which helps reduce misreads.

During installation, we usually adjust antenna angle and height first, then fine-tune the reader parameters. This process matters far more than chasing maximum read distance on a datasheet.

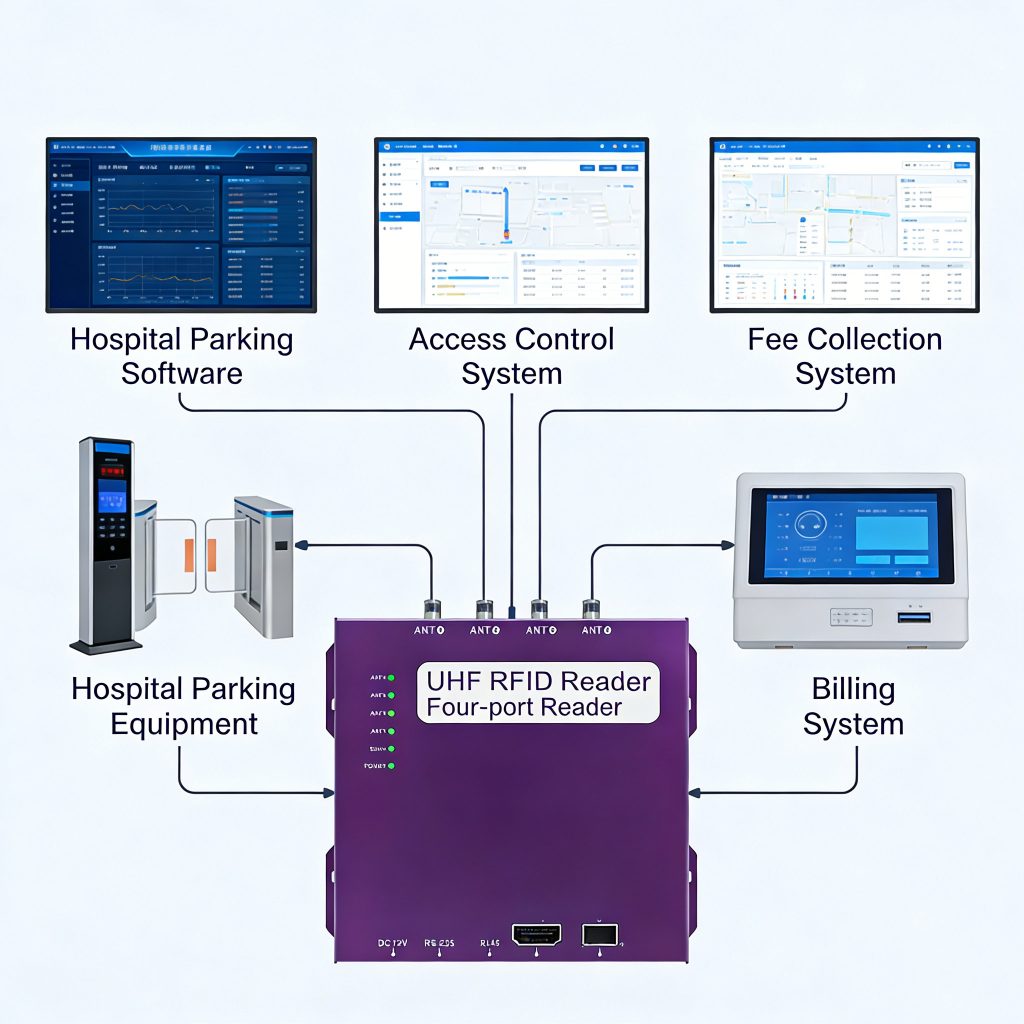

Integration with Parking and Hospital Systems

Once the RFID reading is stable, the next challenge is system integration.

The reader module needs to communicate smoothly with the parking management software, access control logic, and sometimes hospital IT systems. In these cases, modular RFID hardware is easier to adapt. If the control logic changes or the parking software is upgraded, the RFID module can remain in place without redesigning the entire access device.

Like other Cykeo RFID antenna and RFID reader solutions, this setup can be integrated into any environment or product, allowing integrators to maintain consistent RFID management across different hospital projects.

For reference, integrators can review compatible reader options within Cykeo’s RFID reader category

A Practical Integrator Takeaway

In hospital parking projects, success rarely comes from choosing the most powerful reader. It comes from choosing hardware that tolerates change.

From an integrator’s point of view, a reader module combined with a properly selected antenna provides the freedom to adapt to real site conditions, adjust during commissioning, and support future modifications without rebuilding the system from scratch.

That flexibility is often what keeps a hospital parking RFID system working long after the project handover is complete.
