High Performance module rfid for Industrial Tracking

Question: What is a module rfid and why is CYKEO-M4L suitable for industrial RFID applications?

Answer: module rfid is a compact UHF RFID reader module that supports EPC Gen2 protocols, delivers up to 33dBm output power, reads over 400 tags per second, and enables reliable long-range identification for logistics, manufacturing, and asset tracking systems.

Why Choose the CYKEO-M4L module rfid?

In practical RFID deployments, the biggest challenge is rarely reading a single tag. The real test comes when hundreds of tags enter the RF field simultaneously.

The CYKEO-M4L module rfid was designed specifically for these demanding environments. It integrates the RF front-end, baseband processing unit, and anti-collision algorithms into a compact module that can be quickly integrated into industrial devices, kiosks, smart cabinets, automated production lines, and logistics systems.

Key Features

Feature	Specification
RFID Protocols	ISO18000-6C / EPC C1G2
Additional Protocol Support	ISO18000-6B
Output Power	Up to 33dBm
Power Adjustment	1dBm Steps
Reading Mode	Fixed Frequency / Frequency Hopping
Multi-Tag Reading	400+ Tags per Second
Firmware Upgrade	Supported
Tag Filtering	Supported
Anti-Collision	Supported

Real-World Performance of module rfid Systems

Having worked on RFID deployments for warehouse automation and returnable asset management, one observation appears repeatedly: stable read accuracy matters more than theoretical read distance.

The CYKEO-M4L module rfid performs particularly well in dense tag environments because it supports advanced anti-collision mechanisms defined within EPC Class 1 Gen 2 standards.

According to the official specifications published by the RFID industry standards organization GS1, EPC Gen2 technology was developed specifically to improve large-scale tag identification efficiency and reliability in supply chain environments.

In field deployments, frequency hopping capability often helps reduce interference from nearby RF equipment, resulting in more stable read rates during peak operational periods.

Typical Applications for module rfid

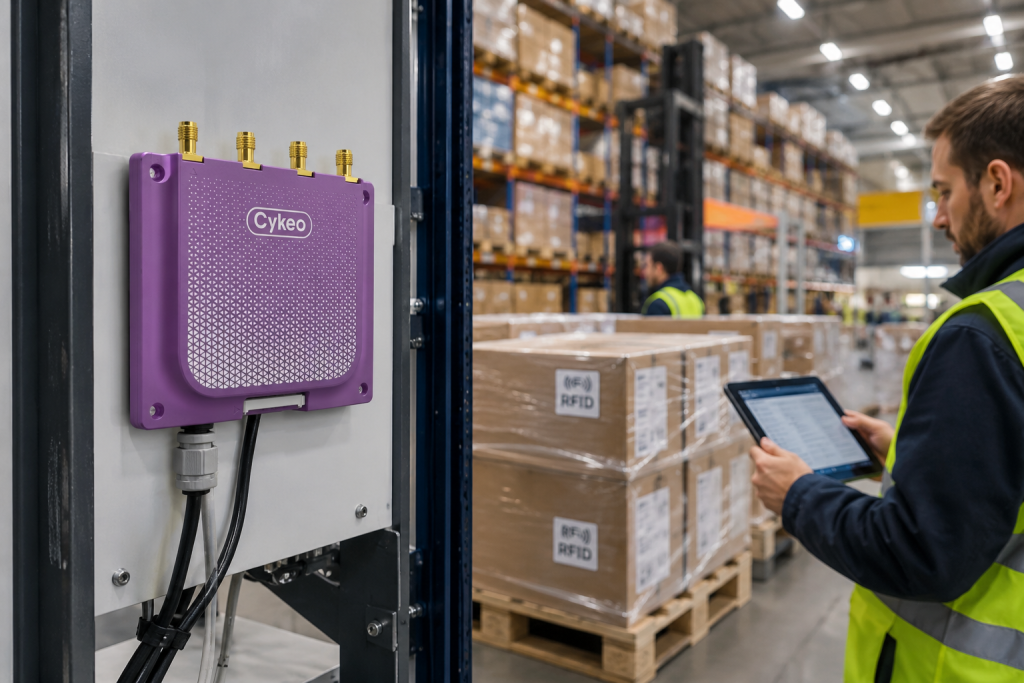

Warehouse Management

The module rfid can be integrated into:

• Smart shelves
• Warehouse portals
• Automated inventory stations
• Pallet tracking systems

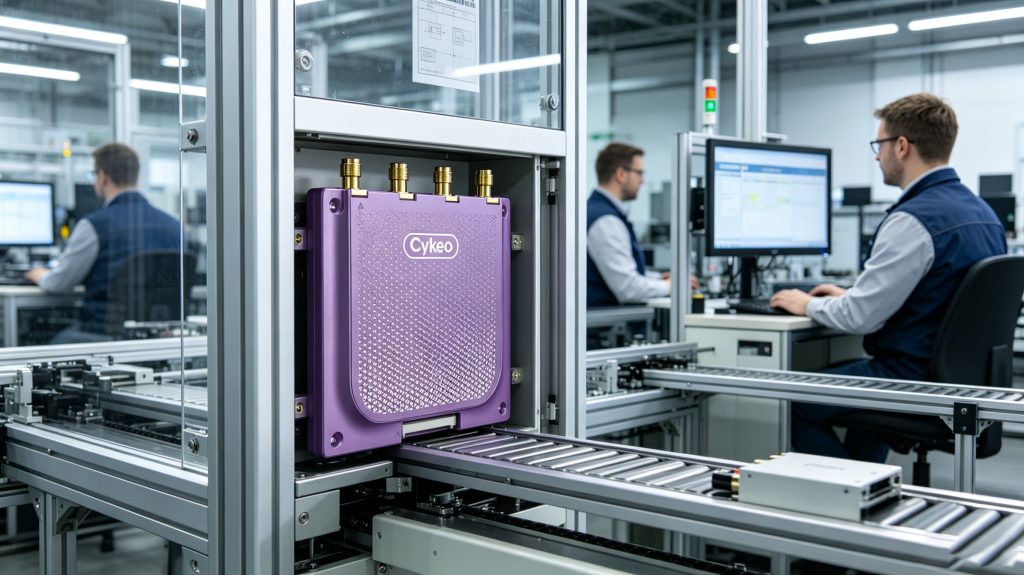

Manufacturing Automation

Factories use RFID modules to:

• Track work-in-progress materials
• Monitor production flow
• Identify tooling assets
• Automate quality control checkpoints

Asset Management

Organizations managing thousands of assets benefit from:

• Real-time location tracking
• Faster inventory audits
• Reduced manual scanning
• Improved asset visibility

Protocol Compatibility and Flexibility

One reason engineers select the CYKEO-M4L module rfid is protocol flexibility.

Supported standards include:

• ISO 18000-6C
• EPC Class 1 Generation 2
• ISO 18000-6B
• Expandable support for GB/T 29768-2013

Firmware upgrade capability provides additional protection for future deployments. Instead of replacing hardware when protocol requirements evolve, users can update firmware to extend functionality.

This significantly lowers total ownership costs in long-life industrial installations.

Output Power and Reading Performance

The CYKEO-M4L provides up to 33dBm RF output power with 1dBm adjustment increments.

This fine-grained control allows engineers to optimize:

• Reading distance
• Coverage area
• Power consumption
• Regulatory compliance

According to RFID Journal, reader power tuning is one of the most effective methods for improving RFID system accuracy while reducing unwanted reads in complex environments.

In practical testing environments, properly tuned output power often delivers more reliable results than simply operating at maximum RF power.

FAQ About module rfid

How many tags can the CYKEO-M4L read?

The module supports high-speed anti-collision processing and can identify more than 400 tags per second under suitable deployment conditions.

Can the output power be adjusted?

Yes. Output power is adjustable in 1dBm increments up to 33dBm.

Does it support EPC Gen2?

Yes. The module fully supports ISO18000-6C / EPC Class 1 Gen 2 standards.

Can firmware be upgraded?

Yes. Firmware upgrade functionality is supported to accommodate future protocol and feature expansion.

What industries commonly use this module rfid?

Common applications include warehousing, logistics, manufacturing automation, asset management, smart cabinets, retail inventory systems, and industrial IoT devices.

Expert Perspective

As RFID deployments continue expanding across Industry 4.0 and smart logistics projects, the difference between a successful installation and a problematic one often comes down to reader stability, protocol compatibility, and multi-tag performance.

The CYKEO-M4L module rfid combines these requirements in a compact form factor. Its support for EPC Gen2 standards, dense-reader environments, adjustable RF power, and firmware scalability makes it a practical solution for engineers building reliable RFID-enabled products.

For organizations seeking dependable UHF RFID performance without complex integration requirements, the CYKEO-M4L rfid module rfid provides a proven foundation for scalable identification systems.
