Custom RFID: Why Integrators and Buyers Are Turning to Tailor-Made Solutions

If you’ve spent any time in the RFID world, you probably know the feeling. On paper, standard tags, readers, antennas, and modules cover a lot of ground. But the moment you try to deploy them in the real world—well, things get tricky. Tiny spaces, odd shapes, extreme conditions, branding demands, strict certifications… suddenly, standard just doesn’t cut it. That’s where custom RFID comes in. And to be honest, it’s not just a fancy option—it’s often what makes or breaks a project.

Why Go Custom Instead of Standard?

Look, standard stuff is fine for 80% of cases. But in the other 20%, you’ll run into problems. I’ve seen tags that couldn’t survive a cold chain warehouse, wristbands in hospitals peeling off after cleaning, and generic readers that just couldn’t handle metal shelves in industrial setups.

So why customize? Well, a few big reasons:

• Form factor constraints: Some assets or packaging are tiny or oddly shaped. You just can’t slap a standard tag on it.
• Environment and lifespan: Outdoor, high heat, humidity, chemical exposure, vibration, metal interference… standard materials often fail.
• Performance optimization: Maybe you need a tag that reads consistently in a dense multi-tag environment, or at a very specific distance.
• Branding and function integration: Sometimes clients want logos, serial numbers, QR codes, even embedded sensors for temperature, pressure, or switches. Looks good, works smart.
• Compliance and certification: Aerospace, medical, defense—sometimes you have to meet strict standards. Standard tags won’t always cut it.
• Security and anti-counterfeit: Encryption, tamper-proof designs, anti-clone—yeah, that usually needs custom work.

Basically, customization is about making RFID fit the situation, not bending the situation to fit the product. And honestly, it usually ends up saving money and headaches down the line.

What Can Be Customized?

Here’s where people often think “tags only,” but no. It’s broader. And trust me, if you don’t consider everything, you’ll hit surprises later.

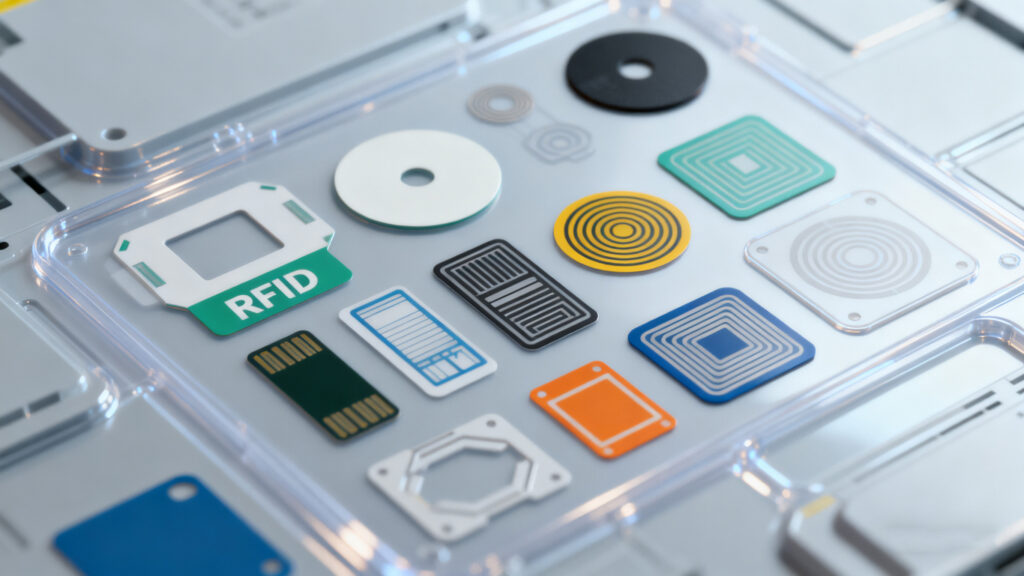

• RFID tags, inlays, antennas – size, shape, substrate material, antenna design, metal compatibility, frequency band (LF/HF/UHF), chip type, interference handling… the works.
• Tag housings – plastic, ceramic, epoxy, metal, flexible labels, hard cards, embedded options… whatever fits your asset.
• Printing and marking – logos, barcodes, QR codes, human-readable text, laser etching, silk-screening… durability matters.
• Data encoding and personalization – EPC, memory partitioning (user area, TID area), password protection, UID/serial numbers, batch control. Accuracy and repeatability here are key.
• Antennas, readers, front-end modules – dimensions, power, interface type (UART/SPI/I²C), PCB antenna design, shielding, impedance matching. This stuff affects reliability a lot more than people think.
• Full system or device-level – rugged enclosures, IP rating, interface customization (Ethernet, USB, RS485), firmware tweaks, power management… basically, making it all work smoothly in your environment.

Sometimes you only tweak a few things, like tags plus encoding and printing. Other times, it’s everything—antenna, modules, readers, the whole chain.

What Buyers Really Care About

Custom hardware isn’t just “click order.” It’s about balancing risk, cost, and delivery. Integrators and procurement teams usually have three big questions:

1. Will it actually work in my environment? Don’t just take a spec sheet at face value. Ask, “Will this survive my warehouse, my cold chain, my lab?”
2. How fast can I get it? Custom takes time. Three months lead? Maybe too long.
3. How much will it cost? Custom isn’t automatically expensive, but small batches often carry a higher per-unit cost.

Other things sneak in too: reliability, compliance, security… basically all the stuff that will bite you later if overlooked.

The Customization Process

From my experience, here’s how it usually goes in real projects (and where most people underestimate effort):

1. Requirements and feasibility – You provide asset type, surface, environment, read distance, lifespan, compliance, volume, and budget. Suppliers ideally run feasibility studies or simulations first. Don’t skip this.
2. Prototype / sample testing – Test antenna performance, read distance, interference, durability, printing, encoding. Multiple iterations are normal.
3. Small batch trial – Catch any design flaws early. Maybe the read distance is off, maybe tags peel too easily. Adjust materials, antenna tuning, or encoding.
4. Mass production – Define QC standards, sampling rules, aging tests, environmental stress tests. Make sure encoding and printing are consistent.
5. After-sales and warranty – Clarify defect rates, replacement policy, spare stock, and support in case a batch underperforms.
6. Cost trade-offs – Design, mold, and testing fees add up. Volume helps spread the cost. Contracts can lock supply and prices for long-term projects.

Picking the Right Supplier

Not all vendors are equal. You’ll want to check:

• Antenna and RF design capabilities
• Materials and packaging experience (high-temp, chemical, metal-compatible)
• Lab testing capacity (vibration, humidity, aging, temperature)
• Printing and marking durability
• Encoding, locking, encryption support
• QC process and defect management
• Production capacity and delivery reliability
• Certification support (IP, UL, RoHS, MIL-STD)
• Communication and responsiveness

Basically, you want a partner, not just a vendor.

Real-World Scenarios

Some examples where customization really matters:

• Healthcare / labs – survive sterilization, chemicals, tiny surfaces, no interference.
• Airlines / baggage – durable, temperature-resistant, metal-safe, encrypted.
• Heavy industry – vibration, dust, water, rugged housings.
• Automotive – metallic environments need special antennas.
• Retail / fashion – thin, lightweight, branded, hang tags or sewn-in tags.
• Cold chain / agriculture – integrated sensors for temperature/humidity.
• Anti-counterfeit / traceability – unique IDs, encryption, tamper-proof, dynamic validation.

In short, “off-the-shelf” often just won’t cut it.

Risk Management & Practical Tips

Even with clear requirements, custom projects can go sideways. A few tips:

• Start small: prototype, then pilot, then scale.
• Leave some margin in antenna design for real-world variation.
• Test in harsh conditions, not just ideal.
• Check compatibility across multiple reader brands.
• Keep spare tags and modules for field replacement.
• Lock KPIs and acceptance criteria in contracts.
• Track versions carefully—design, batch, and encoding.
• Review supplier material sourcing and backup plans.

Think of customization as a partnership, not a simple purchase.

Bottom Line

Custom RFID isn’t just “different tags.” It’s a system—design, materials, testing, compliance, production, and support all matter. For integrators and buyers, success is about understanding these trade-offs and managing them upfront.

If you get it right, you end up with a system that really fits your needs. Not kinda fits. Really fits. And that, honestly, is what makes custom RFID worth it.
