What is RFID Inlay? RFID Inlays vs Tags vs Labels What’s the Difference

RFID has become everywhere—logistics, retail, asset tracking—you name it. But once you dive in, you’ll see all these terms floating around: inlay, tag, label. They sound similar, but they’re not the same. So, what exactly is an RFID inlay? And how does it differ from a tag or label? Let’s break it down in plain terms.

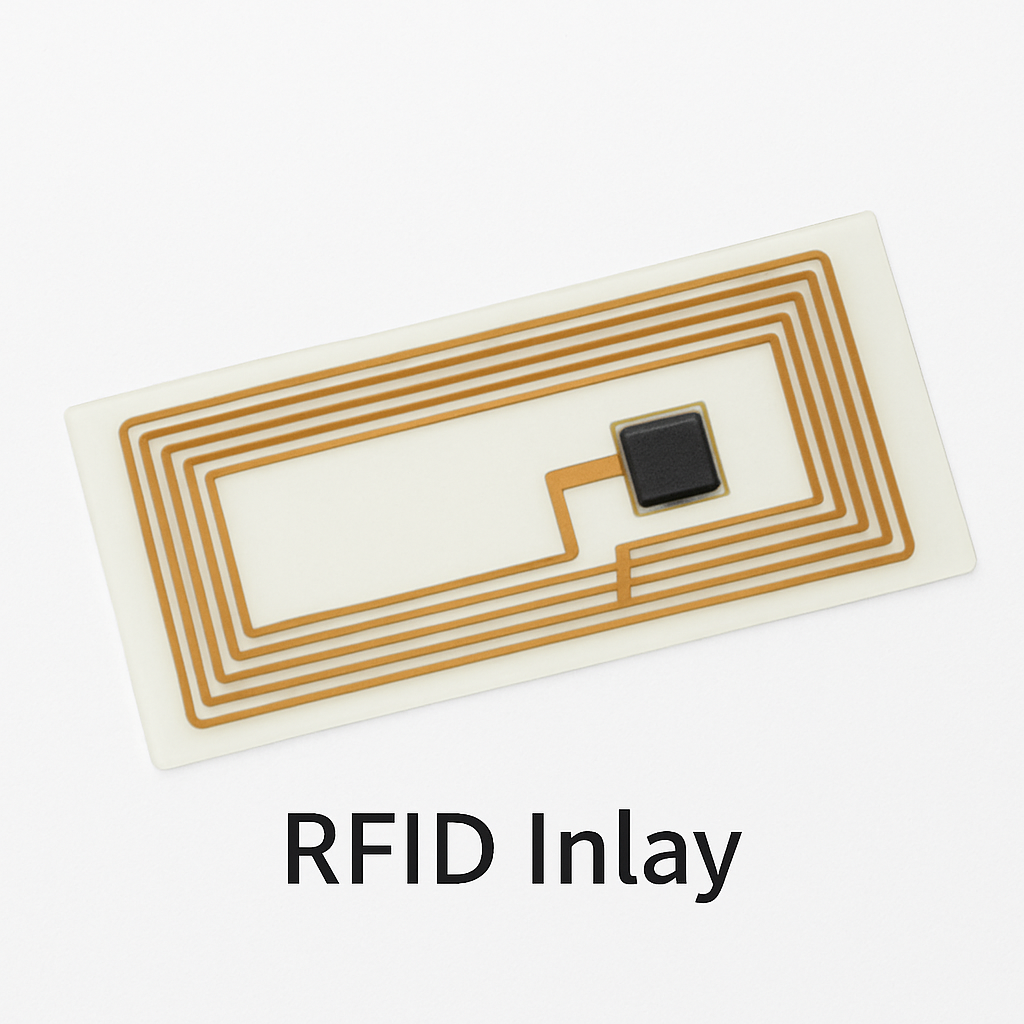

What is an RFID Inlay?

At its simplest, an RFID inlay is the core of any RFID system. It usually has two main parts:

1. The RFID chip – this is where the data lives and gets processed.
2. The antenna – it sends and receives signals to communicate with an RFID reader.

Some inlays come with a thin carrier material to hold everything together. But the key thing is, an inlay is not a finished tag or label. Think of it as the bare bones, the raw component.

Inlays are usually thin and flexible, which makes them easy to embed into packaging, clothing, cards, or labels. But because there’s no protection, they’re fragile. You can’t just slap one on a product and call it a day—they usually need a carrier or protective layer before being put into use.

Depending on what you need, inlays can be:

• Flexible inlays – good for textiles, flexible packaging, or anything bendable.
• Rigid inlays – designed for industrial use, where durability matters.

Bottom line: the inlay is the foundation—without it, tags and labels wouldn’t exist.

RFID Inlays vs Tags vs Labels: What’s the Difference?

Once you understand inlays, it’s easier to see how rfid tags and labels fit in. Many people mix these up, but if you look at their structure and purpose, it becomes clear.

RFID Tag

A tag is basically an inlay that’s been turned into a usable “device.” It usually has a plastic or durable carrier, so you can attach it directly to an item. Tags can be passive (no battery) or active (battery-powered), depending on how far you want to read them. They’re common in industrial asset tracking, outdoor logistics, or any harsh environment.

RFID Label

A label is an inlay embedded in a printable label substrate. This means it does double duty: you can print barcodes, text, or graphics, and it still functions as RFID device. Retail and logistics love labels because you can print info on them and track items at the same time.

How to Decide Between Them

When choosing between inlays, tags, and labels, consider a few things:

1. Integration – if you’re embedding RFID yourself into packaging or products, inlays might be enough. If you want a ready-to-use solution, go for tags or labels.
2. Environment – tags handle rough conditions; inlays and labels may need extra protection.
3. Cost – inlays are cheapest per unit but require extra work; tags and labels are more convenient but pricier.
4. Use case – retail or inventory? Labels are usually ideal. Industrial or outdoor tracking? Tags are better.

Conclusion

Here’s the simple way to look at it:

• Inlay: chip + rfid antenna, the bare core.
• Tag: inlay plus protective casing or substrate, ready to attach.
• Label: inlay plus printable label, lets you print info and track with RFID.

Which one you pick really comes down to your environment, budget, and application needs. Know the difference, and your RFID system will work smoother, faster, and with fewer headaches.
