RFID Hardware Layer in Tool Tracking Systems: Real Industrial Deployment Insights for Metal-Rich Environments

If you only look at system diagrams or product brochures, the RFID hardware layer in a tool tracking system seems fairly straightforward.

You have tags, readers, cabinets, and maybe a few gate systems. Everything looks clean and well organized.

But once you step into a real factory environment, things tend to behave a bit differently.

Metal surfaces everywhere, fast-moving tools, oil, vibration, inconsistent workflows… it’s rarely as controlled as expected.

---

Hardware Layer

From a solution provider or system integrator perspective, the hardware layer is often the part that looks simple on paper but becomes the most sensitive in practice.

Because it directly interacts with the physical environment, not ideal data models.

---

UHF RFID Tags

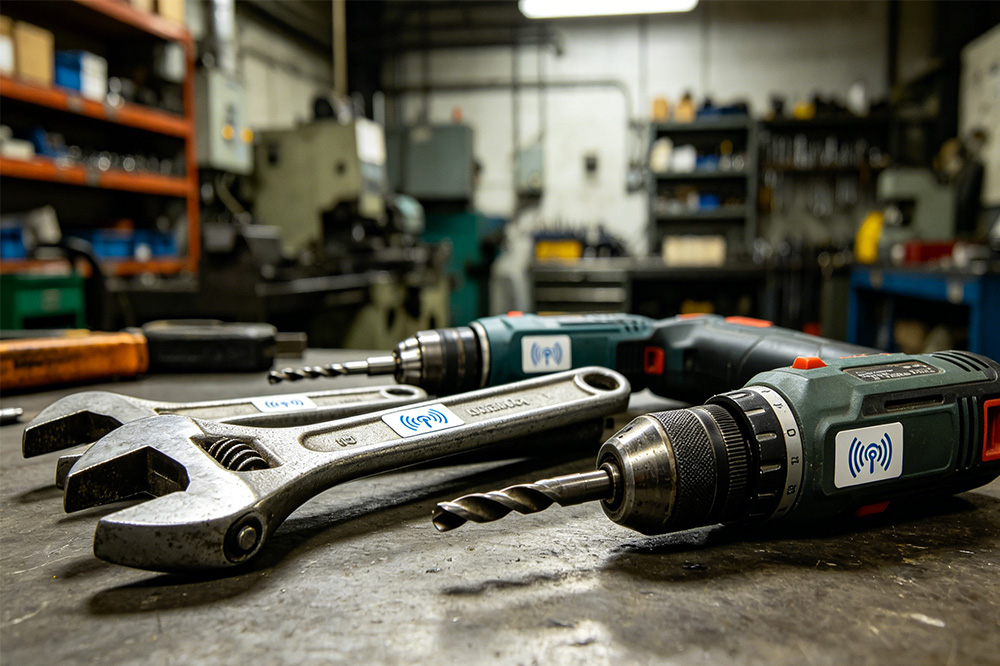

In most industrial tool tracking projects, tools are heavily metal-based:

• wrenches
• drills
• cutting tools
• maintenance equipment

Standard RFID tags usually struggle in these conditions.

So in practice, most deployments rely on:

• UHF RFID metal-resistant tags
• industrial encapsulated tags
• rugged adhesive or rivet-mounted designs

However, even with proper tag selection, performance is not always identical across all tools.

Something you notice in real projects is that:

the same tag can behave differently depending on where and how it is mounted.

That usually leads to on-site adjustments rather than fixed design assumptions.

---

Tool-specific tag packaging

Many teams underestimate this part at first.

The tag itself is rarely the only issue—the real challenge is how it is physically attached.

In real environments, tags must survive:

• oil and grease exposure
• high temperature zones
• mechanical impact
• long-term wear and tear

So in many deployments, tags are not just “stickers” anymore. They become:

• overmolded protective units
• metal-cased RFID tags
• riveted or embedded structures

In some cases, embedding inside the tool is considered, but that usually increases cost and complexity significantly.

---

Multi-scenario RFID reading devices

In real factory deployments, relying on a single type of reader usually creates blind spots.

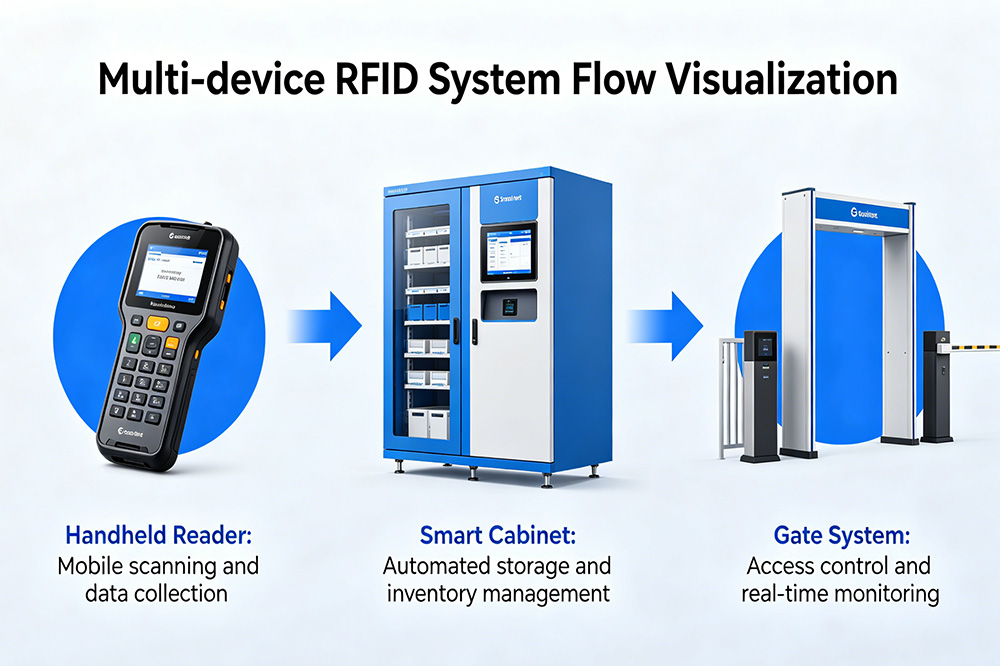

So systems are typically built with a combination of devices:

---

Handheld RFID readers

Used for:

• inventory checks
• exception tracking
• manual verification

They are flexible, but still depend on human operation.

---

Smart tool cabinets / tool stations

In many real projects, this becomes the most stable entry point of the system.

For example Cykeo RFID Smart Tool Cabinet

The reason is not because it is more advanced, but because:

the environment is controlled, so variables are reduced

This makes detection much more stable compared to open environments.

---

RFID gate / tunnel systems

These are typically used at:

• warehouse exits
• production line boundaries
• tool transfer points

They are designed to capture movement events rather than precise positioning.

However, in mixed traffic environments (people + materials), misreads can still happen, so filtering logic is usually required at system level.

---

The real objective is simpler than it sounds

If you remove all technical complexity, the hardware layer has one main goal:

achieve stable enough reading performance in complex metal environments

Not perfect accuracy. Not theoretical coverage.

Just stable, reliable detection in real working conditions.

---

A practical observation from real deployments

Many early-stage projects aim for full automation and full coverage tracking.

But in reality, things usually evolve differently:

• factory environments are more complex than expected
• user behavior is hard to standardize
• RFID is not a perfect sensing technology
• system tolerance becomes more important than precision

So mature systems often rely on:

multiple stable checkpoints instead of one universal tracking method

Such as cabinets, stations, and gate systems working together.

---

Hardware layer defines the upper limit of the system

While software platforms often get most of the attention, in real deployments the hardware layer usually determines:

• system stability
• data reliability
• maintenance cost
• long-term scalability

If tag selection or reader placement is wrong, software improvements can only fix so much.

---
