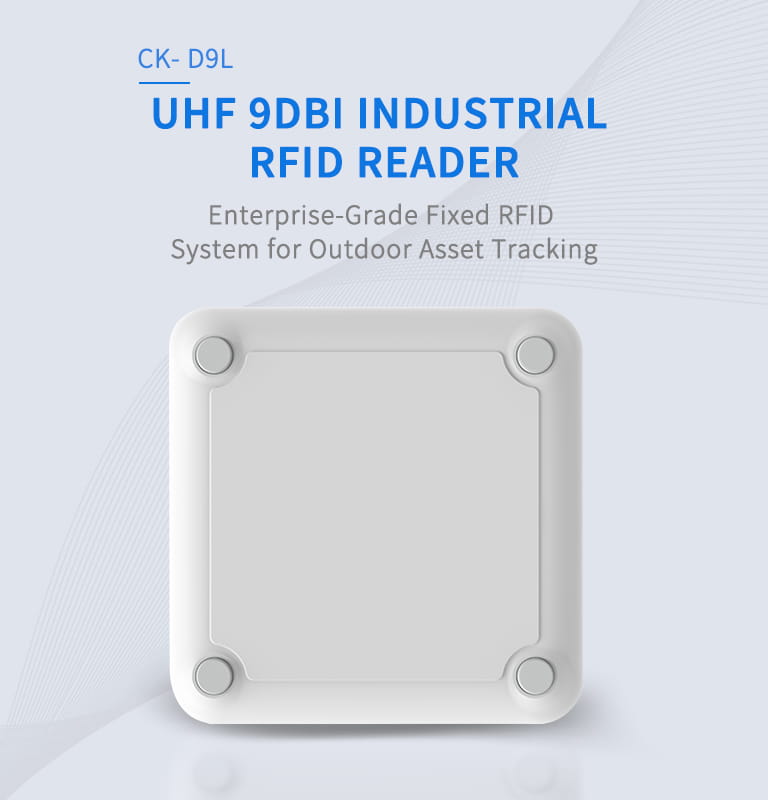

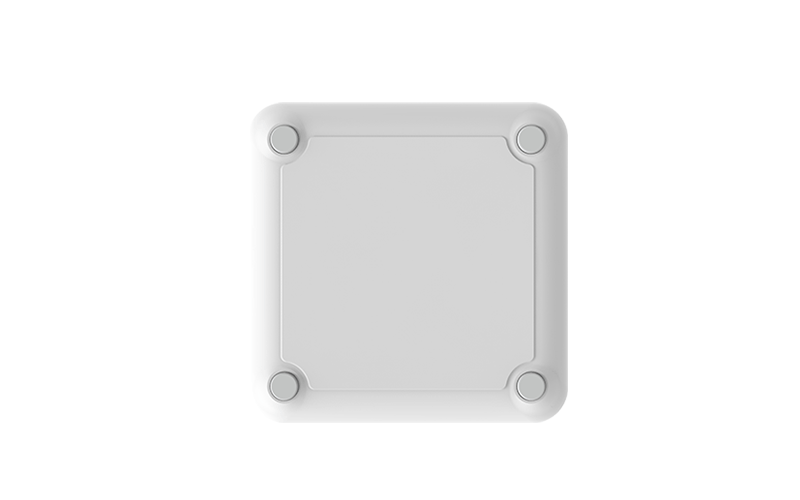

CK-D9L

Long Range RFID Tag Reader – 9dBi Industrial Fixed RFID System

Fixed-Position RFID Solution for Large-Scale Outdoor Asset Identification

✔️ Industrial-Grade Metal Housing

✔️ 20m+ Long Range Tag Detection

✔️ 500+ Tags/Sec High-Speed Inventory

✔️ IP67 Waterproof & Lightning Protection

Talk to an Expert

Email Our Team

MAXIMUM COVERAGE, MILITARY DURABILITY

The CK-D9L Long Range RFID Tag Reader features a 9dBi circular-polarized antenna and 33dBm adjustable power output, enabling reliable identification of assets up to 20 meters. Its all-metal housing with IP67 certification ensures 24/7 operation in harsh outdoor environments. Supports ISO 18000-6C/6B protocols for global compliance.

Essential for large-area RFID deployments: Warehouse gate monitoring, construction equipment yard management, and outdoor container tracking scenarios.

Library Book Labeling

Energy Facility Management

Warehouse Logistics

Retail Item Registration

Health Care

Hotel facility management

Cykeo CK-D9L Long Range RFID Tag Reader Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-D9L FIXED RFID READER

20m Max Read Range

with 9dBi Circular Polarized Antenna

Impinj R2000

Enterprise-Grade RFID Engine

500 Tags/Sec

High-Speed Identification

33dBm Adjustable

Power Output 1dB Steps

IP67

Water/Dustproof Metal Housing

840-960MHz

Wide Frequency Hopping

Multi-Protocol

EPC C1G2, ISO 18000-6B, GB/T29768

C#/Python SDK

NET Integration Support

CK-D9L Long Range RFID Tag Reader Specifications

Main Specifications

ModelCK-D9L
BrandCykeo
Product Name9dBi Long Range RFID Tag Reader

Physical Parameters

Dimensions300*300*26mm
Power Input DC12V/5A

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO 18000-6C/EPC C1G2, ISO 18000-6B, GB/T29768-2013
Reading Range0-20m (EPC Reading), 0-10m (Writing)
RF Power (Port)33dBm±1dBm (Adjustable)
Power Adjustment1 dB step
Interfaces15-Pin Terminal (UART/USB/GPIO)

Operating Environment

Operating Temperature-20°C to +60°C
Humidity10%RH–95%RH (Non-Condensing)
Storage Temperature-40°C to +85°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

LONG RANGE RFID TAG READER FAQS

What is the maximum read range of the LONG RANGE RFID TAG READER, and what factors influence its performance?

The LONG RANGE RFID TAG READER (model CK-D9L) offers an adjustable read range of up to 20 meters under optimal conditions. However, the actual distance depends on several factors:

Output Power: Adjustable from 0–33dBm in 1dB increments, allowing customization for specific environments.
Antenna Type: The integrated 9dBi circularly polarized antenna ensures stable signal transmission and reception, even for moving tags.
Tag Type: Compatibility with ISO 18000-6C/6B, GB/T29768-2013 protocols ensures broad tag support.
Environment: Industrial-grade IP67-rated waterproof/dustproof design and anti-interference features like wide-spectrum frequency hopping enable reliable performance in harsh outdoor conditions (-20°C to 60°C).
For best results, ensure minimal obstructions and configure power settings based on your application’s needs.

How does the LONG RANGE RFID TAG READER handle high-density tag environments?

The CK-D9L excels in high-density scenarios with its advanced anti-collision algorithm and 500+ tags/second read speed. Key features include:

Intensive Tag Filtering: Built-in RSSI (signal strength) detection and data filtering to prioritize specific tags.
Real-Time Data Upload: Supports TCP/IP communication for seamless integration with cloud platforms or local servers.
Low Latency: A 200+ tags/second identification rate ensures rapid inventory management for logistics, warehouses, or retail.
Additionally, its wide frequency range (840–960MHz) and adaptive channel bandwidth (<200kHz) minimize interference in crowded RFID environments.

What industrial applications is the LONG RANGE RFID TAG READER best suited for?

This reader is engineered for demanding industrial and outdoor use cases:

Asset Tracking: Monitor heavy machinery, vehicles, or containers in real-time across large facilities or ports.
Smart Parking/Access Control: Automate vehicle identification at 20m range for hands-free gate systems.
Supply Chain Automation: Streamline inventory audits with batch tag scanning and RS-232/Ethernet connectivity.
Harsh Environments: Its aluminum alloy casing, IP67 protection, and surge/lightning resistance ensure reliability in extreme temperatures (-20°C to 60°C) and humidity (5%–95%).
For developers, the included SDK, API, and firmware upgrade tools simplify customization for niche workflows.
