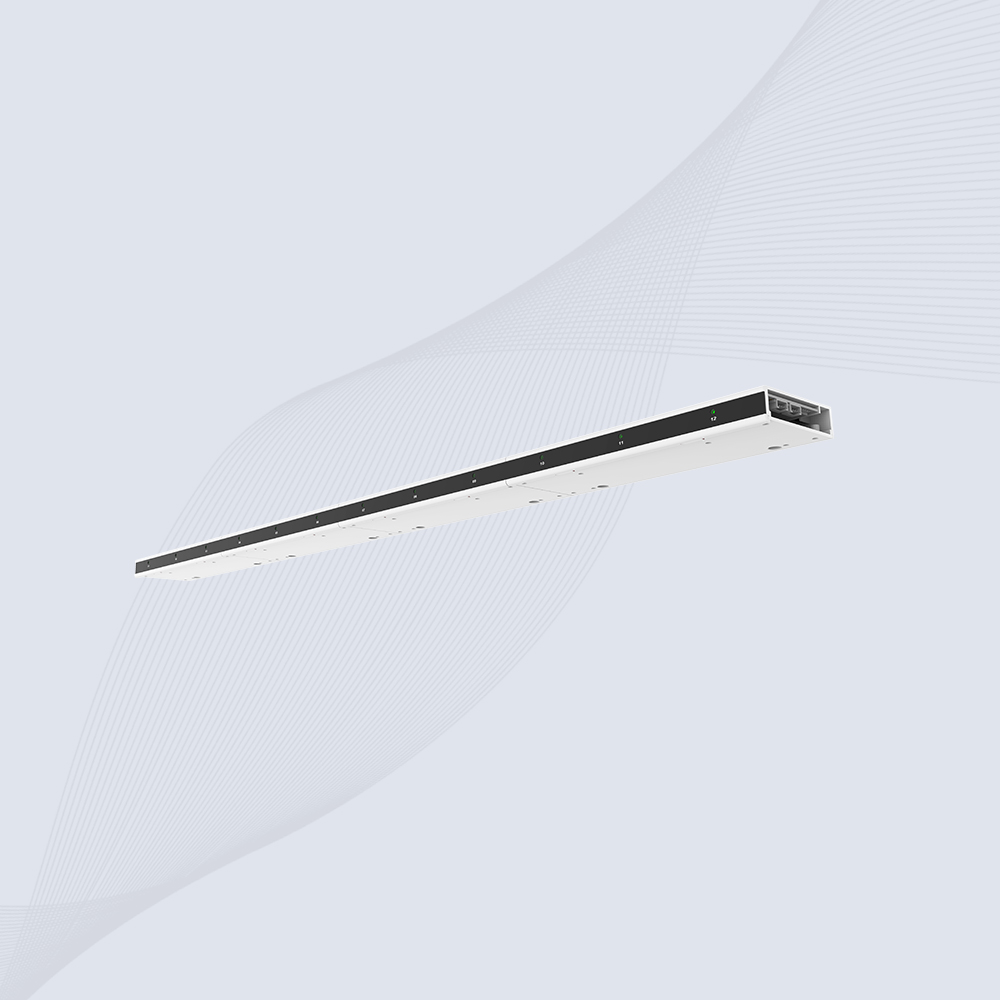

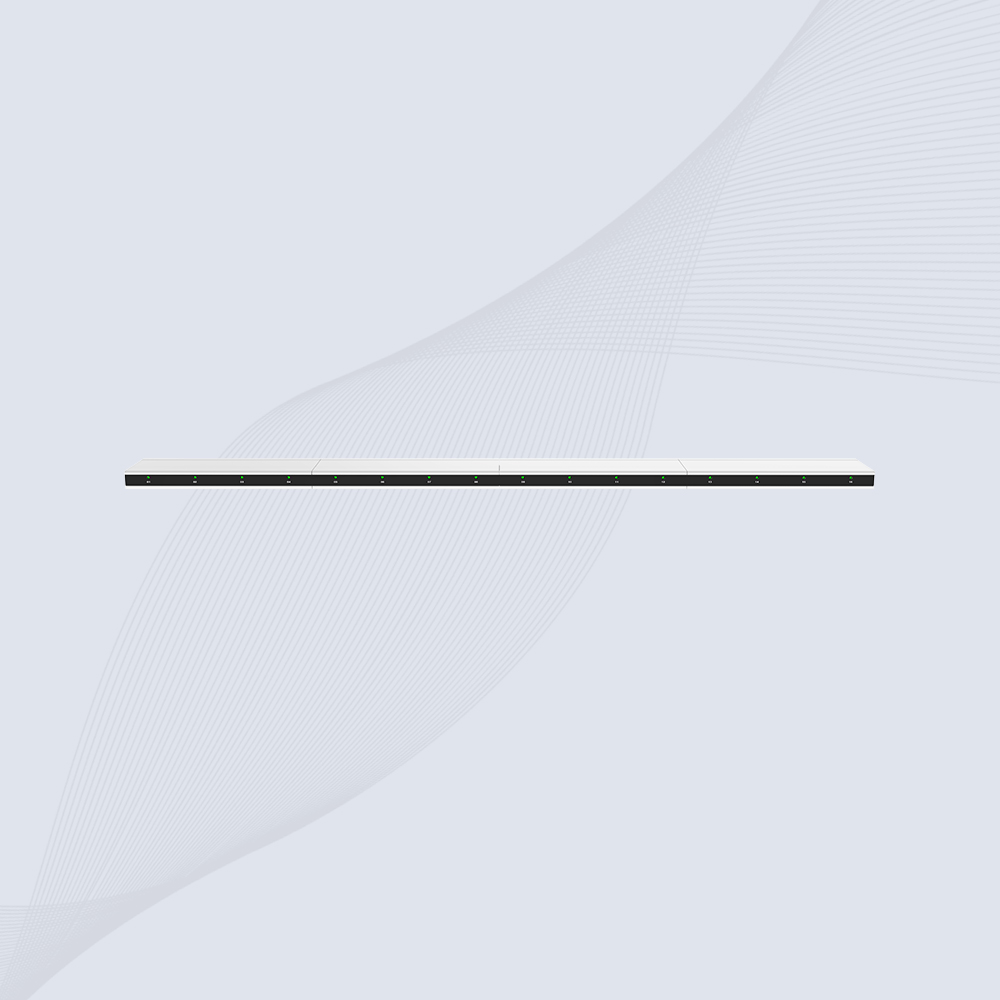

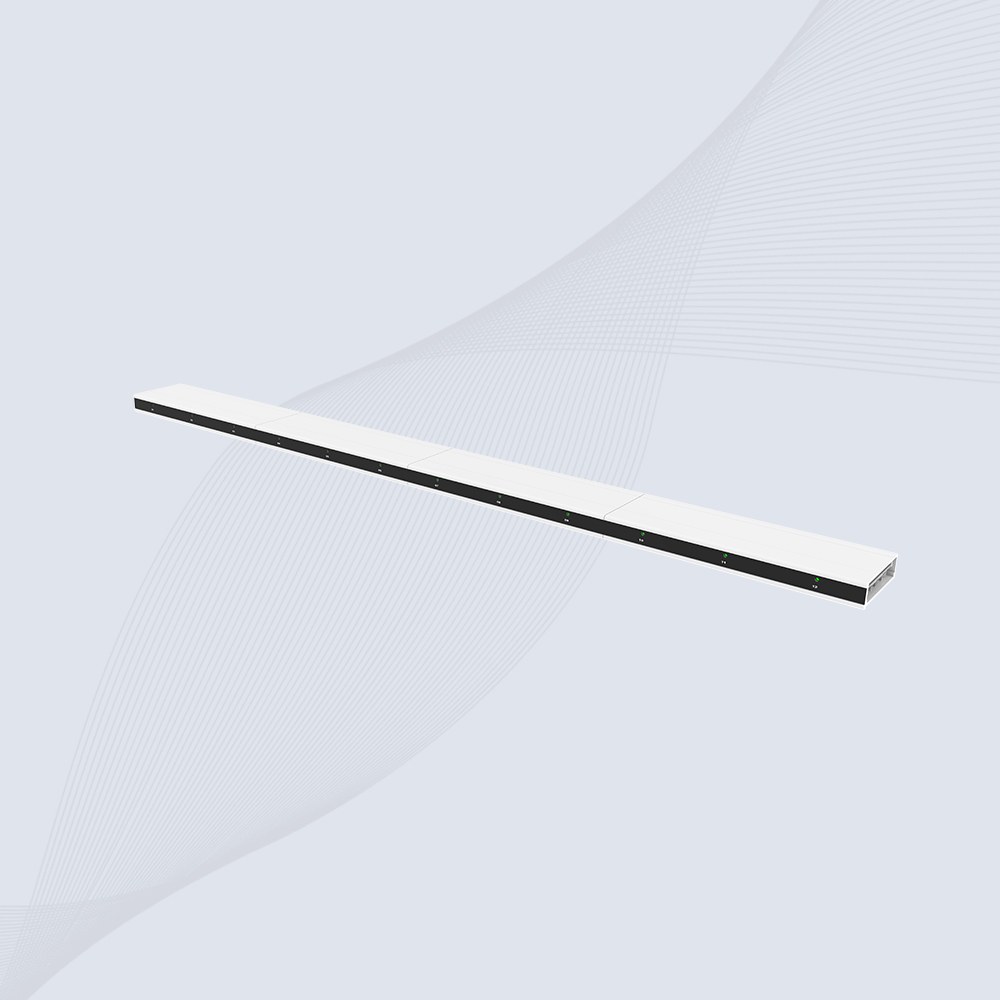

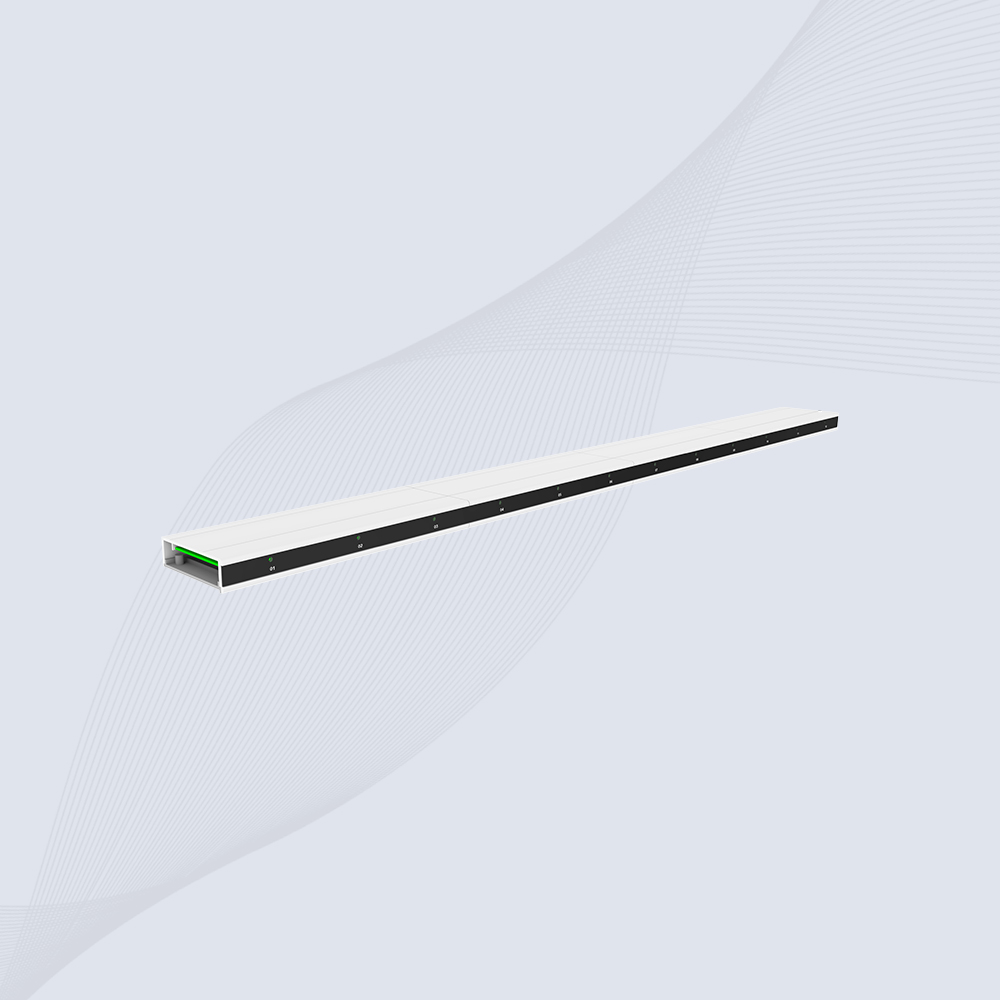

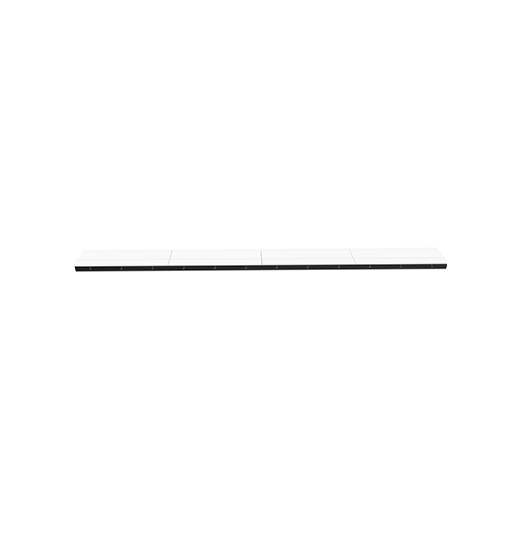

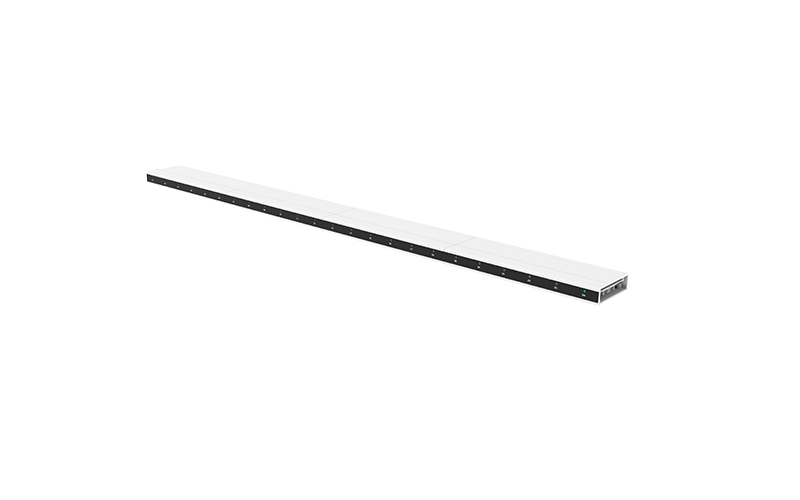

CK-PHF3

Smart HF RFID Antenna

Precision-Tuned 13.56MHz RFID Tracking for Automated Storage Systems

✔️ 13.56MHz HF Precision Targeting

✔️ IP65 Metal-Embeddable Housing

✔️ 24-Point Dynamic Positioning Grid

✔️ ISO 14443A/15693 Multi-Protocol Support

Talk to an Expert

Email Our Team

SMALL FOOTPRINT, BIG DATA REACH

The CK-PHF3 Smart HF RFID Antenna delivers centimeter-level positioning accuracy for archives, books, and critical assets in smart storage systems. Engineered with ISO/IEC 15693 and ISO 14443A protocols, it enables instant tag identification, dynamic tracking, and error-free inventory management. Its compact design integrates seamlessly with RFID shelves, cabinets, and industrial IoT platforms, redefining high-frequency asset visibility.

Ideal for automated document retrieval in archives, library book tracking, medical specimen management, and industrial parts bin monitoring.

Asset management

Library Management

Warehouse Logistics

Pharmaceutical Management

Warehouse pallet tracking

Automobile assembly line

Cykeo CK-PHF3 Smart HF RFID Antenna Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-PHF3 SMART HF RFID ANTENNA

13.56MHz HF RFID Technology

ISO 15693/14443A protocol support for precise shelf-level tagging

24-Point Dynamic Grid Tracking

Blue/green LED indicators for visual location confirmation

ABS+Aluminum Industrial Design

IP65 protection against dust/liquid in archive environments

-40°C~85°C Extreme Tolerance

Stable operation in cold storage and tropical warehouses

Plug-and-Play Shelf Integration

Compatible with 3cm/5cm document boxes

Low VSWR

≤1.5 voltage standing wave ratio

Lightweight Construction

3.5kg aerodynamic profile

Multi-Protocol Ready

Compatible with EPC Gen2/ISO 18000-6C

CK-PHF3 Smart HF RFID Antenna Specifications

Main Specifications

ModelCK-PHF3
BrandCykeo
Product NameSmart HF RFID Antenna

Physical Parameters

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range13.56MHz
Protocol SupportISO 14443A/ISO15693
Positioning lamp pointsBlue and green
Impedance50Ω

Operating Environment

Operating Temperature-40°C~+85°C
Humidity8%–100% RH
Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

Smart HF RFID Antenna FAQs

How Does the CK-PHF3 Smart HF RFID Antenna Achieve 99.9% Accuracy in Library Book Tracking?

Technical Implementation Guide
The CK-PHF3 revolutionizes library RFID systems through three core innovations:

Precision Spatial Mapping: 24-zone detection grid with 3cm resolution identifies book positions on shelves, even when items are tilted up to 45°.
Adaptive Frequency Tuning: Automatically compensates for metal shelf interference (common in compact shelving systems) by adjusting 13.56MHz carrier wave ±150kHz.
Multi-Protocol Support: Simultaneously reads ISO 15693 tags (for inventory counts) and ISO 14443A tags (for patron ID cards) during single scans.

Case Study:
At the National Library of Singapore, deployment of 320 CK-PHF3 antennas resulted in:

Metric	Before	After	Improvement
Inventory Speed	8 hours/section	1.2 hours/section	85% faster
Misplaced Book Alerts	23%	1.8%	92% reduction

What Makes This HF Antenna Suitable for Medical Sample Management?

Life Sciences Compliance & Performance
The CK-PHF3 meets critical requirements for biomedical applications:

Cryogenic Resilience: Maintains <1.5 VSWR at -196°C (liquid nitrogen storage) through specialized PCB material (Rogers 4350B substrate).
Chemical Resistance: IP65-rated housing withstands daily disinfection with:
- 70% ethanol sprays
- Quaternary ammonium compounds
- Hydrogen peroxide vapor
Data Integrity: Implements AES-128 encryption for HIPAA-compliant sample tracking across 8 hospital departments.

Implementation Protocol:

Mount antennas 15cm below freezer lids using medical-grade stainless steel brackets
Configure 5cm read range to prevent cross-tube misreads
Integrate with LIMS via REST API using included SDK

Can This Antenna Support Industrial IoT in Metal-Dense Environments?

Smart Manufacturing Solution
In automotive parts manufacturing with 80%+ metal content, the CK-PHF3 overcomes interference through:

Technical Innovations

Ferrite-Enhanced Coils: 36-turn copper windings with TDK PC95 ferrite cores block eddy currents from nearby machinery.
Dynamic Power Scaling: Auto-adjusts from 0.5W to 4W RF output based on real-time impedance monitoring.
Multi-Antenna Synchronization: Up to 8 antennas can operate in TDMA mode without cross-talk.

Performance in Harsh Conditions:

Environment	Competing Antenna	CK-PHF3
CNC Machine Shop	62% read rate	98.7% read rate
Paint Shop (85% RH)	34% failure rate	0.3% failure rate
Robotic Welding Cell	15cm max range	82cm effective range

Maintenance Schedule:

Monthly: Inspect ferrite layers for thermal degradation
Quarterly: Recalibrate using NFC-enabled tuning card (included)
Annually: Replace anti-corrosion gaskets (part #PHF3-GSK)
