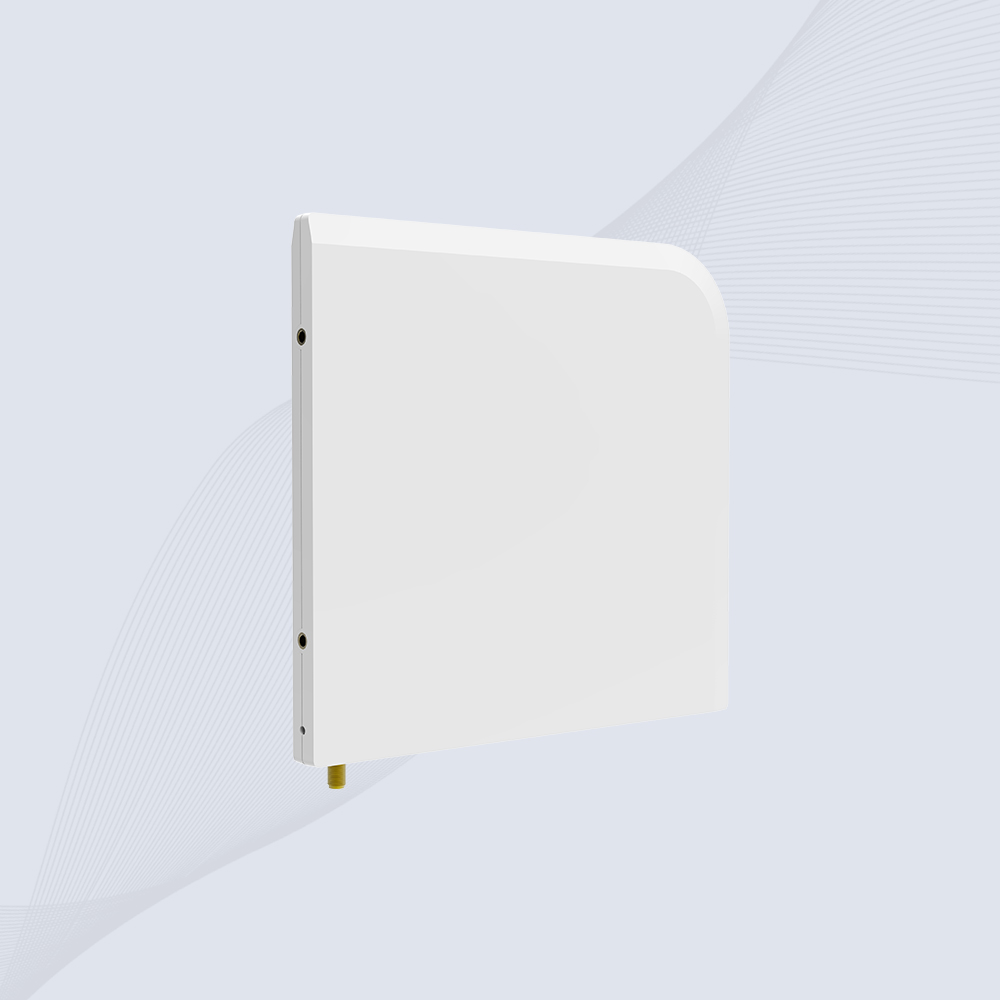

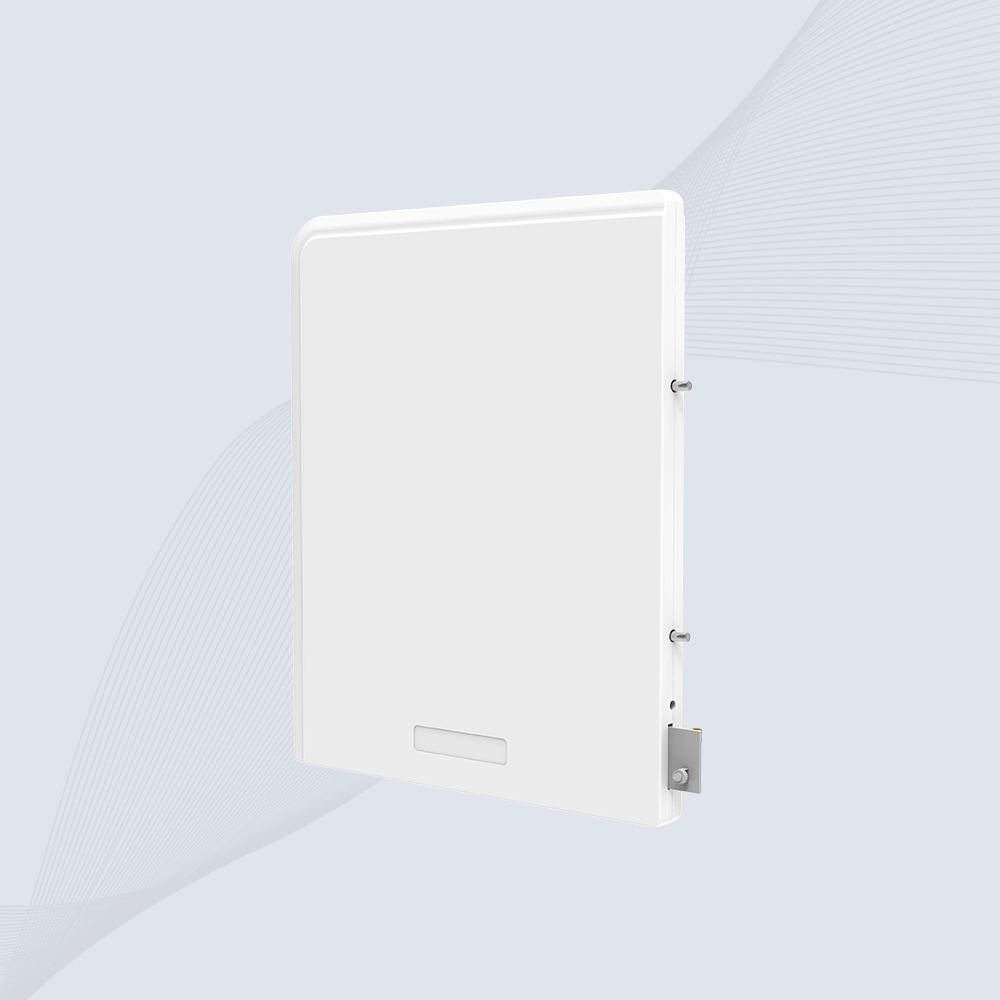

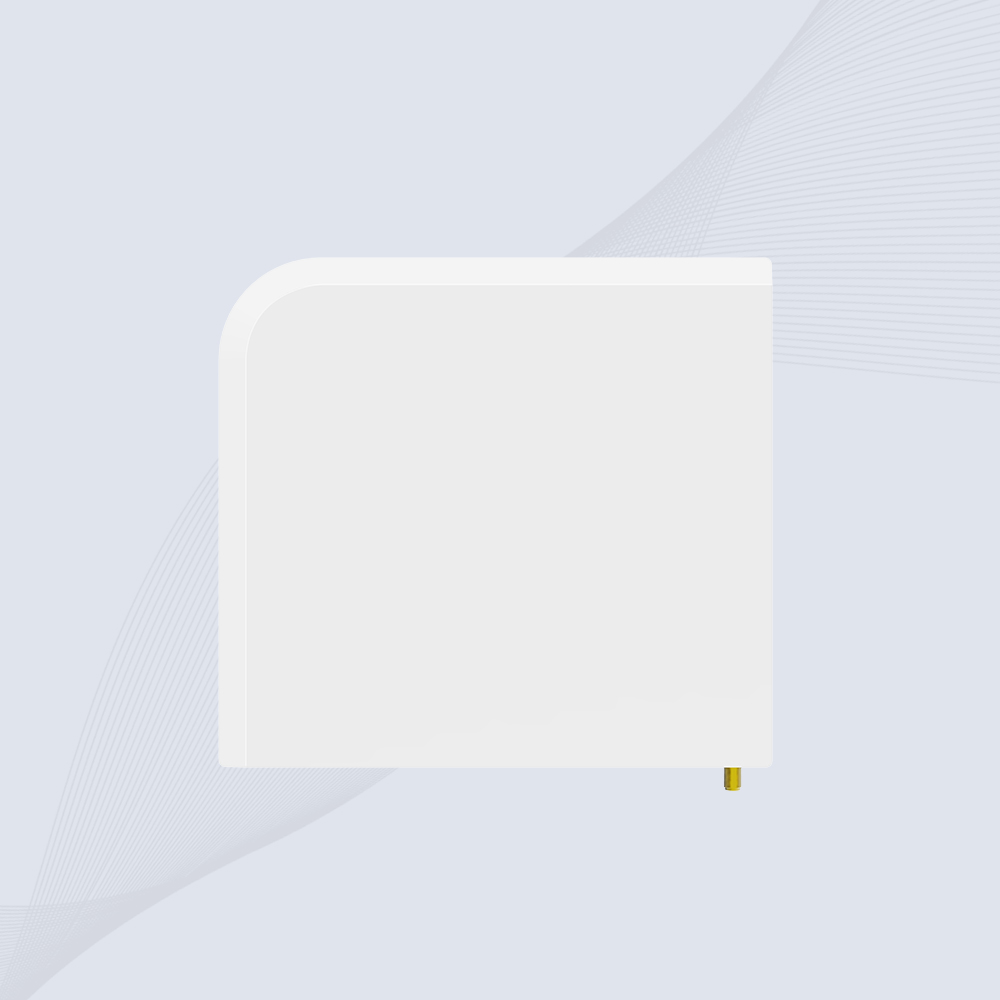

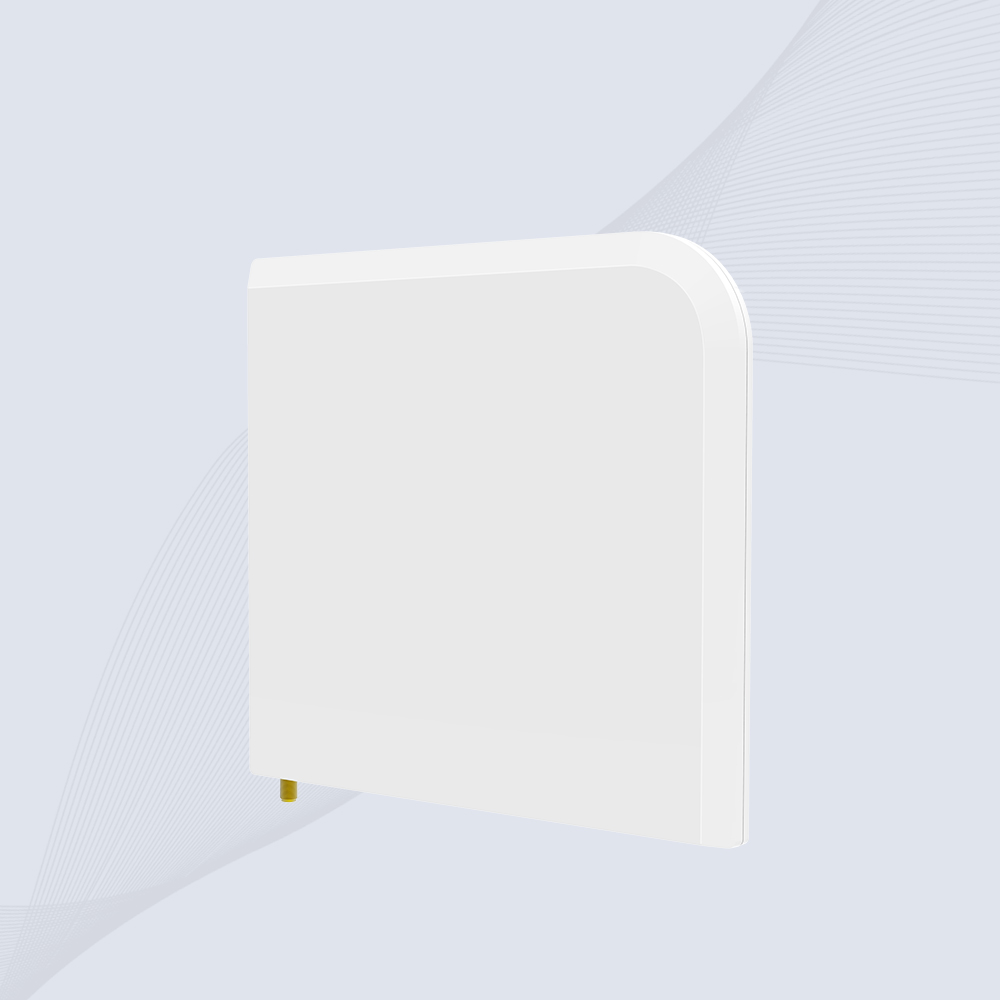

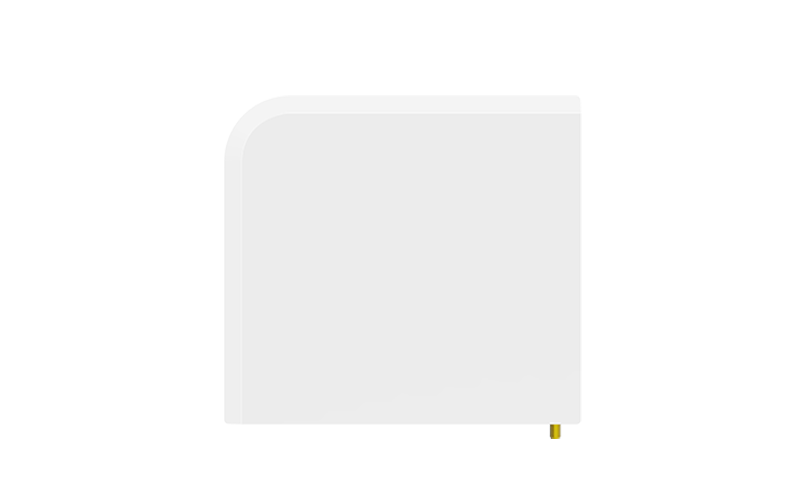

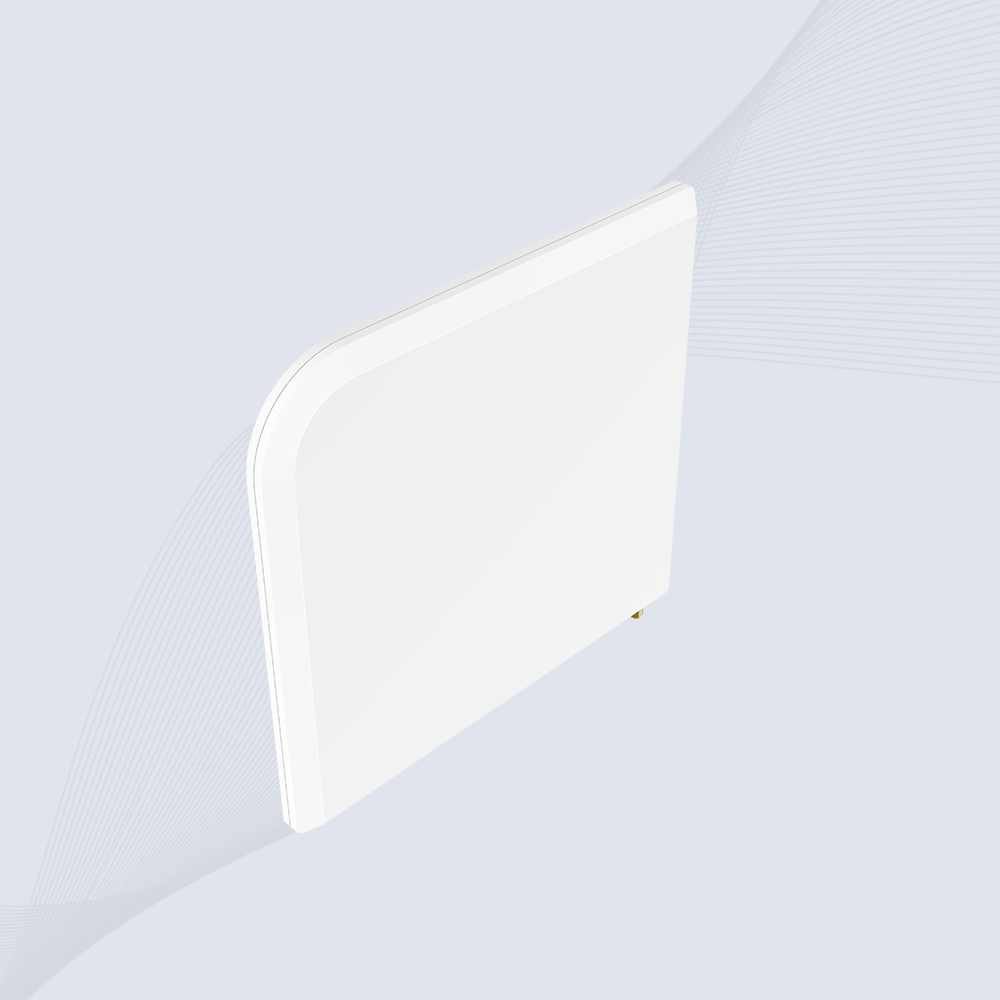

Near Field RFID Antennas (e.g., CK-C5) are engineered to address the challenges of densely packed RFID tags, such as in libraries, pharmacies, or electronics assembly lines. Unlike traditional far-field antennas, which risk cross-reading adjacent tags, near-field technology uses ​​magnetic field coupling​​ to create a precise read zone of ​​5–30 cm​​. This focused energy ensures:

• ​​Zero Cross-Reads​​: Tags outside the target area remain unactivated, critical for shelf systems with <10cm spacing.
• ​​Anti-Collision Efficiency​​: Advanced algorithms process ​​200+ tags/sec​​ without data overlap, ideal for rapid inventory checks.
• ​​Material Penetration​​: Reads through common barriers like glass (up to 8mm) or thin plastics, perfect for retail display cases.

​​Case Study​​:
A European pharmacy chain reduced medication misidentification by 98% by deploying CK-C5 antennas in drug cabinets. Key metrics:

Metallic surfaces and liquids are notorious for disrupting RFID signals, but near-field antennas like the CK-C5 counter this with:

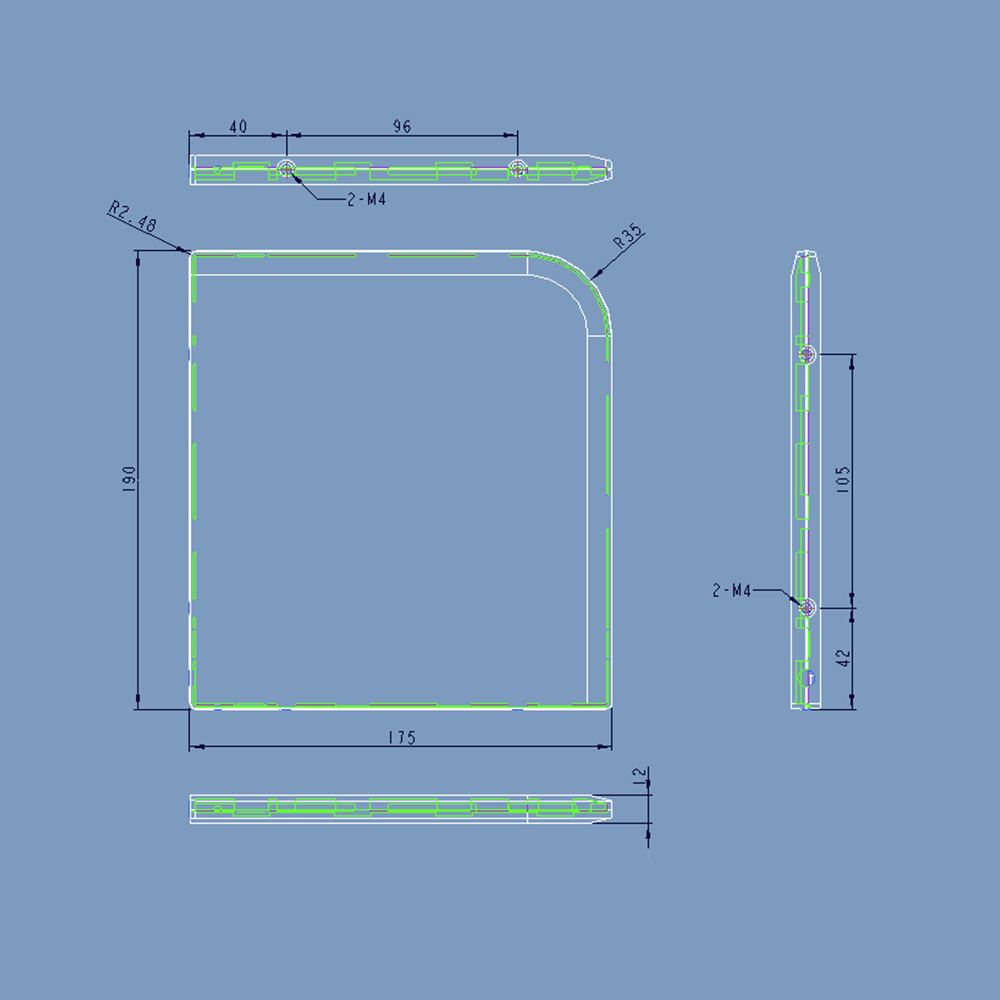

• ​​Shielded Housing​​: A hybrid ​​stainless steel-PCB composite​​ blocks external EMI while maintaining a slim ​​12mm profile​​ for discreet shelf mounting.
• ​​Adaptive Tuning​​: Real-time impedance matching adjusts to metal proximity (0–5mm gaps), sustaining ​​<1.3:1 VSWR​​ even near stainless steel shelves.
• ​​Circular Polarization​​: Minimizes signal nulls caused by reflective surfaces, achieving ​​99.5% read rates​​ on metal-backed tags.

​​Implementation Tips​​:

1. ​​Mounting​​: Use non-metallic brackets (included) to maintain a 5–10mm air gap between the antenna and metal surfaces.
2. ​​Orientation​​: Align the antenna’s ​​45° beamwidth​​ perpendicular to shelf edges for optimal coverage.
3. ​​Maintenance​​: Clean the radome quarterly with isopropyl alcohol to prevent dust buildup affecting signal clarity.

Yes! The CK-C5 is designed for seamless integration into both legacy and modern RFID ecosystems:

• ​​Protocol Support​​: Compatible with ​​ISO 15693 (NFC)​​, ​​ISO 18000-3 Mode 1​​, and ​​EPC C1G2​​, ensuring interoperability with most HF/UHF readers.
• ​​Hardware Interfaces​​:
  • ​​Dual RF Ports​​: SMA and MMCX connectors support daisy-chaining up to 8 antennas for large-scale deployments.
  • ​​GPIO Triggers​​: Automate scans via motion sensors or PLC signals using the built-in 5V TTL input.
• ​​Cloud Connectivity​​: Prebuilt drivers for AWS IoT Core and Microsoft Azure enable real-time data streaming to inventory management dashboards.

​​Integration Example​​:
An automotive parts manufacturer integrated CK-C5 antennas with their legacy Siemens RFID system:

• ​​Step 1​​: Replaced far-field antennas on 50 tool crib shelves with CK-C5 units.
• ​​Step 2​​: Configured Siemens RF660 readers to “near-field mode” via RS-485 commands.
• ​​Result​​: Achieved ​​100% tool check-out accuracy​​ and reduced unplanned downtime by 40%.
