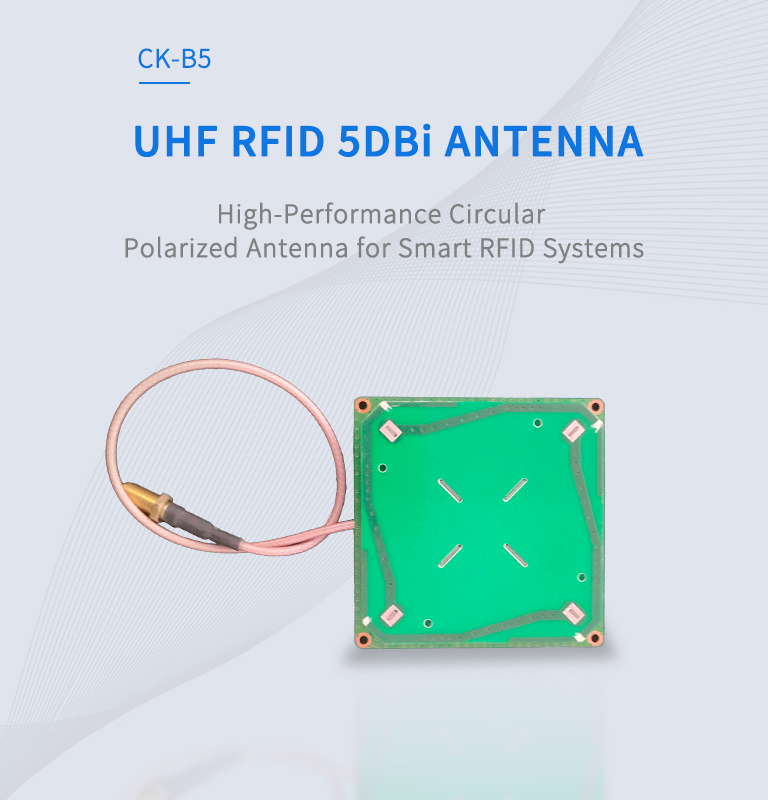

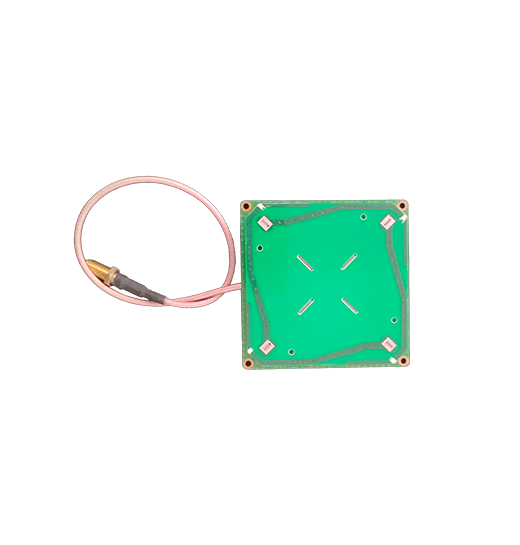

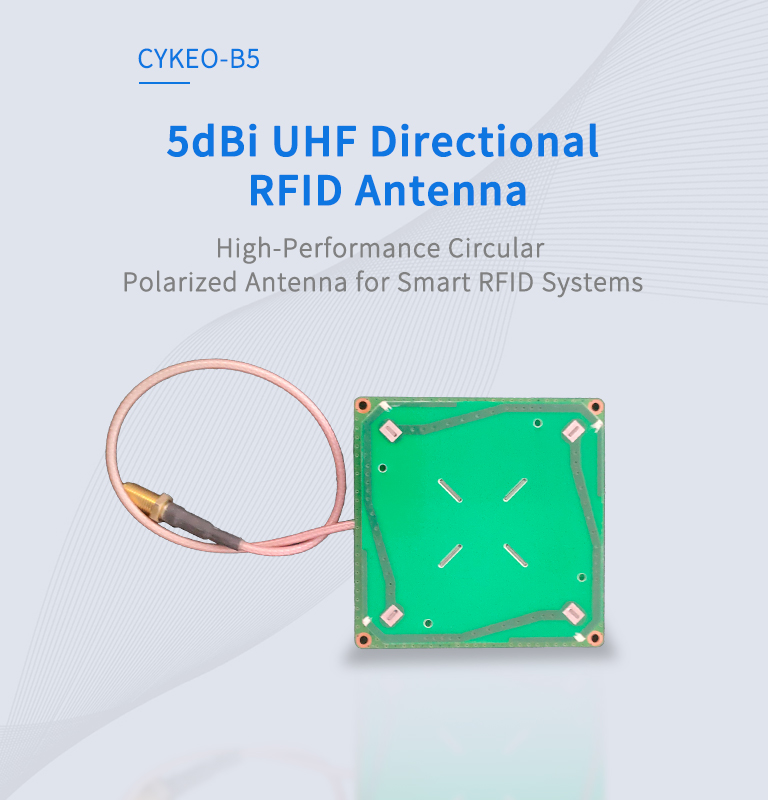

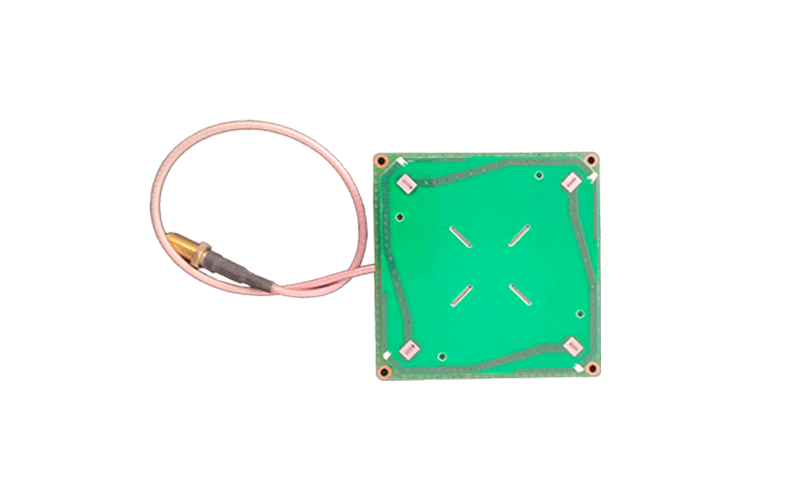

You can get solid long-range performance out of a directional antenna like the CK-B5 as long as you set it up with some intention. The 5dBi gain and the narrow 60° beam already give you good reach, so most of the work comes down to alignment and reader settings. Point the antenna straight at the read zone—using a simple laser pointer or alignment tool helps—and keep it mounted around three to five meters high so the beam hits pallets or conveyor items cleanly.

On the reader side, run the output near the upper end of the legal limit (usually around 30–33dBm) and leave frequency hopping on to keep interference under control. If you’re operating in ETSI regions, sticking to 865–868MHz is often quieter and more stable. With those basics dialed in, the long-range reads usually fall into place.

​​Performance Metrics​​:

Pro Tip: Pair with ​​anti-metal RFID tags​​ when scanning near machinery to mitigate signal absorption.

Directional antennas make more sense on smart shelves because they let you control exactly where the reads happen. With a narrow beam like the CK-B5, the antenna only “looks” at the shelf section you want, so you don’t accidentally pick up tags from the next tier or the next bay. In most setups, this alone cuts cross-reads by a large margin and keeps tightly packed items from getting mixed up.

The rear reflector also keeps the signal from leaking behind the shelf, so even in dense tag environments, the read field stays stable and the VSWR stays low.

For installation, mounting the antenna slightly above each shelf and tilting it down around 45° usually gives a clean, well-defined read zone. Pair that with middleware that maps each antenna’s zone to a specific shelf section, and real-time SKU tracking works much more reliably. The hardware is also FCC and CE compliant, so it fits straight into retail environments without extra certification trouble.

​You don’t need to do much to keep a directional antenna working outdoors, just a bit of simple upkeep. The CK-B5 already handles heat, cold, dust, and rain, so most of the work is preventing small issues from building up.

A little dielectric grease on the SMA connector now and then keeps moisture out, and UV-resistant coax helps the cable survive long hours in the sun. If the antenna is in a windy spot, tighten the brackets every few months so it doesn’t drift or shake loose.

For performance, a quick VSWR check is usually enough—if it creeps past around 1.5:1, something in the chain probably needs fixing. Watching your RSSI values from time to time also helps you catch any slow drop in signal before it becomes a problem.​
