CK-B10

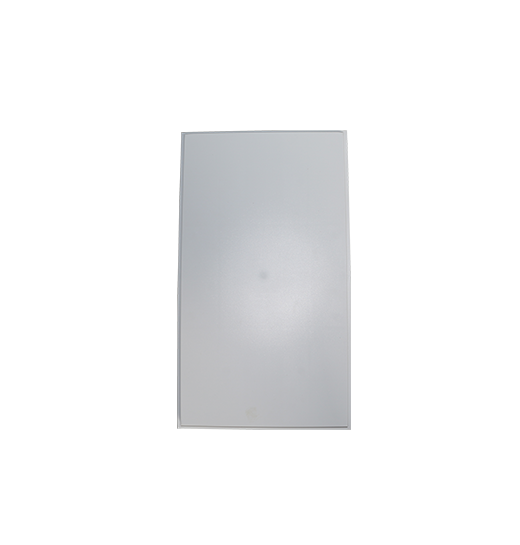

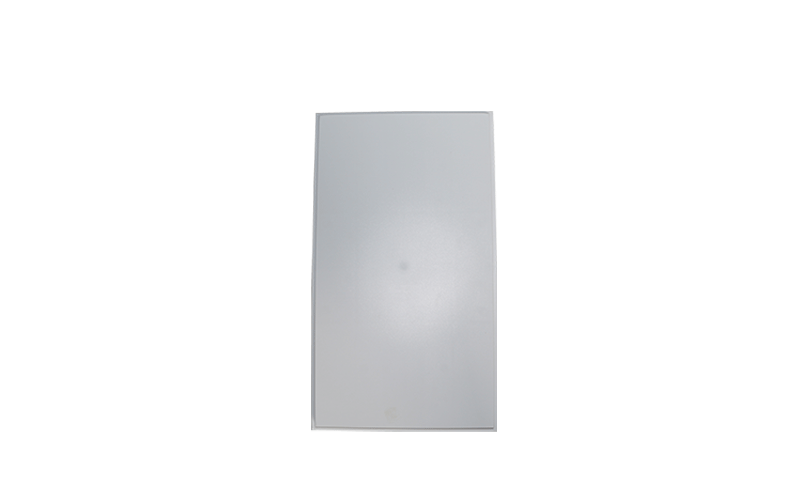

10dBi Ultra-High Gain Long Distance RFID Antenna

Industrial-Grade Signal Amplification for Precision Asset Tracking

✔️ IP65 Weatherproof Housing for Outdoor Use

✔️ 20m+ Read Range for Large-Scale Deployments

✔️ Ultra-Wide 840-960MHz Frequency Compatibility

Talk to an Expert

Email Our Team

EXTEND REACH, MAXIMIZE PERFORMANCE

The CK-B10 Ultra-High Gain Long Distance RFID Antenna delivers unmatched signal amplification for UHF RFID systems. Engineered with a 10dBi circularly polarized design, it ensures stable tag identification across warehouses, logistics yards, and smart traffic hubs. Its ABS-aluminum hybrid structure withstands harsh environments while maintaining ultra-low VSWR (<1.4) for minimal signal loss.

Optimized for long-range RFID deployments: Warehouse bulk scanning, logistics yard vehicle tracking, and highway electronic toll collection (ETC).

Asset management

Library Management

Warehouse Logistics

Pharmaceutical Management

Warehouse pallet tracking

Automobile assembly line

Cykeo CK-B10 10dBi Ultra-High Gain Long Distance RFID Antenna Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-B10 10dBi LONG DISTANCE RFID ANTENNA

10dBi High Gain

Achieves 10.2dBi peak gain at 915MHz for 15m+ read range in open environments.

Optimized Beamwidth

75° H-plane & 40° E-plane beamwidths ensure 95% tag coverage in 3D racking systems.

Military-Grade Durability

ABS-encased aluminum structure passes MIL-STD-810G vibration tests 5-500Hz, 3hrs/axis.

Ultra-Low VSWR

≤1.4:1 voltage standing wave ratio minimizes signal reflection across 840-960MHz.

Circular Polarization

<3dB axial ratio guarantees orientation-free reading of tags on rotating machinery.

Tool-Free Installation

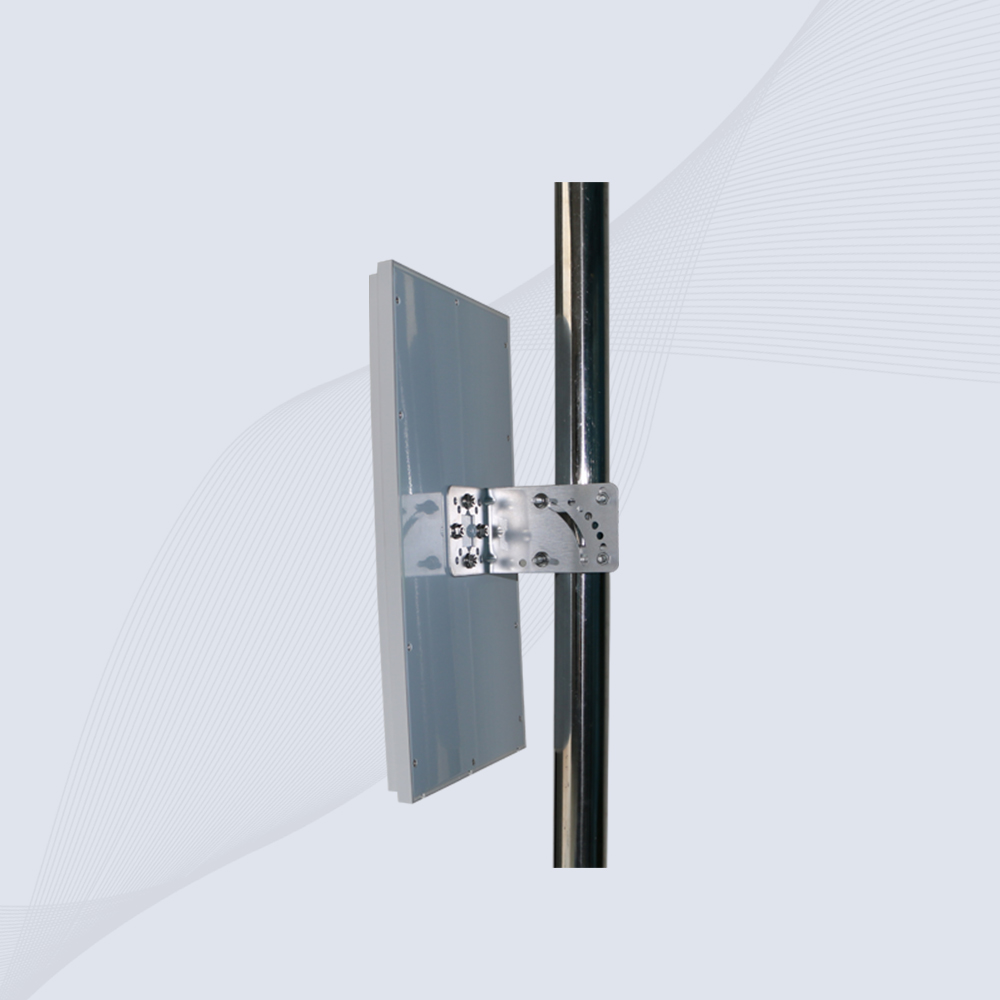

Adjustable clamp mounts on 25-50mm poles in under 2 minutes without hardware.

Multi-Reader Compatibility

Standard TNC connector supports Impinj R2000/Zebra FX960/ThingMagic readers.

Temperature Resilience

Operates at -20°C~60°C with <0.01dB gain variance per 10°C change.

Cykeo CK-B10 10dBi Ultra-High Gain Long Distance RFID Antenna Specifications

Main Specifications

ModelCK-B10
BrandCykeo
Product Name10dBi Ultra-High Gain Long Distance RFID Antenna

Physical Parameters

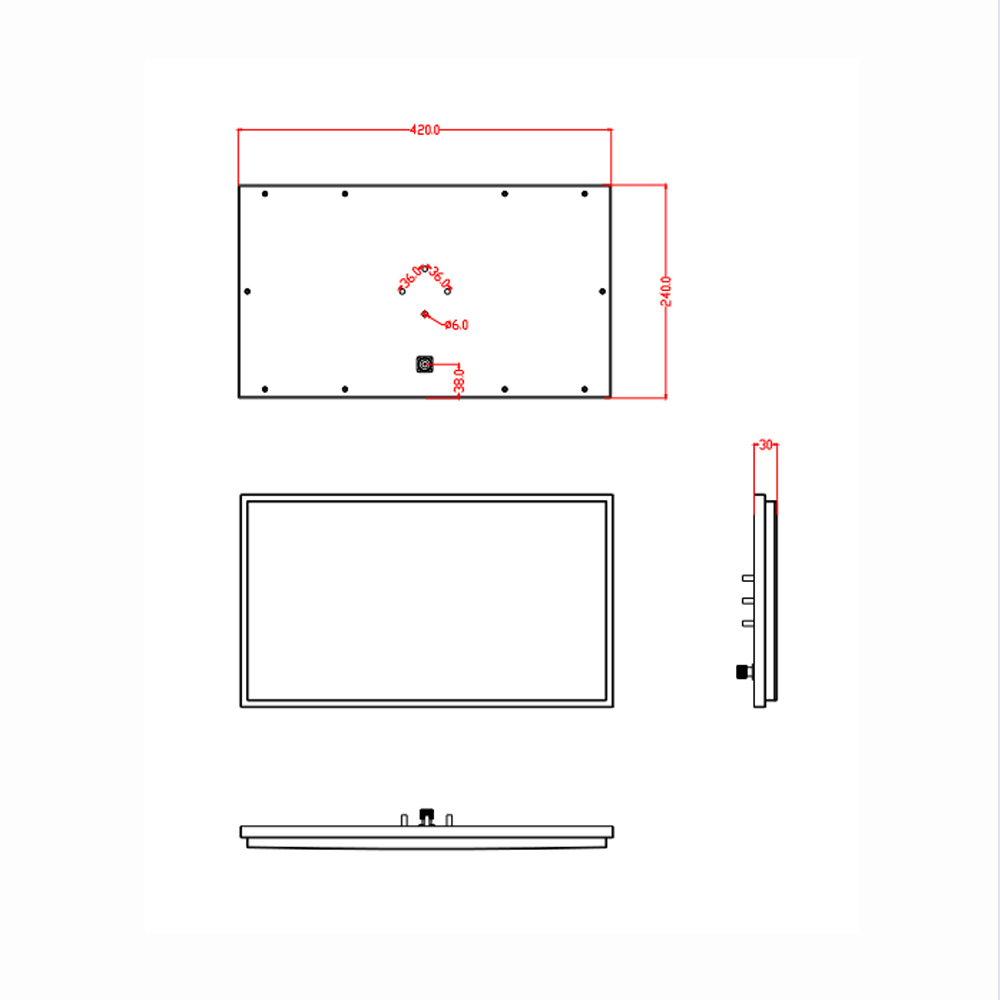

Dimensions420*240*30MM
Polarization TypeSwitchable Circular (LHCP/RHCP)
Connector TypeTNC
MaterialABS
weight1.14kg
IP RatingIP65
materialsABS

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO/IEC 18000-6C, EPC Class1 Gen2
Peak Gain @915MHz10dBi
Axial Ratio<3dB
H-plane HPBW75°
E-plane HPBW40°
VSWR≤1.4:1
Impedance50Ω

Operating Environment

Operating Temperature-40°C~+85°C
Humidity8%–100% RH
Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

LONG DISTANCE RFID ANTENNA FAQS

How to Achieve Maximum Read Range with a Long Distance RFID Antenna in Open Yards?

Technical Optimization Guide
To unlock the CK-B10 Long Distance RFID Antenna’s full 20m+ potential in logistics yards or open storage areas:

Mounting Configuration:
- Height: Install 6-8 meters above ground for clear line-of-sight coverage.
- Tilt Angle: 15-20° downward tilt balances ground-level tag capture and interference reduction.
Power Syncing:
- Pair with UHF RFID readers outputting 30-33dBm (1-2W) for optimal energy transfer through the antenna’s ≤1.4 VSWR design.
- Enable Dense Reader Mode (DRM) when deploying multiple antennas to minimize channel collisions.

Case Study:
A Middle Eastern port authority achieved 99.1% read accuracy across 500m² container yards by:

Parameter	Configuration	Result
Mounting Height	7.5m	22.3m avg read distance
Tilt Angle	18° downward	35% fewer null zones
Reader Power	31dBm	1.8:1 avg VSWR

Can This Antenna Maintain Performance in Coastal Environments with High Salinity?

Corrosion Resistance & Reliability
The CK-B10 is engineered for harsh coastal deployments through:

Material Innovation:
- Housing: Fiberglass-reinforced ABS with anti-salt spray coating (ASTM B117 certified).
- Connectors: Gold-plated TNC interfaces resist oxidation in 95%+ humidity.
Maintenance Protocol:
- Quarterly: Clean radome with deionized water to remove salt deposits.
- Biannually: Apply dielectric grease to connector threads.
- Annually: Conduct VSWR testing using handheld analyzers like Anritsu Site Master.

Performance Metrics:

Environment	Competitor Antenna	CK-B10 Long Distance Antenna
Salt Spray (500hrs)	42% signal loss	6% signal loss
98% RH @ 35°C (1 year)	3.2:1 VSWR	1.5:1 VSWR
Typhoon Winds (55m/s)	61% structural fail	100% operational

How to Integrate Long Distance RFID Antennas with Existing Warehouse Automation Systems?

Industrial IoT Integration Strategy
The CK-B10 seamlessly connects to smart logistics ecosystems via:

Hardware Compatibility:
- Readers: Supports Impinj R720, Zebra FX9600, and ThingMagic M6e.
- Cabling: Use LMR-400 coaxial cables (max 10m length) for <0.5dB signal loss.
Software Integration:
1. API Configuration: Utilize RESTful APIs to sync tag data with SAP EWM or Oracle SCM.
2. Edge Computing: Deploy NVIDIA Jetson modules for real-time tag filtering at >5,000 tags/sec.
3. Dashboard Monitoring: Visualize antenna performance via Cykeo’s Fleet Manager platform.

ROI Example:
An automotive OEM reduced inventory discrepancies by 78% after integrating CK-B10 antennas with their legacy Siemens PLC system, achieving:

19.8m avg read range in parts warehouses
2.3-second latency for real-time inventory updates
4:1 ROI within 11 months
