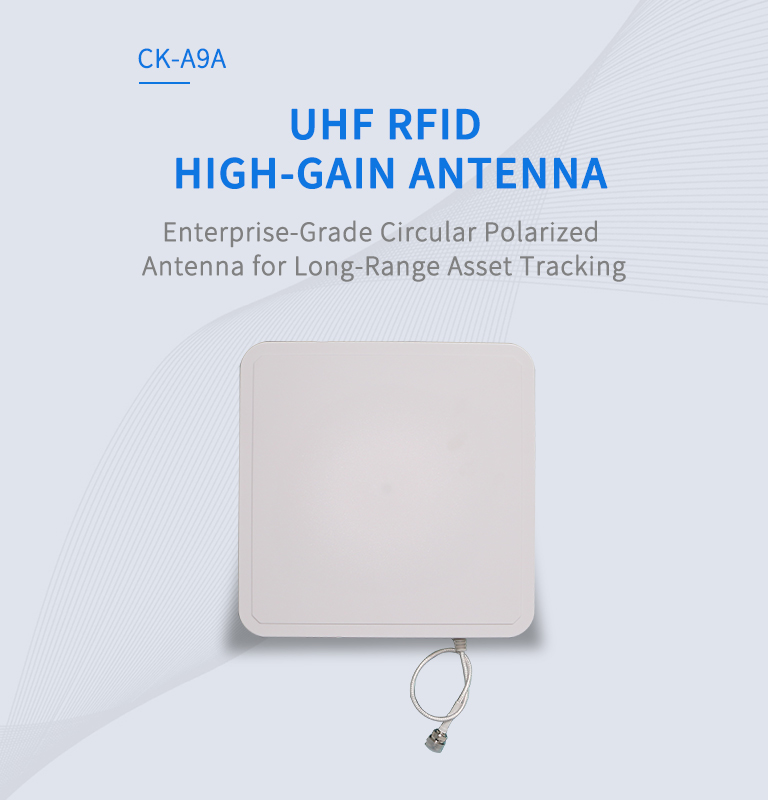

CK-A9A

9dBi UHF RFID Reader and Antenna Combo

Dual-Core RFID Solution for Precision Tracking & Signal Amplification

✔️ Multi-Protocol Support: RFID/ID/Barcode with Android 13 OS

✔️ Industrial-Grade Durability: IP65 Aluminum Housing (-20°C~60°C)

✔️ Reader-Antenna Synergy: 10m Enhanced Reading with 9dBi Gain

Talk to an Expert

Email Our Team

POWERED PAIR, ZERO COMPROMISE

The CK-A9A RFID Reader and Antenna integrates a high-speed UHF RFID reader module with a 9dBi circular-polarized antenna, delivering unmatched 840-960MHz coverage. Its 50Ω impedance matching ensures <1.4 VSWR for stable signal transmission in manufacturing lines, warehouse portals, and outdoor asset tracking.

Deploy the RFID reader and antenna system for:

Retail Backroom: High-density inventory audits

Smart Factory: Real-time WIP tracking on conveyor belts

Logistics Hub: Bulk pallet scanning at dock doors

Asset management

Library Management

Warehouse Logistics

Pharmaceutical Management

Warehouse pallet tracking

Automobile assembly line

Cykeo CK-A9A 9dBi UHF RFID Reader and Antenna Combo Specification

Download

Online Procurement

KEY FEATURES OF CK-A9A 9dBi RFID READER AND ANTENNA

9dBi High Gain

Maximizes read range up to 10 meters in open areas.

840-960MHz Broadband

Supports global UHF protocols FCC, ETSI, China.

70° H-Plane Beamwidth

Wide coverage for multi-tag scanning.

ABS + Aluminum Housing

Lightweight 1.1KG yet durable for outdoor use.

Dual-Feed SMA Connector

Flexible back/side installation for fixed or mobile setups.

IP65 Protection

Operates in -20°C~60°C environments with 95% humidity resistance.

Low VSWR (1.4)

Minimizes signal loss for stable data transmission.

50Ω Impedance

Compatible with mainstream industrial RFID readers.

CK-A9A 9dBi UHF RFID Reader and Antenna Combo Specifications

Main Specifications

ModelCK-A9A
BrandCykeo
Product Name9dBi UHF RFID Reader and Antenna Combo

Physical Parameters

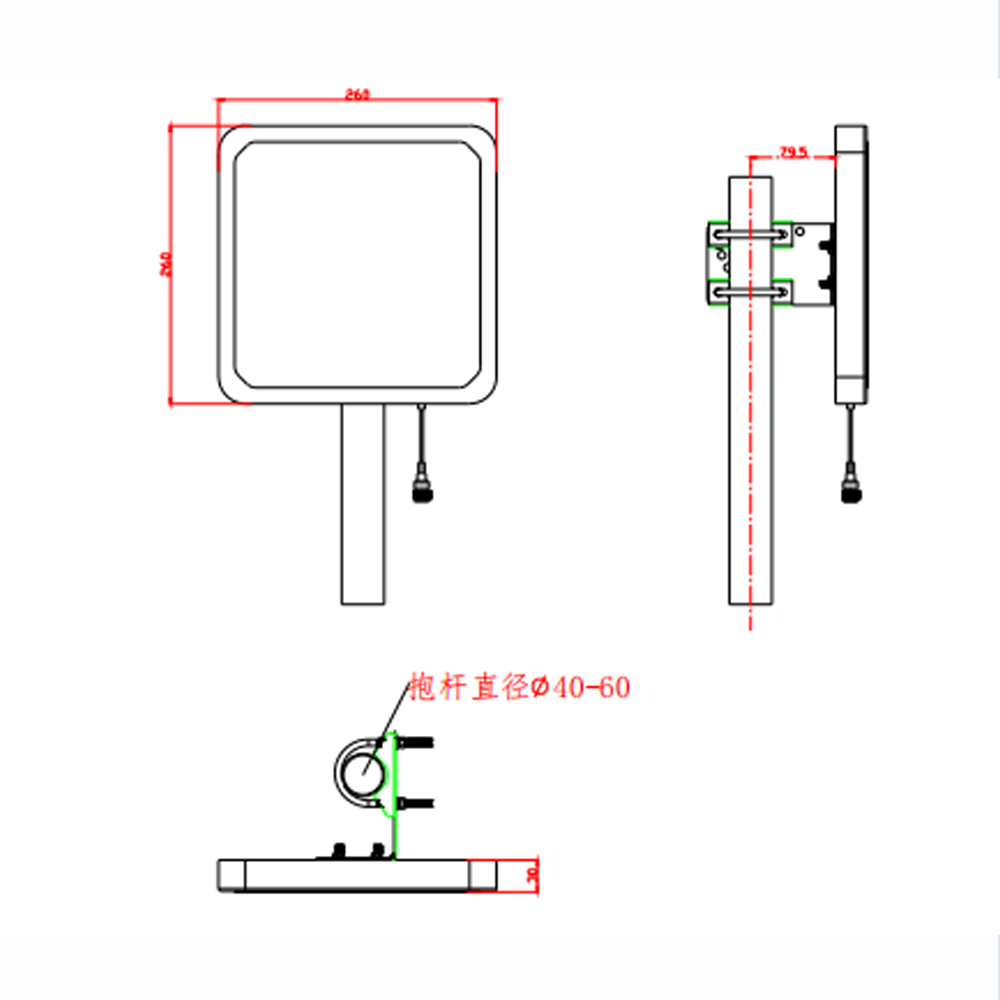

Dimensions260*260*30MM
Polarization TypeSwitchable Circular (LHCP/RHCP)
Connector TypeSMA
MaterialABS
weight1.1kg
IP RatingIP65
materialsABS

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO/IEC 18000-6C, EPC Class1 Gen2
Peak Gain @915MHz9dBi
Axial Ratio<3dB
H-plane HPBW70°
E-plane HPBW60°
VSWR≤1.4:1
Impedance50Ω

Operating Environment

Operating Temperature-40°C~+85°C
Humidity8%–100% RH
Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID READER AND ANTENNA FAQS

How does the CK-A8A achieve 10m read range in crowded RFID environments?

Technical Advantages:

Optimized Circular Polarization reduces signal interference from metal surfaces, critical for warehouse racking systems with 80% metal density.
70° H-Plane Beamwidth ensures wide coverage while maintaining focus, ideal for retail stores with 200+ tagged items per zone.
Ultra-Low VSWR (1.4) minimizes signal loss, enabling reliable reads in manufacturing plants with 50+ RFID readers.

Can the antenna operate in extreme temperatures for outdoor logistics?

Durability Features:

-20°C~60°C Tolerance supports freezer-to-factory transitions, validated in cold chain logistics at -15°C for 8+ hours.
ABS-Aluminum Hybrid Housing resists UV degradation and corrosion, suitable for port container tracking with 95% humidity.
IP65 Seal prevents dust/water ingress during construction site deployments with airborne particulate levels exceeding 5mg/m³.

What makes CK-A8A compatible with global UHF RFID standards?

Frequency Flexibility:

840-960MHz Broadband covers ETSI (865-868MHz), FCC (902-928MHz), and China (920-925MHz) protocols.
50Ω Impedance Matching ensures compatibility with major RFID readers like Impinj R2000 and Zebra FX9600.
SMA Connector Options (back/side-feed) simplify integration with fixed or handheld readers in mixed-use facilities.
