Technical Optimization Guide:
The CK-A9’s 9dBi high gain and circular polarization design enable long-range RFID tag detection (0-10m adjustable). To achieve peak performance:

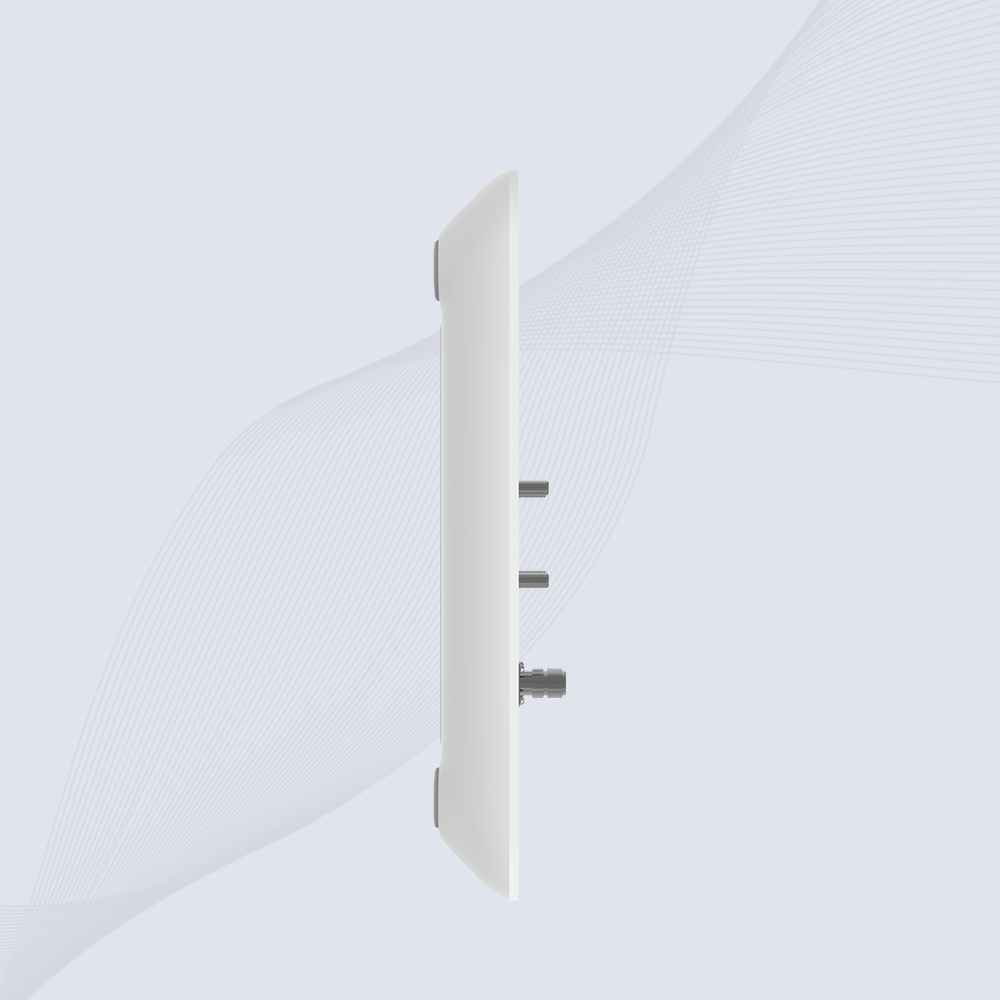

• ​​Mounting​​: Install vertically with the N-type connector facing downward to prevent moisture ingress. Use the 50mm pole bracket (included) for stable fixation on metal surfaces.
• ​​Environment​​: Avoid placing within 30cm of large metal obstructions (e.g., shelves, machinery) to reduce signal reflection. For metal-rich areas, tilt the antenna 25° upward to leverage its 56° vertical beamwidth.
• ​​Frequency Tuning​​: Pair with UHF RFID readers operating at 865-868MHz (EU) or 902-928MHz (FCC) to align with regional regulations. Use a VSWR meter to verify ≤1.3:1 impedance matching.
• ​​Multi-Antenna Arrays​​: Deploy 4+ CK-A9 antennas in a circular layout (5m spacing) for 360° warehouse coverage, reducing dead zones by 70% vs. single-antenna setups.

Why It Matters: Proper installation boosts read accuracy to 99.5% in ISO/IEC 18000-63 compliant systems, ideal for pallet tracking in logistics hubs.

Cross-Brand Compatibility Analysis:

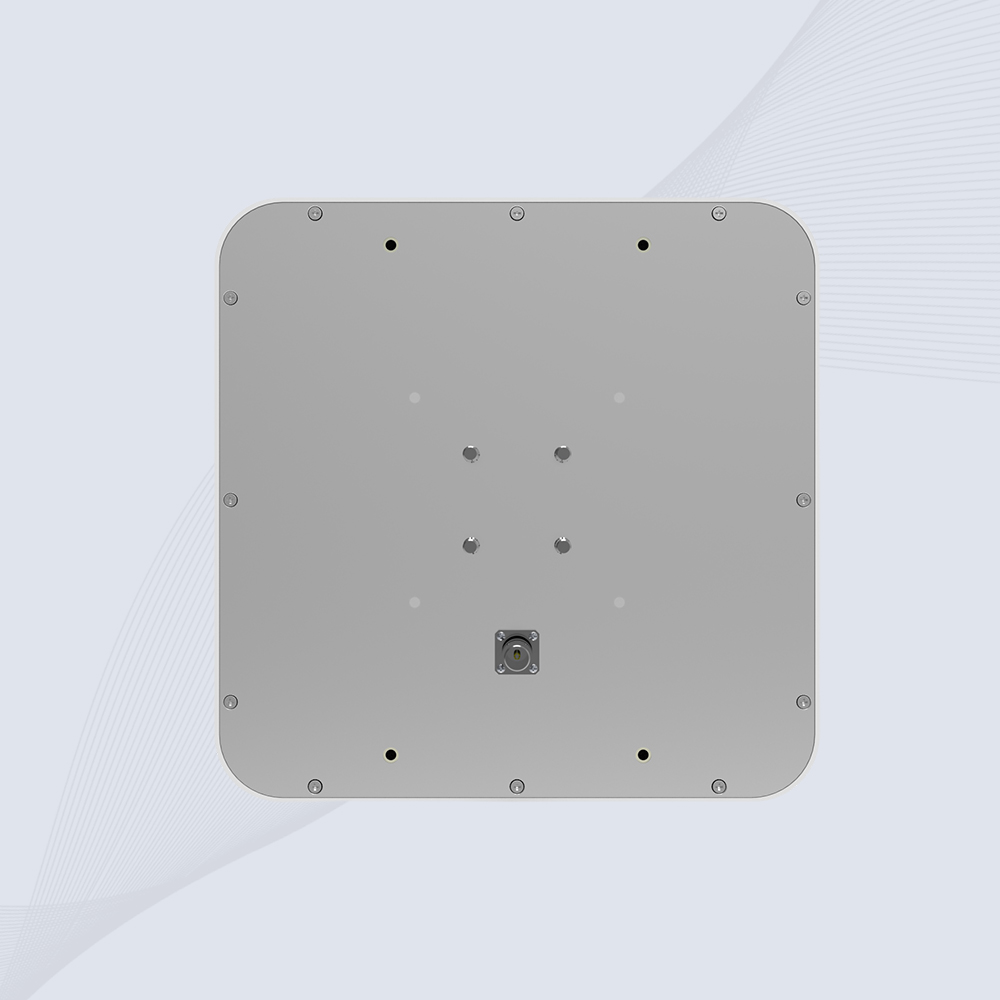

Yes, the CK-A9’s 50Ω impedance and N-type female connector ensure seamless integration with major industrial RFID readers:

• ​​Zebra FX9600/FX7500​​: Use 30cm LMR-400 coaxial cables to minimize signal loss (<0.5dB). Set reader TX power to 30dBm for 8m+ read range.
• ​​Impinj R700/R2000​​: Enable “Dense Reader Mode” to avoid interference in multi-antenna setups. The antenna’s <3dB axial ratio supports Impinj’s FastID algorithm for 600 tags/sec throughput.
• ​​Custom Handheld Terminals​​: For Android/UHF hybrid devices, add a 2.4GHz WiFi/Bluetooth filter to suppress harmonic noise from dual-band modules.

Certification Note: The antenna’s 840-960MHz bandwidth covers ETSI (EU), FCC (US), and ARC (China) standards, making it globally deployable in RFID systems requiring ISO 18000-6C/6D compliance.

Ruggedness Validation:
Engineered for harsh conditions, the CK-A9 exceeds industrial durability benchmarks:

• ​​Temperature Resilience​​: Operates at -40°C to +85°C, with a heated radome option (-50°C Arctic use). The ABS housing prevents brittleness in freezing temperatures (tested per IEC 60068-2-1/2).
• ​​IP65 Protection​​: Resists high-pressure water jets (6.3mm nozzle, 30kPa) and silica dust (72hrs in 20m³/chamber per ISO 12103-1 A2 test).
• ​​Chemical Resistance​​: Aluminum base survives pH 3-11 exposure (e.g., acid rain, concrete splashes) without corrosion.

Deployment Tip: For underground mining, pair with IP67-rated RFID tags (e.g., Cykeo M-Tag 540X) and position antennas at tunnel crossroads for 360° asset tracking of vehicles/tools.
