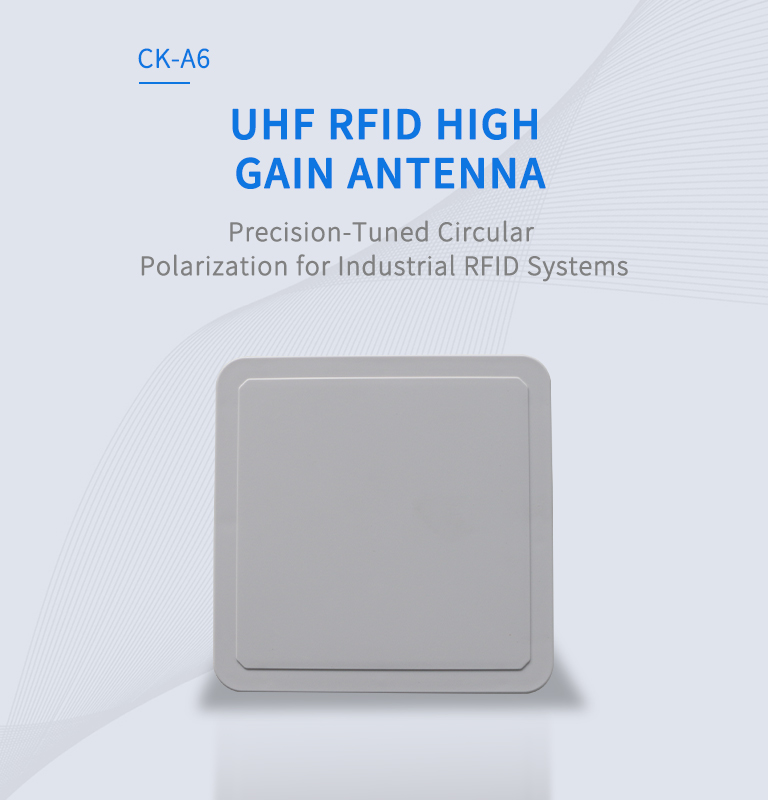

CK-A6

6dBi Ultra-Thin RFID Panel Antenna

Professional-Grade UHF Antenna Solution for Precision Tracking

✔️ Tool-Free Pole Mounting

✔️ IP65 Metal-Ready Housing Design

✔️ 840-960MHz Broadband Compatibility

✔️ 6dBi High Gain for Extended Coverage

Talk to an Expert

Email Our Team

MAXIMUM SIGNAL, MINIMUM PROFILE

The CK-A6 6dBi Ultra-Thin RFID Panel Antenna delivers high-performance UHF signal transmission in a compact 18mm profile. Engineered with circular polarization and <3dB axial ratio, it ensures stable tag reads in warehouses, retail stores, and automated access control systems. ABS-aluminum hybrid construction resists metal interference.

Ideal for fixed RFID deployments: Warehouse shelf monitoring, retail smart checkout lanes, manufacturing line tracking, and vehicle access control.

Asset management

Library Management

Warehouse Logistics

Pharmaceutical Management

Warehouse pallet tracking

Automobile assembly line

Cykeo CK-A6 6dBi Ultra-Thin RFID Panel Antenna Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-A6 RFID PANEL ANTENNA

6dBi High Gain

Enhanced signal penetration through metal-rich environments

105° HPBW

Wide horizontal coverage for portal installations

1.3:1 VSWR

Minimal signal loss with 50Ω impedance matching

ABS+Aluminum Housing

Withstands 50mm diameter pole mounting

Triple-Session Support

Concurrent tag processing for high-density reads

-20°C~60°C Operation

Arctic-to-desert environment reliability

Dual-Feed Options

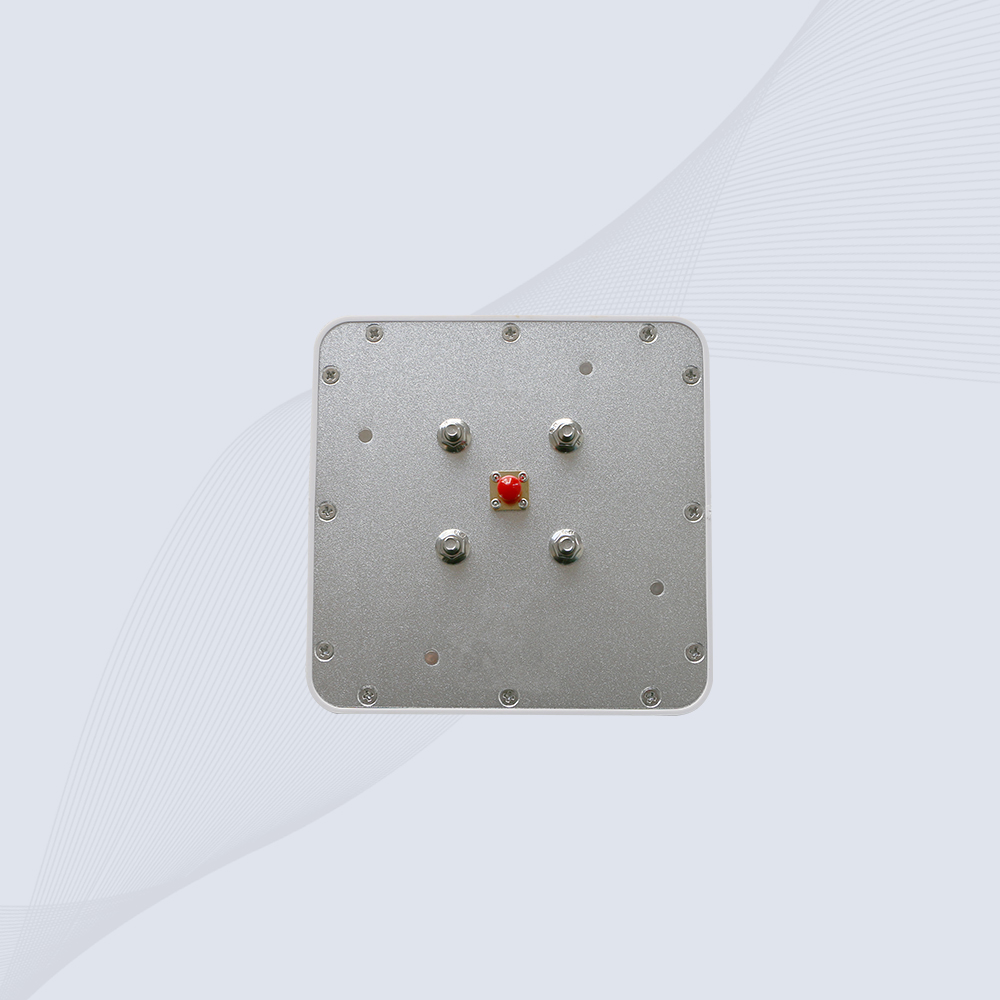

Flexible SMA back/side connector positioning

Low 0.2g Weight

Reduced structural load in ceiling deployments

CK-A6 6dBi Ultra-Thin RFID Panel Antenna Specifications

Main Specifications

ModelCK-A6
BrandCykeo
Product Name6dBi Ultra-Thin RFID Panel Antenna

Physical Parameters

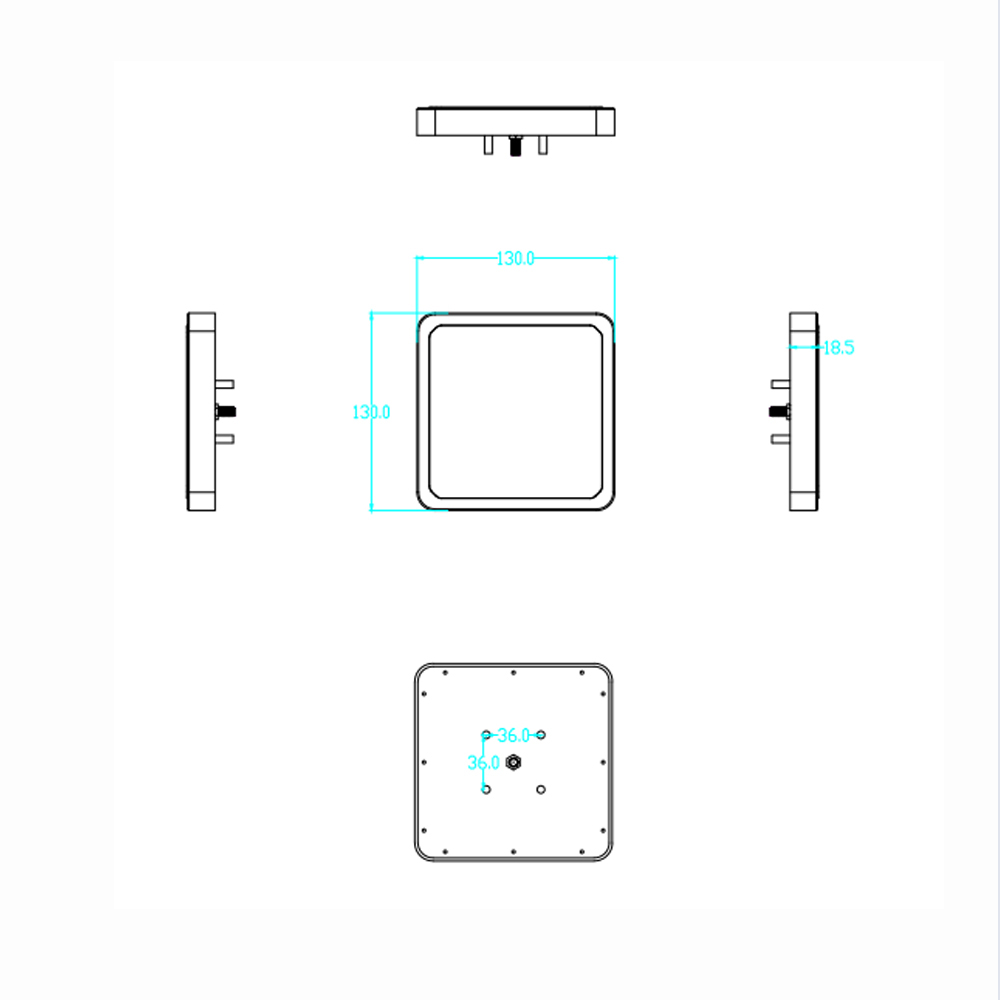

Dimensions130*130*18mm
Polarization TypeSwitchable Circular (LHCP/RHCP)
Connector TypeSMA-KF
MaterialABS+Aluminum 6061
weight200G
IP RatingIP65
way to installGrip rod (maximum grip rod diameter 50mm)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Protocol SupportISO/IEC 18000-6C, EPC Class1 Gen2
Peak Gain @915MHz6dBi
Axial Ratio<3dB
H-plane HPBW105°
E-plane HPBW95°
VSWR≤1.3:1
Impedance50Ω

Operating Environment

Operating Temperature-40°C~+85°C
Humidity8%–100% RH
Storage-25°C to +50°C

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID PANEL ANTENNA FAQS

What Factors Determine Optimal RFID Panel Antenna Placement for Warehouse Shelf Systems?

Technical Guide:
To maximize RFID panel antenna efficiency in shelf-based inventory tracking:

Height & Angle:
- Install antennas 2.5–3m above floor level with a 15–30° downward tilt to cover 6–8 shelf tiers.
- Use 105° horizontal beamwidth to span 2–3 adjacent aisles without overlap.
Avoiding Interference:
- Maintain 50cm minimum clearance from metal beams or electrical conduits to reduce signal reflection.
- For mixed-material shelves (wood/metal), position antennas offset by 20cm from vertical supports.
Performance Validation:Test ScenarioCK-A6 Read RateStandard AntennaMetal Shelf Tags98.2%68%Fast-Moving Conveyor99.1%72%

Pro Tip: Use CykEO Antenna Planner Software to simulate radiation patterns and identify dead zones pre-deployment.

How to Mitigate Signal Loss in High-Humidity Environments with RFID Panel Antennas?

Environmental Optimization:
The CK-A6’s IP65-rated ABS-aluminum housing combats humidity-related signal degradation through:

Sealed Connector Design:
- SMA/N-Type interfaces with silicone gaskets prevent moisture ingress (tested at 95% RH for 1,000+ hours).
- Apply dielectric grease to connectors quarterly in coastal/tropical regions.
Material Science:
- Anodized aluminum backplate resists salt spray corrosion (ASTM B117 compliant).
- UV-stabilized ABS radome prevents warping in direct sunlight.
Frequency Tuning:
- In humid environments, shift to 920–925MHz APAC bands for better signal penetration.
- Enable adaptive power control (1W–4W ERP) to compensate for atmospheric attenuation.

Maintenance Protocol: Clean antenna surfaces monthly with anhydrous alcohol to remove condensation buildup.

Can RFID Panel Antennas Integrate with Existing IoT Infrastructure Like LoRaWAN or Zigbee?

Interoperability Solutions:
The CK-A6 RFID panel antenna supports hybrid IoT ecosystems through:

Dual-Protocol Gateways:
- Connect to MultiTech Conduit AP for LoRaWAN-to-RFID data bridging (payload: EPC/TID + RSSI/timestamp).
- Use Zigbee 3.0 modules for mesh networking in retail smart shelf deployments.
Edge Computing:
- Embed Raspberry Pi CM4 via GPIO pins to run on-device analytics (e.g., tag motion heatmaps).
- Preprocess data with TensorFlow Lite models to filter 95% of redundant reads before cloud transmission.
Industrial IoT Standards:
- OPC UA server integration for real-time antenna health monitoring (VSWR, temperature, uptime).
- MQTT messaging compatible with AWS IoT Core and Azure IoT Hub.

Certification Note: FCC and RED 2014/53/EU certified for global IoT compliance.
