Technical Insight​​:

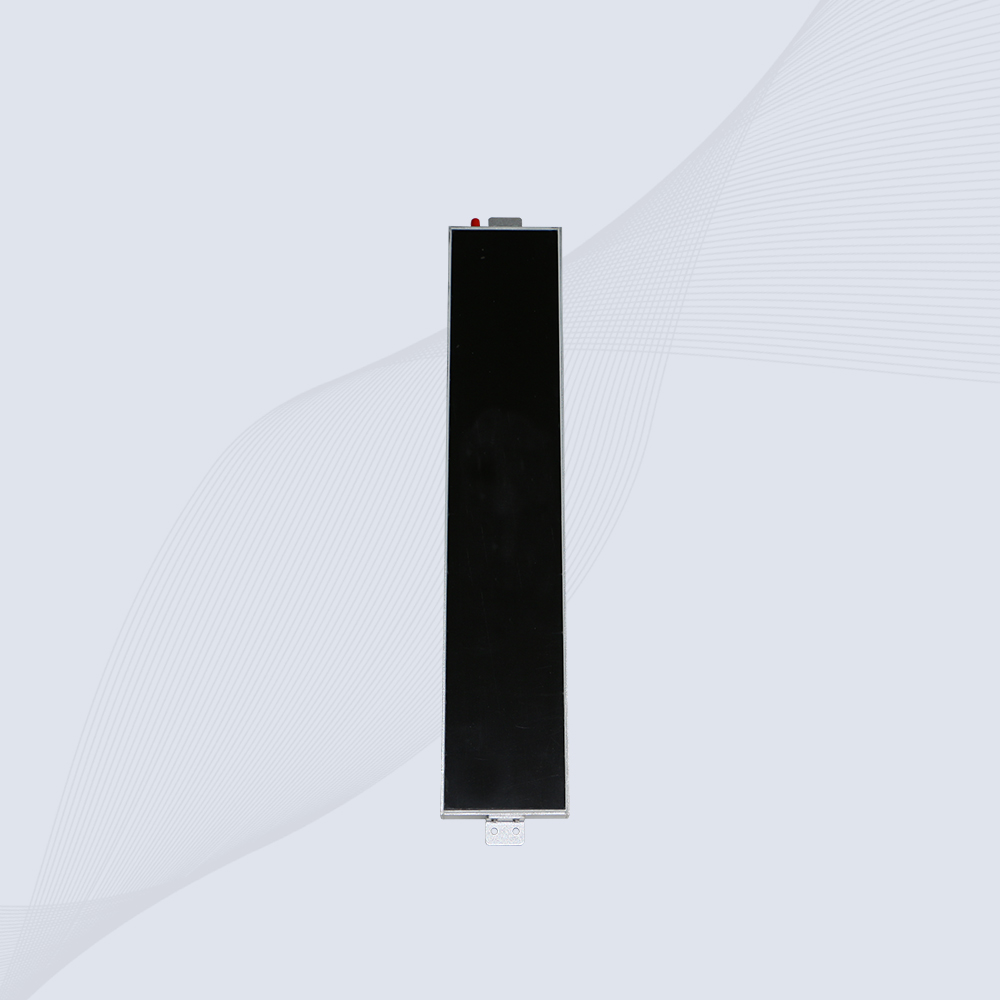

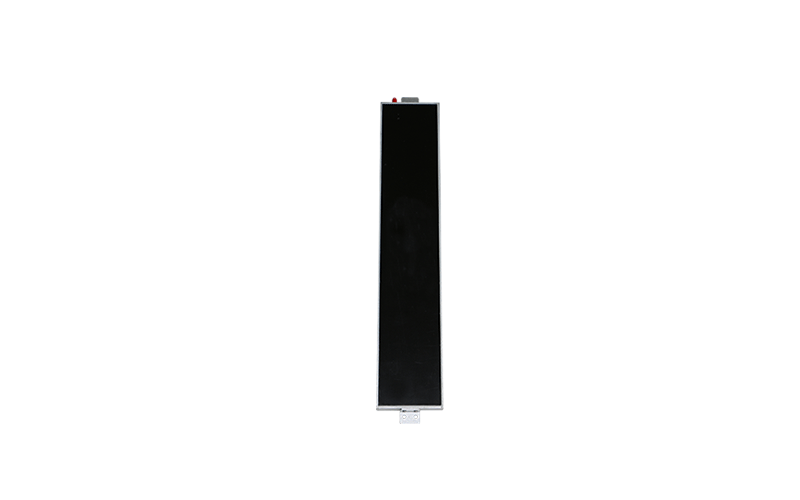

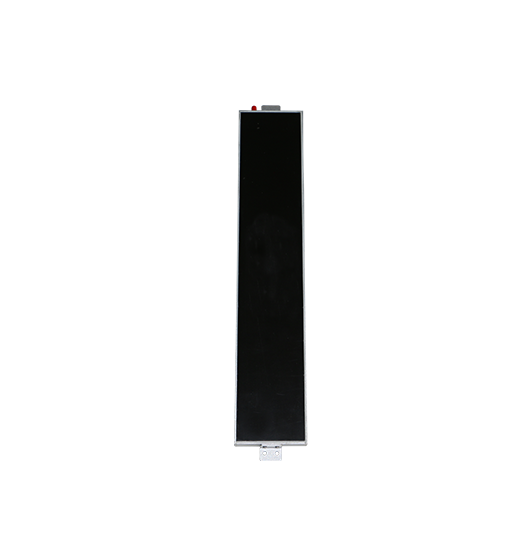

Industrial Linear RFID Antennas (like the CK-A5B) excel in environments where ​​directional signal control​​ and ​​long-range accuracy​​ are critical. Unlike circular polarized antennas that scatter signals omnidirectionally, linear polarization concentrates RF energy in a single plane (vertical or horizontal), delivering ​​20-30% greater read range​​ (up to 5 meters) in aligned setups.

​​Key Applications​​:

• ​​Conveyor Belt Tracking​​: Perfect for assembly lines where tags move in fixed orientations (e.g., vertically placed tags on automotive parts).
• ​​Warehouse Portal Monitoring​​: Focused beams penetrate dense palletized goods at dock doors without signal overlap.
• ​​Retail Inventory Checkpoints​​: Achieve rapid, error-free scans of shelf labels aligned in uniform directions.

​​Performance Edge​​:
With a ​​5dBi gain​​ and ​​≤1.5:1 VSWR​​, the CK-A5B minimizes signal loss even in metal-rich environments. Its ​​90° H-plane beamwidth​​ ensures broad coverage across conveyor widths, while the ​​35° E-plane beamwidth​​ prevents interference from adjacent RFID zones.

​Installation Strategy​​:
Metal surfaces reflect RFID signals, causing null zones and read failures. To maximize CK-A5B performance:

• ​​Elevated Mounting​​: Install antennas ​​2-3 meters above ground​​ to reduce ground reflection interference.
• ​​Angled Alignment​​: Tilt the antenna ​​10-15° downward​​ to direct the beam toward tagged assets (e.g., forklift-mounted pallets).
• ​​Distance from Metal​​: Maintain ​​≥50cm clearance​​ from structural steel or machinery. Use IP65-rated non-metallic mounting brackets to avoid signal dampening.

​​Anti-Interference Tech​​:
The CK-A5B’s ​​840-960MHz wide frequency range​​ supports adaptive hopping to avoid CNC machine noise. Pair with ​​anti-metal RFID tags​​ (0-5mm gap tolerance) for direct bonding to steel surfaces.

​​Case Study​​:
A German automotive plant reduced misreads by 92% by deploying CK-A5B antennas at robotic welding stations, leveraging linear polarization to ignore sideways-moving tags on overhead carriers.

​Integration Workflow​​:
Yes. The CK-A5B’s ​​50Ω impedance​​ and ​​SMA connectors​​ ensure compatibility with most UHF RFID readers (e.g., Zebra FX9600, Impinj R700). Follow these steps:

1. ​​Reader Pairing​​: Connect the antenna to your reader’s Tx/Rx ports using ​​low-loss coaxial cables​​ (max 5m length for minimal signal decay).
2. ​​Software Calibration​​: Use reader SDKs to adjust ​​transmit power​​ (30dBm max) and ​​beam focus​​ based on tag density.
3. ​​WMS Sync​​: Forward filtered tag data via ​​APIs​​ to platforms like SAP EWM or Oracle SCM, using ​​EPC TDS standards​​ for asset mapping.

​​Maintenance Best Practices​​:

• ​​Monthly Checks​​: Inspect connectors for corrosion (common in humid environments). Apply dielectric grease to SMA interfaces.
• ​​Firmware Updates​​: Enable ​​auto-tuning algorithms​​ to adapt to seasonal frequency regulation changes (e.g., FCC vs. ETSI standards).
• ​​Performance Testing​​: Use an RFID spectrum analyzer annually to validate ​​VSWR stability​​ and ​​beam alignment​​.

​​ROI Example​​:
A 3PL logistics hub in Texas cut inventory cycle times by 40% after integrating CK-A5B antennas with their Manhattan Associates WMS, achieving ​​500+ tags/sec​​ accuracy in cross-docking operations.
