CK-R4
Enterprise Multi-Protocol Solution for High-Speed Asset Tracking
✔️ 4-Channel TNC Ports for Expanded Coverage
✔️ 600+ Tags/Sec Read Rate with R2000 Chipset
✔️ Industrial-Grade IP67 Enclosure & Wide Temperature Operation

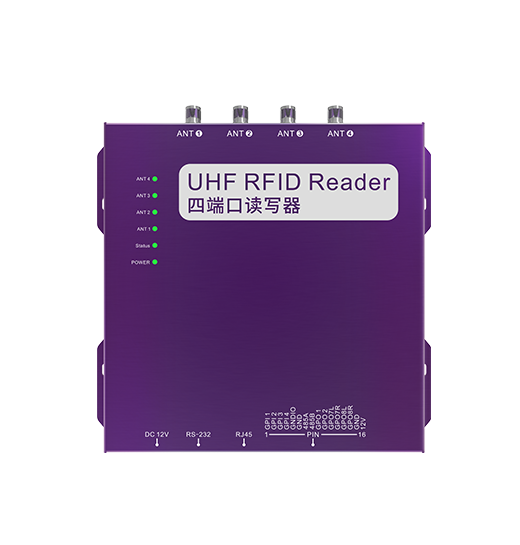

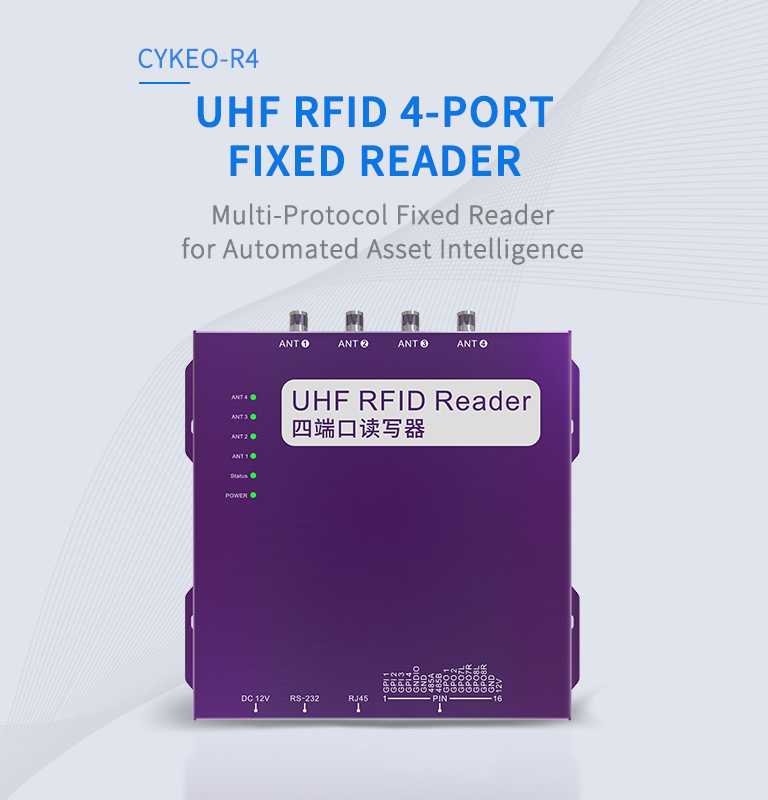

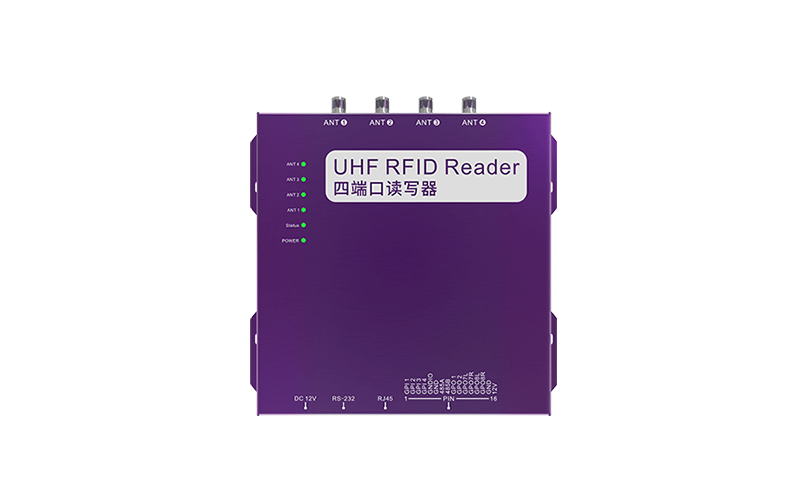

CK-R4 4-Channel UHF RFID Fixed Reader is built for serious, around-the-clock asset tracking. Powered by the Impinj R2000 chipset, it handles multiple protocols and can read over 400 tags per second through its four independent TNC antenna ports. Running Android 4.4 with HDMI output and a 12V/3A power supply, it’s ready to work in tough conditions from freezing to 60°C.
In practice, it’s used wherever you need reliable, large-scale RFID coverage—identifying vehicles at customs, auditing jewelry stock, automating warehouse entries and exits, or keeping tabs on electronic documents in smart archives. It’s the kind of reader you install and basically forget, yet it quietly keeps everything tracked in real time.
Main Specifications
Physical Parameters
Developer Support
Performance Parameters
Operating Environment
NEED A CUSTOM SOLUTION?
Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.
Solution：
CK-R4 4-port RFID fixed reader is pretty handy for covering specific areas with directional antennas. Each channel can read tags about 10–15 meters away, and you can tweak the power between 20 dBm and 30 dBm depending on your setup. It’s fast too—over 600 tags per second with its anti-collision protocol—and you can switch zones on the fly using GPIO triggers. In practice, it works great in warehouses, checkpoints, or anywhere you need quick, precise tracking without overcomplicating things.
Frequency as below:
EU: 865-868MHz (ETSI EN 302 208)
USA: 902-928MHz (FCC Part 15)
Asia: 920-925MHz (MIC/Telec)
TEST Mode: 802-928MHz (accept customization)
CK-R4 comes with handy built-in interfaces. Use RS485 to hook it up to PLC-controlled barriers, HDMI lets you display live tag reads on security monitors, and the 12-pin I/O can trigger alarms or other outputs whenever an unauthorized tag shows up. It’s straightforward and keeps everything connected without extra gadgets.
