Technical Guide​​:

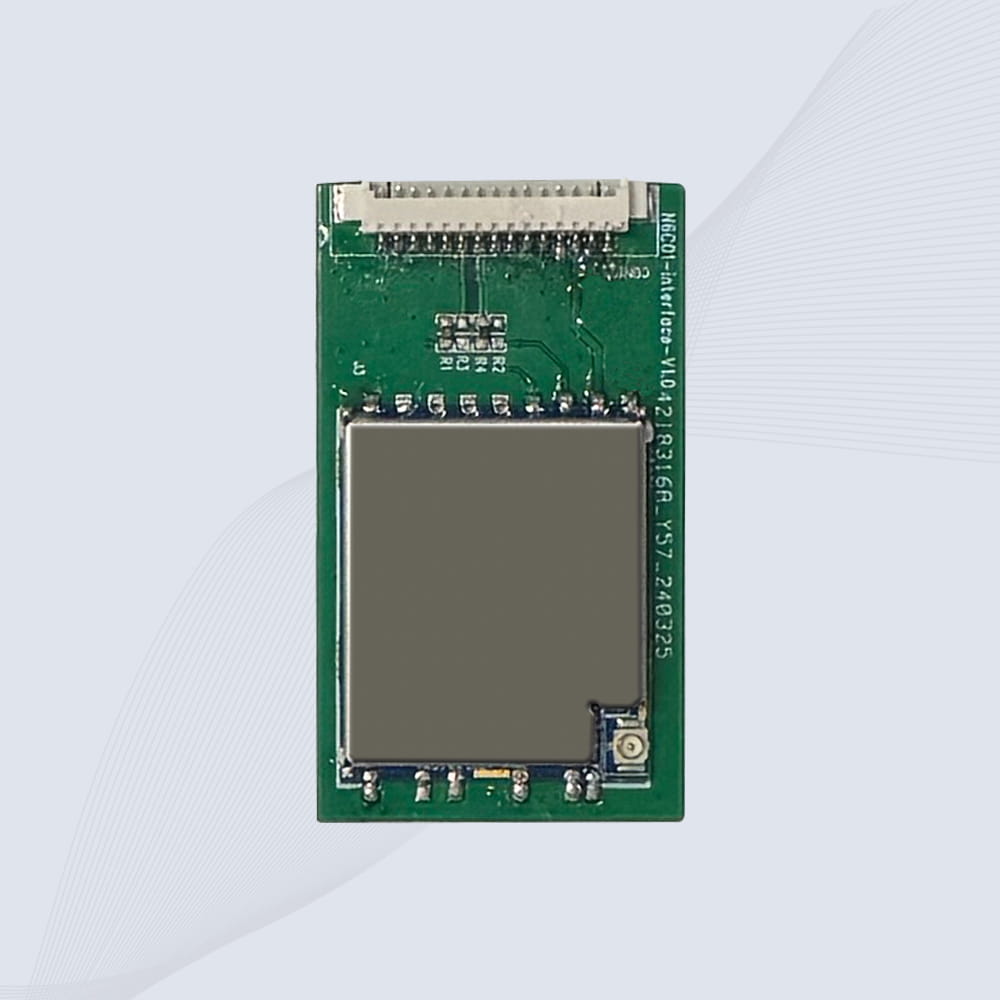

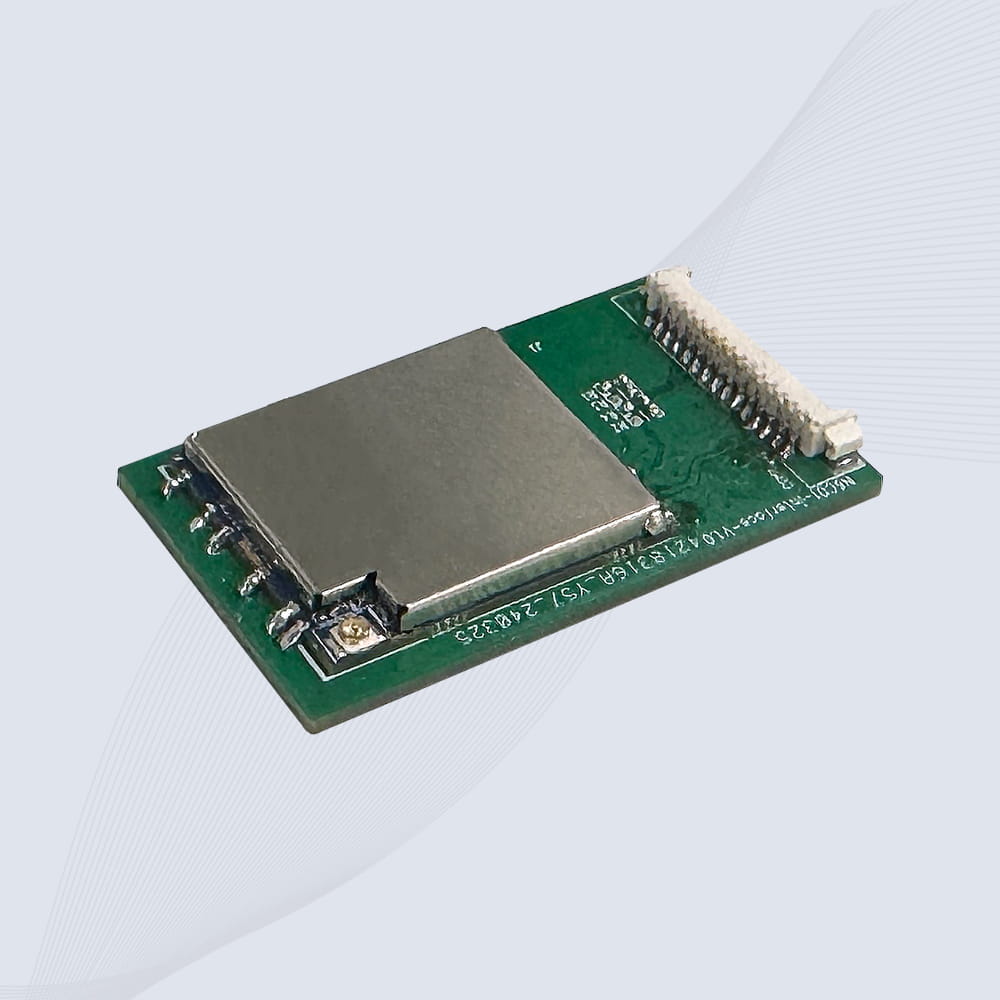

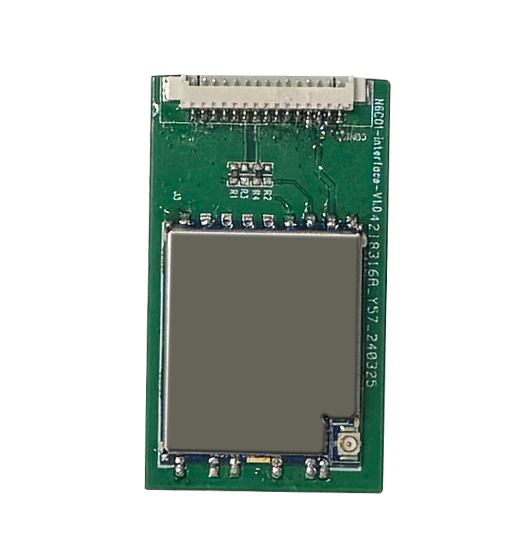

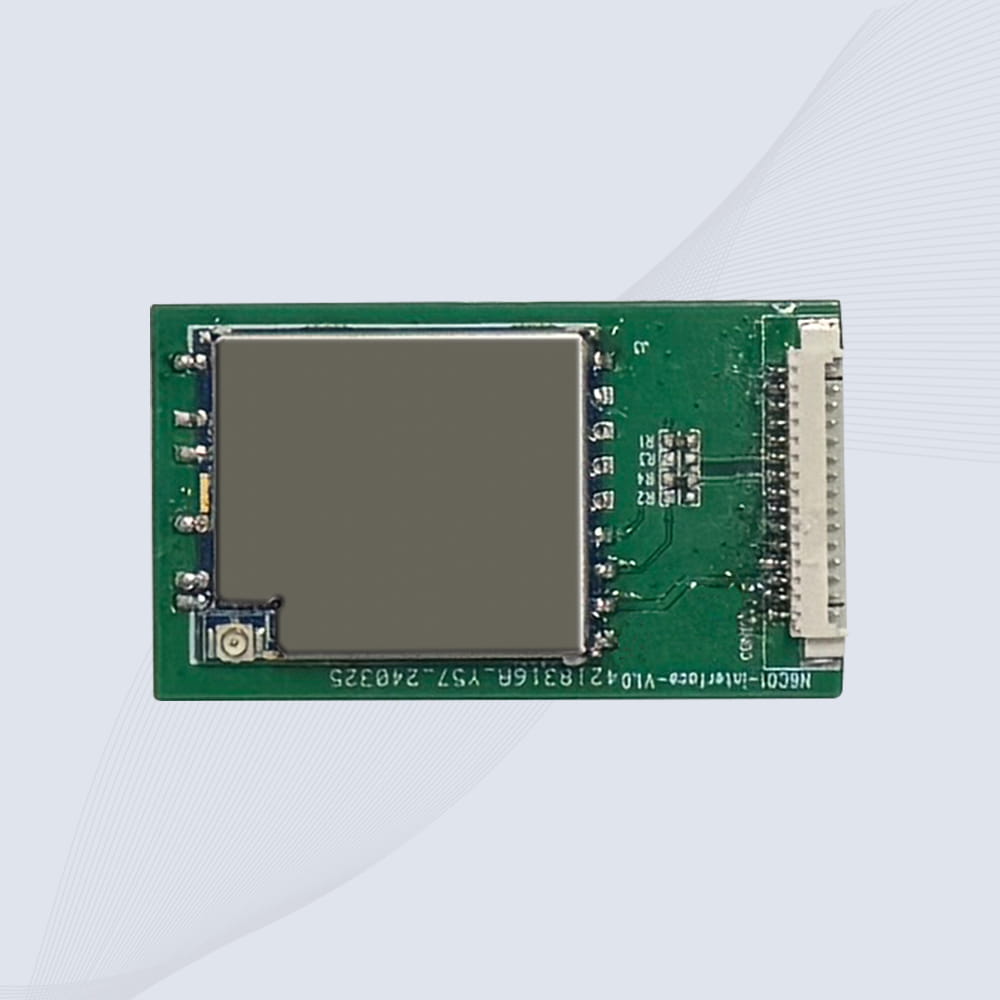

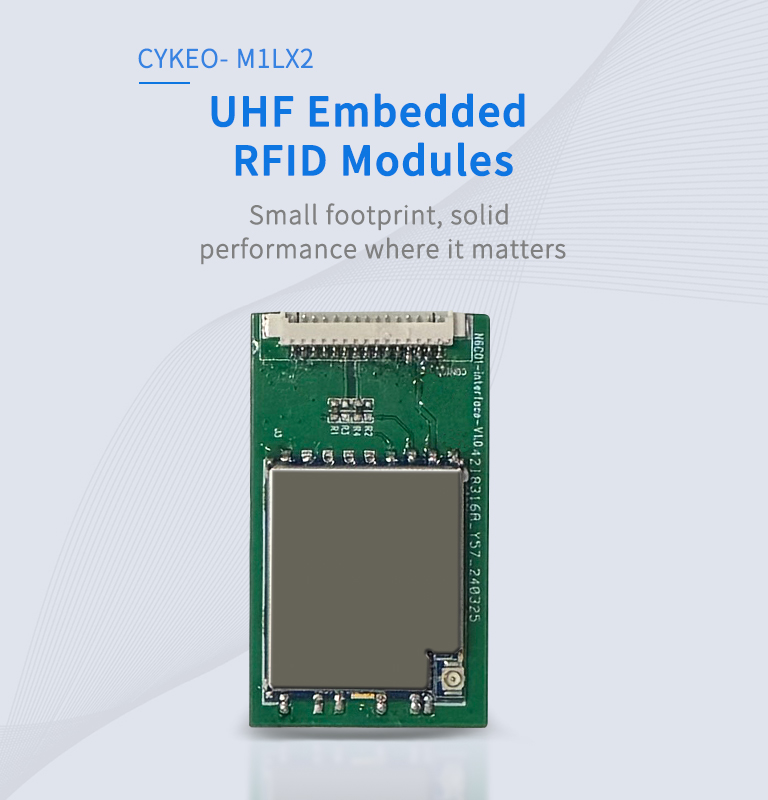

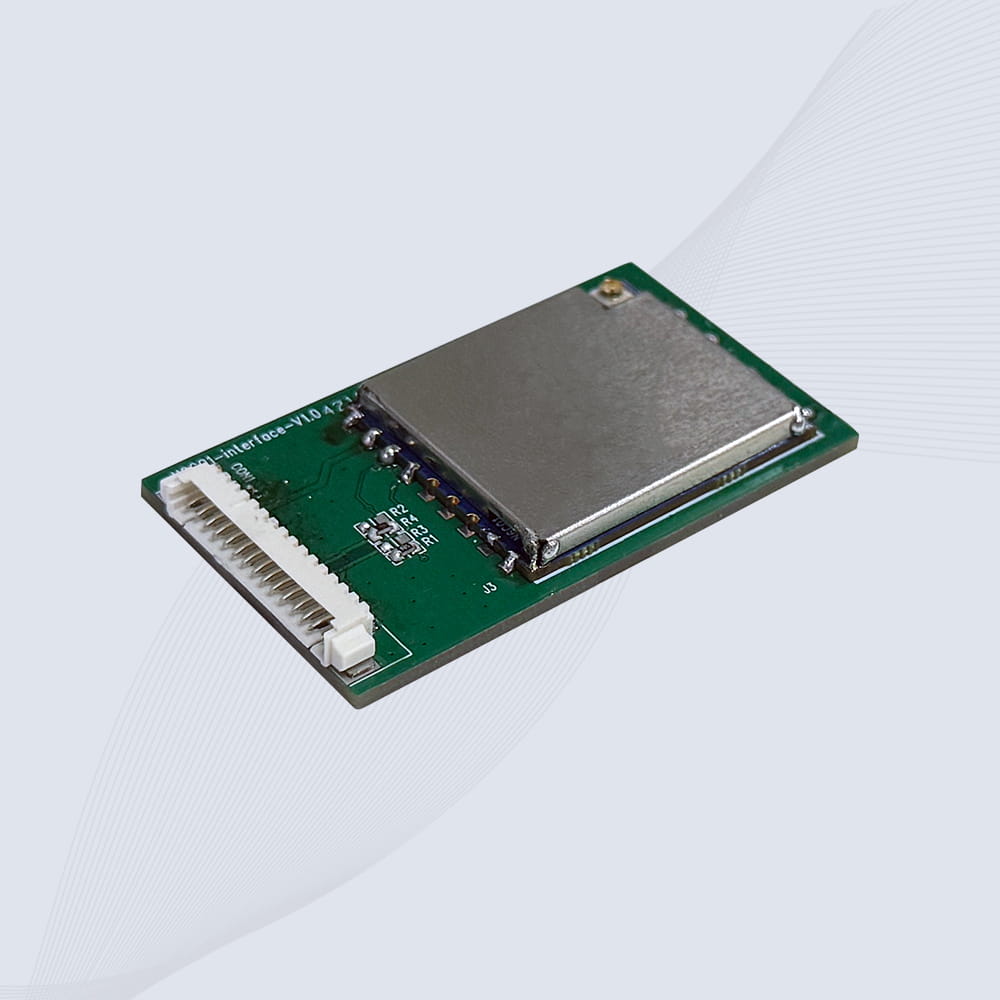

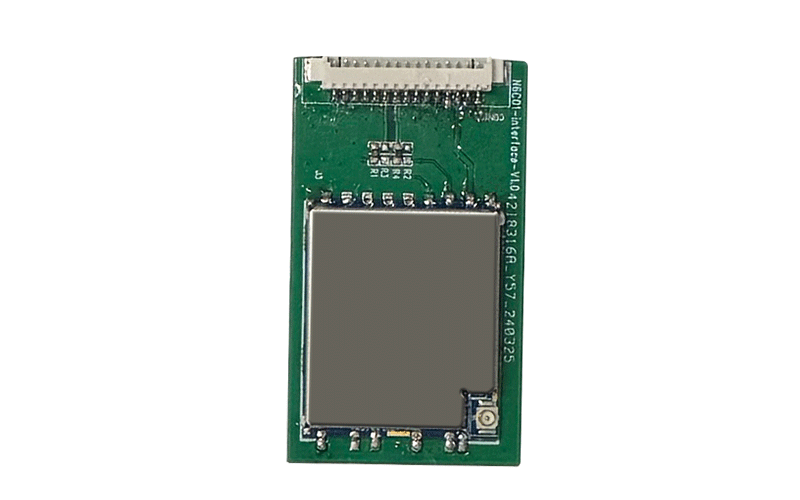

The CK-M1LX2 UHF embedded RFID module is engineered for seamless integration with Industry 4.0 frameworks. Follow these steps for optimal performance:

1. ​​Hardware Setup​​:

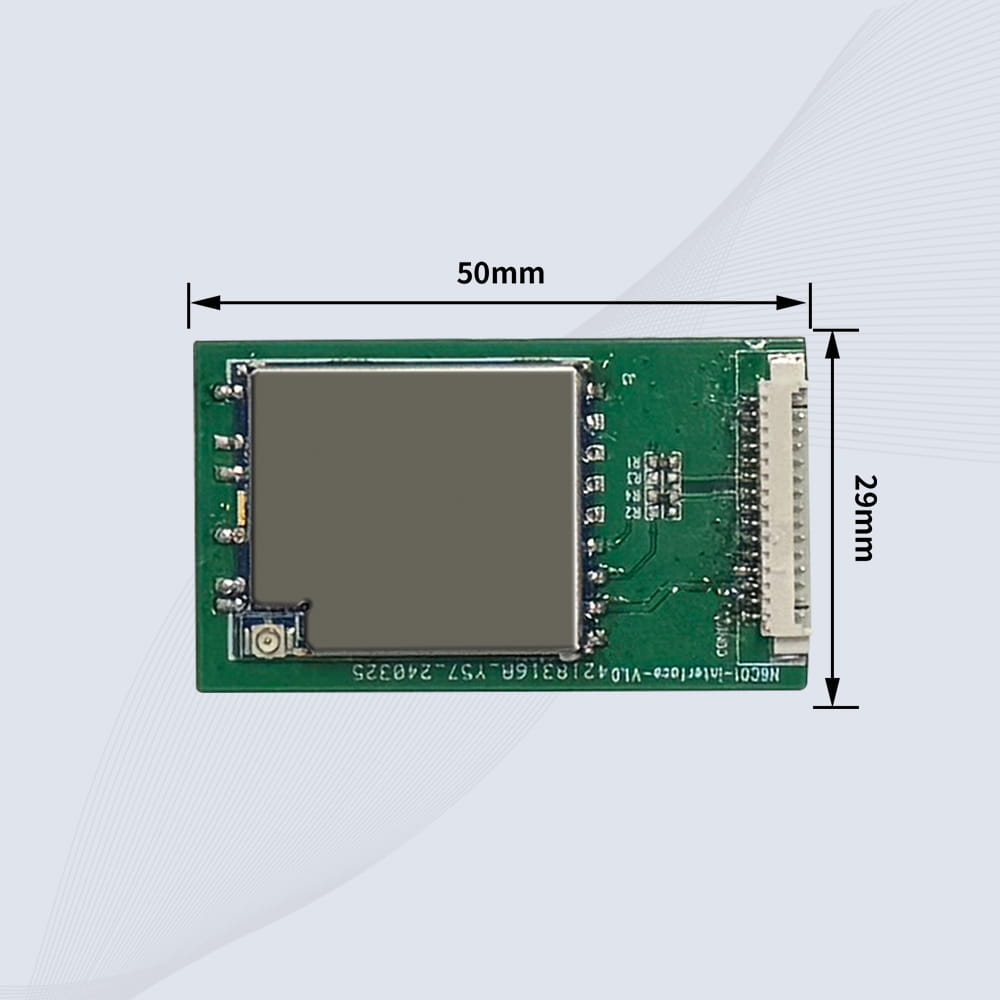

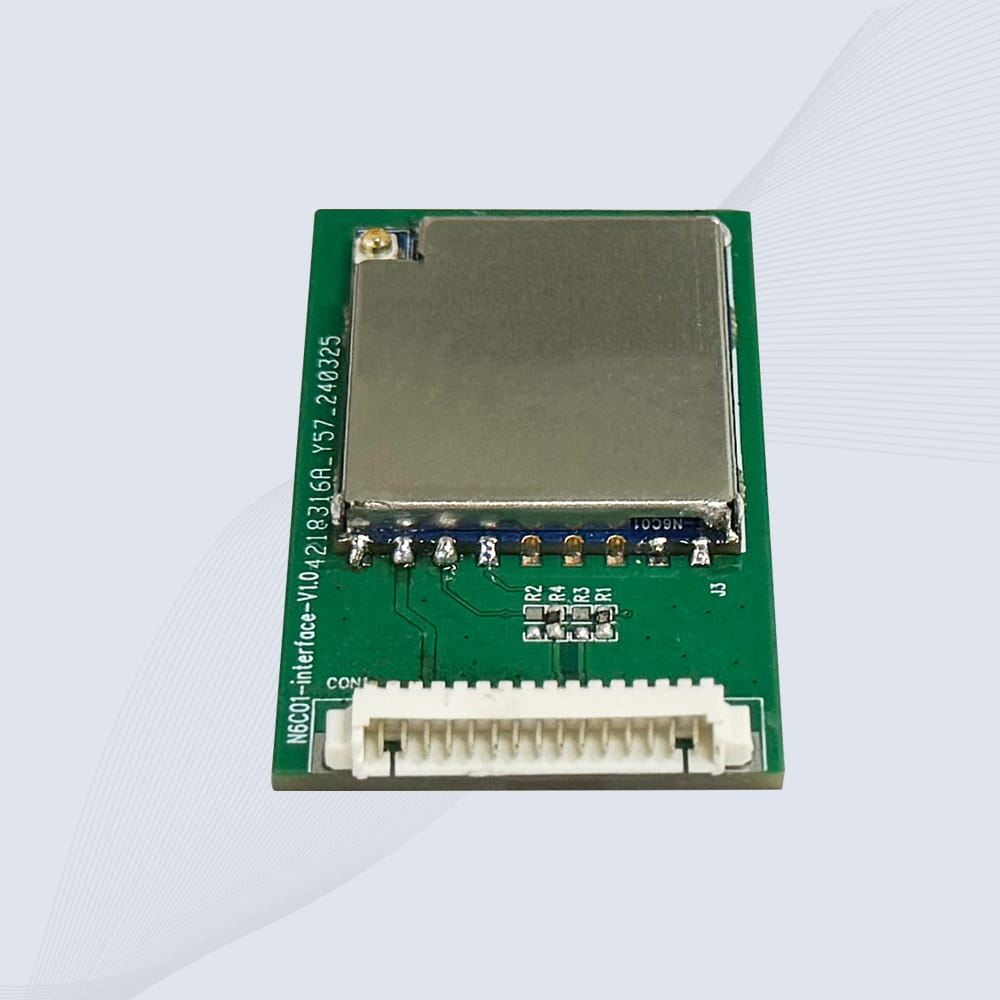

   • Connect the module’s ​​15-pin industrial-grade connector​​ (1.25mm spacing) to PLCs or microcontrollers via UART TTL (3.3V). Use GPIO pins to trigger RFID scans based on sensor inputs (e.g., assembly line proximity sensors).
   • For high-noise factory floors, enable ​​DSB-ASK modulation​​ (AT+MOD=DSB) to enhance signal clarity, reducing read errors by ​​27%​​ compared to PR-ASK mode.
2. ​​Software Configuration​​:
   • Utilize Cykeo’s ​​Python SDK​​ to deploy multi-tag filtering algorithms. For example, ignore tags with RSSI values below ​​-70dBm​​ to focus on critical assets like robotic tooling.
   • Integrate with MQTT brokers (e.g., AWS IoT Core) using the module’s ​​HTTP POST API​​ for real-time inventory updates.
3. ​​Real-World Application​​:
   A German automotive plant embedded CK-M1LX2 modules into CNC machines to track ​​5,000+ cutting tools​​ daily. The system achieved:
   • ​​99.4% read accuracy​​ despite metal interference.
   • ​​15% faster tool changeovers​​ via automated RFID-based calibration.

Anti-Metal Strategies​​:
UHF embedded RFID modules face signal challenges in metal-heavy environments. The CK-M1LX2 tackles this through:

1. ​​Adaptive Frequency Hopping​​:
   • Activate ​​902-928MHz FHSS mode​​ (AT+FREQ=FHSS) to dynamically bypass EMI from welding robots or motors. This reduces packet loss by ​​42%​​ in steel warehouses.
2. ​​Near-Field Antenna Tuning​​:
   • Pair the module with ​​30cm × 30cm near-field antennas​​ to create localized read zones on metal shelves. Adjust antenna capacitance via the ​​ANT pin​​ for impedance matching (target VSWR <1.5:1).
3. ​​Anti-Metal Tag Protocols​​:
   • Use ​​ON-Metal UHF tags​​ (0-5mm standoff) with the module’s ​​GB/T29768-2013 protocol​​ for Chinese industrial parks. Configure AT+TAGTYPE=OM to optimize TID memory addressing.
     ​​Case Study​​:
     A semiconductor fab embedded CK-M1LX2 modules into copper-clad PCB storage racks. By combining:

• ​​Frequency agility​​ (50ms hop intervals).
• ​​-70dBm sensitivity threshold​​ (ignore weak signals).
  They achieved ​​98.9% inventory accuracy​​ versus manual checks.

Low-Power Design Tactics​​:
The CK-M1LX2’s ​​2.2W peak power​​ and flexible modes make it ideal for solar/wireless IoT edge devices:

1. ​​Dynamic Power Scaling​​:
   • Use AT+PWR=20 to reduce RF output to 20dBm during routine scans, cutting energy use by ​​35%​​ vs. max power.
   • Enable ​​Sleep Mode​​ (AT+SLEEP=1) when idle, dropping consumption to ​​0.1W​​ (50μA standby current).
2. ​​Event-Triggered Scanning​​:
   • Link GPIO-3 to motion sensors—activate RFID reads only when assets enter a ​​3m detection zone​​.
3. ​​Solar-Ready Architecture​​:
   • The module’s ​​3.5-5V input range​​ pairs with LiFePO4 batteries and 6W solar panels for 24/7 operation in remote sites.
     ​​Field Example​​:
     A wind farm embedded CK-M1LX2 modules into turbine blade tracking nodes. Configurations included:

• ​​18dBm output​​ (balanced range/power).
• ​​5-minute scan intervals​​ during low-wind periods.
  Result: ​​12-month battery life​​ with daily 200-tag scans.
