Welcome to Part 4

RFID Roadmap

We divide the information into nine parts: RFID overview, RFID readers, RFID antennas, RFID tags, hardware, auxiliary equipment, advanced principles, ideal device performance, RFID system deployment, and different types of RFID.

Back to Part 3

What is RFID Tag?

Online Reading Guide

RFID TAG is a small wireless identification label that stores information and sends it back to an RFID reader when activated by radio waves. Unlike traditional barcodes, it doesn’t need to be scanned one by one—the reader automatically detects it, which saves a lot of time and effort. (Cykeo RFID Tag)

How It Works

The reader converts this signal into digital information for your system to process.

Each tag contains a chip and an antenna.

When it enters the reader’s radio field, the tag activates and reflects back its stored data.

Key Features of RFID Tag

1. Passive Operation, No Battery Needed

Most RFID tags are passive, meaning they don’t have a battery and only respond when energized by a reader. This keeps them small, long-lasting, and cost-effective.

2. Multiple Frequency Options

HF (High Frequency) RFID tags: Short-range, perfect for access cards, library books, and similar applications.
UHF (Ultra-High Frequency) RFID tags: Long-range, ideal for logistics, warehouse tracking, and industrial assets.
Different frequencies suit different scenarios.

3. No Line-of-Sight Required

RFID tags can be read through cardboard, plastic, fabric, and most non-metal materials, unlike barcodes that need to be visible.

Common Applications of RFID Tag

Cykeo real-world scenarios for RFID tags

Supply Chain & Warehouse Management
Stick tags on boxes or pallets for fast check-in/out without opening packages.

Asset Management
Track equipment and tools in factories or hospitals for quicker, more accurate inventory.

Access & Identity
Employee or visitor cards can be recognized instantly when approaching a reader.

Retail Inventory Management
Scan multiple items at once, much faster than manual barcode scanning.

Libraries & Archives
Books or important files get tagged for automated tracking and circulation.

Cykeo RFID Tag Product Types

Cykeo offers a variety of tags to fit different materials and environments: (Cykeo RFID Tag)

By Installation Environment

Standard Tags
Basic tags for general-purpose, non-metal surfaces.
Anti-Metal / On-Metal Tags
Designed to stick directly on metal surfaces without signal loss. Examples include:

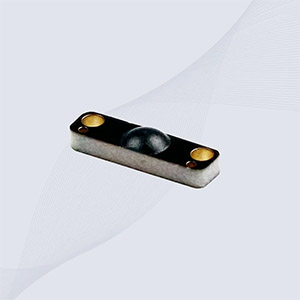

- CK-BQ1504 Anti-Metal UHF Tag – compact, long read range (~8m)
- CK-BQ7020 On-Metal Tag – heavy-duty, chemical-resistant for industrial equipment
- CK-BQ6025 Flexible Anti-Metal Tag – flexible design for curved metal surfaces

By Industry or Function

CK-BQ7015 RFID Laundry Tag – withstands high temperature and repeated washing (hotels, hospitals)
CK-BQ12507 UHF RFID Book Tag – library and archive use
CK-BQ5530 Medical RFID Tag – suitable for sterilization environments in healthcare
CK-BQ8828 UHF Cable Tie Tag – asset and machine tracking
CK-BQ7320 UHF Asset Tag – general industrial tracking

Why RFID Tag Are Valuable

Automatic reading, no manual scanning
Can read multiple tags at once
Works through packaging for faster inventory
Designed for different materials and harsh environments
Widely used in warehousing, asset management, access control, healthcare, retail, and more

Typical Applications

Tracking industrial machinery and tools
Monitoring metal containers, racks, and pallets
Asset management in factories, warehouses, and logistics operations

This tag allows accurate, automated identification of metal objects without compromising durability or read reliability.

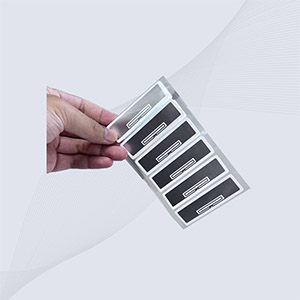

CK-BQY7020 Anti-Liquid Passive RFID Tags

Online Reading Guide

Cykeo CK‑BQ7320 UHF RFID Asset Tag — Rugged Asset Tracking for Industrial Metal Surfaces

Cykeo CK‑BQ7320 UHF RFID Asset Tag is a durable, high‑performance RFID tag designed to reliably identify and track metal assets in industrial environments such as manufacturing plants, warehouses, logistics centers, and equipment fleets. It delivers stable performance even when mounted directly on metal surfaces, where ordinary RFID labels often fail.

Key Features

Optimized for Metal: Built with a specially etched aluminum antenna that maintains strong RFID performance when attached directly to steel or aluminum surfaces.
Long Read Range: Supports up to approximately 8 meters reading distance with standard fixed UHF readers (2 W ERP), enabling efficient scanning of tagged assets from a distance.
Industrial Durability: Constructed on a rugged PET base and engineered to withstand tough conditions — from factory floors to storage facilities — including temperature extremes from about ‑40 °C to +85 °C.
Extended Lifespan: Designed for long‑term use with up to 100,000 write cycles and approximately 10 years of data retention, making it ideal for lifecycle asset tracking.
Global Compatibility: Compliant with the ISO/IEC 18000‑6C EPC Class 1 Gen2 standard, ensuring interoperability with common UHF RFID systems worldwide.
Secure and Flexible: Supports 128‑bit EPC memory and additional user memory for identification and custom data storage.

Typical Use Cases

This tag is well‑suited for tracking durable items and metal objects that undergo regular handling or movement, such as:

Medical or technical equipment in healthcare and manufacturing facilities

Industrial machinery and tools

Metal racks, cabinets, and shelving

Reusable pallets and transport assets

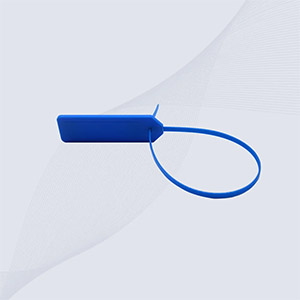

CK-BQ8828 UHF RFID Cable Tie Tag

Online Reading Guide

CK‑BQ8828 UHF RFID Cable Tie Tag — Rugged RFID Identification for Metal Assets

Cykeo CK‑BQ8828 UHF RFID Cable Tie Tag is a heavy‑duty RFID tag designed for durable, long‑term tracking of metal equipment, cables, and industrial assets where traditional adhesive labels or tags aren’t reliable. Its unique cable‑tie form factor makes it ideal for securing directly to objects in tight spaces and demanding environments.

Key Features

Compact and Easy to Mount: Its slim 88 × 28 mm size fits in narrow places and tight mounting points where other tags might not.
Metal‑Optimized Performance: Designed to read reliably up to ~8 meters even when attached directly to metal surfaces, overcoming interference issues typical with metal assets.
Industrial Durability: Built with rugged materials that operate from ‑40 °C to +85 °C and withstand vibration, dust, and harsh conditions — perfect for both indoor facilities and outdoor sites.
Long Lifespan: Supports up to 100,000 write cycles and offers long‑term data retention, making it suitable for permanent asset identification.
Global RFID Standards: Complies with ISO/IEC 18000‑6C (EPC Class 1 Gen2), ensuring broad compatibility with standard UHF RFID readers worldwide.

Typical Applications

This cable tie tag is widely used for tracking and identifying items in scenarios such as:

Warehouse logistics and metal inventory management
Traditional tags often fail in these environments due to movement, metal interference, or chemical exposure — but the CK‑BQ8828 stays readable and dependable even over many years.

Industrial machinery and automotive components

Server racks and IT infrastructure

Pipelines and valves in energy or utility facilities

Hospital equipment and medical devices
