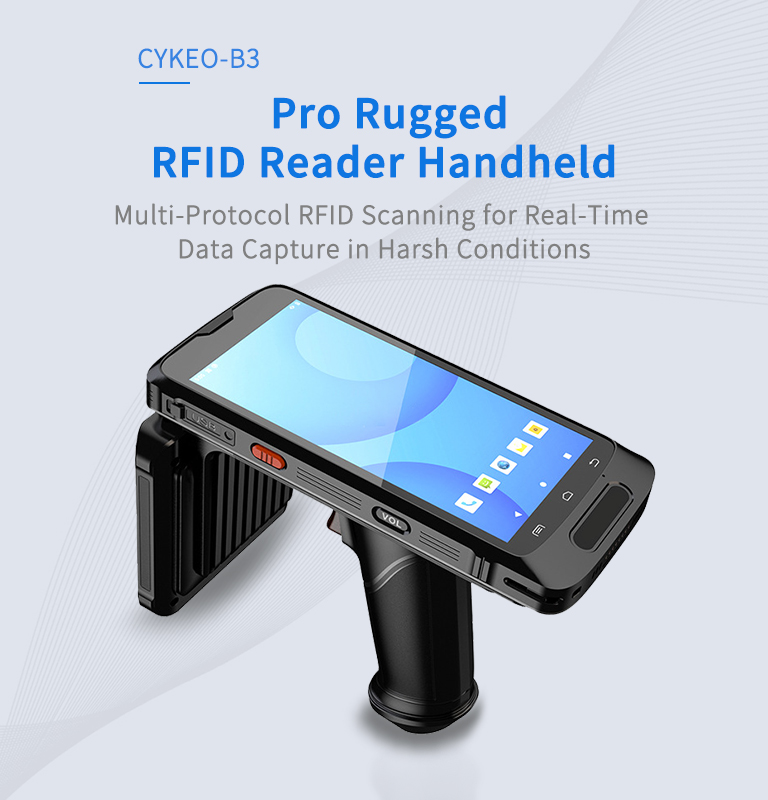

CK-B3

Pro Rugged RFID Reader Handheld

Multi-Protocol RFID Scanning for Real-Time Data Capture in Harsh Conditions

✔️ IP65 Protection Against Dust & Water

✔️ 2m Extended RFID Range with Dual-Band Antenna

✔️ Android 10.0 + Java/C# SDK for System Integration

Talk to an Expert

Email Our Team

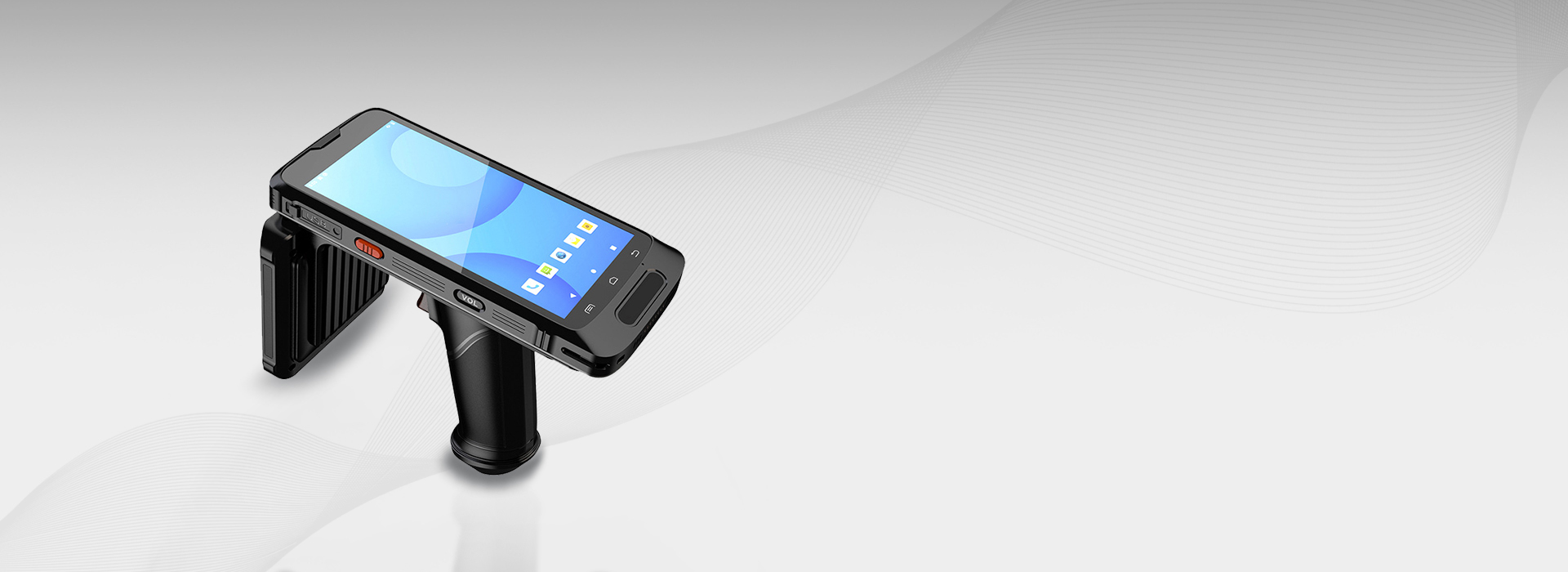

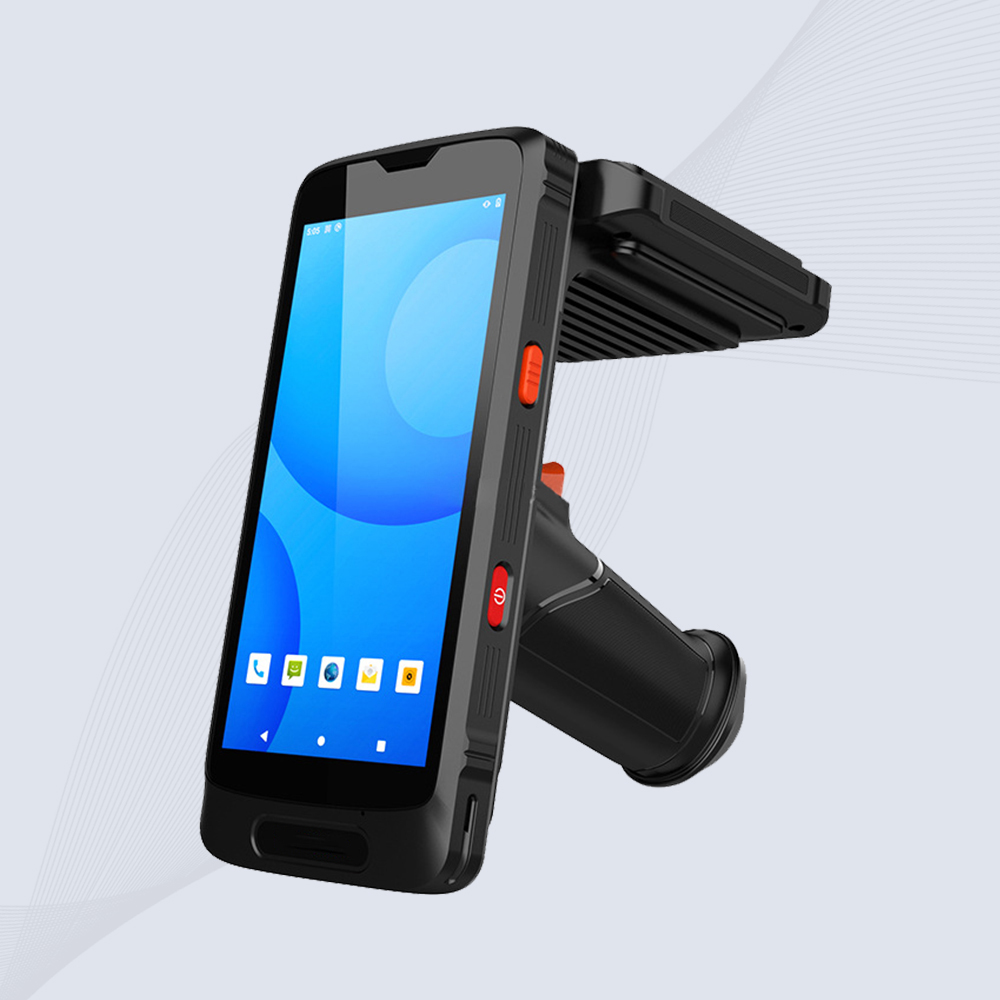

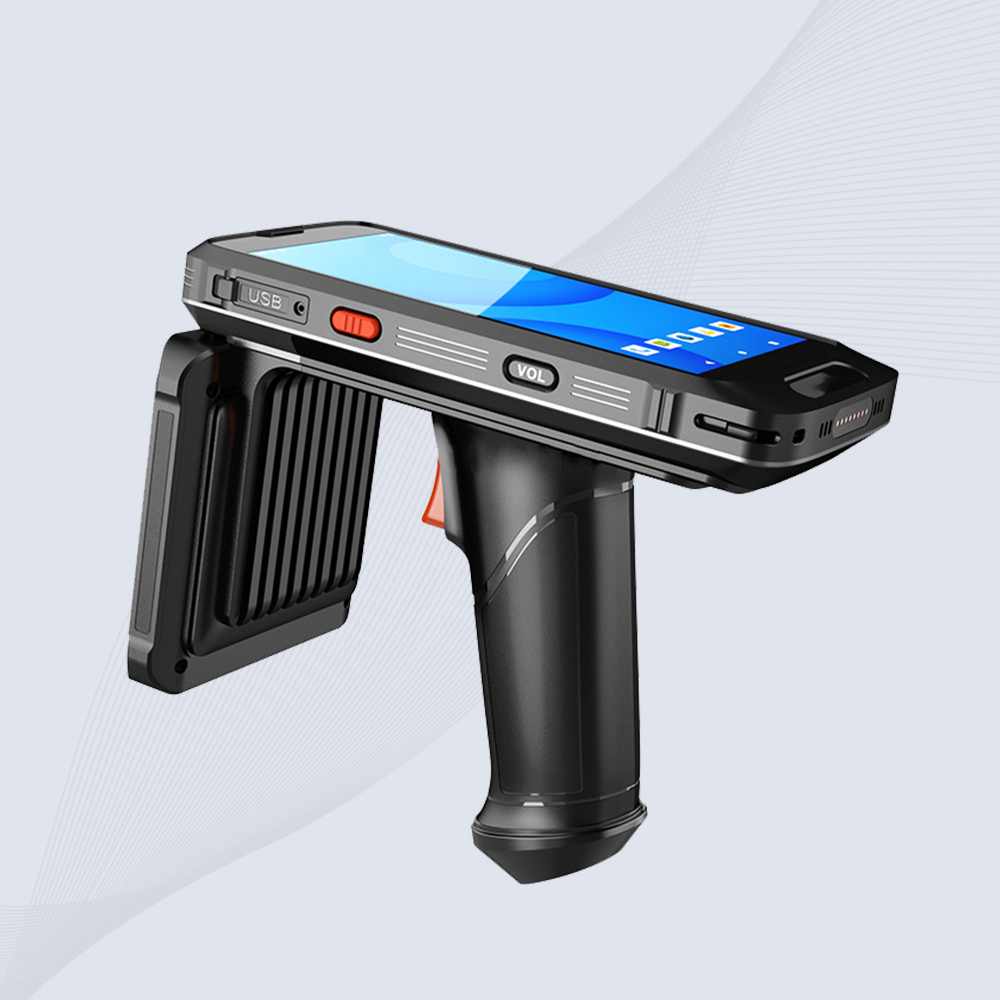

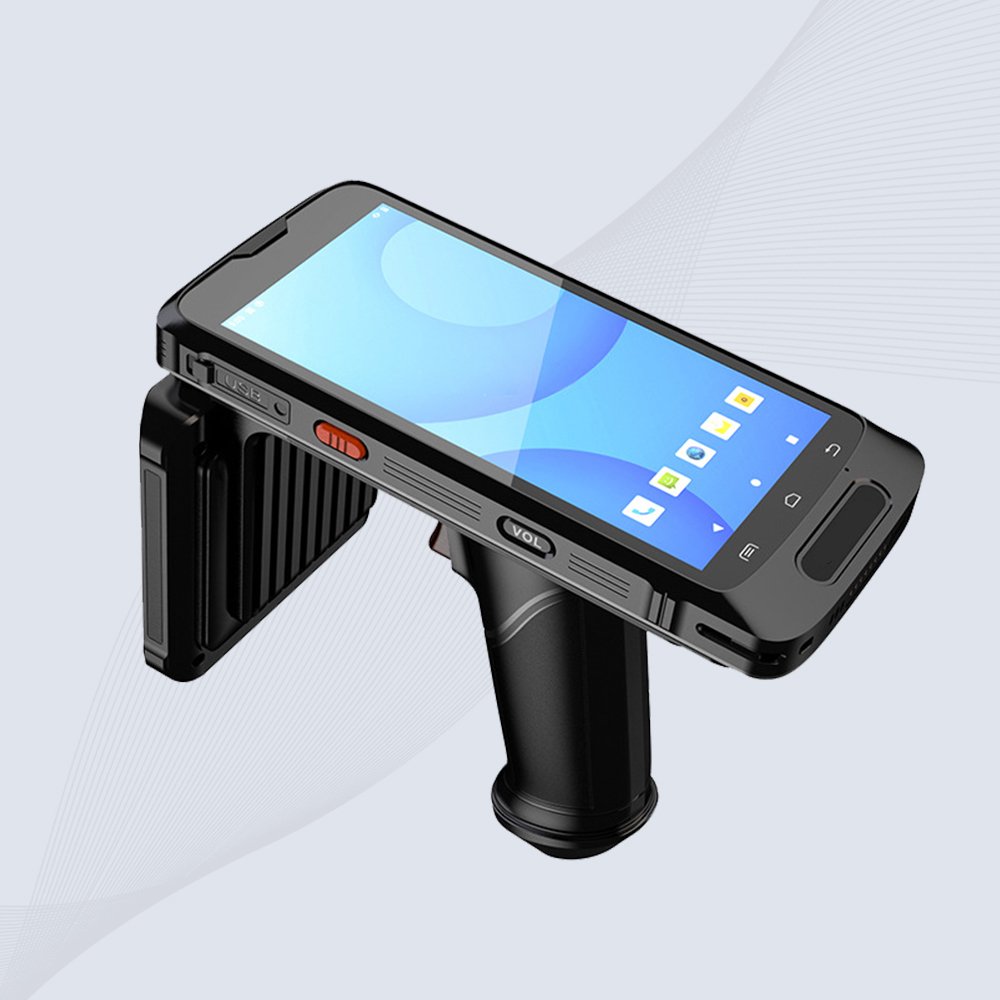

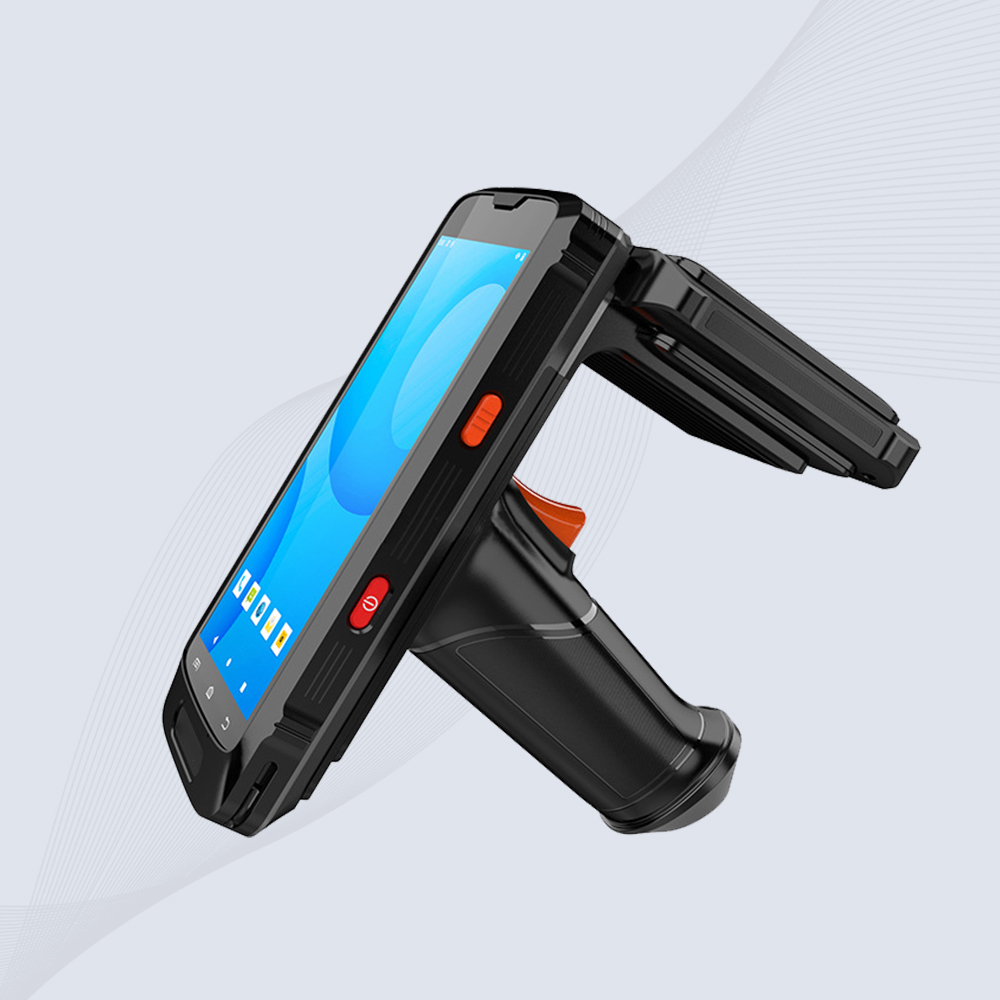

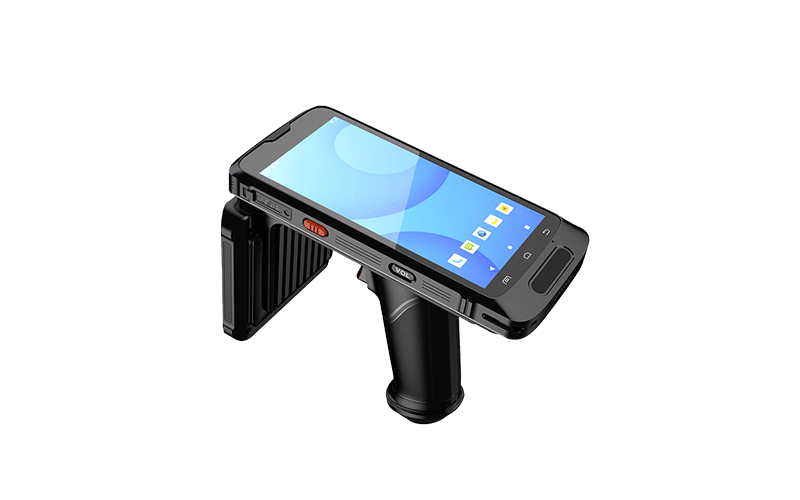

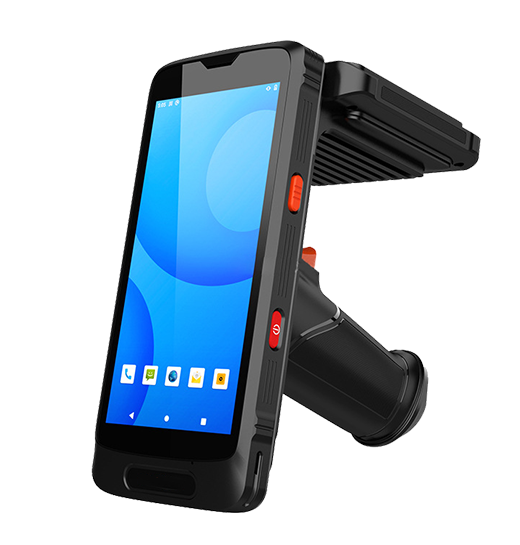

Cykeo CK B3 Pro Rugged RFID Reader Handheld

PRECISION SCAN, INDUSTRIAL POWER

The CK-B3 Pro Rugged RFID Reader Handheld is a versatile industrial-grade device engineered for rapid data collection in challenging environments. Combining UHF RFID, NFC, barcode scanning, and ID recognition, it delivers unmatched accuracy and speed for asset tracking and inventory management. Powered by an octa-core 2.0GHz processor and Android 10.0 OS, this handheld terminal offers 12+ hours of continuous operation, making it ideal for logistics, manufacturing, and retail applications.

Optimized for cross-industry data capture: Warehouse inventory audits, manufacturing process control, retail stock management, and field service operations.

Asset Management

Apparel Inventory

Hotel Linen Control

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-B3 Pro Rugged RFID Reader Handheld Specification

Download

Online Procurement

KEY FEATURES OF SCOTECH CK-B3 RFID READER HANDHELD

Multi-Protocol RFID

Supports ISO 18000-6B/C, EPC Gen2, GB/T29768

Expandable Memory

Up to 256GB via MicroSD + 4GB RAM/64GB ROM config

Multi-Language OS

Supports 10+ languages including Chinese/English/Korean

12H Industrial Battery

7200mAh with <6H fast charging

5.5″ HD Touchscreen

720×1440 IPS display with multi-touch

Global Connectivity

Dual-band Wi-Fi, 4G LTE, and GNSS GPS/BeiDou

Rugged IP67 Design

Survives drops, dust, and water immersion

Developer-Friendly

C#/Java SDKs for ERP/WMS integration

CK-B3 Pro Rugged RFID Reader Handheld Specifications

Main Specifications

BrandCykeo
ModelCK-B3
Product NamePro Rugged RFID Reader Handheld

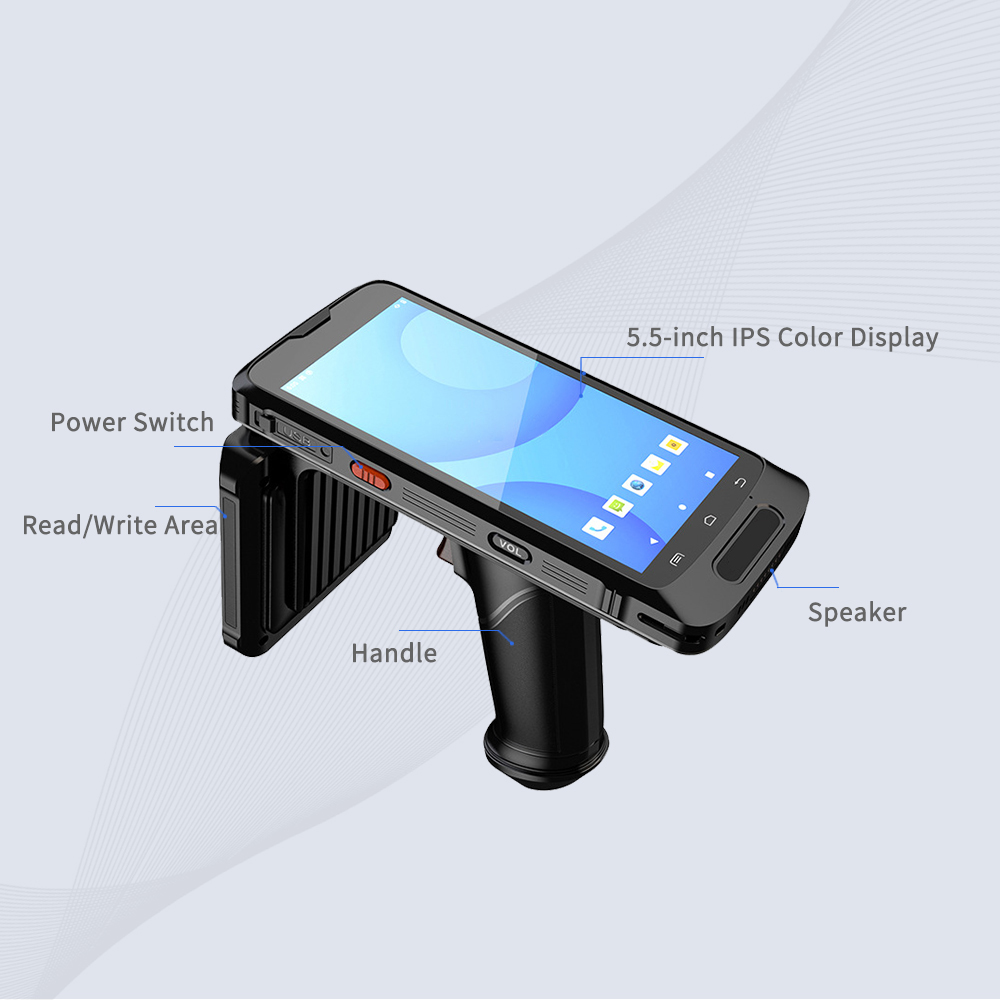

Physical Parameters

Dimensions168x76x28mm (with grip)
Weight<500g (varies by configuration)
Display5.5″ HD (720×1440)
TouchscreenMulti-touch capacitive
Battery7200mAh Li-Po, >12H runtime, 360H standby
SlotsNano SIM×2, TF×1
PortsUSB Type-C 2.0 with OTG

Audio

ComponentsMono speaker, microphone, earpiece

Controls

Main KeysHome/Delete/Back/Confirm
Side KeysPower, Volume+/-, Scan×2

Sensors

FeaturesGravity/Light/Proximity sensors, vibration motor

Language/Input

Input MethodsEnglish/Pinyin/Wubi/Handwriting, soft keyboard
Languages30+ including Chinese/English/Korean/Japanese/Malaysian/Singaporean

Optional Barcode

2D EngineN6602-W2
1D TypesUPC/EAN/Code128/Code39/Postal codes (20+ standards)
2D TypesPDF417/QR/Datamatrix/Aztec/HanXin (15+ formats)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840~960 MHz
Air ProtocolEPC C1G2、ISO18000-6C
AntennaCircularly Polarized Antenna (4.65dBi)
Reading Range0-2m adjustable
Bulk Read Speed>500 tags/sec(circular polarization)
CPUOcta-Core 2.0GHz 64-bit Processor
RAM+ROM2GB+16GB (upgradable to 4GB+64GB)
Expandable StorageMicro SD (TF) card up to 256GB
OSAndroid 10.0

Data Communication

WLANDual-band 2.4GHz/5GHz, supports 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v
WWAN2G: GSM 850/900/1800/1900MHz
3G: WCDMA 850/900/1900/2100MHz
4G: FDD B1/B3/B4/B7/B8/B12/B20
TDD:B38/B39/B40/B41
BluetoothBT 5.0 + BLE (5-10m range)
GNSSGPS/Galileo/Glonass/BeiDou

Camera

Rear13MP AF with flash & macro
Front2MP

Operating Environment

Operating Temperature-10℃ to 50℃ (Industrial-Grade Range)
Storage Temperature-20℃ to 70℃ (Extreme Condition Resilience)
Humidity5%RH–95%RH (Non-Condensing)
Drop Resistance1.2m height, 30 drops on concrete floor (6-axis tested)
Rolling Test0.5m continuous rolling on 6 surfaces (Rugged Field Operation)
IP RatingIP65 (Dustproof & Water-Jet Resistant)

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID READER HANDHELD FAQS

How does the CK-B3 handle high-density RFID tag environments in warehouses?

The CK-B3L is optimized for bulk tag scanning with three key capabilities:

Sector Scanning – Use the SDK to define directional scan zones, reducing interference in multi-aisle setups.
Anti-Collision Algorithm – Advanced dynamic Q-value adjustment ensures stable reading of 50+ tags per second in dense layouts.
Power Adjustment – Transmit power (0-30dBm) can be fine-tuned via software to avoid signal overlap.

What security measures are implemented for ID card and NFC data reading?

The CK-B3 ensures compliance with global data protection standards through:

Hardware Encryption – Built-in SE security chip for AES-128 encryption of sensitive data (e.g., ID card info).
Isolated Storage – Critical data is stored in a separate partition with Android Work Profile sandboxing.
API Control – Developers can disable NFC/RFID modules remotely via MDM solutions if devices are compromised.

What software tools are provided for custom Android app development?

Developers gain full control via:

Comprehensive SDK – Java/C# APIs for RFID, barcode, and NFC hardware control.
Prebuilt UI Modules – Drag-and-drop scan interfaces for rapid deployment.
Android Studio Integration – Debugging templates and emulator support for Android 10.
