✔️ 360° Smart Tracking with 9-Beam Steering

✔️ AI Static Tag Filtering for Zero False Alarms

✔️ 120° Wide-Angle Coverage with 5m Detection

Email Our Team
TUGK

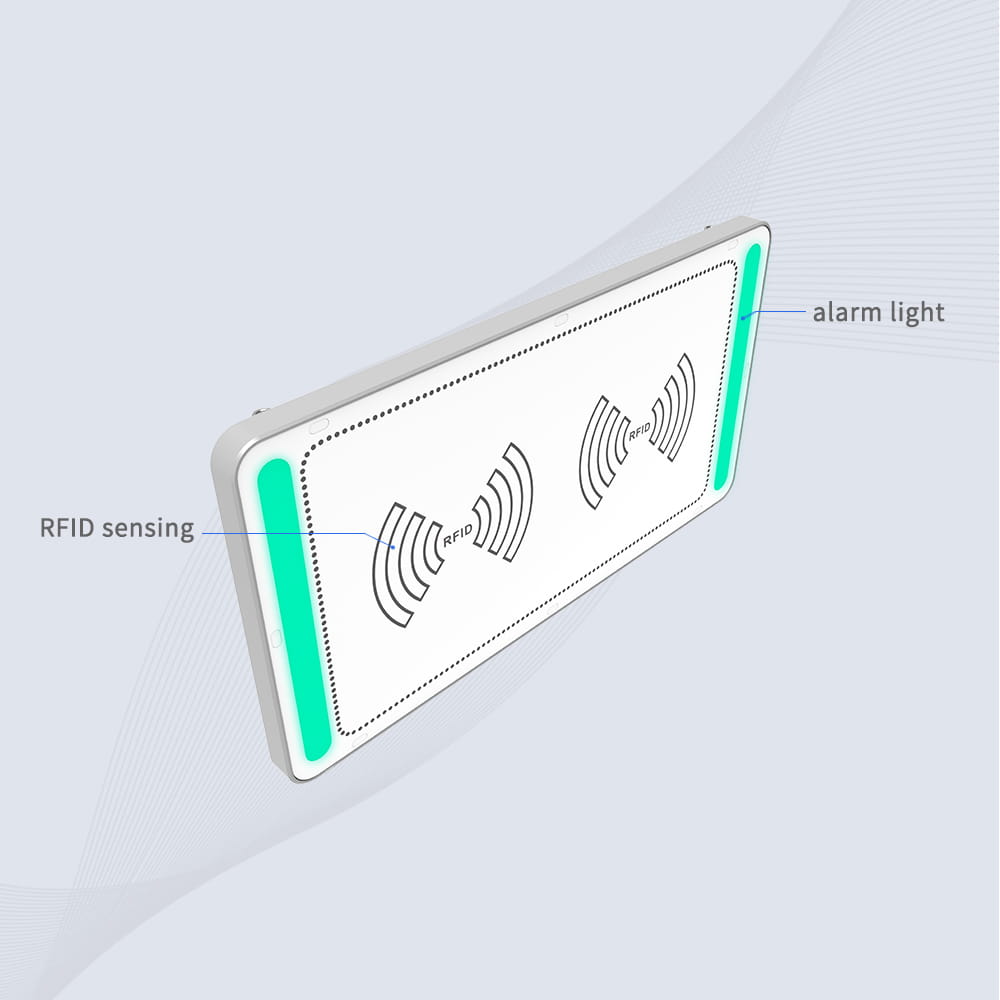

rfhdfju
rfhdfju

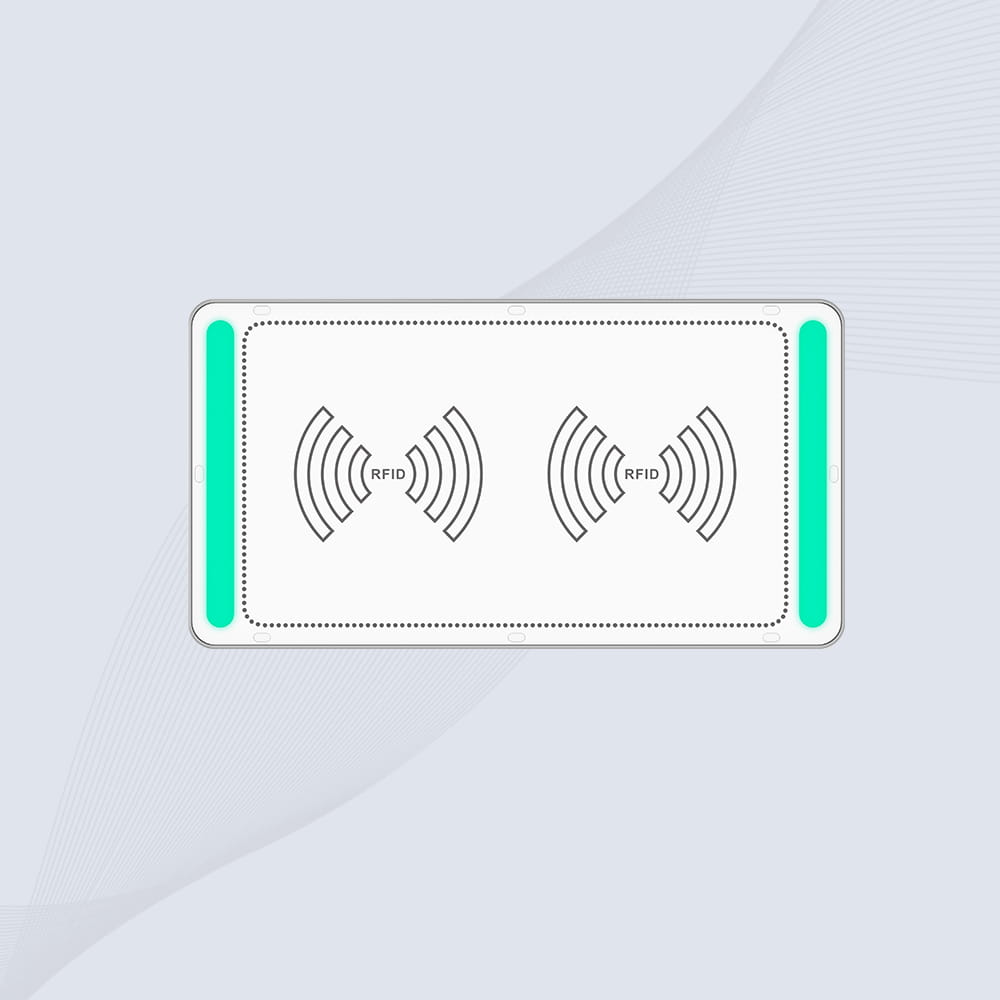

SDRYG

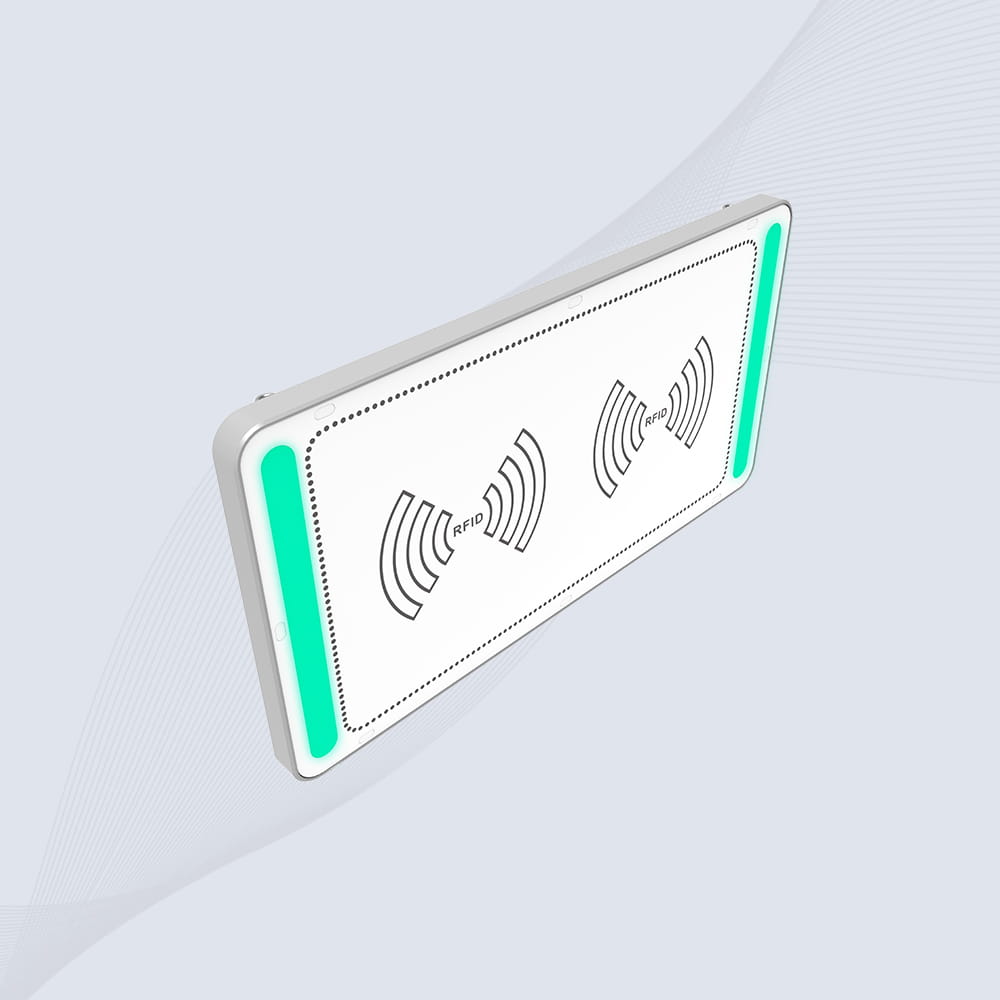

DTHH 1

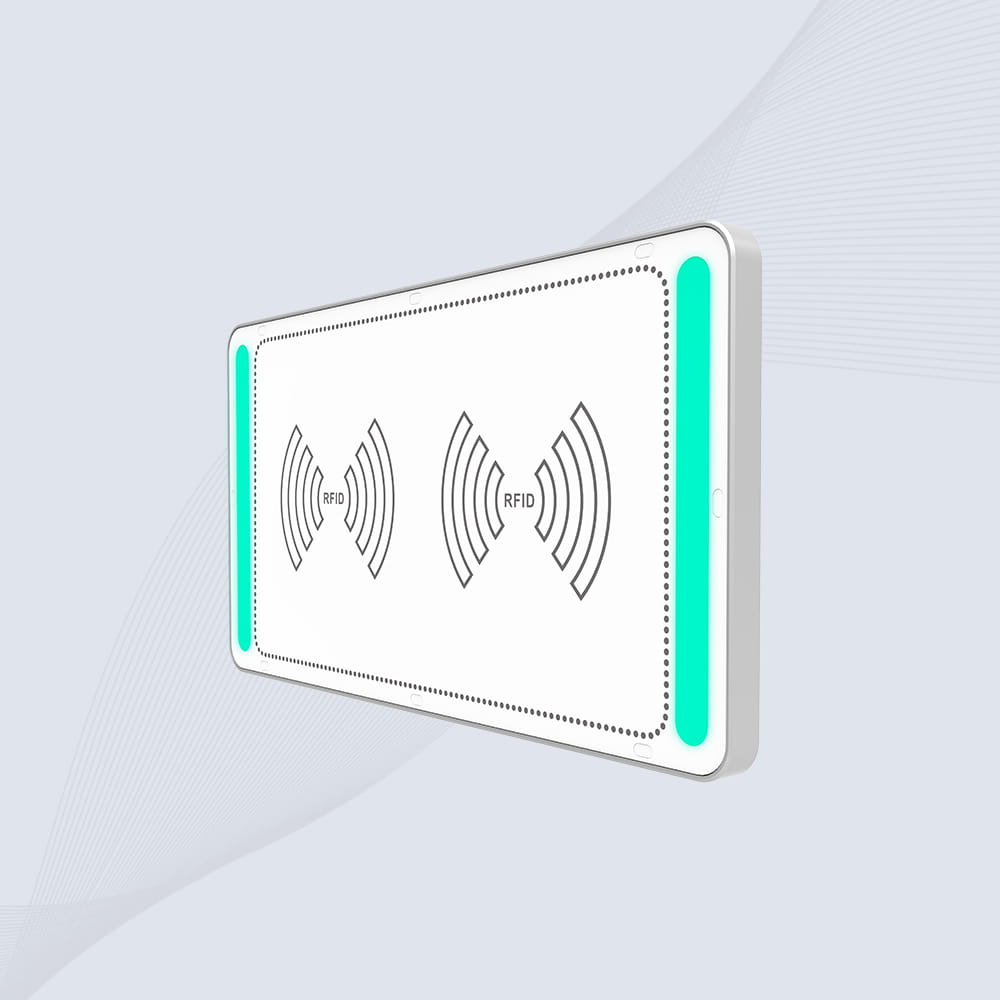

TYGIJG

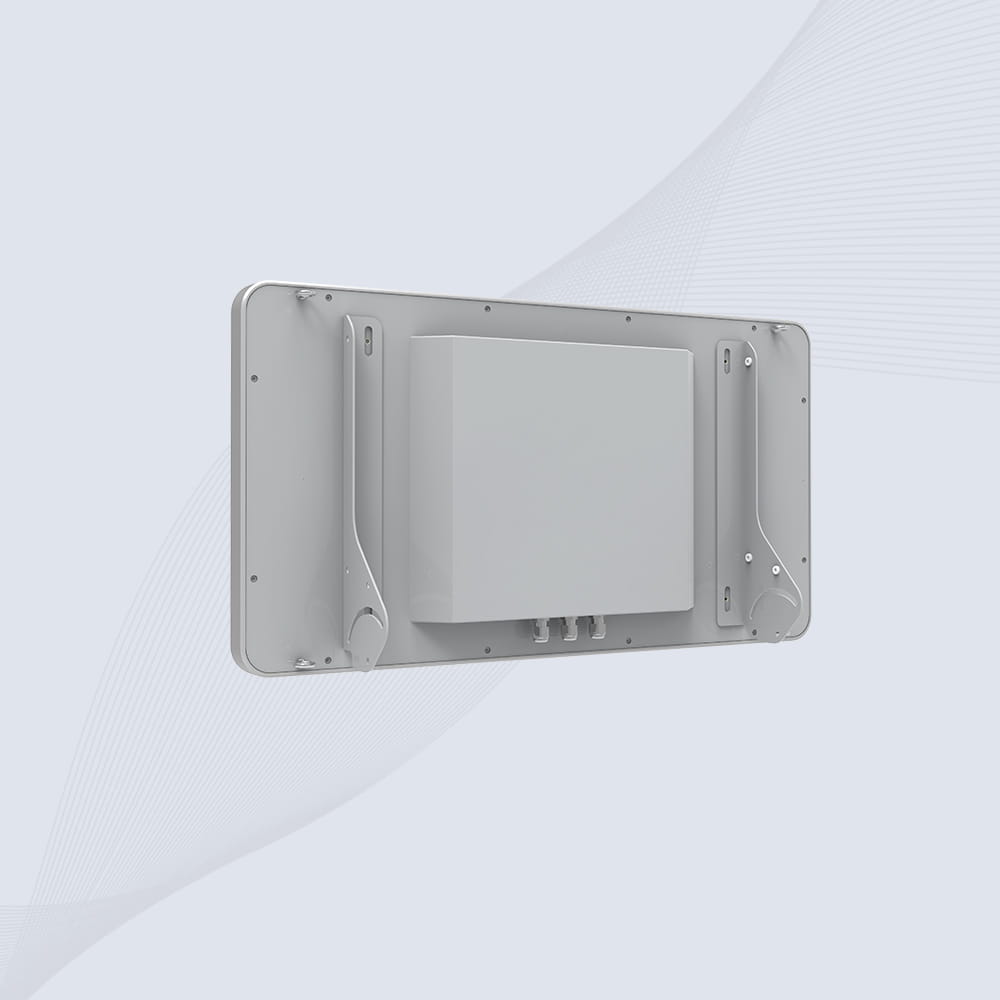

TYGUIHK

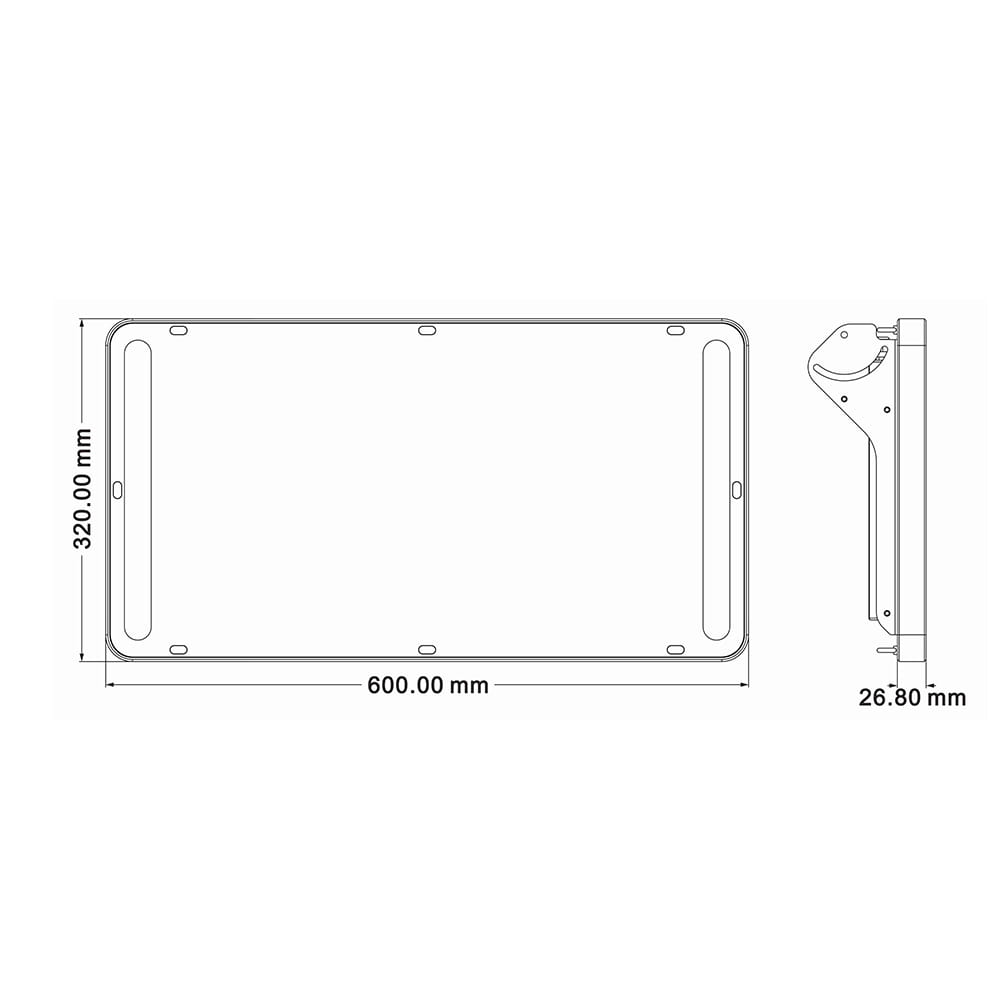

SETYDH

PRECISION DETECTION, ZERO THEFT GUARANTEE

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

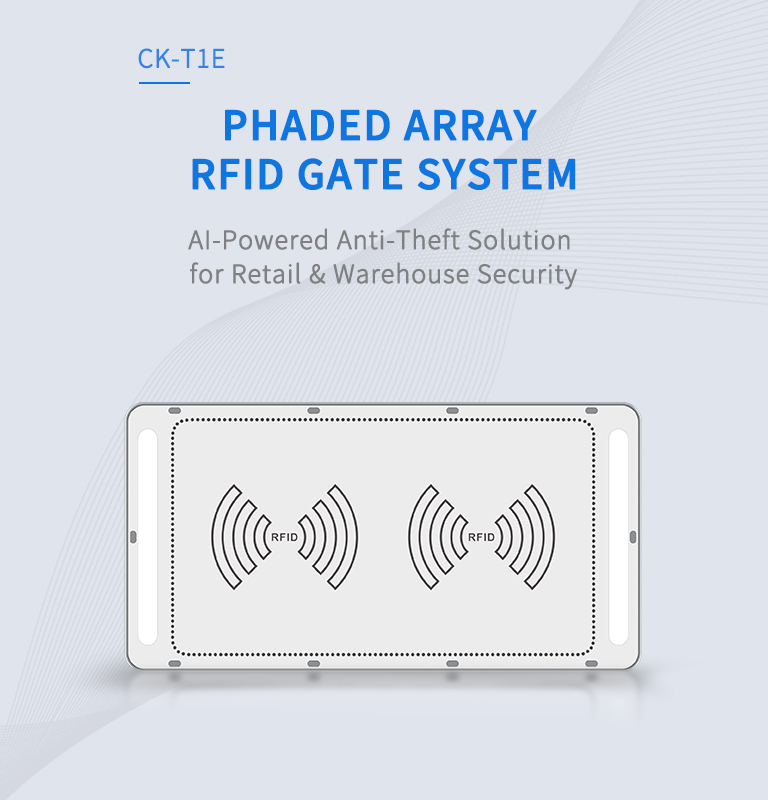

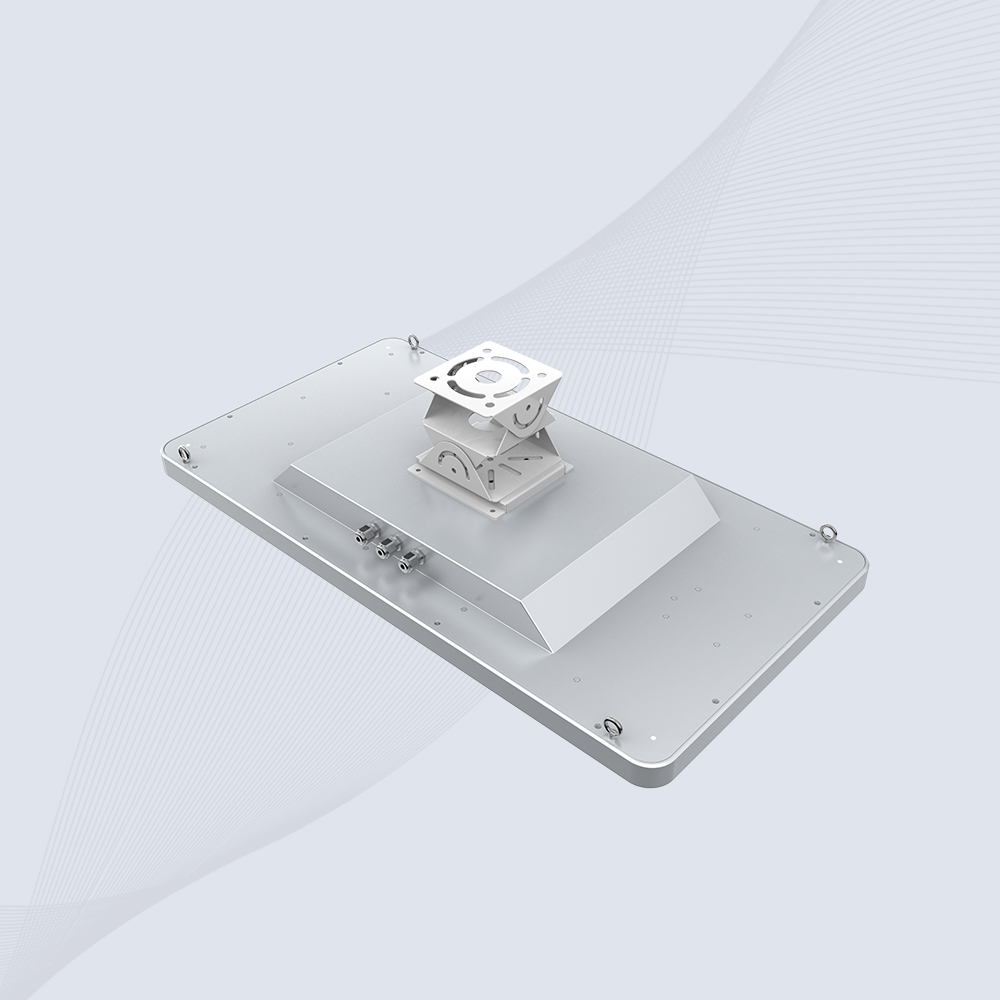

CK-T1E UHF PHASED ARRAY SMART GATE SPECIFICATIONS

Main Specifications

  • BrandCykeo
  • ModelCK-T1E

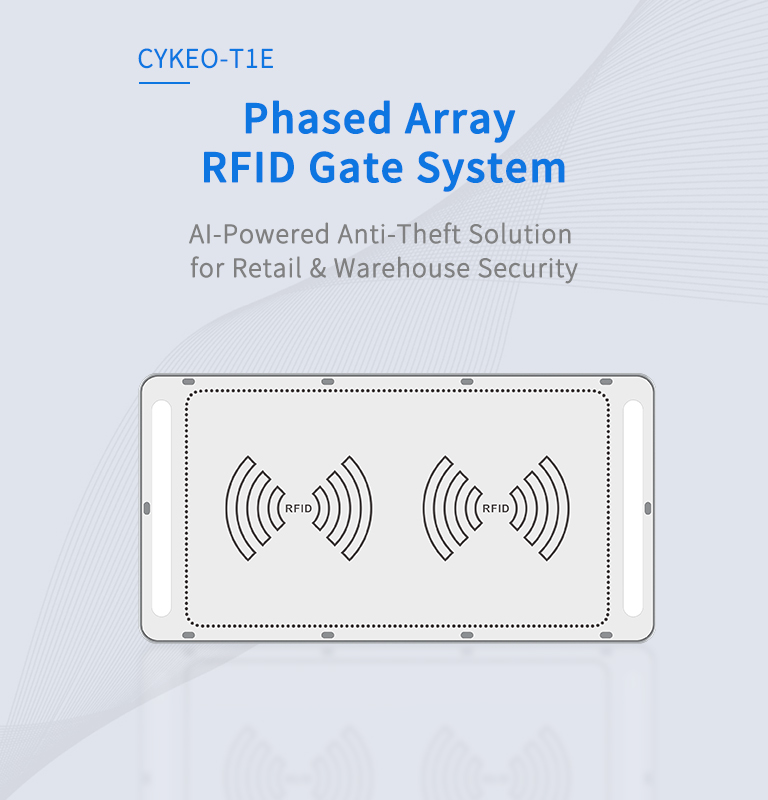

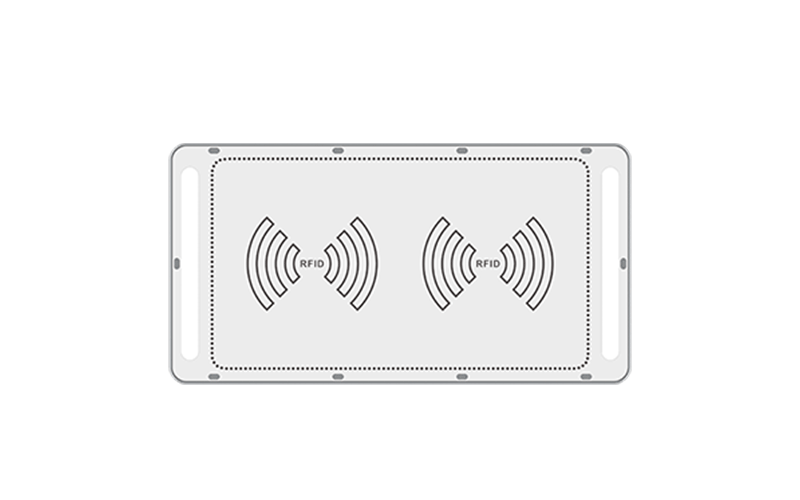

  • Product NamePhased Array RFID Gate System

Physical Parameters

  • ​Communication ProtocolTCP/IP
  • Operating ModeFixed Frequency/Frequency Hopping
  • Beam Scanning Interval
  • ​Coverage Angle90° (Horizontal) / 120° (Vertical)
  • ​Beamforming Time5μs
  • RF Output Power33dBm±1dBm (MAX)
  • ​Occupied Bandwidth<200kHz

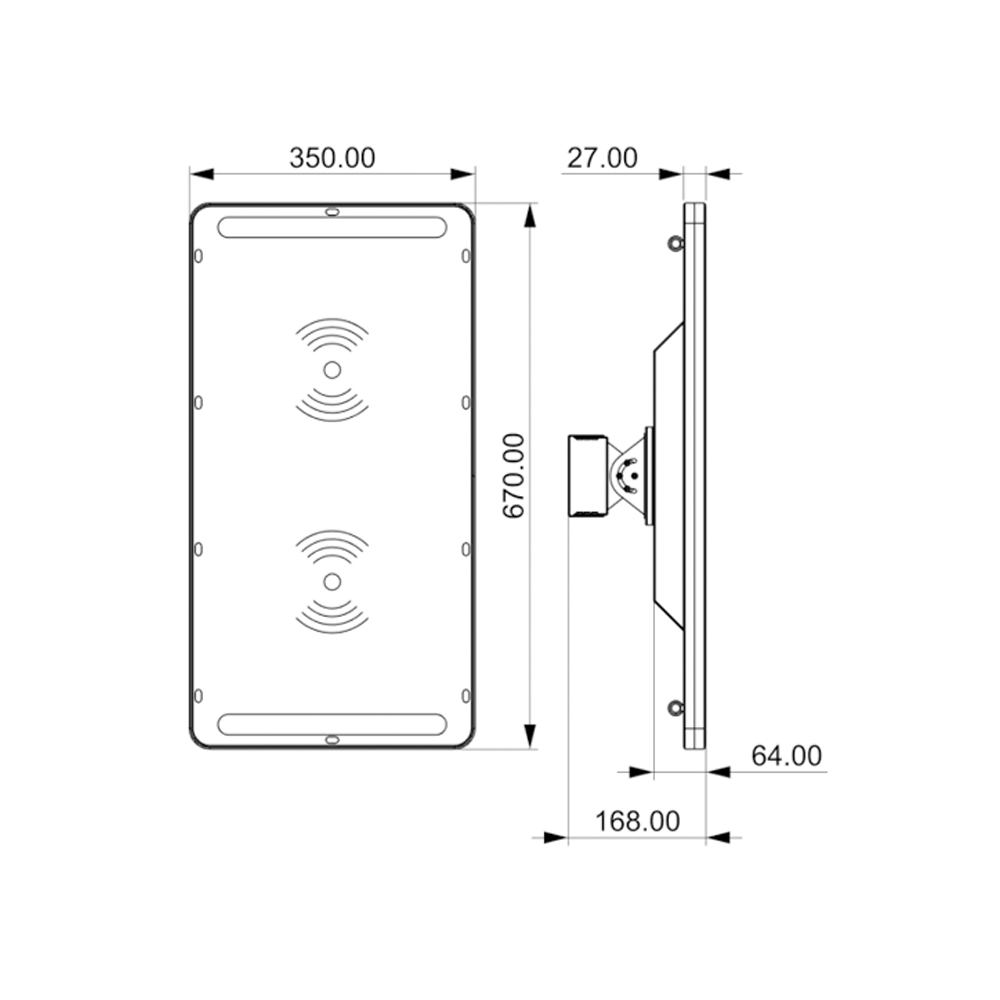

  • Dimensions270mm×670mm×350mm
  • Housing MaterialAluminum Frame + Acrylic Panel
  • Installation Height2.2-3.5m
  • Weight≤5kg
  • Communication InterfaceRJ45 Port ×1

Performance Parameters

  • Air ProtocolISO 18000-6C/6B、EPC C1G2、GB/T 29768-2013(Optional)、GJB 7377.1-2011/72018A
  • AntennaCircularly Polarized Antenna (33dBm)
  • Reading Range0~5m (EPC), 0~5m (Write)
  • Optimal Coverage Width2.5m
  • Bulk Read Speed>500 tags/sec(circular polarization)

Operating Environment

  • Operating Temperature-20℃ to 70℃ (Industrial-Grade Range)
  • Storage Temperature-40℃ to 85℃ (Extreme Condition Resilience)
  • ​Humidity5%~95% (Non-Condensing)
  • Temperature-20℃~60℃
  • ​IP RatingIP54 (Dustproof & Water-Jet Resistant)

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

PHASED ARRAY RFID GATE FAQS

UHF Phased Array Anti-Theft System FAQs: How does the CK-T1E differentiate stolen goods from legitimate purchases?

The CK-T1E smart gate uses a ​three-layer verification system to ensure accuracy:

  • AI Motion Filtering: Its phased array antennas track RFID tag movement direction (entry/exit) and speed, ignoring static items on shelves.
  • POS Integration: Automatically syncs with your store’s POS system. Once an item is paid, its RFID tag is whitelisted in real time, bypassing alarms.
  • Dynamic RSSI Analysis: Measures signal strength to detect concealed items (e.g., tags hidden in bags). Combined with 500 tags/sec scanning, it reduces false positives by 98%.
Retail RFID Security Gate FAQs: What makes the CK-T1E suitable for high-density environments like clothing stores?

The CK-T1E excels in crowded retail spaces through:

  • Adaptive Beamforming: Its 9-beam phased array scans 120° horizontally and vertically, covering fitting rooms and checkout lanes simultaneously.
  • Multi-Tag Priority Mode: Focuses on moving tags while filtering 1000+ static tags on displays, ensuring fast detection of unauthorized item movement.
  • IP65 Durability: Resists dust and moisture, ideal for humid fitting areas or outdoor mall entrances. Installation flexibility (2.2-3.5m height) fits diverse store layouts.
Smart Inventory Management Gate FAQs: How does ERP integration improve retail operations?

The CK-T1E transforms inventory management via:

  • Real-Time Sync: Automatically updates stock levels in SAP/Oracle when items exit, eliminating manual counts.
  • Theft Analytics Dashboard: Generates reports on peak theft times and hotspot zones, accessible via Cykeo’s cloud platform.
  • Customizable Alerts: Sends SMS/email notifications for repeated tag triggers (e.g., suspected shoplifting patterns), enabling proactive loss prevention.
