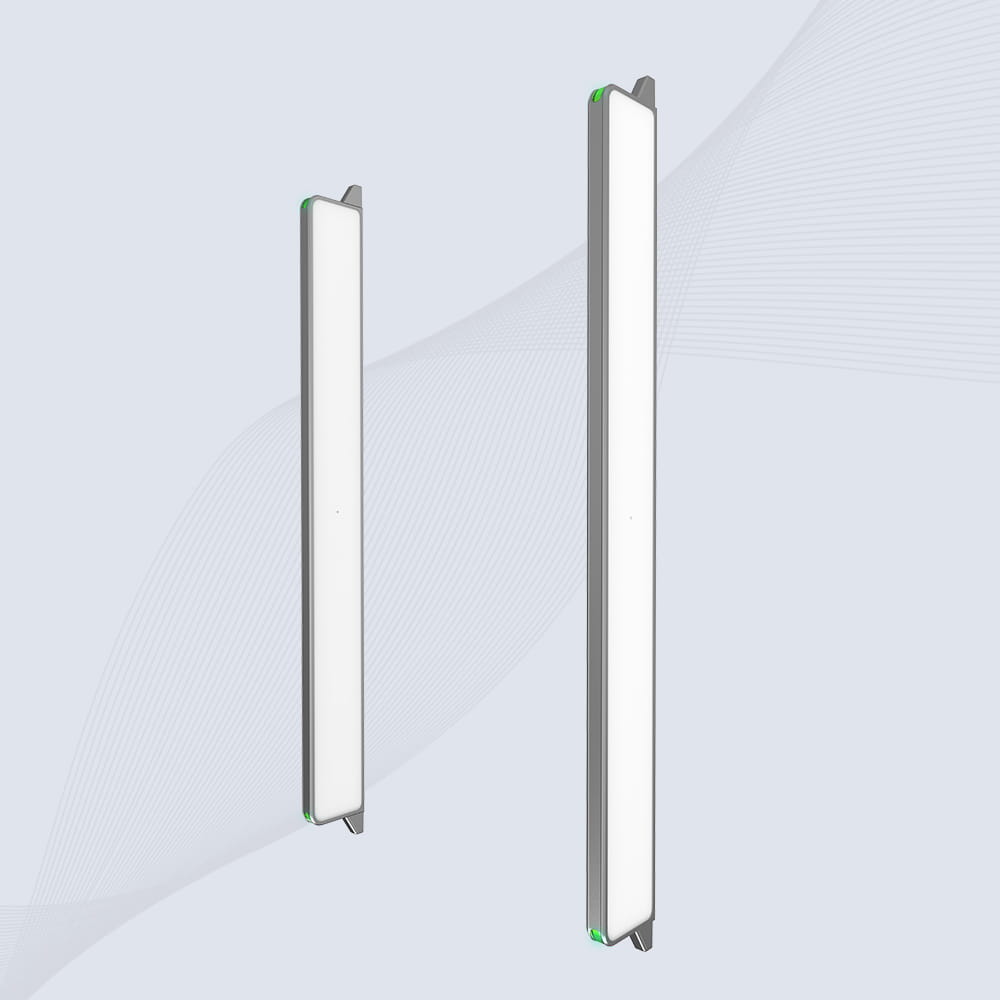

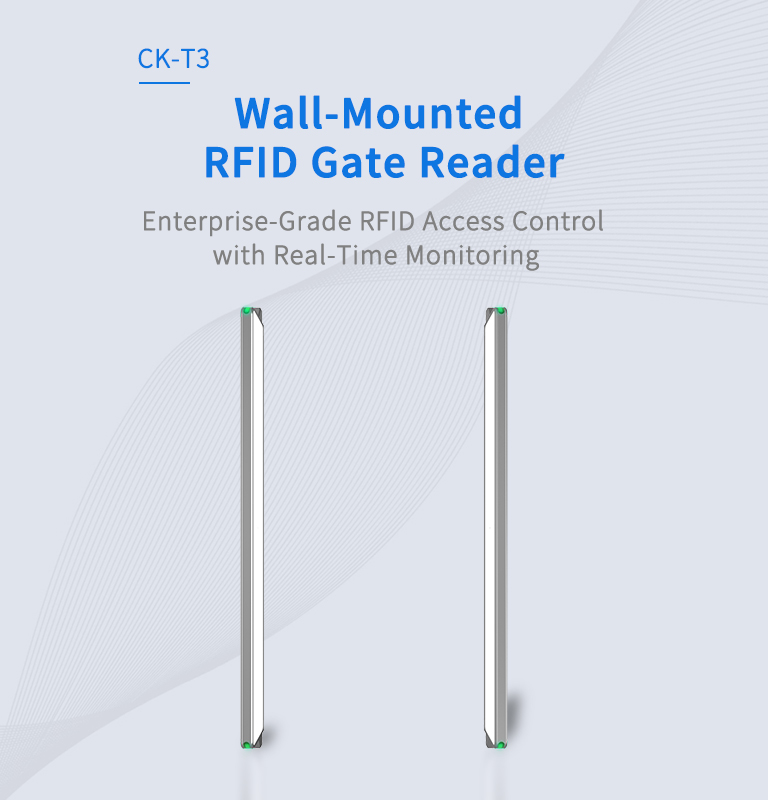

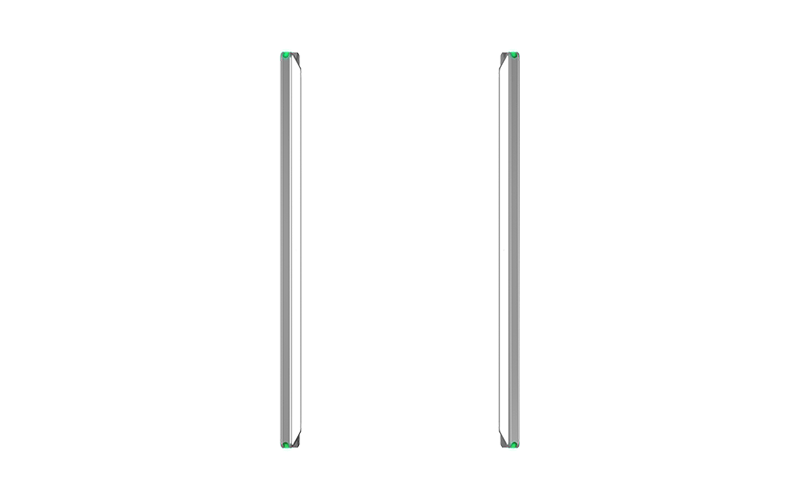

CK-T3 Wall-Mounted RFID Gate Reader​(images 1)

Wall-Mounted RFID Gate Reader​

✔️ Reads 200+ tags/sec, 99.9% accurate


✔️ Slim 62 mm design for tight spots


✔️ Dual EAS alarms, online or offline


✔️ Tracks people and inventory live


✔️ Optional WiFi/4G

Talk to an Expert

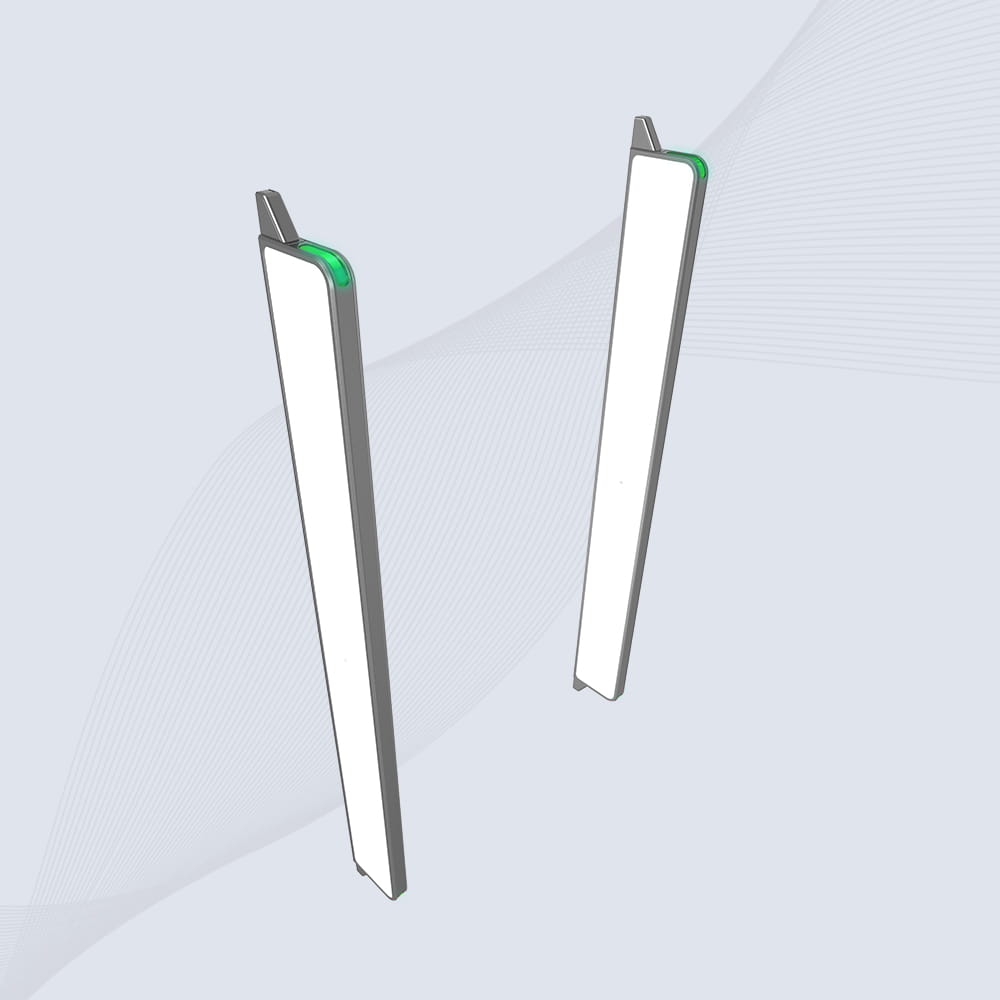

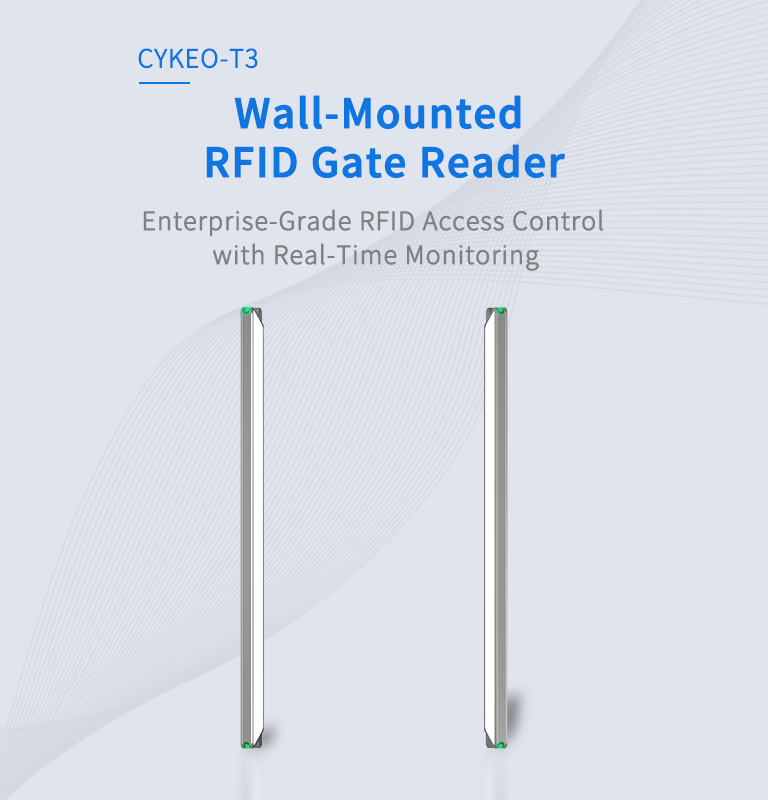

CK-T3 Wall-Mounted RFID Gate Reader​(images 2)

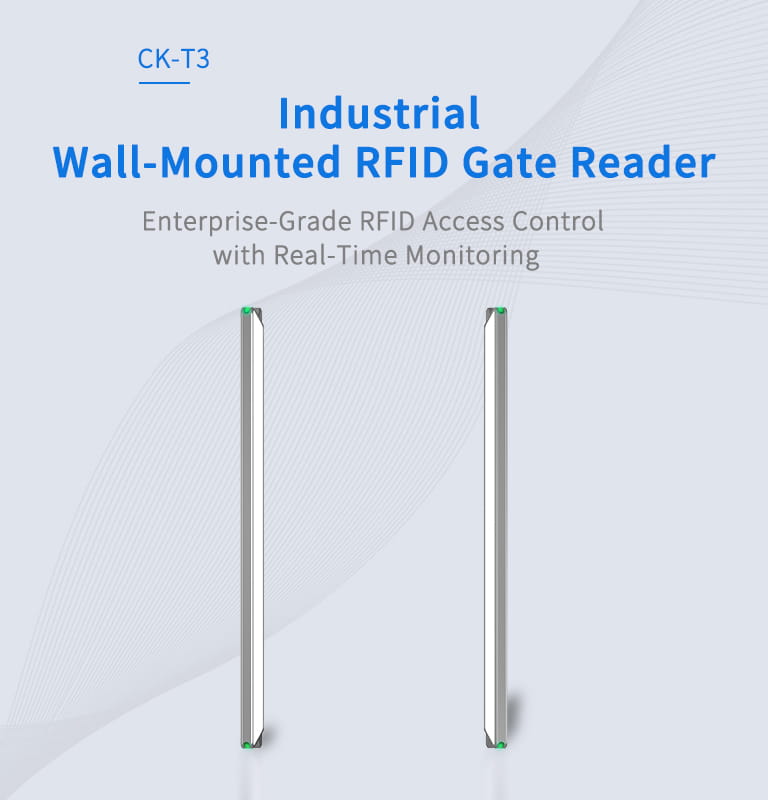

CK-T3 Wall-Mounted RFID Gate Reader​(images 3)

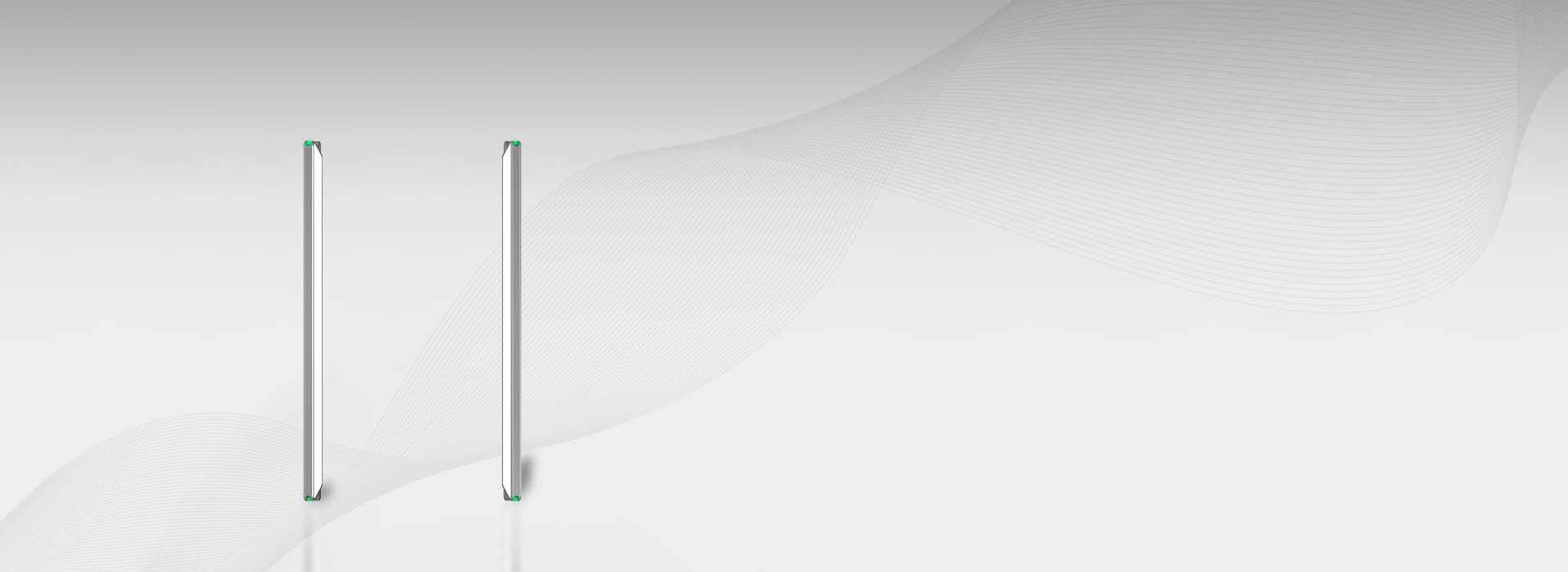

CK-T3 Wall-Mounted RFID Gate Reader​(images 4)
CK-T3 Wall-Mounted RFID Gate Reader​(images 5)
CK-T3 Wall-Mounted RFID Gate Reader​(images 6)

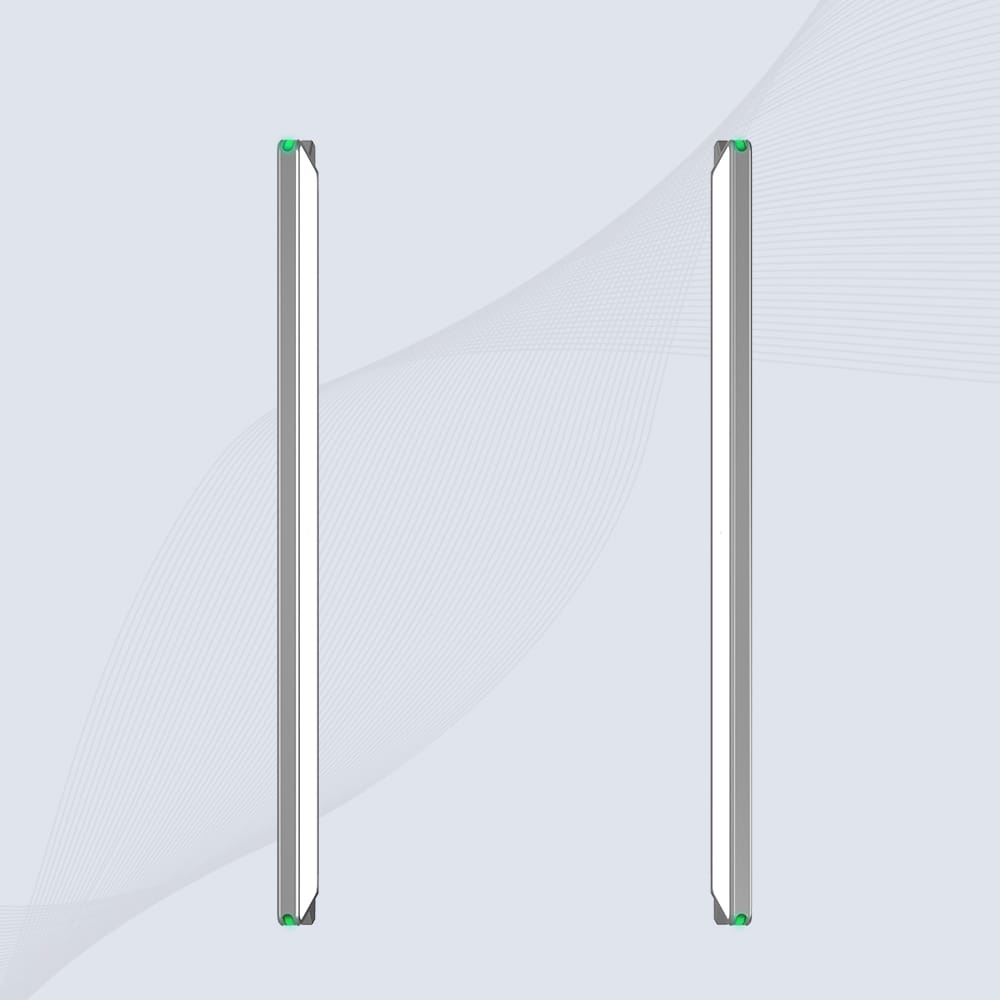

CK-T3 Wall-Mounted RFID Gate Reader​(images 7)

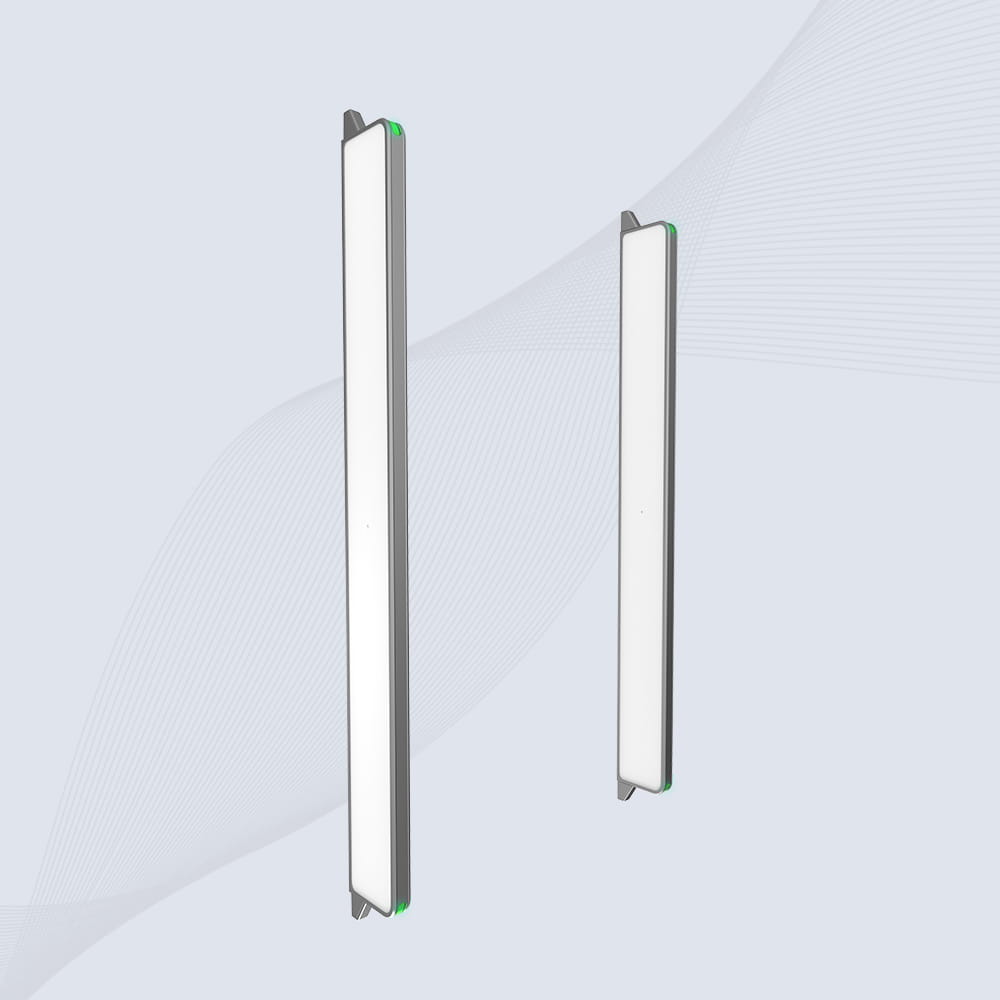

CK-T3 Wall-Mounted RFID Gate Reader​(images 8)
CK-T3 Wall-Mounted RFID Gate Reader​(images 9)

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

CK-T3 Industrial Wall-Mounted RFID Gate Reader​ Specifications

  • BrandCykeo
  • ModelCK-T3
  • Product NameWall-Mounted RFID Gate Reader​
  • ​Communication ProtocolRJ45; RS232 (WiFi/4G optional)

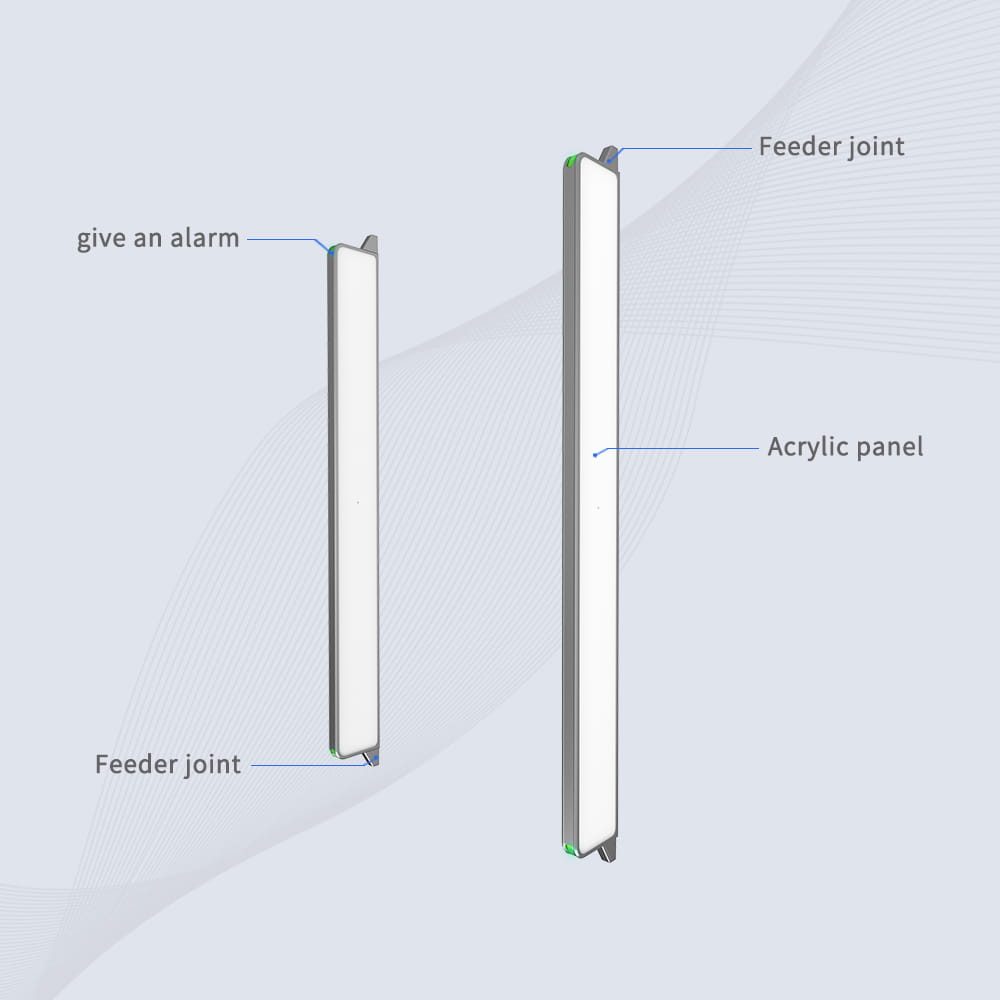

  • ​MaterialCarbon steel plate body; Acrylic surface panel
  • ​AppearanceMain body: Pearl White; Panel: Off-White

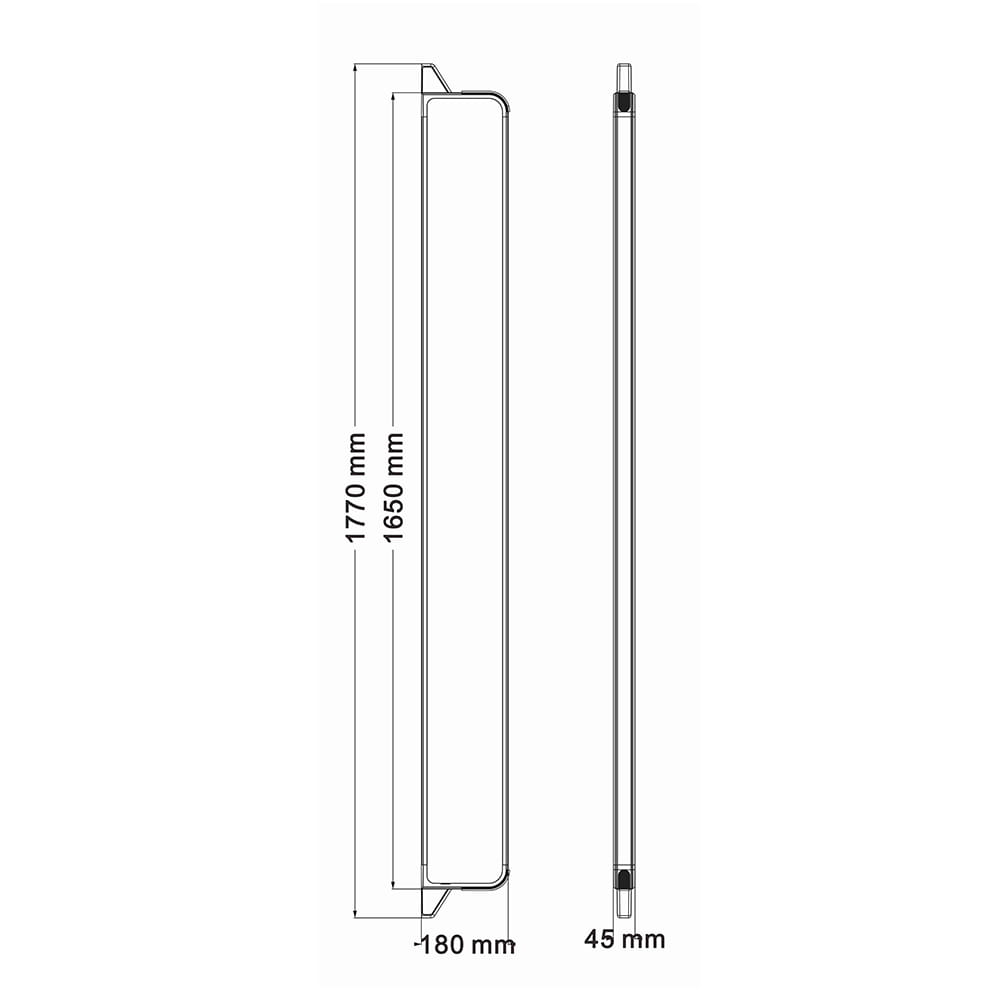

  • Dimensions1743mm*62mm*165mm
  • ​Alarm FunctionAudible & visual alarm
  • ​InstallationFlush-mounted installation
  • FeatureInfrared trigger
  • Installation modeCan be top or bottom cable
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz (Adjustable)
  • Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
  • Output Power0-33dBm (adjustable)
  • RF Output Power (Port)33dBm±1dBm (MAX)
  • Reading Range0-400cm (adjustable)
  • Output Power Adjustment 1dB Step
  • Performance200 tags/sec
  • Network Interface10M/100M Adaptive
  • Alarm Response
  • Operating Temperature-10°C ~ +50°C
  • Operating VoltageAC 220V ±10%
  • Operating Humidity10%RH~90%RH
  • Power supply inputAC220V
  • Power Consumption20W

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
CK-T3 RFID Gate Reader FAQs​
How does the CK-T3 prevent RFID cloning in pharma settings?

It locks tag IDs with strong encryption, uses AES-secured communication, and wipes data if the reader is tampered with—keeping drugs and high-value cargo safe.

How does the CK-T3 stay reliable in dusty factories?

Its front panel repels dust, antennas auto-tune daily, and it sends maintenance alerts—keeping performance steady without constant hands-on care.

 How does the CK-T3 stay 99.98% accurate in busy warehouse doors?

It adjusts tag reading dynamically, separates tags into sessions, and uses dual antennas to avoid blind spots—keeping scans fast and precise even with lots of tags.
