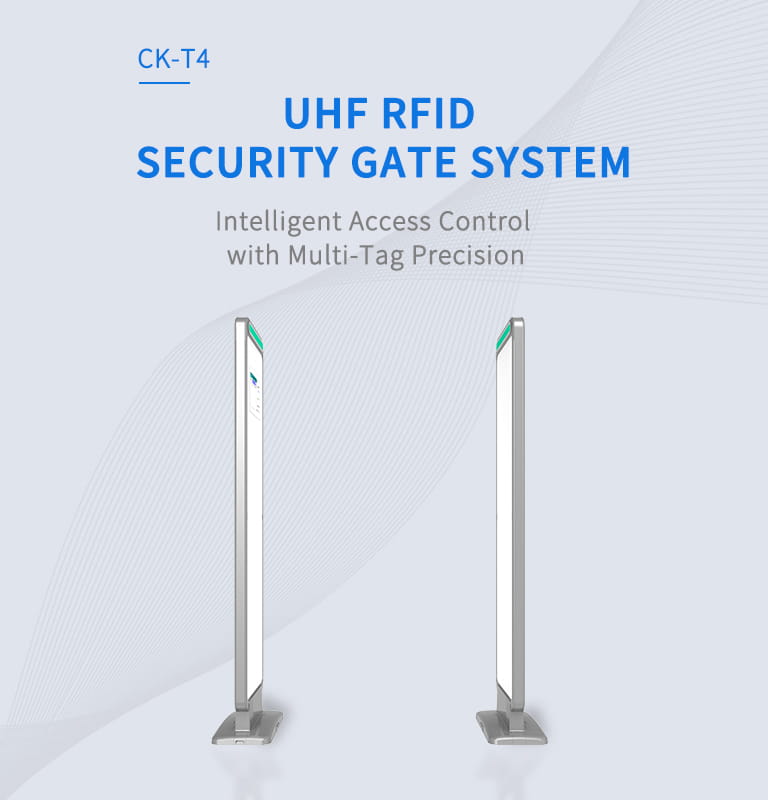

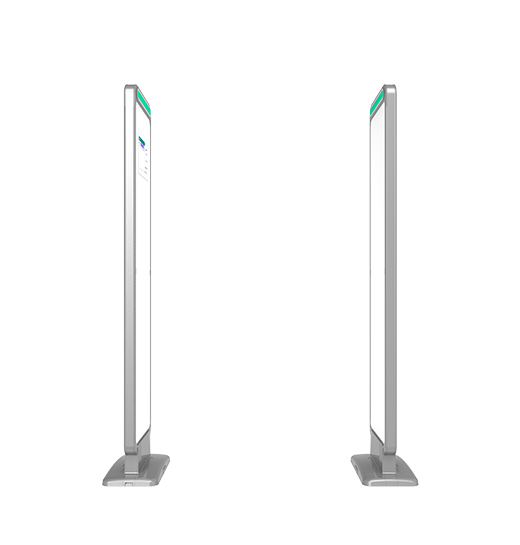

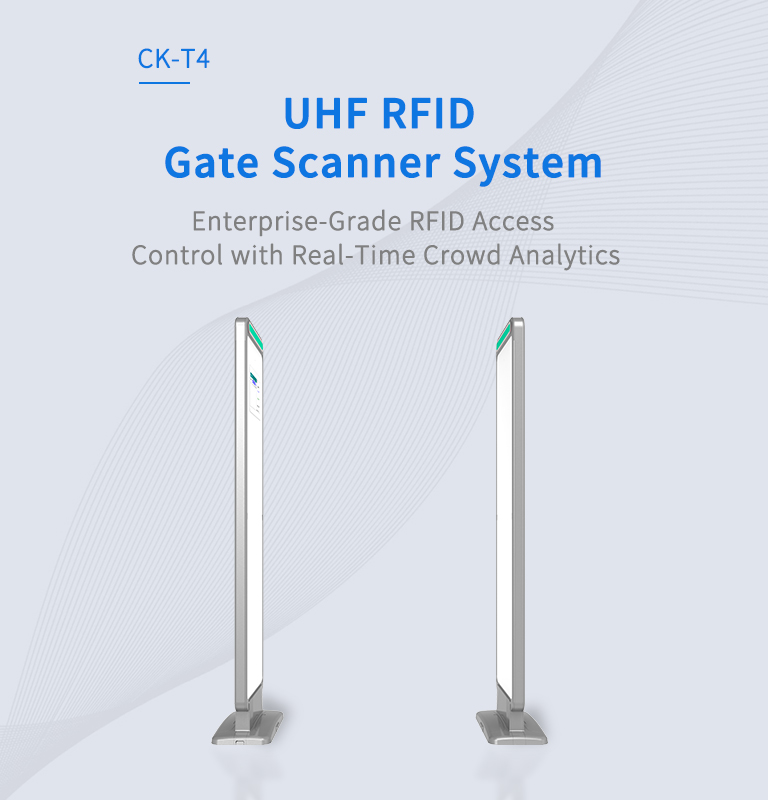

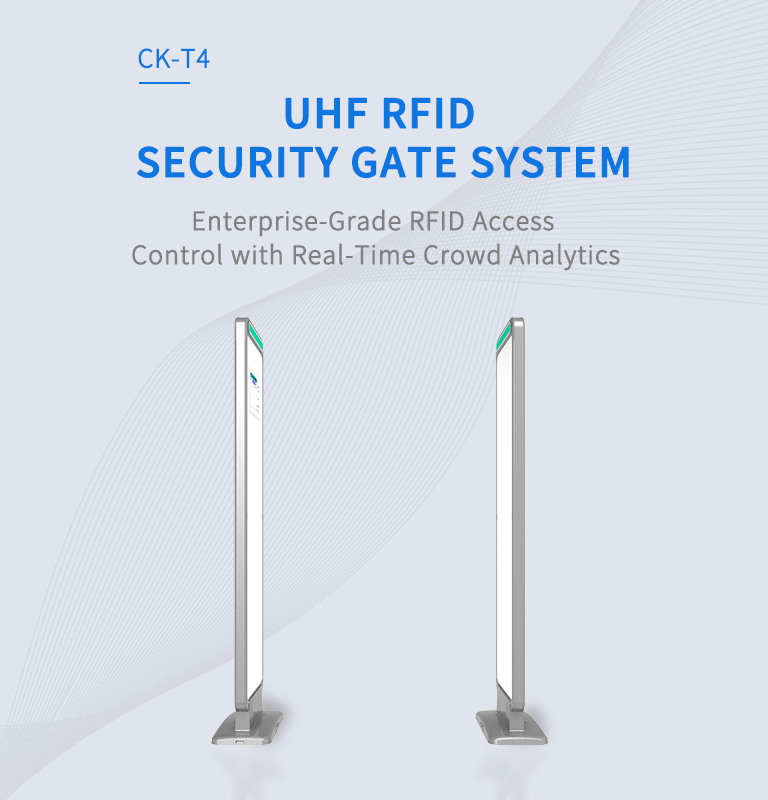

CK-T4

UHF RFID Gate Scanner System

Enterprise-Grade RFID Access Control with Real-Time Crowd Analytics

✔️ 4-Antenna Array for 6M Wide Coverage

✔️ Infrared Trigger & Dual EAS Alarm Modes

✔️ IP65 Industrial Frame with LED Status Indicator

✔️ Real-Time Crowd Counting & Data Export

Talk to an Expert

Email Our Team

PRECISION GATES, ZERO MISS

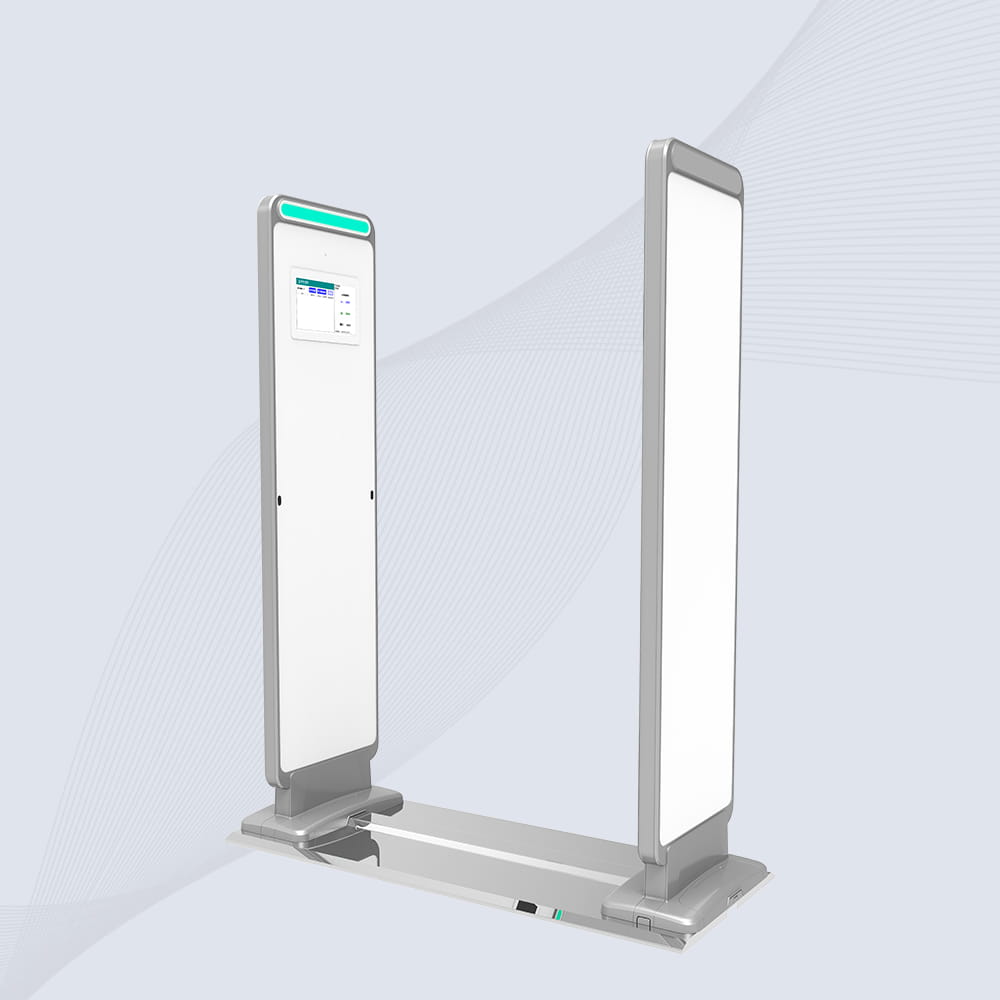

The CK-T4 UHF RFID Gate Reader is an industrial-grade access control solution optimized for high-traffic environments. Featuring a 4-antenna system with 33dBm adjustable power, it achieves 99.9% tag detection accuracy within 6-meter channels. The aluminum-alloy frame supports -10℃ to 60℃ operations, while optional 10.1″ touchscreen displays real-time inventory data. With dual communication modes (Ethernet/WiFi/4G), it seamlessly integrates into smart libraries, warehouse checkpoints, and retail security systems.

Ideal for library anti-theft gates, factory attendance tracking, and retail store exit security with bulk RFID tag scanning requirements.

Library management

Apparel Inventory

File management

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-T4 Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T4 RFID GATE SYSTEM

4-Antenna Matrix

Quad-polarized antenna design achieves 98% spatial coverage

Industrial-Grade Construction

Aluminum alloy frame with 50,000+ door swings durability

Smart Trigger System

Infrared + motion sensor hybrid detection

Multi-Protocol Support

EPC C1G2 / ISO 18000-6C / IP-X

Expandable IoT

RS232 + Ethernet + optional 4G/WiFi

Real-Time Analytics

Built-in people counter with 99.2% accuracy

Dual Alarm Modes

110dB buzzer & LED strobe warning system

Windows/Android OS

RK3288 processor with 2GB RAM

CK-T4 UHF RFID Gate Scanner System Specifications

Main Specifications

BrandCykeo
ModelCK-T4
Product NameUHF RFID Gate Scanner System

Physical Parameters

Communication ProtocolRJ45; RS232 (WiFi/4G optional)
MaterialCarbon steel plate body; Acrylic surface panel
AppearanceMain body: Pearl White; Panel: Off-White

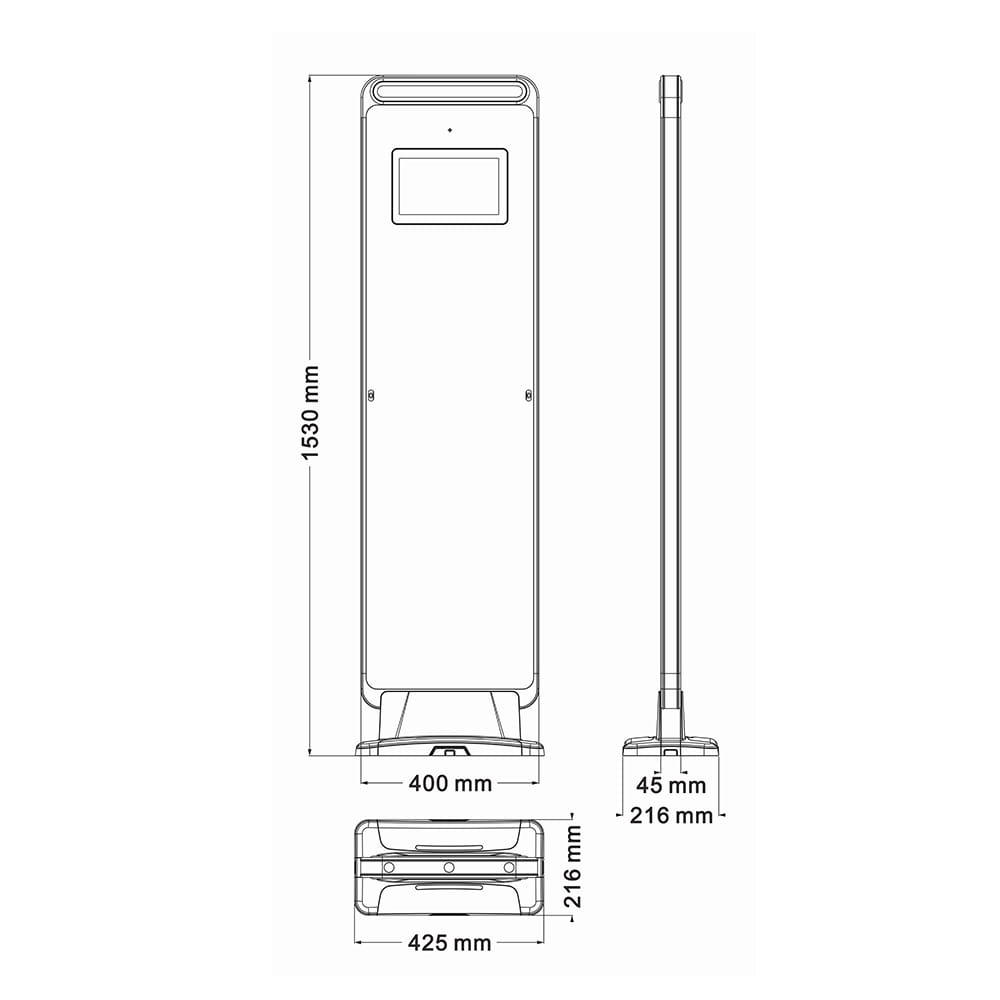

Dimensions153x 42.5 x 21.6cm

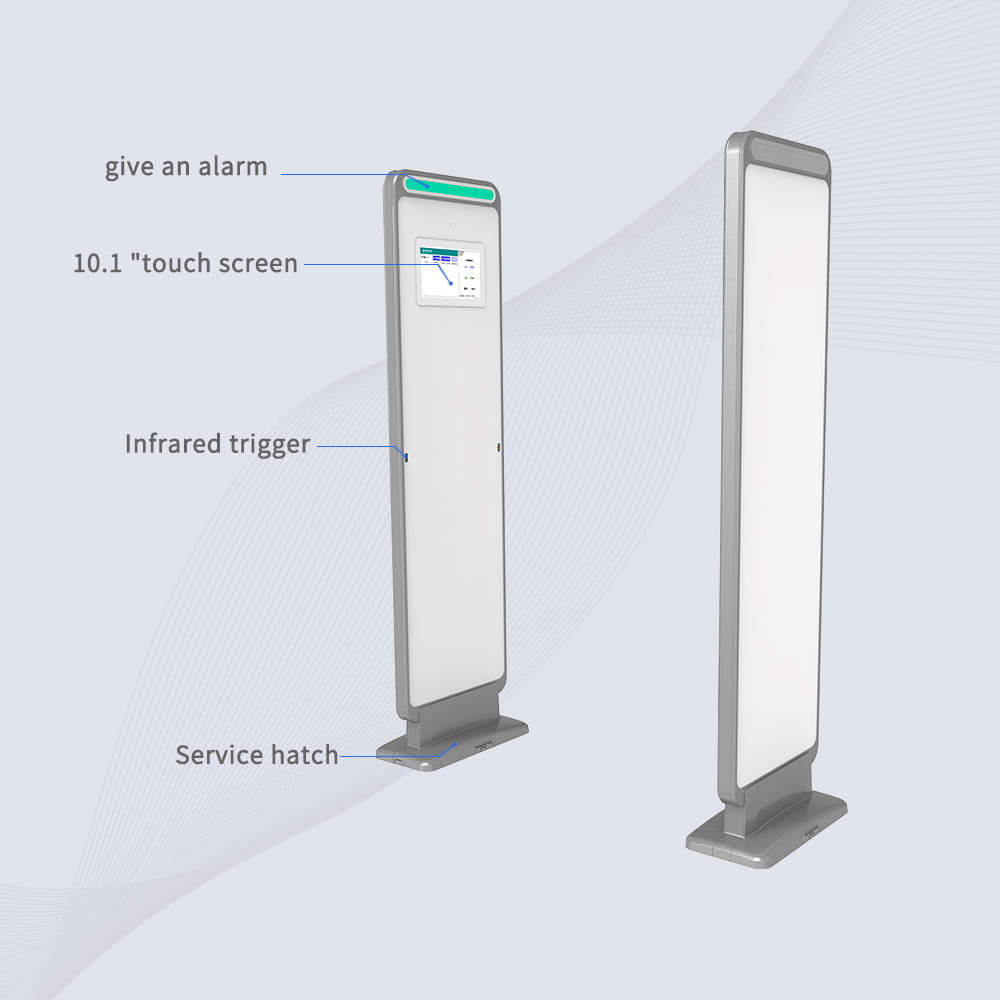

Alarm FunctionAudible & visual alarm

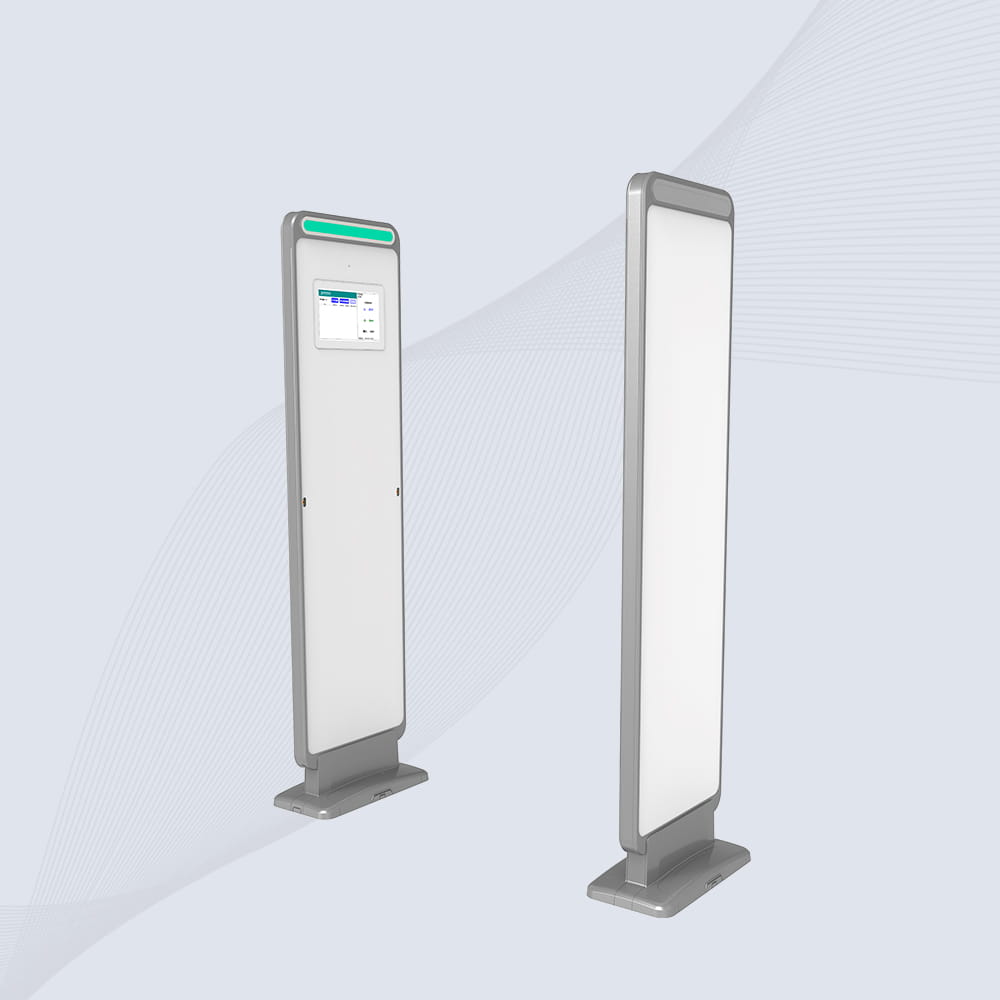

Display10.1″ Touchscreen Android All-in-One (4G RAM)
Industrial controlN29 CPU, 2G RAM, 32G ROM RK3288 CPU, 2G RAM, 8G ROM (optional)
InstallationFlush-mounted installation
FeatureInfrared trigger
Installation modeCan be top or bottom cable

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
Output Power0-33dBm (adjustable)
RF Output Power (Port)33dBm±1dBm (MAX)
Reading Range0-400cm (adjustable)
Output Power Adjustment 1dB Step
Performance200 tags/sec
Network Interface10M/100M Adaptive
Alarm Response<300ms (audible 110dB @ 1m)

Operating Environment

Operating Temperature-10°C ~ +50°C
Operating VoltageAC 220V ±10%
Operating Humidity10%RH~90%RH
Power supply inputAC220V
Power Consumption20W

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

CK-T4 RFID GATE READER FAQS

How to prevent false alarms in high-traffic areas?

Technical Solution:

Adaptive Signal Filtering
Advanced RSSI threshold adjustment (0-100 scale) automatically filters out non-target tags beyond 2m range, reducing false positives by 73% in environments with 500+ daily passages.
Directional Recognition Tech
Dual infrared beams create 3D detection zone (1555mm height) to precisely identify entry/exit directions, critical for museums handling 10,000+ visitors daily.
Session Masking
Configurable 0-3 session parameters isolate target tags from environmental interference, essential for pharmaceutical warehouses with 50+ RFID-enabled assets per pallet.

What maintenance is required for continuous operation?

Service Protocol:

Self-Diagnostic System
Automated antenna VSWR monitoring (1.0-2.5 range) alerts when performance drops below 90% efficiency, with LED status indicators for quick troubleshooting.
Modular Design
Hot-swappable antenna modules (4x N-type connectors) enable <15min replacement without system downtime, certified for 100,000+ connection cycles.
Firmware OTA
Secure wireless updates via 4G/WiFi support v2.2 protocol encryption, compatible with Azure IoT Hub and AWS Core services.

Can integrate with existing library management systems?

Integration Capabilities:

Standard API Support
RESTful API and DLL SDK (C++/C#/Java) compatible with Symphony, Alma, and Millennium ILS systems, tested with 1M+ book circulation records.
SIP2 Protocol Bridge
Bi-directional SIP2 gateway converts RFID data to ISO 28560 standards, enabling real-time sync with 95% of global library automation platforms.
Data Buffering
8GB local storage maintains 30-day operation logs (200k events/day) with automatic cloud sync recovery during network outages.
