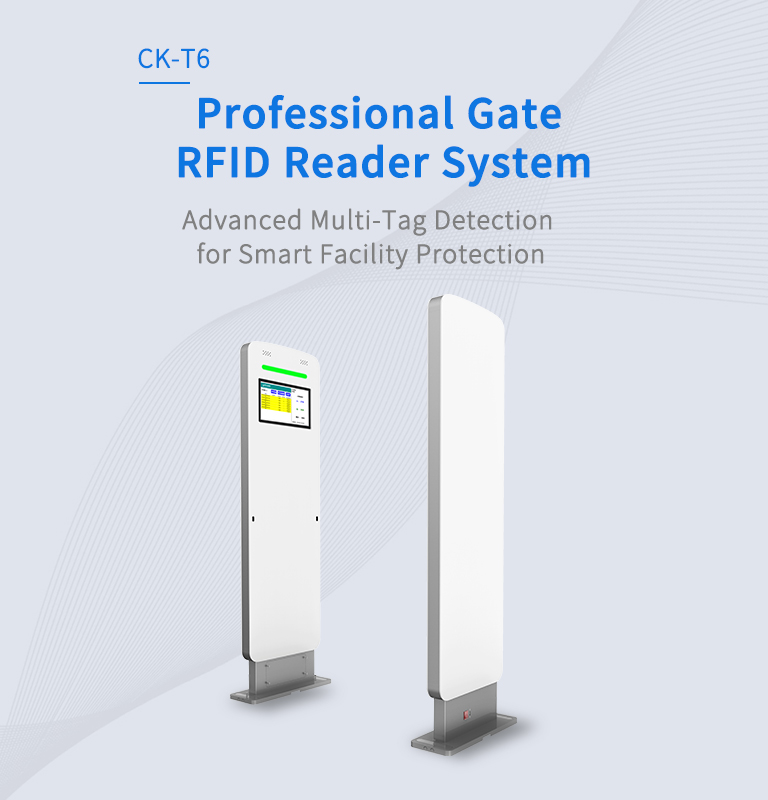

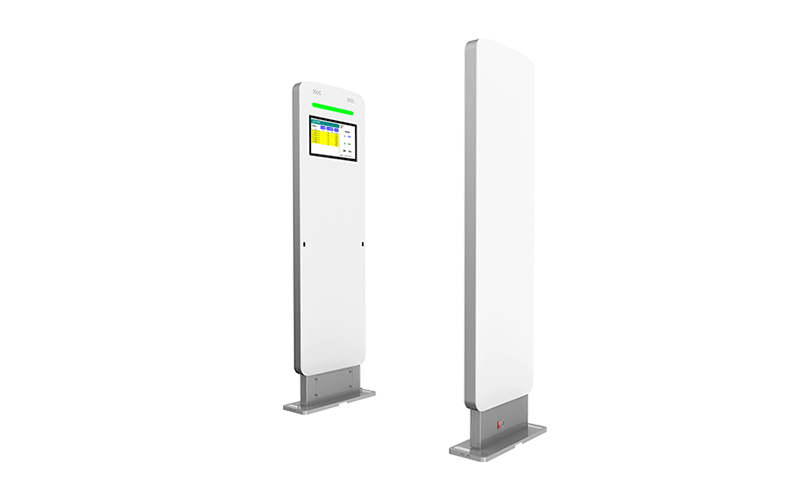

The CK-T6 Ultra-High Frequency RFID Gate Reader is designed for ​​indoor applications​​ such as libraries, archives, retail stores, warehouses, museums, and hospitals. It requires a ​​stable network connection​​ and environments free from rainwater or excessive dust.

For ​​outdoor use​​, optional waterproofing modifications can be applied to protect against weather conditions. The device operates optimally within a ​​temperature range of -10°C to +50°C​​ and supports flexible communication methods like RJ45, WiFi, or 4G (selectable during configuration). Ensure the installation site has:

• A flat, stable surface for secure mounting.
• Adequate space for the ​​1.2-meter-wide detection zone​​.
• Proximity to power outlets (AC220V±10% voltage).

Avoid placing the reader near heavy electromagnetic interference sources (e.g., industrial machinery) to maintain signal accuracy.

If the CK-T6 RFID Reader malfunctions, follow these steps:

​​A. Infrared Trigger Failure​​

• ​​Symptom​​: No RFID detection or inconsistent alerts.
• ​​Solution​​: Check the alignment between the ​​main unit (infrared emitter)​​ and the ​​sub-unit (reflector)​​. Ensure the green light on the main unit is steady. Remove obstructions blocking the infrared path.

​​B. Weak RFID Signal or Missed Tags​​

• ​​Symptom​​: Tags are not detected within the advertised 0–6m range.
• ​​Solution​​:
  • Adjust the ​​output power​​ (0–33dBm) via the software interface.
  • Verify antenna connections (two feeder cables and one Ethernet cable).
  • Test with different ​​RFID tag protocols​​ (supports ISO 18000-6C, ISO 15693, etc.).

​​C. False Alarms or No Alerts​​

• ​​Symptom​​: Unwanted EAS alarms or silence during unauthorized access.
• ​​Solution​​:
  • Recalibrate the ​​EAS filtering rules​​ in the software.
  • Test both ​​online/offline modes​​ to rule out network latency issues.
  • Inspect the integrated buzzer and LED indicators for hardware faults.

For unresolved issues, contact Cykeo’s support team with the device’s ​​serial number​​, error details, and troubleshooting steps attempted.

To ensure long-term reliability:

​​A. Safety Precautions​​

• ​​Power Management​​: Always disconnect the AC220V power supply during maintenance or extended inactivity.
• ​​Physical Protection​​: Avoid impacts on the ​​acrylic panel​​ (front face) and never open the side maintenance panel without authorization.
• ​​Mounting Stability​​: Securely fasten the unit with ​​4x M8×60mm expansion screws​​ to prevent tilting.

​​B. Routine Maintenance​​

• ​​Cleaning​​: Wipe the exterior with a dry, soft cloth. Do not use abrasive chemicals.
• ​​Ventilation​​: Keep vents unobstructed to prevent overheating.
• ​​Software Updates​​: Regularly check Cykeo’s website for firmware upgrades to enhance compatibility and security.

​​C. Storage Guidelines​​
If storing the device, pack it in the original ​​wooden crate with shock-absorbent foam​​. Maintain a dry, cool environment (≤50°C) and avoid stacking heavy items on the packaging.
