✔️ -20°C to 60°C Operational Range

✔️ Residual Liquid Recovery Drawer for Safe Disposal

✔️ FDA-Compliant Narcotics Tracking with Dual Authentication

Talk to an Expert
wGES
tgg
tgg
argh 1
aehyrt
eth 4

SECURE STORAGE. ZERO DIVERSION.

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

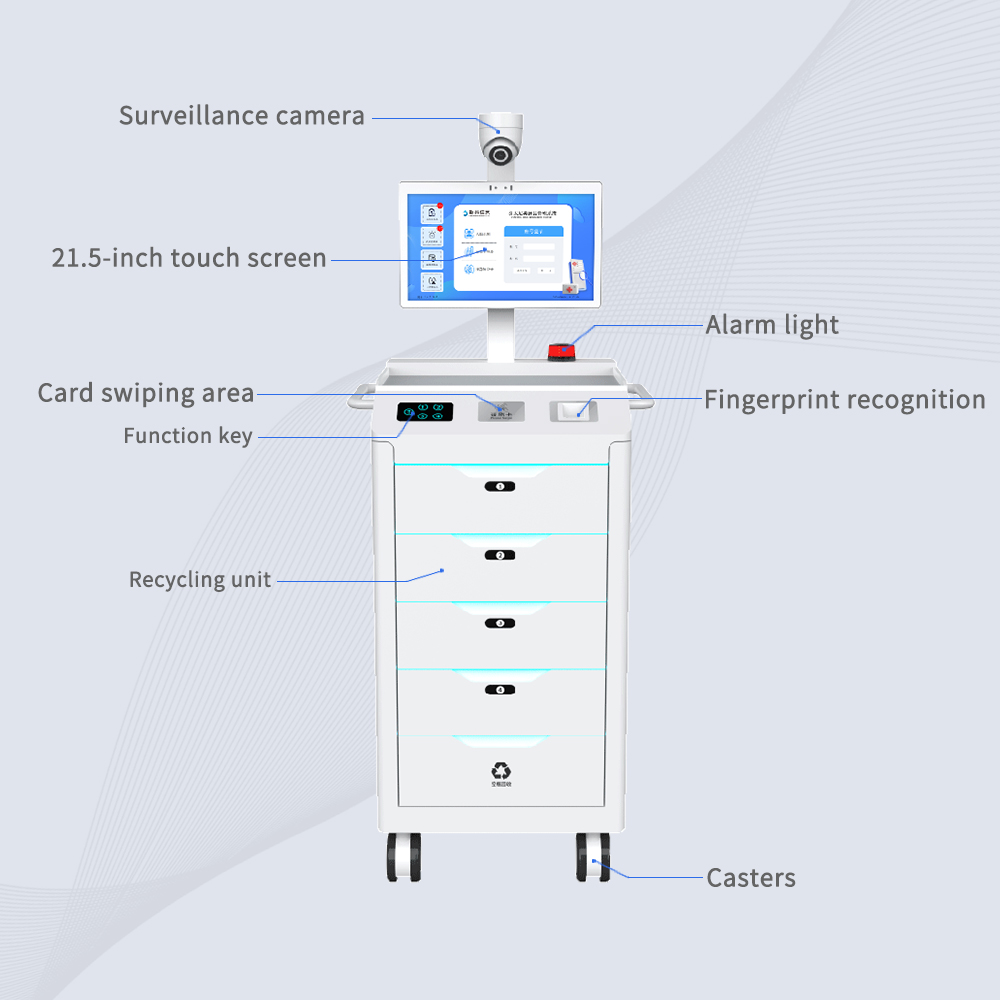

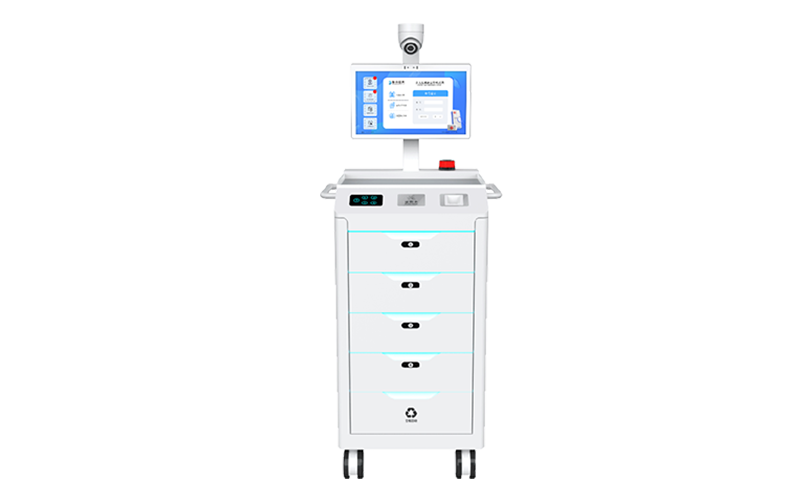

Cykeo FTNG-L-CK-03 RFID Pharmacy Security Cabinet Specifications

Main Specifications

  • BrandCykeo
  • ModelFTNG-L-CK-03
  • Product NameRFID Pharmacy Security Cabinet

Physical Parameters

  • ​MaterialMetal casing + glass panel
  • Dimensions600mm(L)*650mm(W)*1865mm(H)
  • Operating SystemWindows /Android
  • ControllerI5,8代,8G+ 256G /RK3399, 4G+32G
  • Touchscreen21.5-inch capacitive touch screen
  • Storage unitFour layers of storage drawers and one layer for recycling
  • Residual liquid recoverySupport independent recycling drawers
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840-960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6C
  • Scan Speed≤5s
  • Product Capacity200 pcs
  • InterfaceEthernet/RS232/4G
  • Identification quantityManage ≥1000pcs of drugs
  • ComplianceFDA 21 CFR Part 11, CE Medical
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power220V ≤150W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp-20℃~+60℃
  • Humidity Range25%~50%
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID PHARMACY SECURITY CABINET FAQS

How Does Dual Authentication Prevent Narcotics Diversion?

Answer:
The system enforces two-tier verification:

  1. RFID Staff Badge: Initial access to cabinet
  2. Biometric Scan: Fingerprint/face recognition for high-risk drawers
    Audit Trail: Logs both credentials with timestamp.
    Case: A Texas hospital reduced opioid discrepancies by 81% by requiring dual auth for Schedule II drugs.
Can It Track Liquid Narcotics Like Fentanyl Vials?

Answer:
Yes. Specialized features ensure accuracy:

  • Proximity Sensors: Detect vial placement within 5cm
  • Residual Weight Logging: Records partial-use vials in recovery drawer
  • Tamper-Proof Tags: Seal-breaking alerts on RFID labels
    Data: Achieves 99.2% accuracy tracking 2ml fentanyl vials.
How Does Residual Liquid Recovery Meet EPA Standards?

Answer:
The dedicated drawer automates compliance:

  1. Neutralization Cartridges: Auto-mix chemicals for safe disposal
  2. Digital Logging: Records volume/staff ID for EPA reports
  3. Leak Detection: Triggers alarms if containment breached
    A California pharmacy passed DEA inspection with zero violations using this system.
