CK-R4L

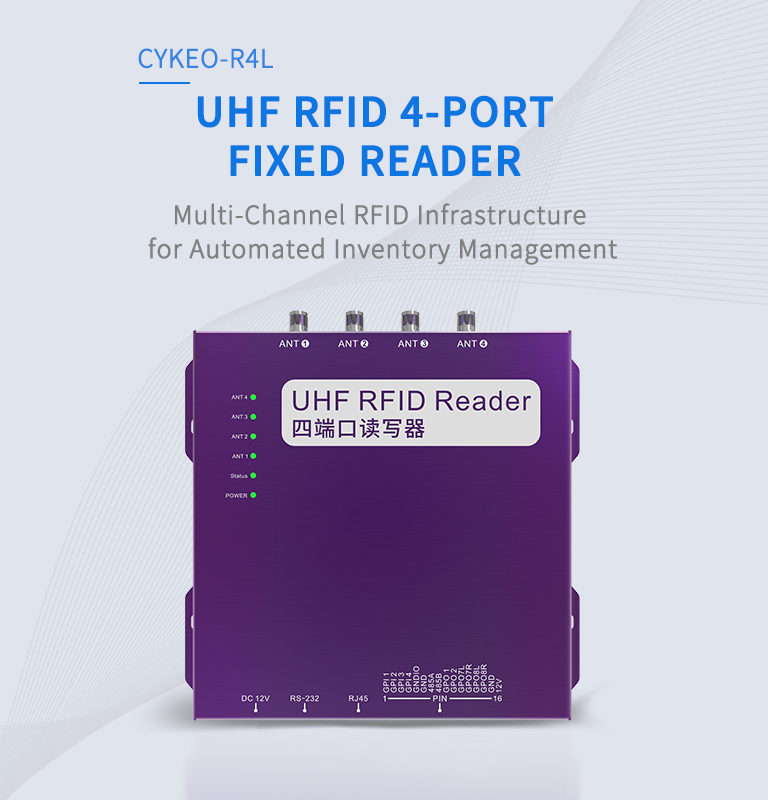

Multi-Channel RFID Infrastructure for Automated Inventory Management
✔️ Industrial-Grade Design with IP65 Protection
✔️ 400+ Tags/Sec High-Speed Multi-Tag Identification
✔️ 15M Extended RFID Range with 4-Port Antenna Configuration

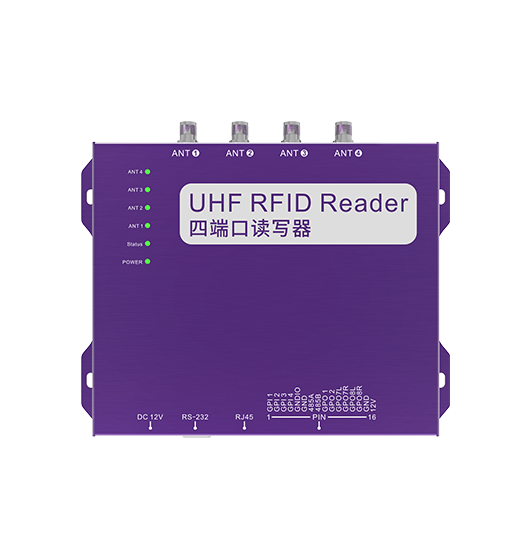

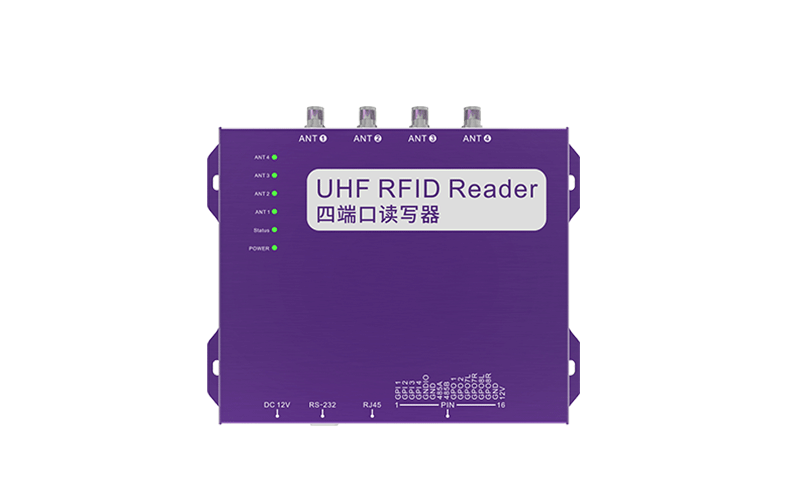

The CK-R4L Fixed UHF RFID Reader is built for real-world industrial use—tracking assets at scale without constant human interaction. It’s got 4 independent antenna ports and adaptive frequency hopping, which gives it solid coverage of roughly 15 meters and the ability to read hundreds of tags per second without choking on data. The housing is IP65 and happy to run from -20°C to 60°C, so it doesn’t complain about dust, cold rooms, or hot factory floors. It also plugs cleanly into big-name systems like SAP or Oracle, so you don’t have to hack together weird middleware just to get data flowing.
In practice, the CK-R4L is used where visibility matters—keeping warehouse stock updated in real time, watching WIP items move through a production line, or helping logistics teams keep pace with fast sorting and routing. It’s the kind of reader you install and let it quietly do its job day after day.
Main Specifications
Physical Parameters
Developer Support
Performance Parameters
Operating Environment
NEED A CUSTOM SOLUTION?
Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.
Fixed UHF RFID readers really shine in busy spots like dock doors, where tracking pallets manually would be a headache. The Cykeo FX-9000 is built for exactly that, supporting EPC Gen2v2 and ISO 18000-6C, so it works with standard supply chain tags worldwide.
It handles multiple antennas well—up to 8 can run together in Dense Reader Mode, which keeps wider portals from interfering. With a 32-bit processor, it can read over 2,000 tags per second, enough to keep up with pallets moving at 3 m/s. The unit is tough, too, running from -30°C to 65°C with 95% humidity and an IP67-rated housing that resists dust and water jets during loading.
For best results, mount four circular-polarized antennas at 45° above the doors for full coverage, set output around 30 dBm to balance range and regulations, and use Cykeo’s middleware to filter duplicates and feed data straight into SAP or ERP systems.
Performance Metrics:
| Scenario | FX-9000 Success Rate | Industry Average |
|---|---|---|
| Palletized Goods | 99.4% | 85% |
| Mixed-Material Containers | 98.1% | 72% |
| Fast-Moving Vehicles | 97.9% | 68% |
Fixed UHF RFID readers like the Cykeo FX-7000 Industrial Series are made for tough assembly-line environments, tracking metal-embedded assets without missing a beat. They use adaptive frequency hopping (902–928 MHz) and multi-protocol filtering to cut through the usual noise.
On the hardware side, near-field, metal-tuned antennas help read tags on car frames, slashing null zones by around 70% compared to standard far-field antennas. The system also leans on machine-learning algorithms to separate RFID signals from welding sparks or CNC interference, and double-shielded RG-316 coax cables keep signal loss to a minimum in high-EMI zones.
In practice, one Tier 1 automotive supplier put FX-7000 readers at 20 workstations and cut part misplacements by 55%, hitting 98.6% read accuracy on engine blocks and transmissions. Key setup steps include using on-metal tags with a small foam spacer, switching the reader into “Metal Mode” for optimal sensitivity, and routing data through Modbus/TCP to MES systems like Siemens Teamcenter for real-time updates.
Modern fixed readers like the FX-9000 make it pretty easy to connect with older systems—they support RESTful APIs, OPC UA, and even direct SQL syncing. Usually, the first step is mapping RFID fields like EPC, timestamp, and location to your WMS columns, which you can do with the Cykeo Connect SDK in Java, C#, or Python.
The readers can also do a bit of edge computing—filtering duplicates and prepping data right on the embedded Linux OS—so your WMS doesn’t get slammed, cutting server load by up to 40%. For safety, you can use dual Ethernet ports to send data to both the WMS and a backup server, keeping everything safe even if the network hiccups.
They work with legacy WMS like SAP ECC, Oracle JD Edwards, and Manhattan, IIoT platforms such as AWS IoT SiteWise or Azure Sphere, and even custom in-house systems via JSON or XML. In one case, a 3PL logistics provider hooked FX-9000 readers to a 20-year-old WMS and cut $220k in manual scanning costs, while hitting 100% scan accuracy for inbound and outbound shipments.
