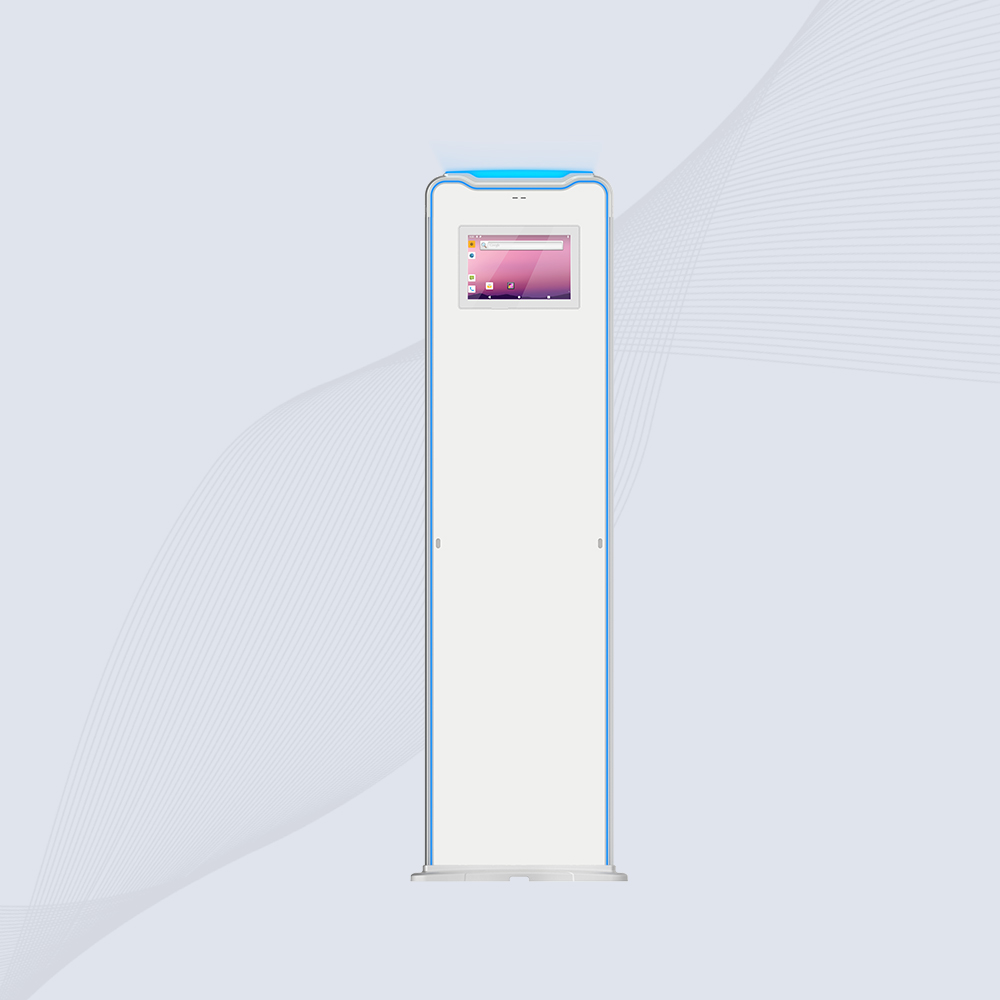

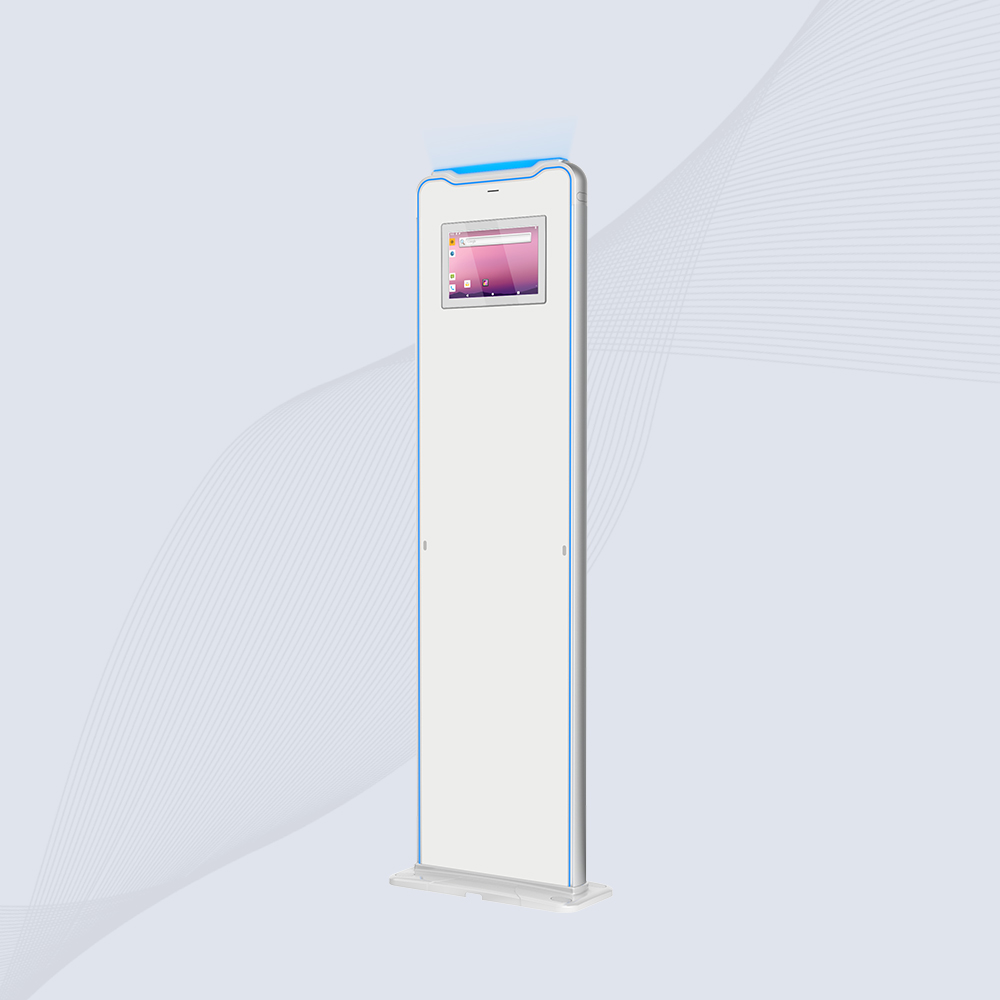

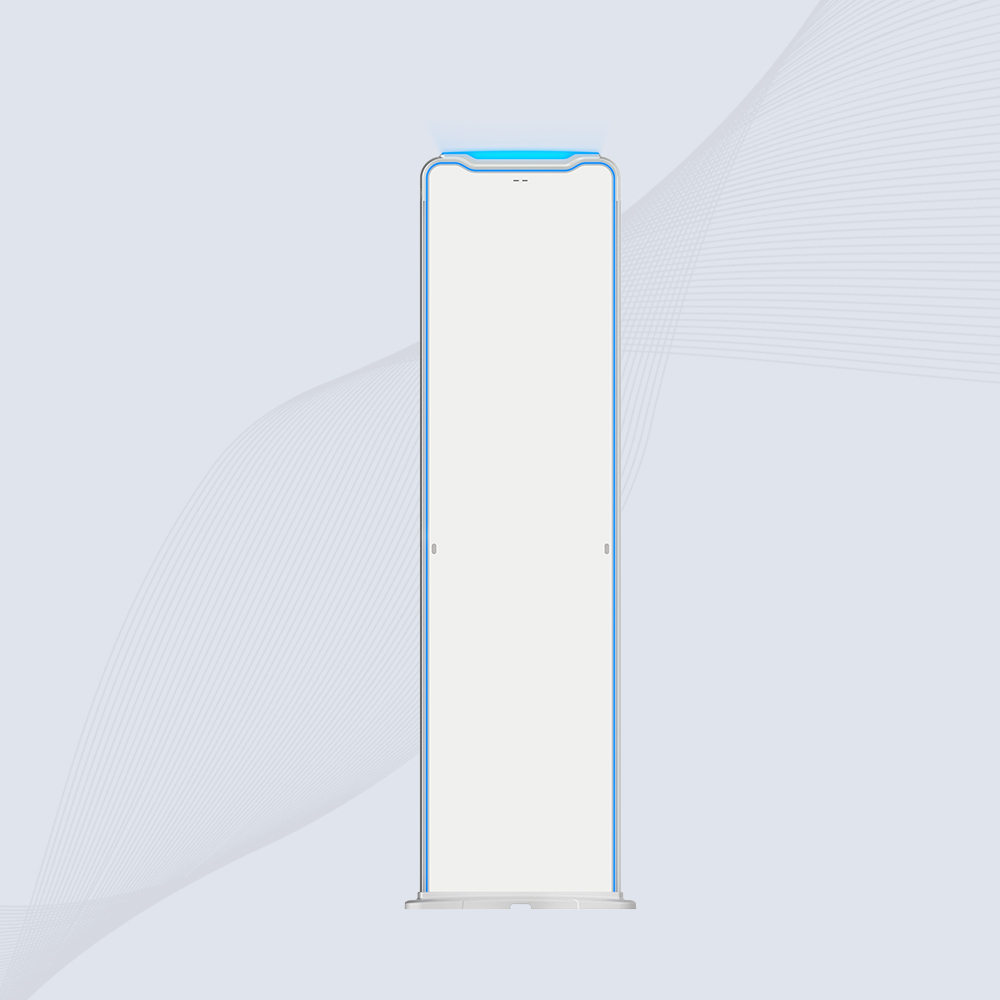

CK-T4A

Fixed RFID Gate Reader

Intelligent Access Control with Real-Time Crowd Monitoring

✔️ Multi-Tag Detection (99.9% Accuracy)

✔️ 2.4m Ultra-Wide Security Coverage

✔️ Dual-Mode EAS Alarm (Online/Offline)

✔️ IP54 Weatherproof Housing (Optional)

Talk to an Expert

Email Our Team

PRECISION IN MOTION

The CK-T4A Fixed RFID Gate Reader revolutionizes security management with ISO 18000-6C compliance and infrared-triggered scanning. Engineered for high-traffic environments, it delivers 600cm detection range, 0.1s rapid response, and dual-channel people counting via 10.1″ touchscreen (optional). Its modular design supports WiFi/4G expansions for seamless integration with existing security ecosystems.

Optimized for controlled access zones: Library material tracking, warehouse employee attendance, and event venue crowd management with real-time occupancy analytics.

Library management

Apparel Inventory

File management

Warehouse Logistics

Jewelry Inventory

Factory Automation

Cykeo CK-T4A Fixed RFID Gate Reader Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T4A Fixed RFID Gate Reader

2.4m Ultra-Wide Detection

Impinj R2000 with 840-960MHz adjustable frequency

Dual-Mode EAS Alarm

Online/offline anti-theft modes with 95dB buzzer

Infrared People Counter

±3% accuracy for 50+ simultaneous entries

Expandable Connectivity

RJ45 + optional WiFi/4G module

Industrial-Grade Design

IP54-rated housing for 24/7 operation

Multi-OS Compatibility

Windows/Android dual-system support

Real-Time Data Display

10.1″ HD touchscreen optional

Smart Filtering

RSSI-based tag distance discrimination

Cykeo CK-T4A Fixed RFID Gate Reader Specifications

Main Specifications

BrandCykeo
ModelCK-T4A
Product NameFixed RFID Gate Reader

Physical Parameters

Communication ProtocolRJ45; RS232 (WiFi/4G optional)
MaterialClear acrylic with ABS
AppearanceMain body: Pearl White; Panel: Off-White

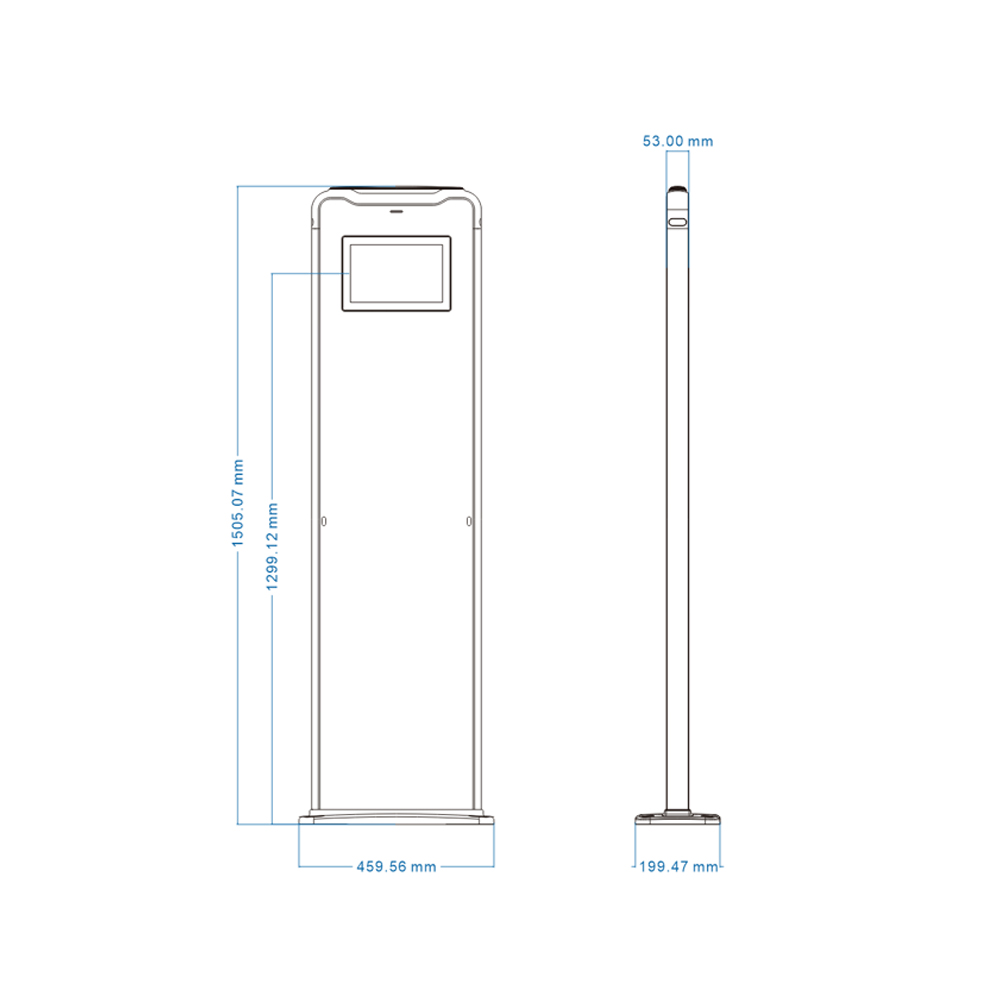

Dimensions1560mm*455mm*150mm
Alarm FunctionAudible & visual alarm
Display10.1-inch capacitive touch screen
Industrial controlN29 CPU, 2G RAM, 32G ROM RK3288 CPU, 2G RAM, 8G ROM (optional)
InstallationFlush-mounted installation
FeatureFloor mounting

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz (Adjustable)
Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
Output Power0-33dBm (adjustable)
Reading Range0-400cm (adjustable)
Output Power Adjustment 1dB Step
Performance200 tags/sec
Network Interface10M/100M Adaptive
Alarm Response<300ms (audible 110dB @ 1m)

Operating Environment

Operating Temperature-10°C ~ +50°C
Operating VoltageAC 220V ±10%
Operating Humidity10%RH~90%RH
Operating Temp0°C to 60°C
Power supply inputAC220V
Power Consumption20W

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

Fixed RFID Gate Reader FAQs

What Makes the CK-T4A Fixed RFID Gate Reader Ideal for High-Traffic Areas?

Multi-Tag Reading Capability: The CK-T4A supports simultaneous identification of 50+ tags per second with near-zero miss/error rates, ensuring seamless tracking in crowded environments like libraries or warehouses.
Precision Coverage & Range: Its specially designed antenna provides 360° coverage with a maximum read distance of 6 meters (optimal at 1.2m for personnel access control), eliminating blind spots.
Smart Triggering Mechanism: Infrared sensors activate RFID scanning only when movement is detected, reducing power consumption and false alarms.
Scalable Integration: Supports online/offline EAS alarm modes and can connect to external displays for real-time data visualization (e.g., book titles, visitor counts).

How Does the CK-T4A Ensure Security and Reliability in Access Control Systems?

Advanced Anti-Collision Algorithm: Minimizes signal interference even in dense RFID tag environments, critical for secure areas like labs or restricted zones.
Dual-Layer Authentication: Combines EPC C1G2 RFID tags with optional password verification for enhanced data security.
Instant Alerts: Built-in 120dB buzzer and LED lights trigger within 0.5 seconds upon unauthorized entry or tampering.
Rugged Design: Operates in temperatures from 0–60°C and humidity up to 90% RH, suitable for indoor/outdoor installations.

Can the CK-T4A Integrate with Existing Infrastructure? What Are the Setup Requirements?

Flexible Communication Options: Standard RJ45 Ethernet port allows direct network integration, with optional Wi-Fi/4G modules for wireless setups.
OS Compatibility: Runs on Windows or Android systems, supporting third-party software via SDK/API for custom workflows (e.g., inventory management).
Quick Installation:
- Step 1: Mount the gate reader using stainless steel brackets (included) without floor trenching.
- Step 2: Connect to power (AC 220V) and network.
- Step 3: Configure tag filters/RSSI thresholds via the 10.1-inch touchscreen (optional accessory).
Maintenance: IP-rated waterproofing (optional) ensures longevity in harsh environments.
