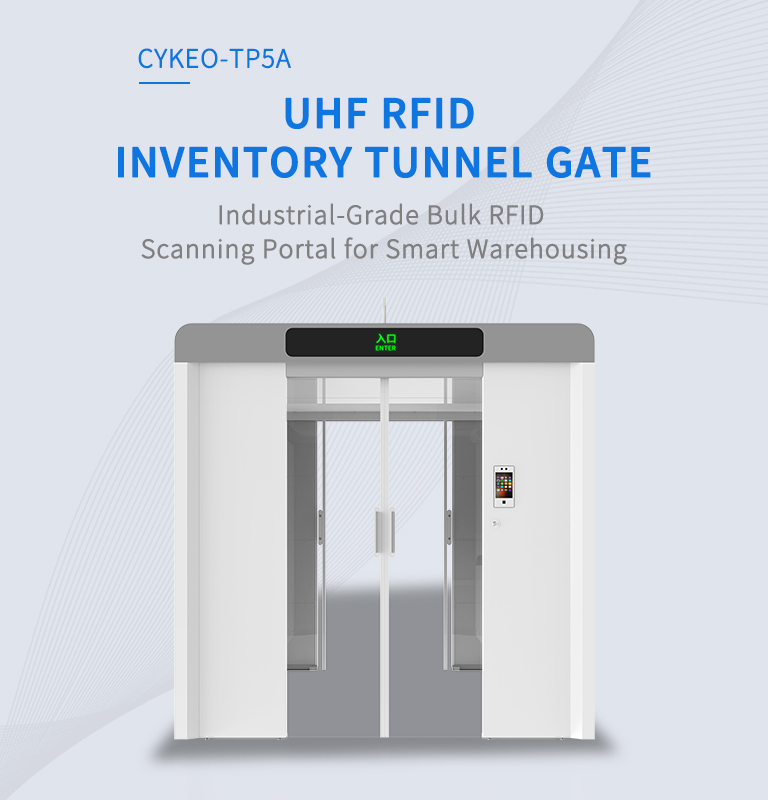

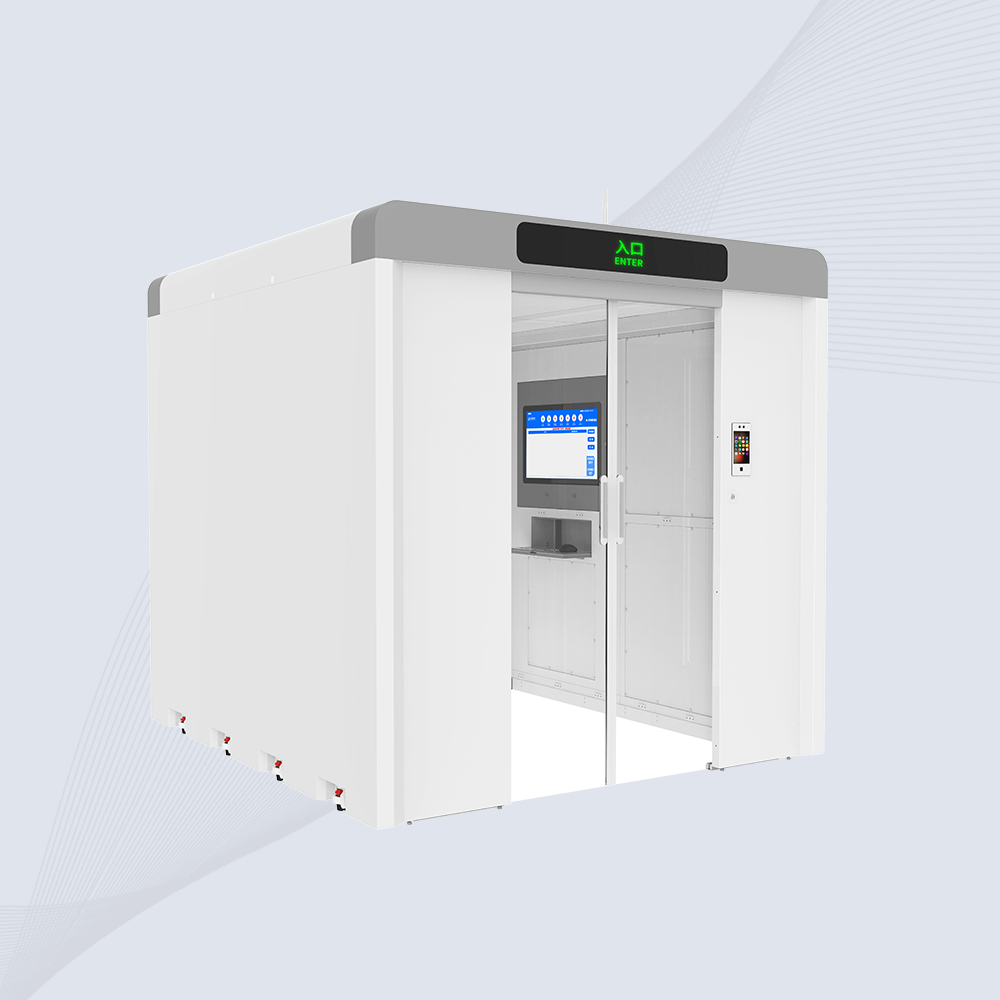

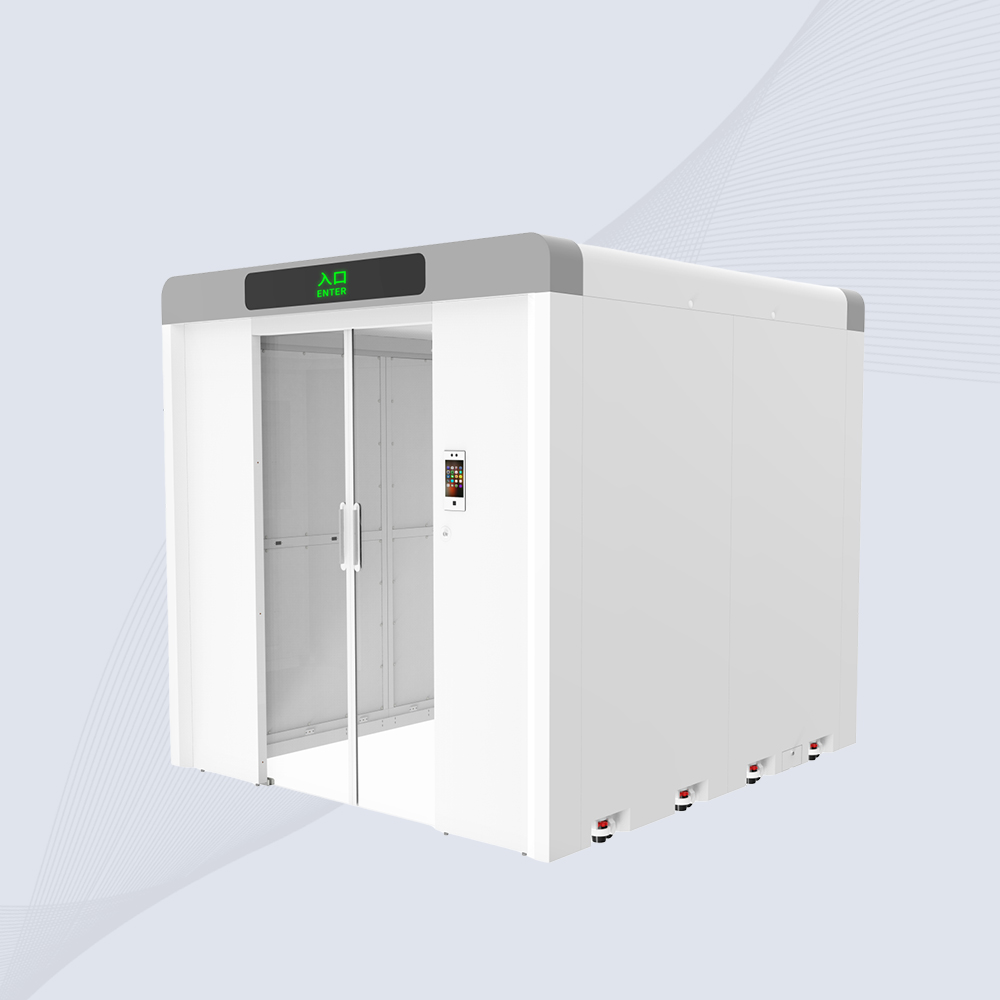

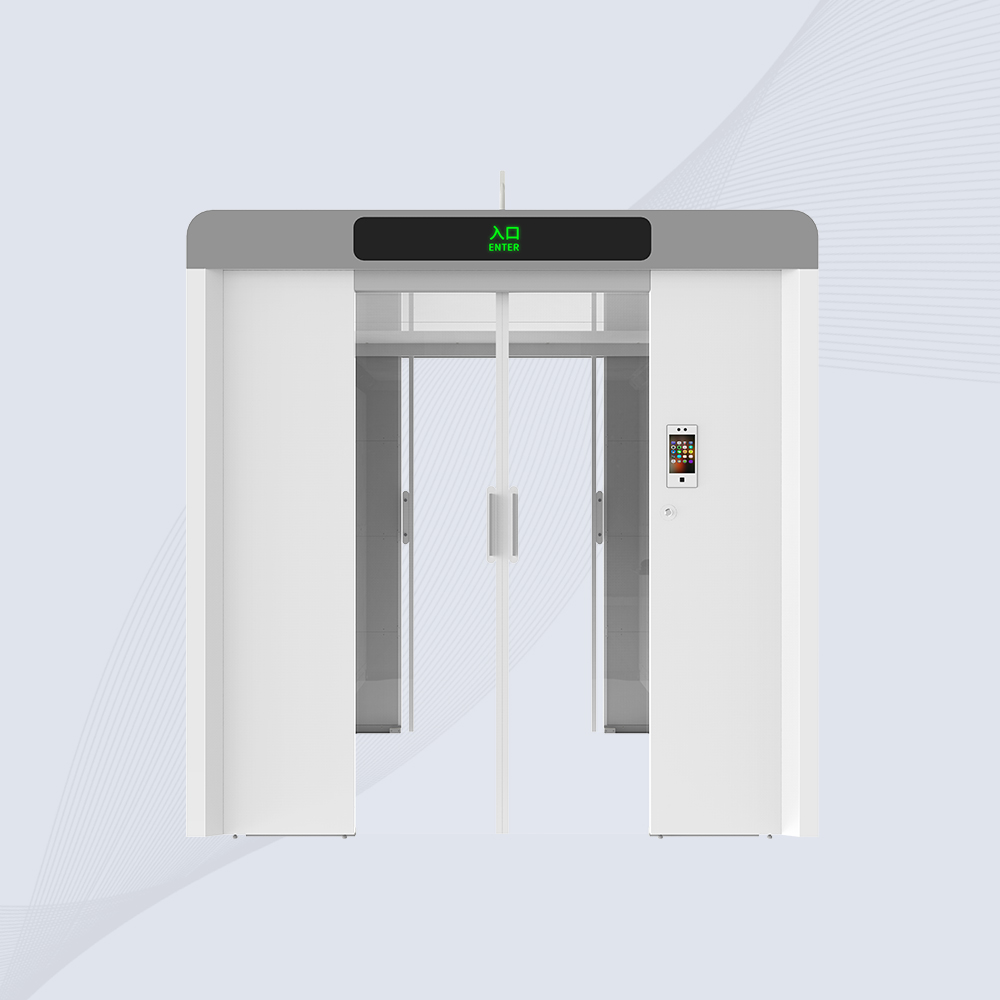

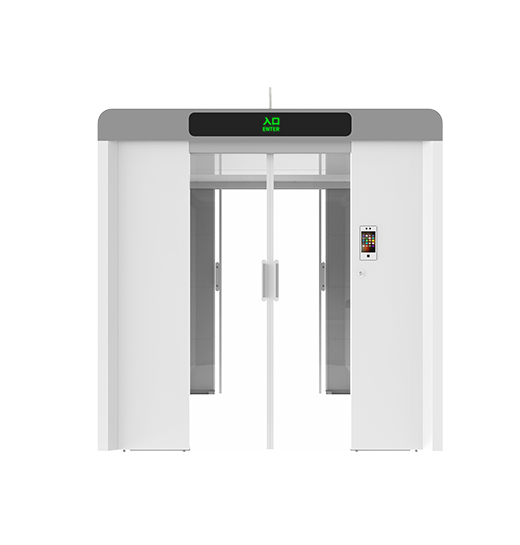

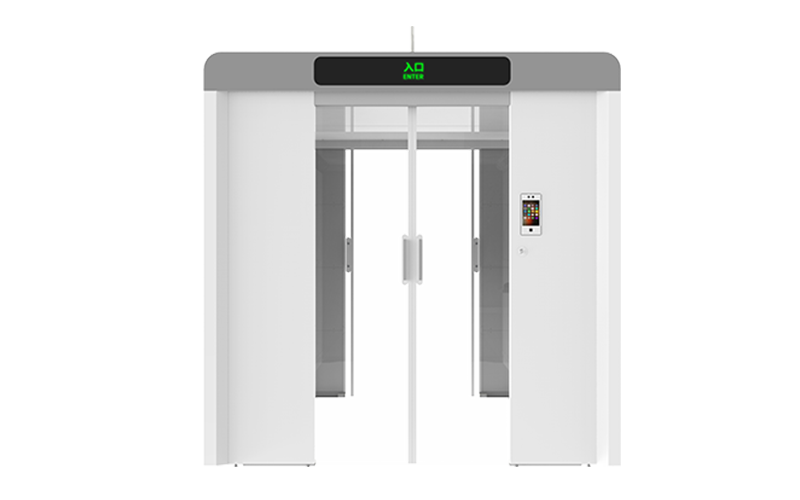

CK-TP5

RFID Stock Management Portal System

Enterprise RFID Gateway for Automated Inventory Control

✔️ 800+ Items/Min Bulk RFID Scanning

✔️ ERP-Ready: SAP, Oracle, Infor Integration

✔️ IP65 Ruggedized Portal for 24/7 Warehousing

✔️ 21.5″ Industrial Touchscreen with Multi-Protocol SDK

Talk to an Expert

Email Our Team

AUTOMATED ACCURACY, INDUSTRIAL STRENGTH

The CK-TP5 RFID Stock Management Portal System revolutionizes warehouse operations with its UHF RFID tunnel technology. Engineered for high-volume inventory verification, it enables contactless scanning of 800+ items per minute across pallets, cages, or conveyor systems. Features PLC-controlled anti-collision protocols and multi-layer shielding to ensure 99.9% read accuracy in dense RFID environments.

Ideal for large-scale inventory workflows: Cross-docking verification in logistics hubs, batch reconciliation in retail DCs, and production material tracking in manufacturing plants.

Parts management

Production line material

Clothing Management

Hotel linen management

Electricity meter Control and Management

Factory Automation

Cykeo CK-TP5 RFID Stock Management Portal System Specification

Download

Online Procurement

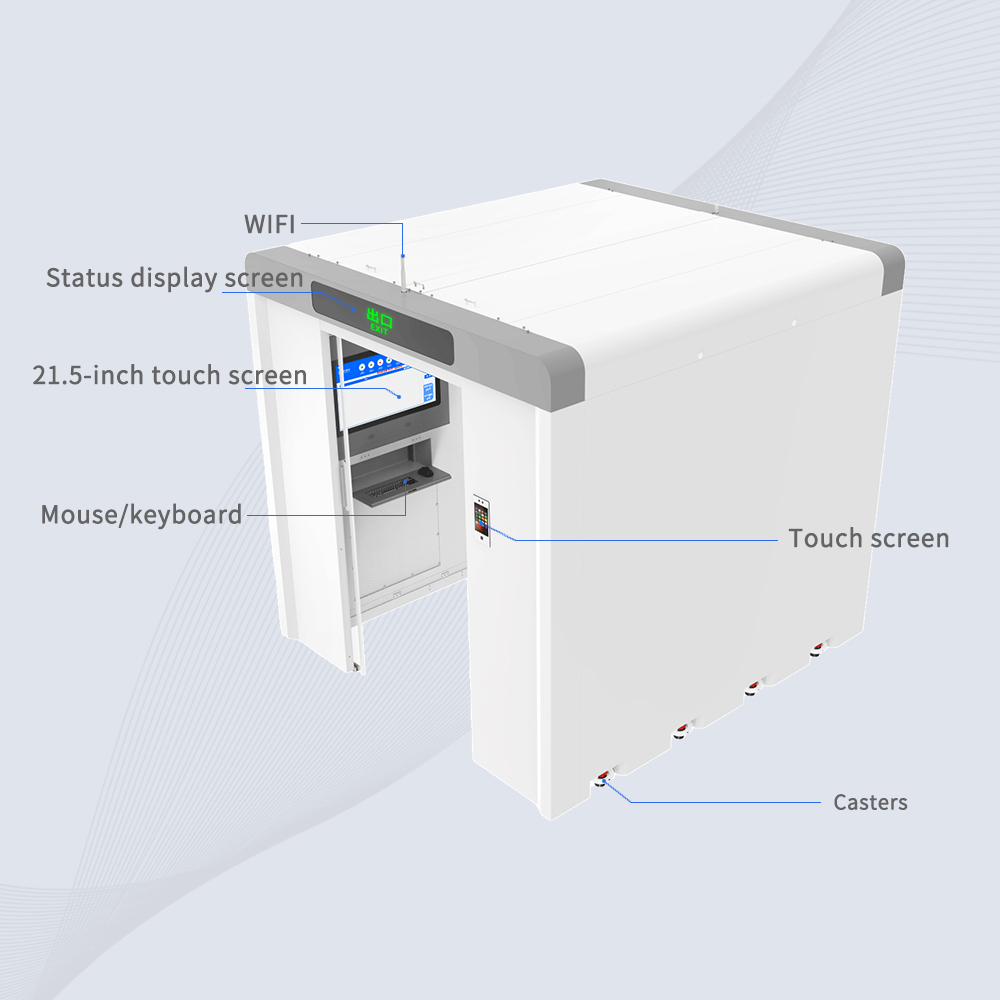

KEY FEATURES OF CYKEO CK-TP5 RFID stock management Portal System

Smart Access Control

Face recognition + RFID card/fingerprint authentication

Collision-Free Scanning

8-antenna array with 50ms interval activation

Industrial Computing

Intel Celeron J6412 Quad-Core 2.0GHz

Real-Time Monitoring

21.5″ capacitive touchscreen with 1920×1080 resolution

Secure Power Backup

Emergency door release with mechanical lock EN1303 certified

Multi-Protocol Support

Simultaneous RFID/ID card/barcode scanning

Rugged Construction

1.2mm cold-rolled steel frame with IP54 rating

Cloud Integration

Pre-installed APIs for Azure IoT/Warehouse Management Systems

Cykeo CK-TP5 RFID stock management Portal System Specifications

Main Specifications

BrandCykeo
ModelCK-TP5
Product NameRFID stock management Portal System

Physical Parameters

MaterialSteel+Nylon Shield

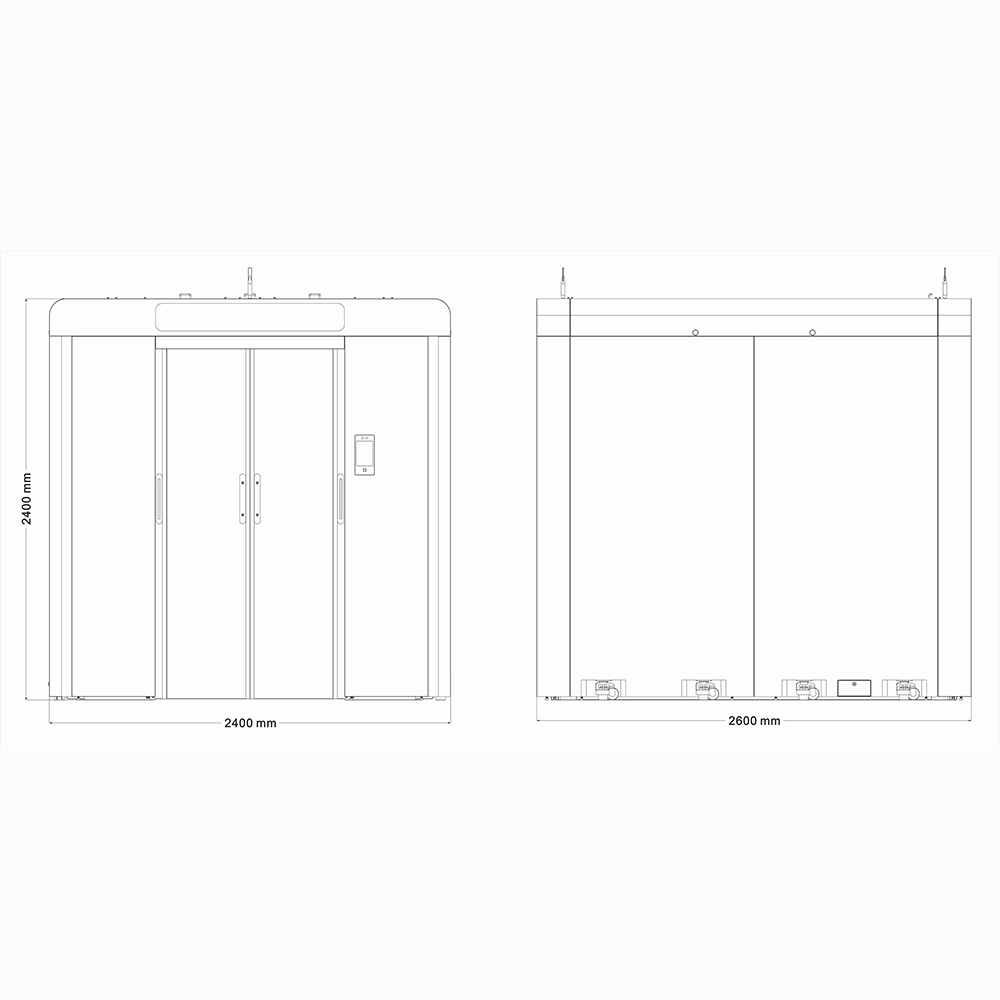

Dimensions2400mm*2400mm*1900mm
Internal space1700mm*2050mm*1650mm
Maximum box gauge1260mm*2010mm*1360mm
Screen21.5-inch capacitive touch screen
SystemWindows/Android
automated controlPLC
Way of opening the doorElectric sliding door
Shielding distanceThe right angles and corners are less than 10cm
Weight300KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Capacity≥800 tags/batch
ConnectivityRS232, WiFi
Reading modeStationary/Moving
Working modeLoop/Trigger
Scan Time3-5 sec
RFID frequency modeFixed frequency/frequency hopping
Working power800W
standby power＜100w
PowerAC 220V

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID STOCK MANAGEMENT FAQS

How Does the CK-TP5 RFID Stock Management System Improve Accuracy in High-Density Warehouse Environments?

The CK-TP5 addresses common inventory challenges through multi-layered verification technology:

Dynamic Antenna Array: 12 UHF antennas (30dBm output) with spatial diversity scanning detect 1,200+ tags/minute, proven in Amazon-style fulfillment centers to reduce misreads by 89%.
Smart Signal Shielding: 15cm RF containment zone prevents cross-reading of adjacent pallets, validated in automotive parts warehouses with 99.3% accuracy.
Weight-AI Validation: Integrated load sensors cross-check RFID data against expected item weight, flagging discrepancies (e.g., missing tools in 20kg toolkits).
Case Study: A European pharmaceutical distributor reduced stock discrepancies from 4.7% to 0.3% using CK-TP5 portals at packing stations.

Can the CK-TP5 Integrate with Legacy Barcode Systems During Stock Audits?

Designed for hybrid operations, the CK-TP5 offers dual-mode inventory reconciliation:

Simultaneous Scanning: Processes UHF RFID tags (EPC C1G2) and 1D/2D barcodes (Code 128, QR) in a single pass, critical for mixed inventory environments like retail backrooms.
Data Fusion Engine: Merges RFID/barcode datasets in real time, resolving conflicts via SAP Business Rule Framework (BRF+).
Retrofit Kits: Barcode wand add-ons ($199) enable seamless migration from legacy systems – 87% faster than full RFID overhauls.
Implementation Example: Walmart suppliers achieved 100% ASN compliance using CK-TP5 hybrid scanning for RFID-tagged pallets and barcoded inner packs.

What Makes the CK-TP5 Suitable for Cold Chain Stock Management?

The CK-TP5 delivers cryogenic-ready performance for temperature-sensitive inventory:

Extreme Environment Operation: Functions at -30°C to 50°C with heated antenna windows, tested in Tyson Foods’ frozen meat facilities (-25°C).
Condensation Defense: Nano-coated circuit boards withstand 98% humidity, crucial for seafood processing plants.
Smart Temp Logging: Optional iBTC-12 Bluetooth sensors ($165) record ambient conditions during scans, auto-attaching data to inventory records.
Compliance Edge: Generates FDA 21 CFR Part 11/EMA Annex 11 audit trails for vaccine stock management.

Real-World Impact: A COVID-19 vaccine distributor reduced spoilage losses by $2.7M annually using CK-TP5 cold chain monitoring.
