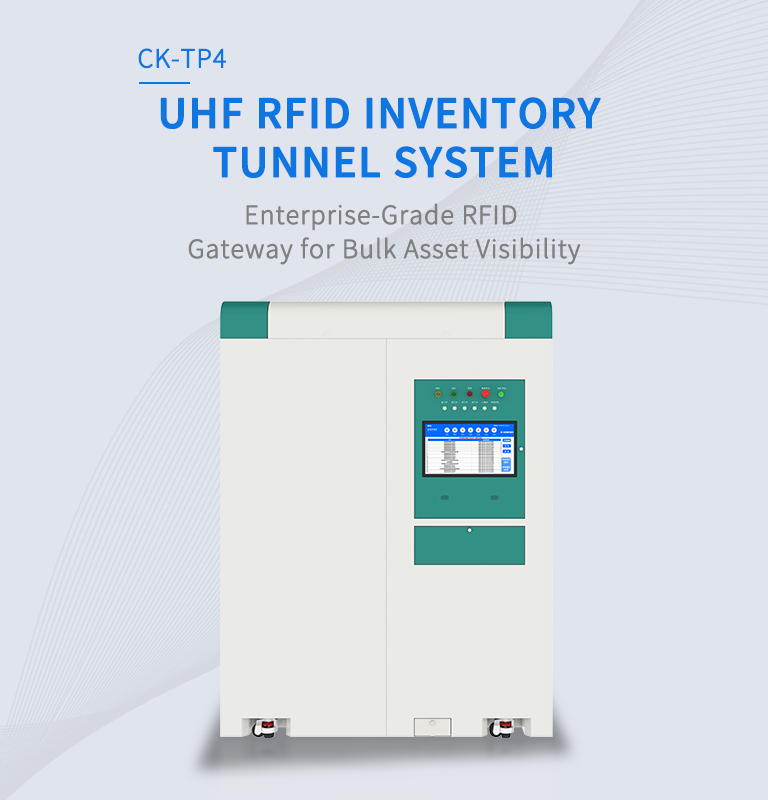

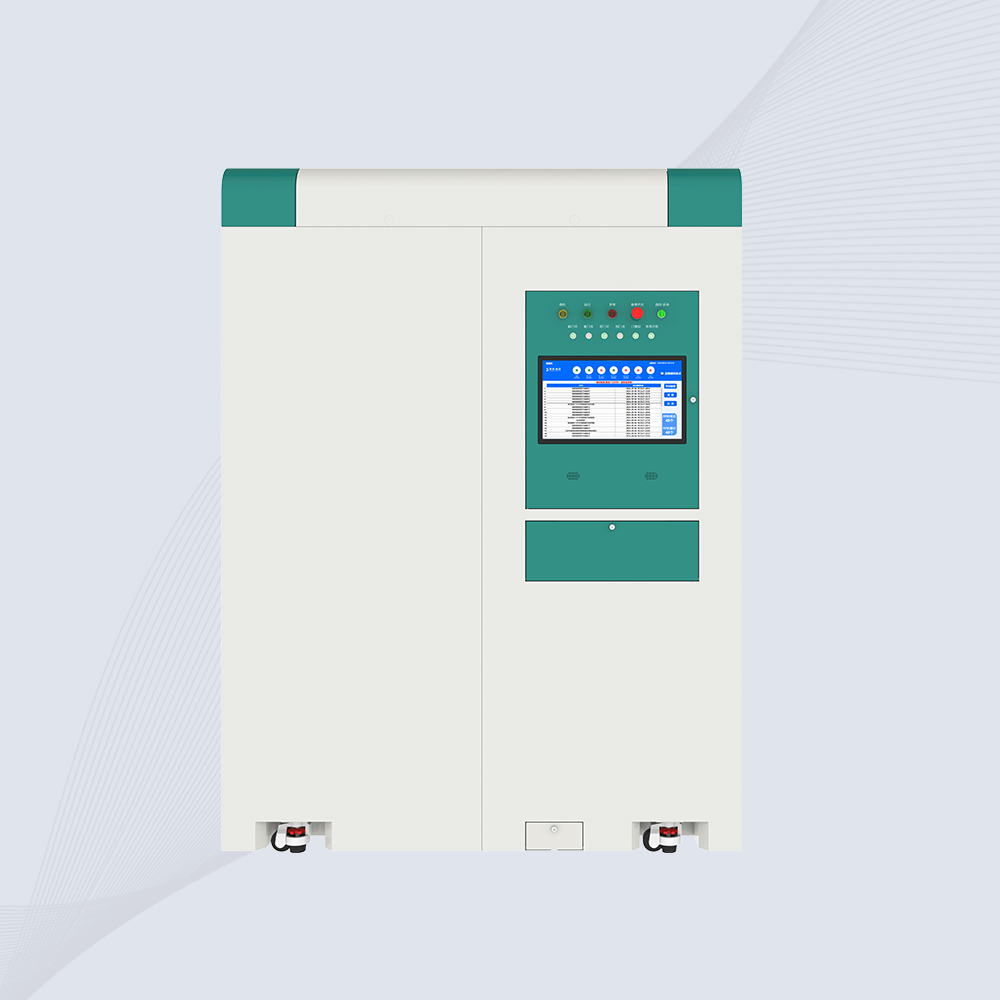

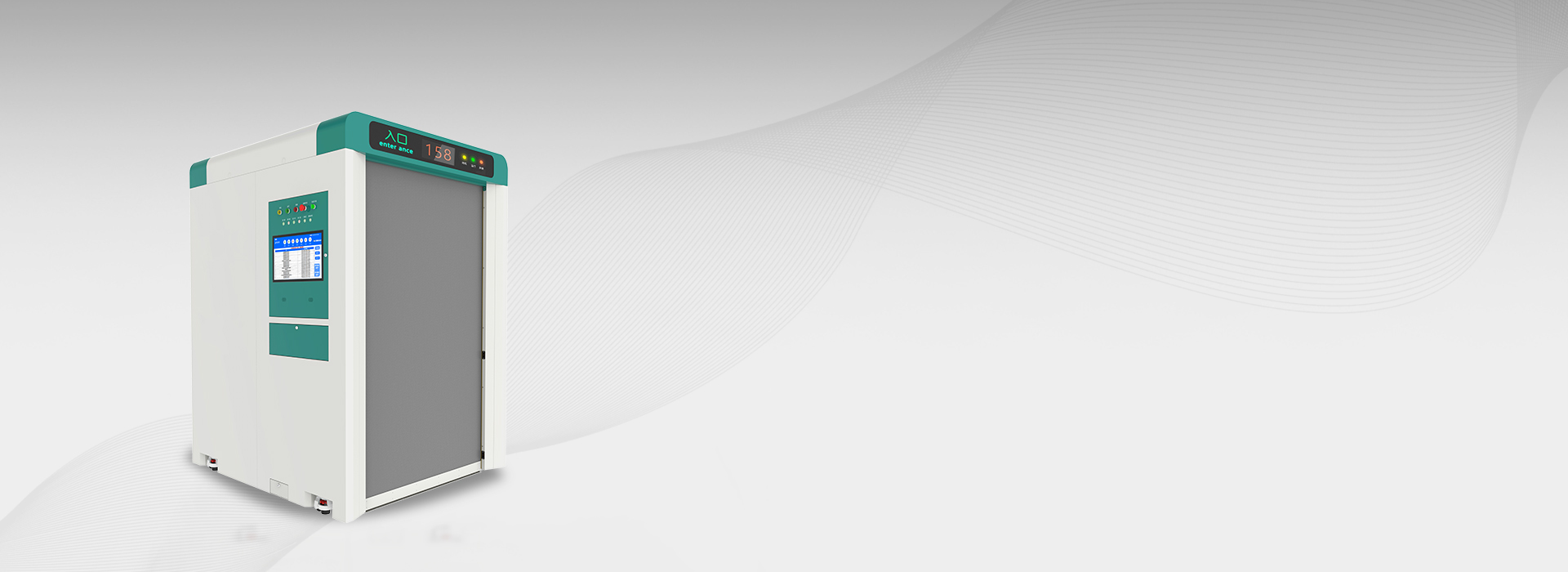

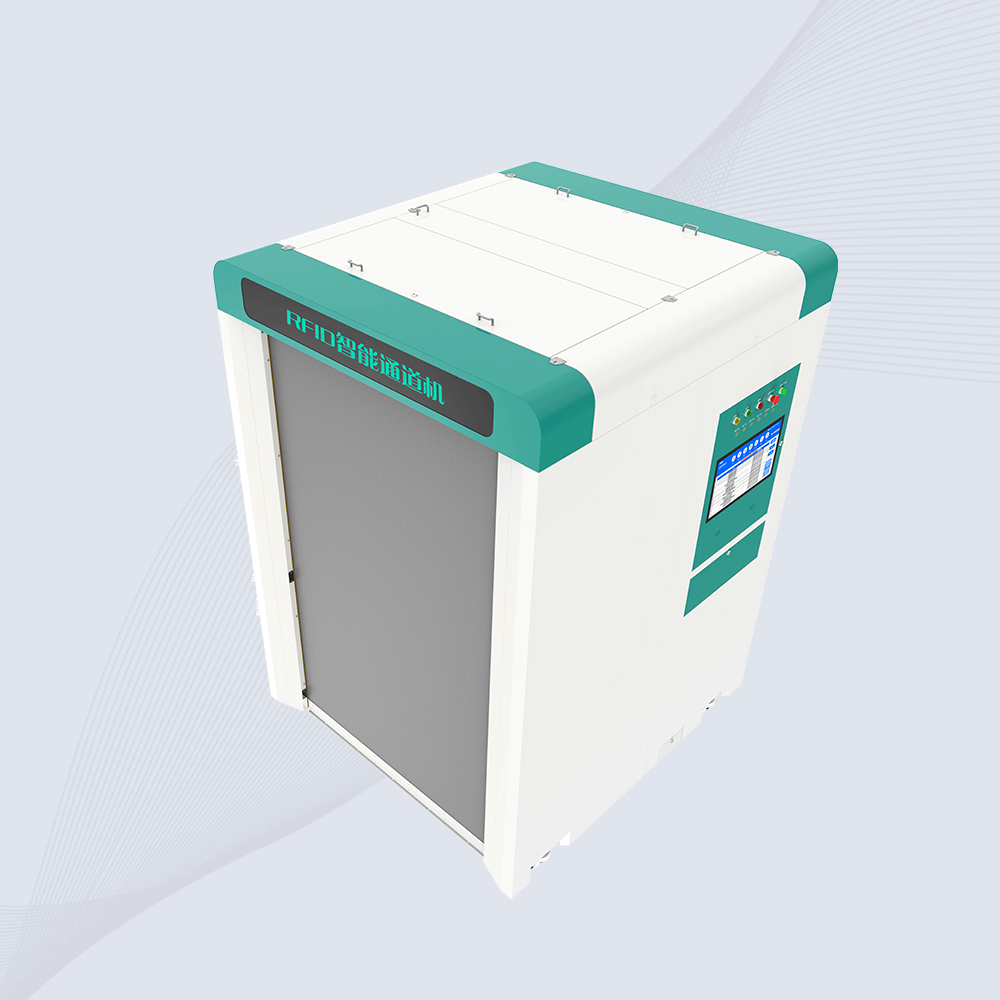

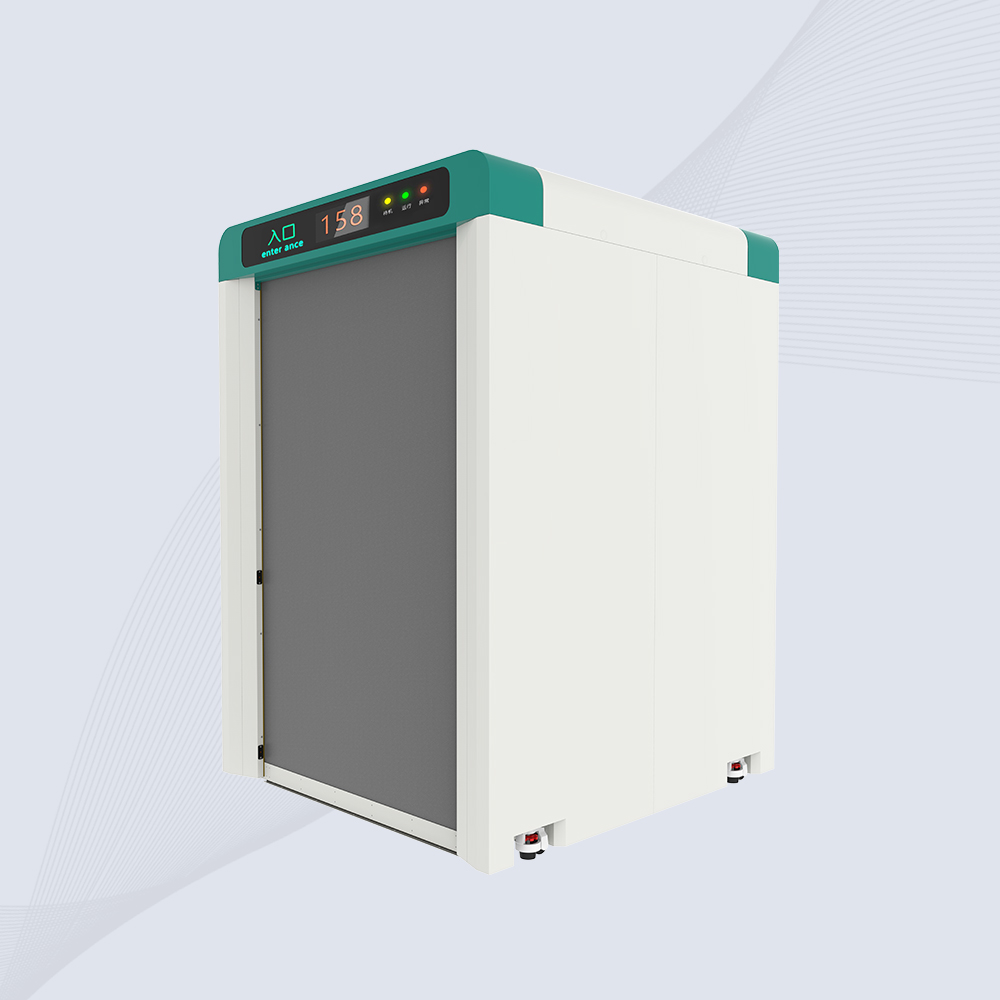

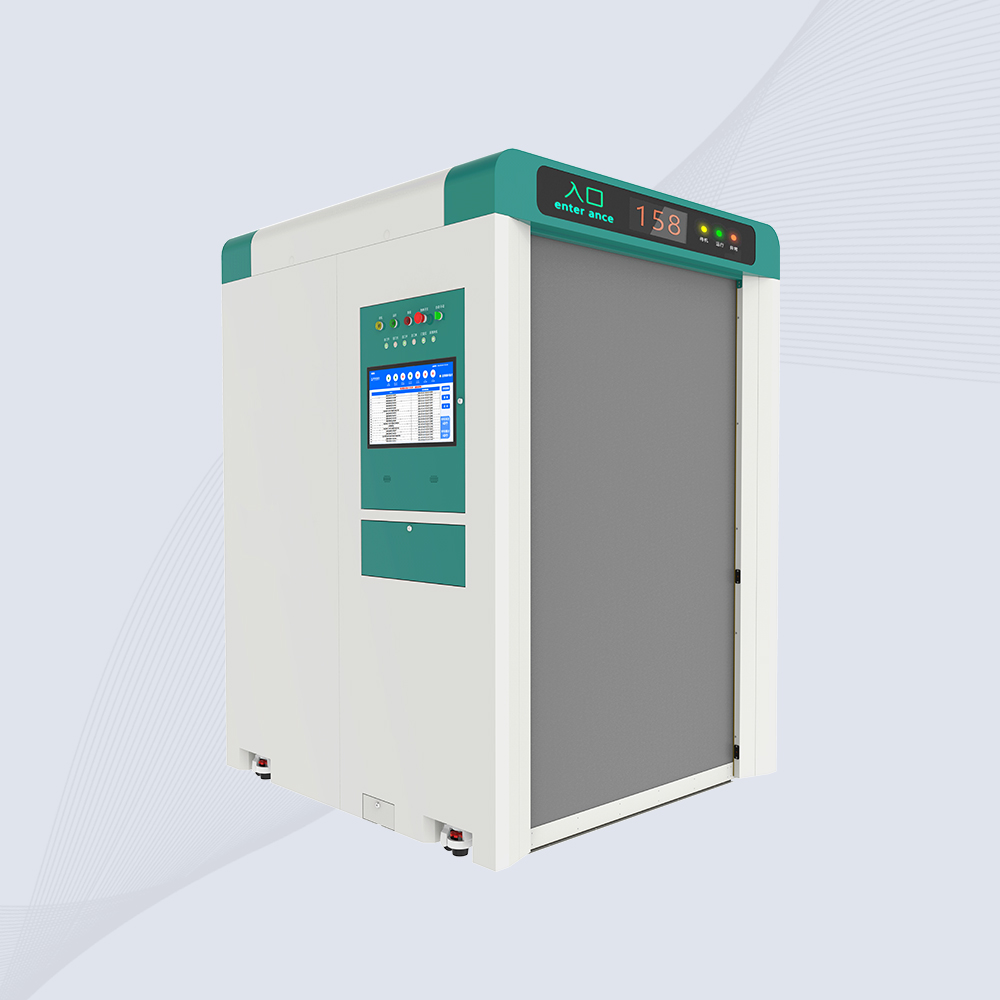

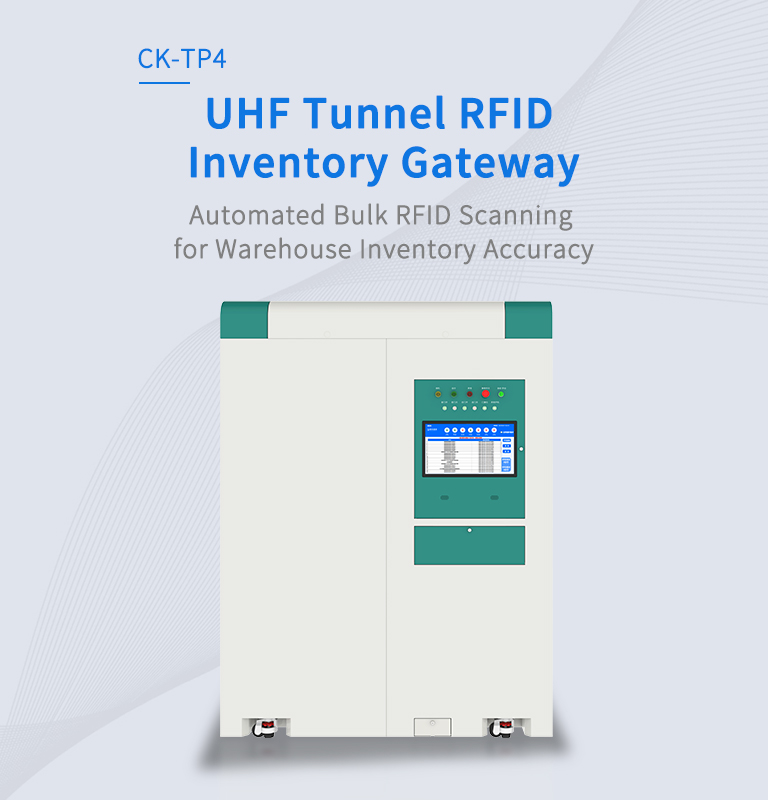

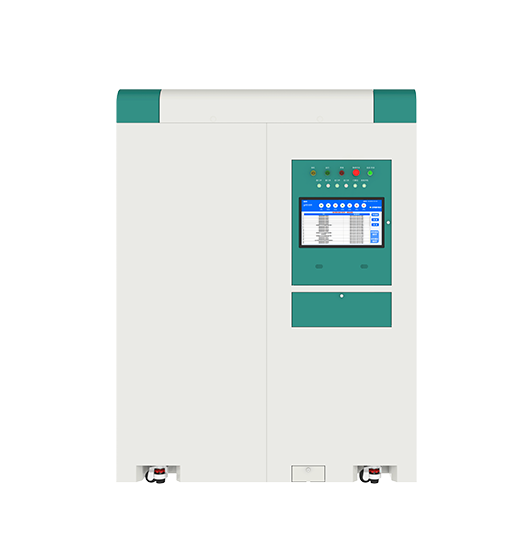

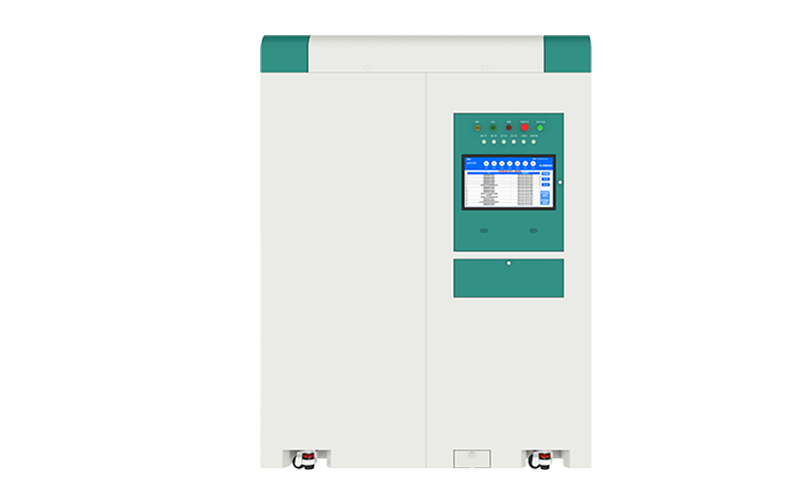

CK-TP4

UHF Tunnel RFID Inventory Gateway

Automated Bulk RFID Scanning for Warehouse Inventory Accuracy

✔️ Multi-Protocol Support (EPC C1G2/GB29768)

✔️ 1000+ Items/Min Batch Scanning for RFID Inventory

✔️ Signal-Shielded Tunnel Design Prevents Cross-Reads

Talk to an Expert

Email Our Team

BULK SCAN, ZERO ERROR

The CK-TP4 UHF RFID Tunnel Inventory Gateway revolutionizes warehouse operations with industrial-grade RFID for inventory management. Designed for high-volume scanning of tagged assets like apparel, electronics, and logistics containers, it achieves 99.9% read accuracy through advanced signal-shielding technology. Features dual anti-collision doors and 500+ item batch processing to streamline receiving/shipping workflows.

Ideal for RFID inventory management in apparel warehouses, electronics manufacturing, and third-party logistics (3PL) centers requiring high-speed bulk scanning of tagged goods on carts/trolleys.

Parts management

Production line material

Clothing Management

Hotel linen management

Electricity meter Control and Management

Factory Automation

Cykeo CK-TP4 UHF RFID Tunnel Inventory Gateway Specification

Download

Online Procurement

TECHNICAL EXCELLENCE: CK-TP4 RFID INVENTORY TUNNEL

21.5″ Industrial Touchscreen

Windows/Android OS with retractable keyboard for real-time data input.

PLC-Auto Shutter Control

3-second open/close cycle with anti-collision shielding to prevent misreads.

800+ Tags Batch Processing

Impinj R2000 chipset achieves 800 tags/sec for bulk pallet scanning.

Dual-Band WiFi & Ethernet

Real-time SAP/ERP integration with multi-protocol compatibility.

6-Sensor Positioning System

Laser-guided item detection for precise PLC-triggered operations.

Shockproof Nylon Bumpers

IP65-rated anti-collision design with dual-color safety markings.

Expandable SDK

C#/Java APIs for custom WMS/ERP integration and IoT platform connectivity.

Low-Noise Motorized Shutter

60dB silent operation with anti-pinch safety sensors.

Cykeo CK-TP4 UHF RFID Tunnel Inventory Gateway Specifications

Main Specifications

BrandCykeo
ModelCK-TP4
Product NameUHF RFID Tunnel Inventory Gateway

Physical Parameters

MaterialSteel+Nylon Shield
Dimensions1660mm*2425mm*1800mm
Internal space1260mm*2010mm*1660mm
Maximum box gauge1260mm*2010mm*1360mm
Screen21.5-inch capacitive touch screen
SystemWindows/Android
automated controlPLC
Shielding distanceThe right angles and corners are less than 10cm
Weight300KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Capacity≥500 tags/batch
ConnectivityRS232, WiFi
Reading modeStationary/Moving
Working modeLoop/Trigger
Scan Time3-5 sec
RFID frequency modeFixed frequency/frequency hopping
Working power800W
standby power＜100w
PowerAC 220V

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID Inventory Gateway FAQs

How Does the CK-TP4 RFID Inventory Gateway Achieve 99.9% Accuracy in Bulk Scanning?

The CK-TP4 leverages multi-antenna spatial diversity and adaptive signal control to ensure precision in high-volume environments:

12-Antenna Array: Strategically placed UHF RFID antennas (30dBm output) create overlapping read zones, eliminating blind spots for items up to 1.5m wide.
Dynamic Power Adjustment: Automatically modulates transmission power (10-33dBm) based on tag density, preventing signal oversaturation during 1,000+ tags/minute scanning.
Tri-Sensor Validation: Combines RFID data with infrared proximity sensors (item positioning) and weight sensors (quantity verification), flagging discrepancies via real-time alerts.
Case Study: A European automotive parts warehouse reduced scanning errors by 96% while processing 15,000 RFID-tagged components daily.

Can the CK-TP4 Operate in Extreme Temperatures or Dusty Industrial Environments?

Built for harsh conditions, the CK-TP4 features IP66-rated construction and extended temperature tolerance:

Thermal Resilience: Operates reliably from -25°C to 65°C, with heated/cooled internal compartments protecting critical components.
Dustproof Design: Sealed cable glands and HEPA-grade air filters prevent particulate ingress in cement plants or mining facilities.
Vibration Resistance: MIL-STD-810G certification ensures stable performance near heavy machinery or conveyor systems.
Real-World Validation: Deployed in a Middle Eastern oil refinery, the CK-TP4 maintained 98.5% read rates despite 50°C heat and airborne sand.

How Does the CK-TP4 Integrate with Legacy Warehouse Management Systems (WMS)?

The CK-TP4 simplifies enterprise integration through multi-protocol compatibility and edge computing:

Pre-Built Connectors: Direct API links for SAP EWM, Oracle WMS, and Microsoft Dynamics 365, syncing inventory data in <1 second.
Legacy System Support: Converts RFID scans into EDI/X12 or CSV formats for older WMS platforms.
Edge Analytics: Onboard processor runs AI-powered anomaly detection (e.g., missing items, duplicate scans) before transmitting data.
Custom Workflows: Python SDK enables tailored rules like quarantine flagging for recalled inventory or automated replenishment alerts.

Implementation Example: A global 3PL provider integrated 40 CK-TP4 units with 15-year-old WMS infrastructure, reducing manual data entry by 83%.
