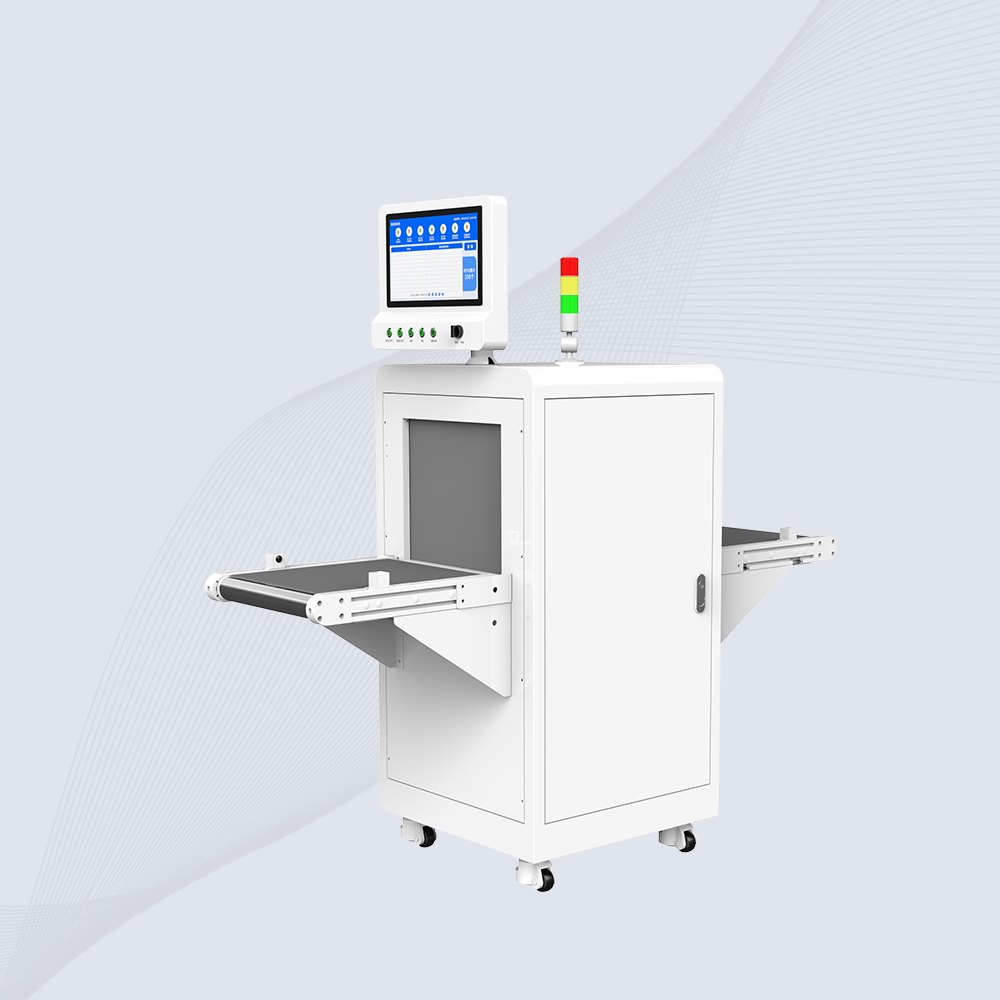

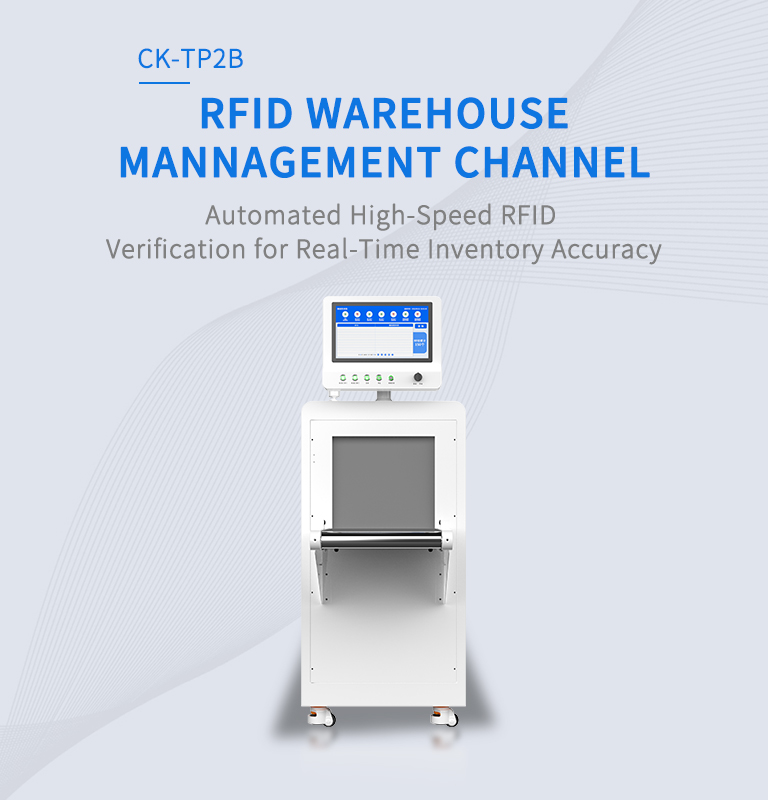

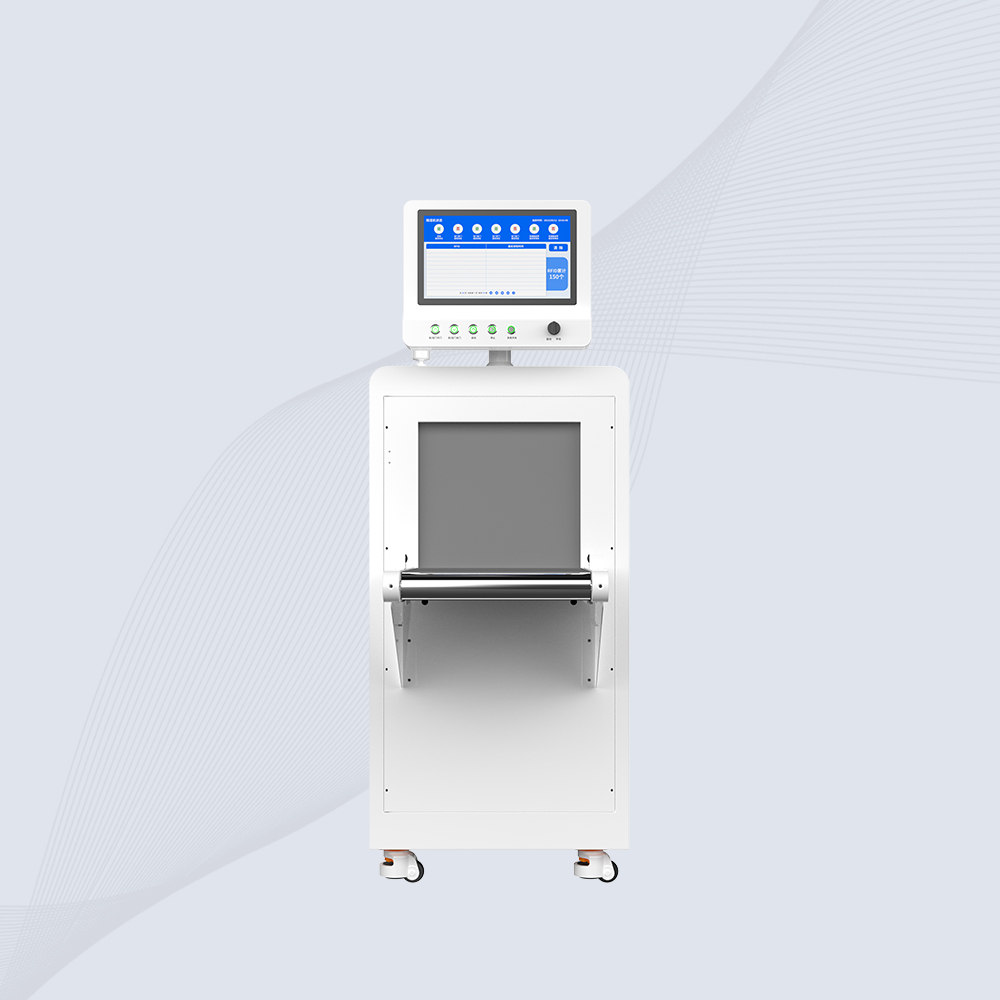

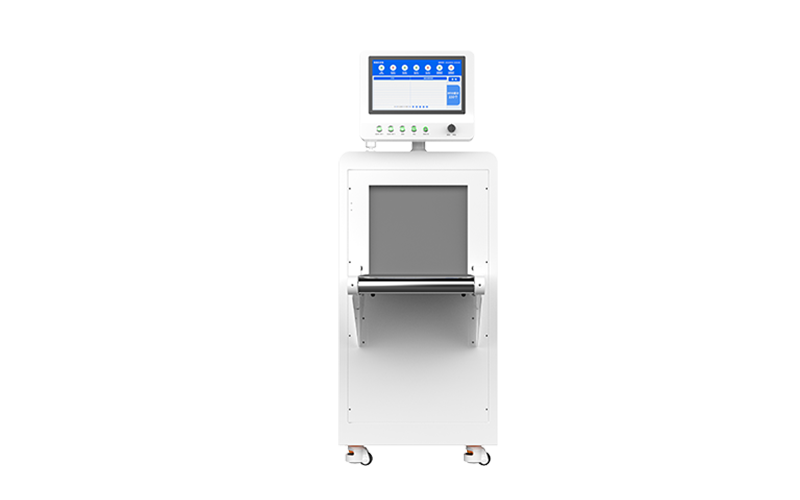

CK-TP2B

RFID Warehouse Management Channel

Automated High-Speed RFID Verification for Real-Time Inventory Accuracy

✔️ Dual-Screen Validation with Error Alarm System

✔️ 200+ Items/Sec Tunnel Reading with Anti-Miss Technology

✔️ ISO 18000-6C Compliance for Warehouse Management Systems

Talk to an Expert

Email Our Team

PRECISION SPEED, ZERO ERROR

The CK-TP2B RFID Warehouse Management Channel redefines inventory operations with its tunnel-style conveyor system. Engineered for ISO 18000-6C protocol compliance, this industrial-grade solution combines 840-960MHz adaptive frequency hopping with electromagnetic shielding to achieve 99.9% read accuracy in high-density warehouse environments. The integrated industrial PC supports real-time data validation and WMS integration, making it essential for rfid warehouse management systems requiring audit-grade precision.

Perfect for warehouse management operations: From apparel batch verification to electronics component reconciliation and alcohol anti-counterfeiting inspections.

Parts management

Production line material

Clothing Management

Hotel linen management

Electricity meter Control and Management

Factory Automation

Cykeo CK-TP2B RFID Warehouse Management Channel Specification

Download

Online Procurement

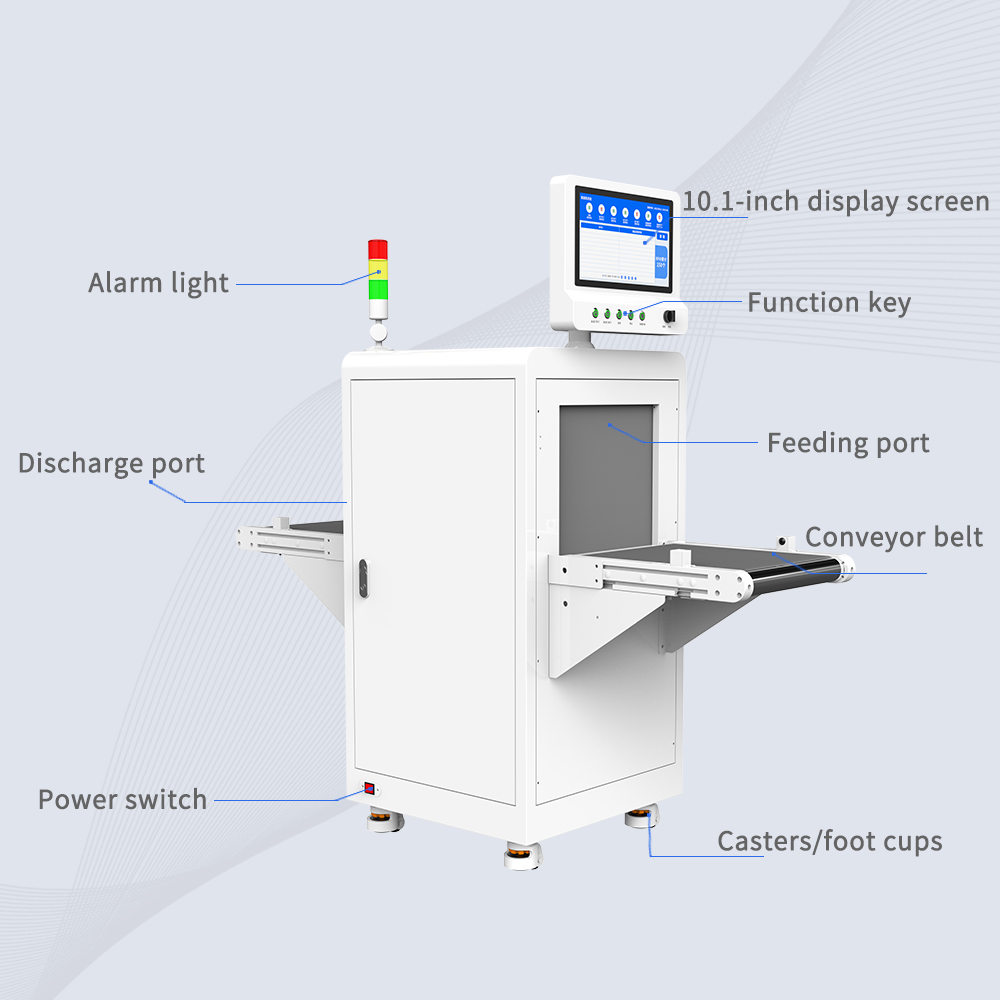

KEY FEATURES OF CYKEO CK-TP2B RFID Warehouse Management Channel

Industrial-Grade Conveyor Belt

20kg capacity with anti-slip polymer mesh

Dynamic Frequency Hopping

840-960MHz adaptive adjustment

R2000-Based UHF Array

8 directional antennas for 360° coverage

Windows/Android OS

Multi-platform SDK support

Real-Time Validation

10.1″ touchscreen with mismatch alerts

Expandable Architecture

Add sorting modules/ERP integration

IP54 Protected Electronics

-20℃~60℃ operational range

Energy Efficient

<100W standby power consumption

Cykeo CK-TP2B RFID Warehouse Management Channel Specifications

Main Specifications

BrandCykeo
ModelCK-TP2B
Product NameRFID Warehouse Management Channel

Physical Parameters

MaterialSheet metal powder coating
Screen10.1-inch capacitive touch screen

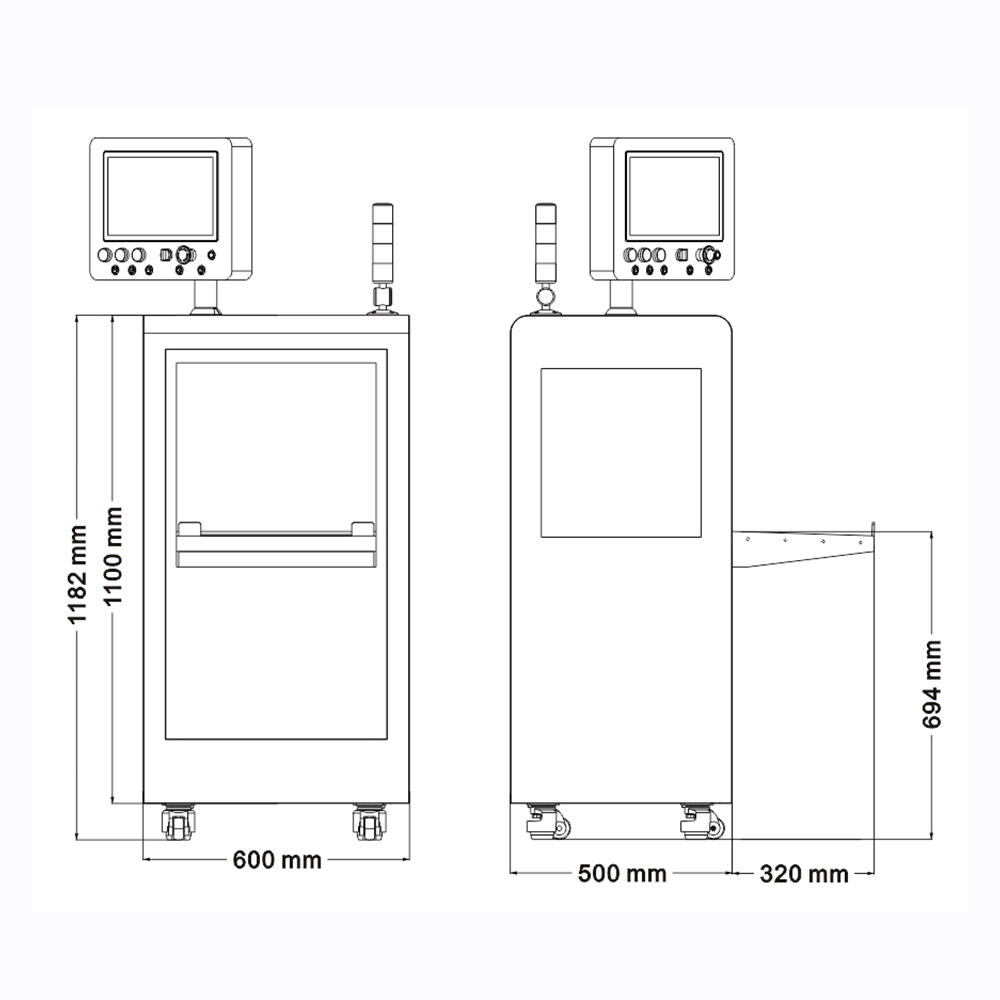

Dimensions500mm*600mm*1182mm
SystemWindows/Android
Door opening speed1.2/S
Transmission speed20m/min, with a maximum adjustable speed of 30m/min
Transmission load-bearing20kg
Weight150KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolISO 18000-6C/EPC C1G2
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
ConnectivityRS232, WiFi
Recognition efficiency200+ Tags/3 Seconds
Reading rate6 to 10 boxes per minute
standby power＜100w
Reading modeStationary/Moving
Working modeLoop/Trigger
Transmission speed20-30m/min Adjustable
Load-bearing capacity80kg Continuous Operation
Working power800W
PowerAC 220V

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID WAREHOUSE MANAGEMENT FAQS

How Does the CK-TP2B Handle High-Density RFID Tag Environments in Warehouse Management?

The CK-TP2B uses multi-layered anti-collision technology to manage dense RFID tag scenarios (e.g., 500+ items per pallet) common in modern warehouse management:

Dynamic Power Sequencing: Alternates between 4 UHF antennas (860-960MHz) to isolate overlapping signals, achieving 200+ tags/sec with <0.1% miss rate.
Smart Zone Isolation: Infrared sensors activate scanning only when items enter the 1.2m tunnel, preventing cross-reads from adjacent inventory.
Batch Validation: Compares scanned RFID tags against WMS manifests in real time, flagging discrepancies via LED alerts and on-screen reports.
Real-World Impact: A European e-commerce hub reduced inventory errors by 92% while processing 15,000 daily shipments using this system.

Can the CK-TP2B Integrate with Legacy Warehouse Management Software Like SAP EWM?

Designed for enterprise interoperability, the CK-TP2B supports seamless RFID warehouse management integration:

Pre-Built Connectors: Direct API links for SAP EWM, Oracle WMS, and Microsoft Dynamics 365, syncing data in <2 seconds.
Data Bridging: Converts RFID scans into EDI/XML formats compatible with older systems, eliminating manual data entry.
Custom Workflows: Python-based SDK lets users create rules like auto-quarantine for expired goods or priority routing for fast-moving SKUs.
Implementation Example: A pharmaceutical distributor achieved 100% DSCSA compliance by integrating RFID scans with SAP EWM for serialized drug tracking.

What Makes the CK-TP2B Suitable for Frozen or High-Humidity Warehouse Management?

Engineered for extreme conditions, the CK-TP2B ensures reliable RFID warehouse management in environments as harsh as -25°C to 60°C:

Cold Chain Optimization: Heated antenna modules prevent ice buildup, while PTFE-coated belts resist freezing to surfaces.
Humidity Defense: IP54-rated seals and conformal-coated electronics withstand 95% RH environments like seafood processing plants.
Condensation Control: Active airflow systems maintain stable internal temperatures during rapid ambient shifts.
Certified Performance: MIL-STD-810G tested to endure 1,000+ thermal cycles without performance degradation.
