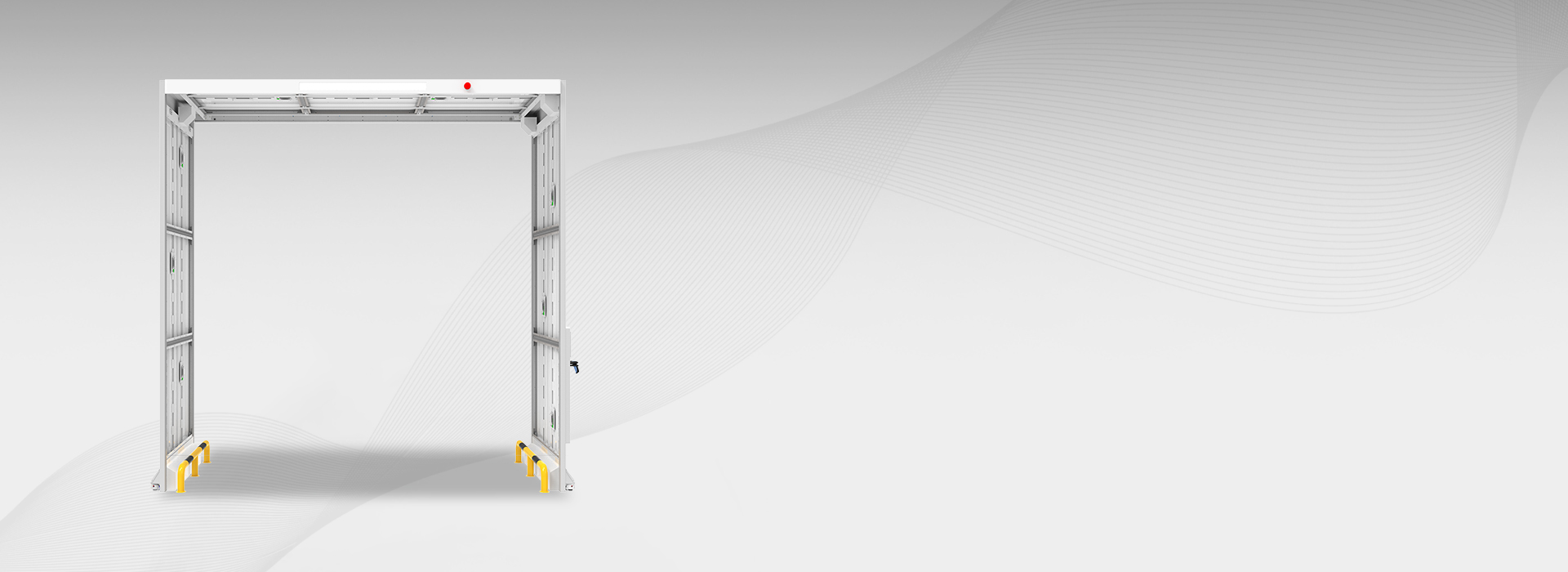

CK-T8F

RFID Gate Entry Systems

High-Accuracy Portal Solution for Automated Inventory Control

✔️ 99.98% Read Accuracy with 4-Antenna Array

✔️ Infrared-Triggered 200+ Tags/Sec Processing

✔️ Customizable EAS Alarms & Protocol Extensions

Talk to an Expert

Email Our Team

PRECISION GATES, ZERO DELAYS

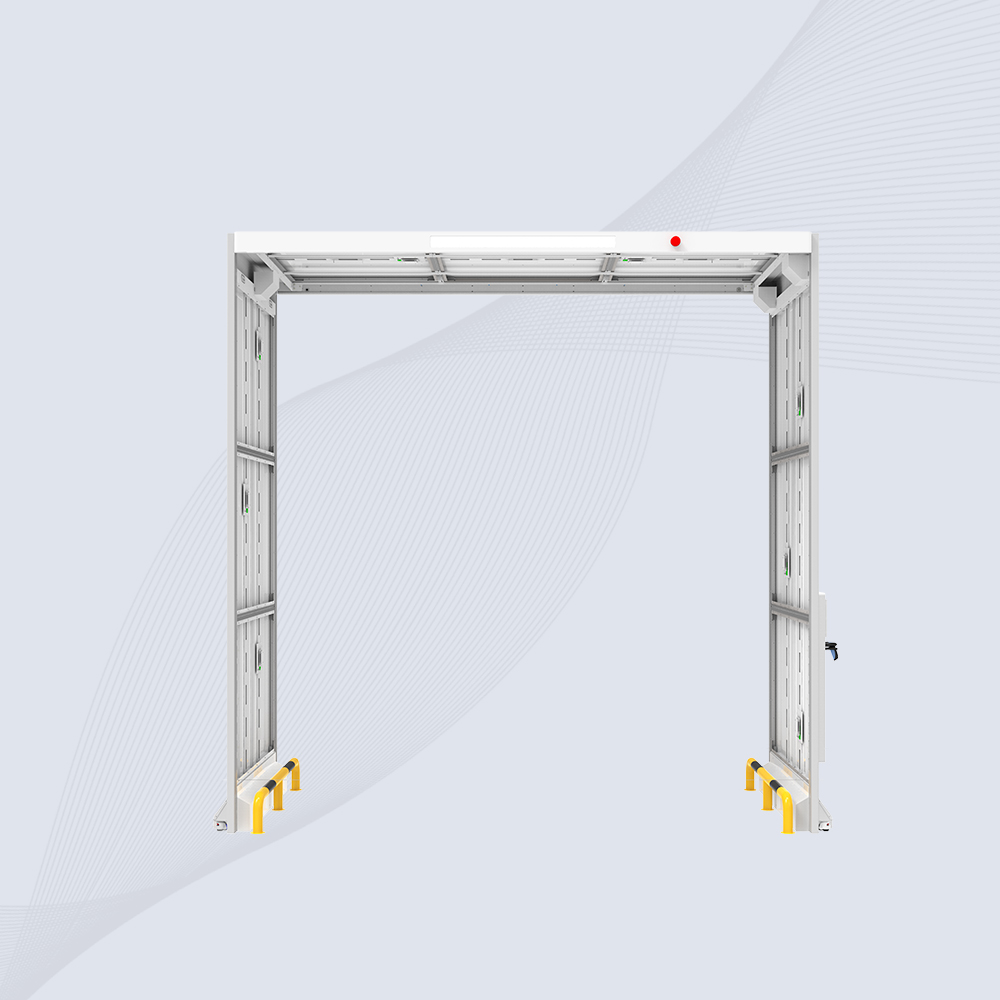

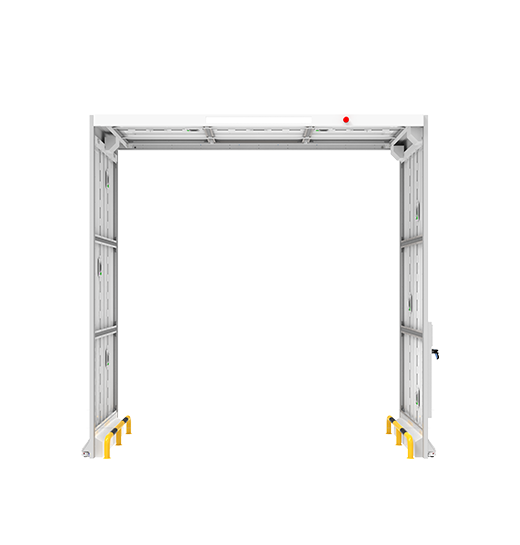

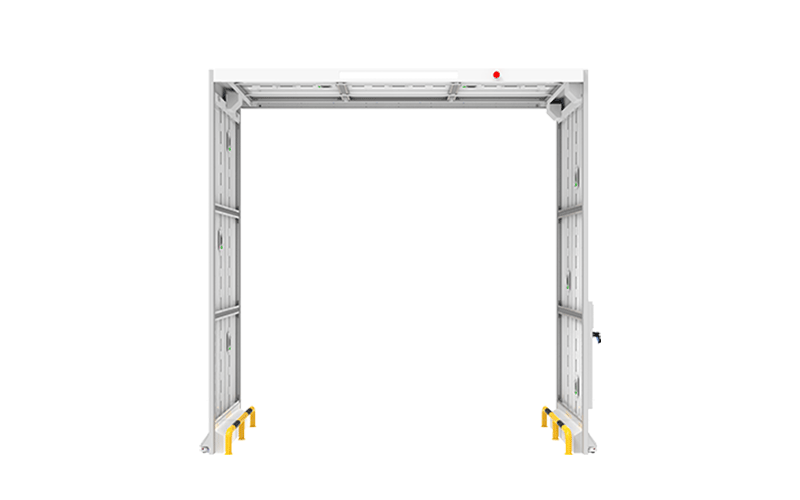

The CK-T8F UHF RFID Gate Entry Systems transform warehouse and production line access points with industrial-grade efficiency. Featuring 840-960MHz frequency agility, infrared spatial sensing, and dual OS support (Windows/Android), it ensures real-time pallet tracking with <0.2% misreads. Integrated EAS alarms and protocol customization secure high-traffic gate operations.

Ideal for automated gate entry control in warehouse portals, production line checkpoints, and secure access zones like tool rooms or archival facilities.

Parts management

Production line material

Clothing Management

Hotel linen management

Electricity meter Control and Management

Factory Automation

Cykeo CK-T8F RFID Gate Entry Systems Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T8F RFID GATE ENTRY SYSTEMS

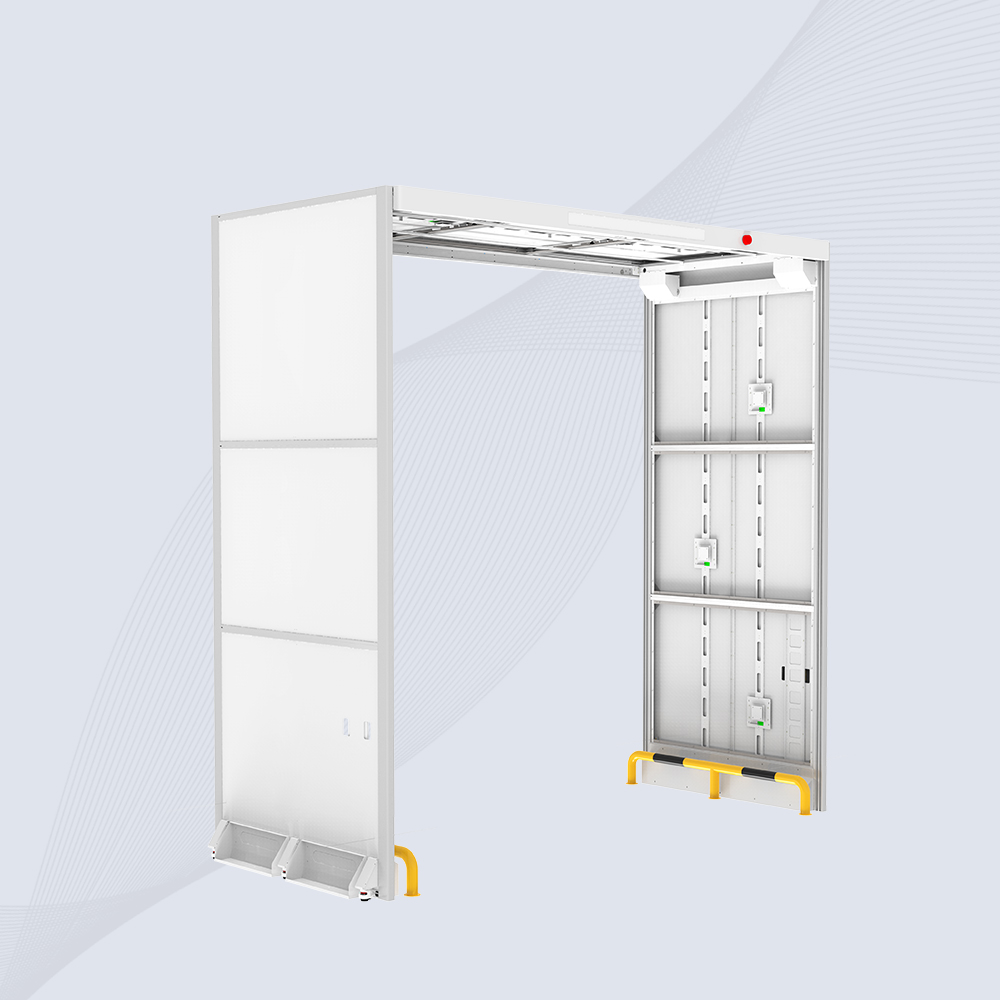

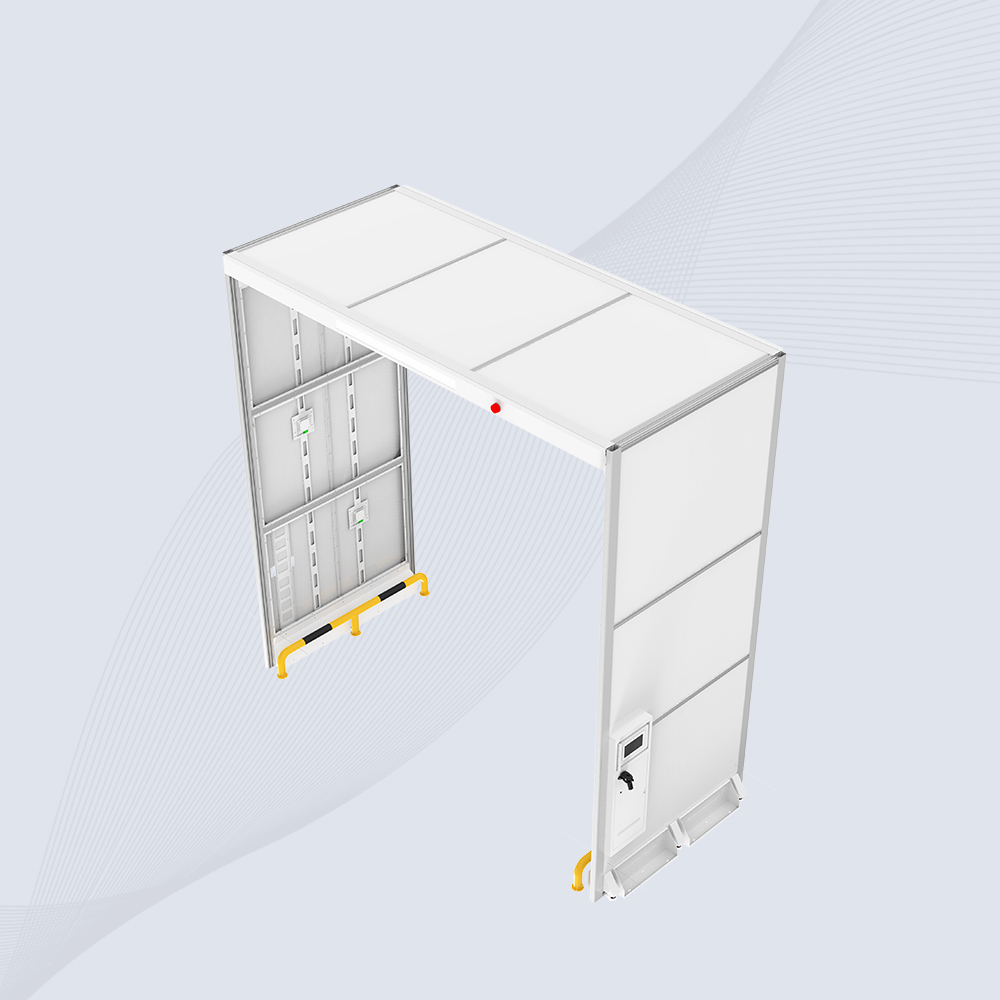

4-Antenna 360° Coverage

Full-range detection in 4.5m passage

Infrared Beam Trigger

0.5ms response time motion activation

Dual EAS Alarm Modes

110dB buzzer + LED light alerts

Industrial Connectivity

RJ45/WiFi/4G multi-protocol support

-20℃ Extreme Operation

Reliable in cold chain logistics

EPC C1G2 Optimization

800-960MHz adaptive frequency

Bulk Data Processing

128GB SSD for 10M+ tag logs

Rapid Deployment Kit

60-minute installation standard

Cykeo CK-T8F UHF RFID Gate Entry Systems Specifications

Main Specifications

BrandCykeo
ModelCK-T8F
Product NameRFID Gate Entry Systems

Physical Parameters

MaterialAluminum profile outer frame, sheet metal +PMMA

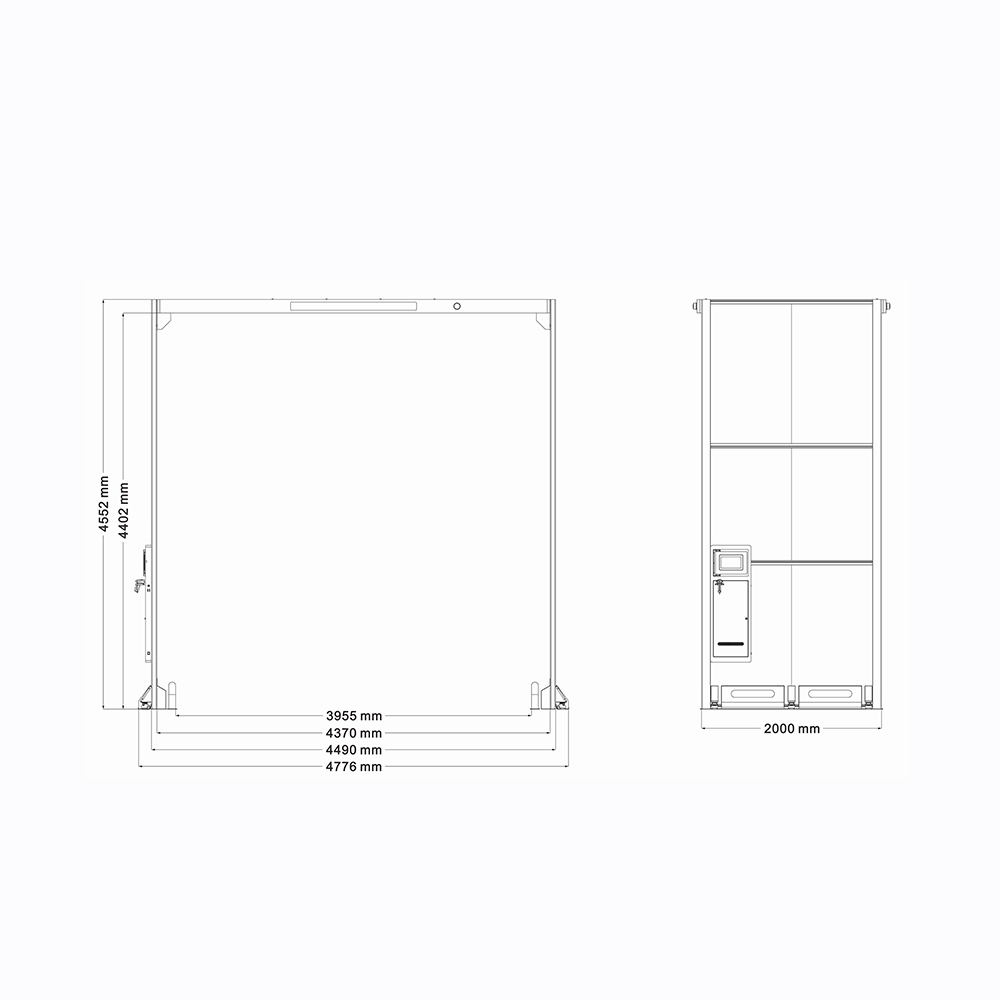

Dimensions4552×4776×2000mm
Screen10.1″ capacitive touchscreen
SystemWindows/Android
Core controlI5-4,8G, 128GBSSD Windows 10 RK3399, 4G+32G, android 7.1，
Trigger modeInfrared trigger
Weight50KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Capacity≥200 tags/batch
ConnectivityRJ45
Reading and writing functionSupports multi-label recognition, label data filtering, and RSSI perceptible signal strength
Scan Time3-5 sec
standby power＜100w
PowerAC 220V

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID GATE ENTRY SYSTEMS FAQS

How Does the CK-T8F Prevent Misreads in High-Speed Warehouse Gates?

Answer:
The CK-T8F RFID gate entry systems utilize 4-antenna spatial sensing and dynamic frequency hopping to maintain 99.98% accuracy in conveyor-based environments. When pallets pass through infrared triggers, the system:

Activates EPC C1G2 tag filtering to ignore non-target items.
Uses RSSI thresholds to focus on tags within 2-6m range, eliminating peripheral interference.
Adjusts Q algorithms in real-time for 200+ tags/sec decoding.
Case Study: A European warehouse reduced gate misreads by 73% after installing CK-T8F gates at loading docks, processing 8,000+ pallets daily.

Can This RFID Gate Integrate with Existing Security Alarms?

Answer:
Yes. The CK-T8F supports online/offline EAS alarms via:

Dry contact inputs for third-party sirens or lights.
Protocol customization to sync with SAP® or Oracle® warehouse modules.
Android SDK to program alarm rules (e.g., trigger if unregistered tags pass).
Tip: Use RS232 ports to connect legacy security controllers without network upgrades.

What Makes the CK-T8F Suitable for Freezer Warehouses?

Answer:
Engineered for -30°C environments with:

Anti-condensation heating for lenses and antennas.
IP67-rated sealed enclosures resisting ice buildup.
Extended humidity resilience (10%-90% RH).
Performance Data: Maintains 98.5% read rates after 500+ hours in -25°C meat processing plants.
