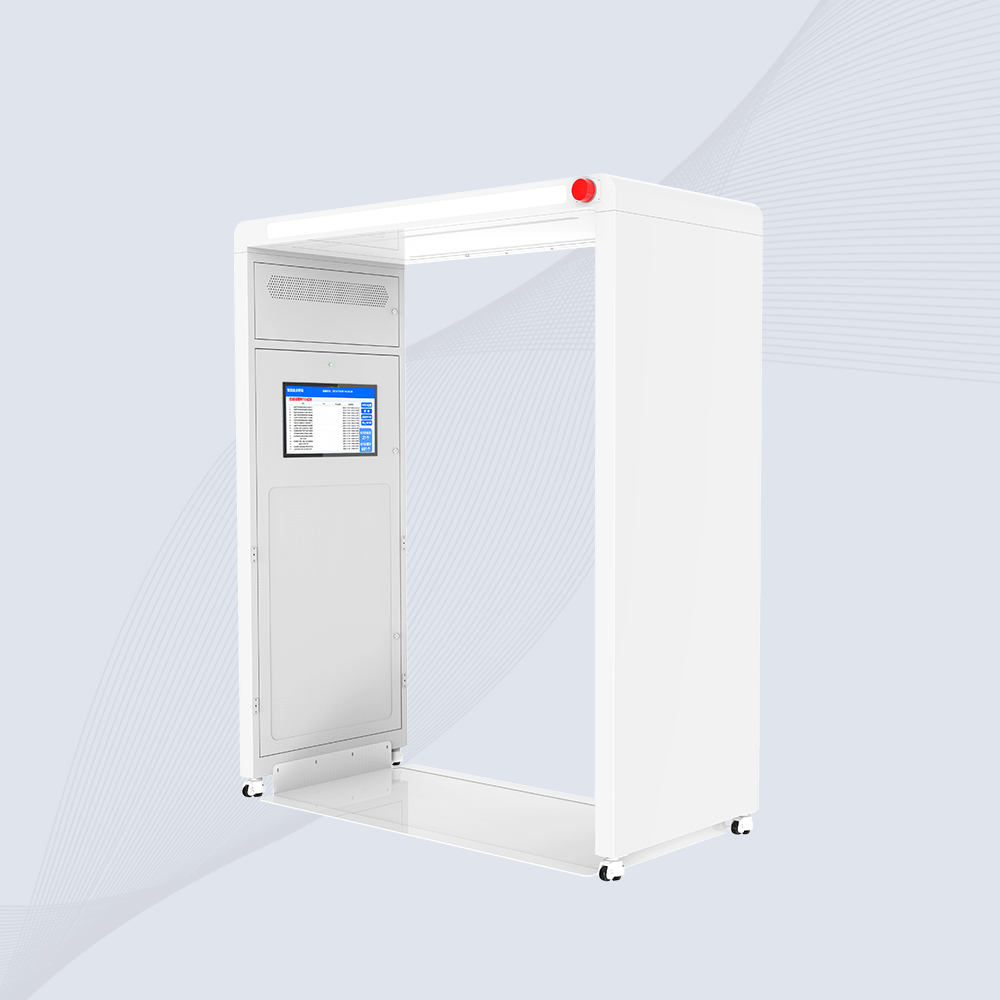

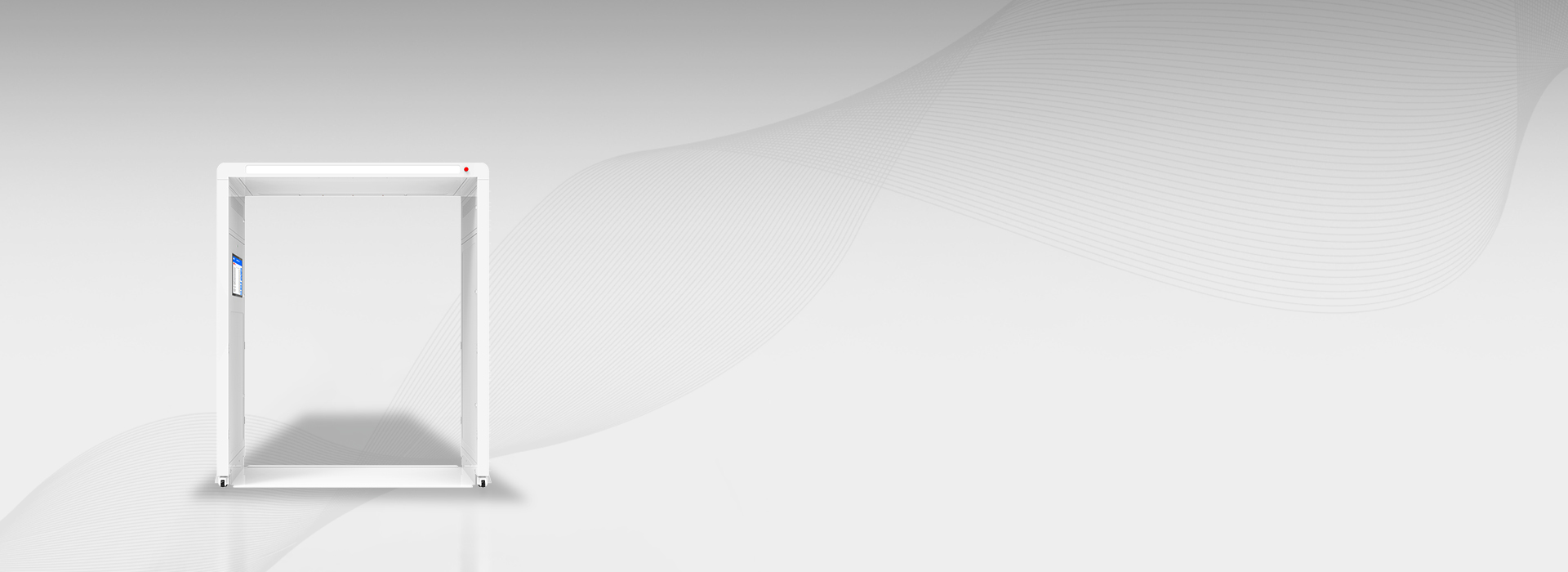

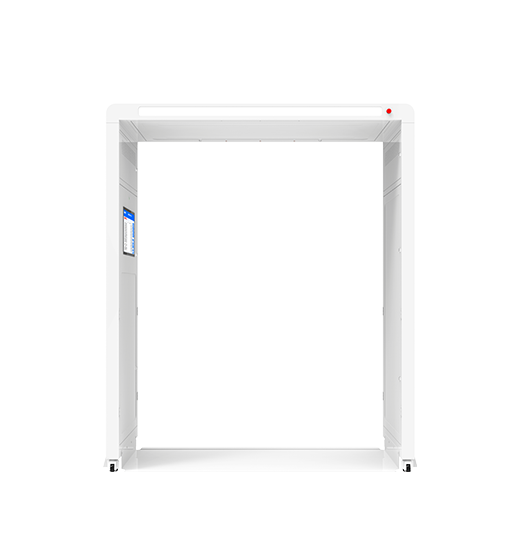

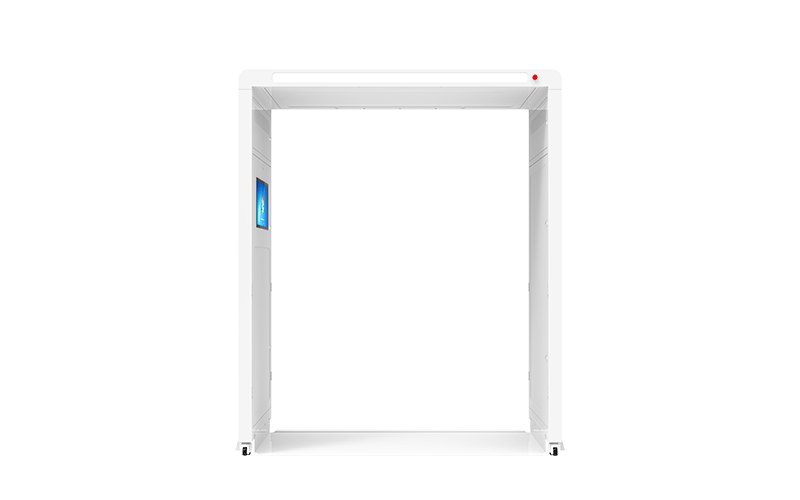

CK-T8D

RFID Gate Access Control System

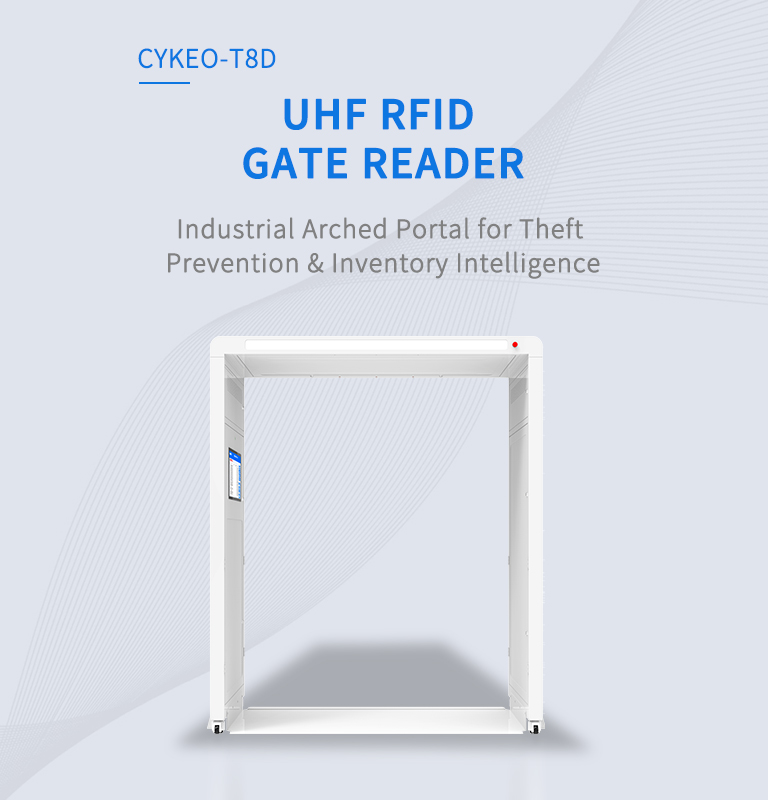

Industrial Arched Portal for Theft Prevention & Inventory Intelligence

✔️ 4-Antenna Array with 99.98% Read Accuracy

✔️ Infrared-Triggered EAS Alarms for Real-Time Security

✔️ Global Frequency Support for Multi-Region Deployment

Talk to an Expert

Email Our Team

SECURE ACCESS, INSTANT INTELLIGENCE

The CK-T8D RFID Gate Access Control System revolutionizes security and inventory management with its industrial arched design. Featuring 4-antenna spatial sensing, infrared-triggered EAS alarms, and ISO 18000-6C compliance, it achieves 200+ tags/sec scanning for real-time theft prevention and quantity statistics. Customizable protocols and dual OS support (Windows/Android) ensure seamless integration into high-traffic gate access control systems.

Ideal for secured entry points in libraries, archival vaults, exhibition halls, concert venues, supermarkets, and warehouse loading docks requiring anti-theft protection and automated inventory tracking.

Parts management

Production line material

Clothing Management

Hotel linen management

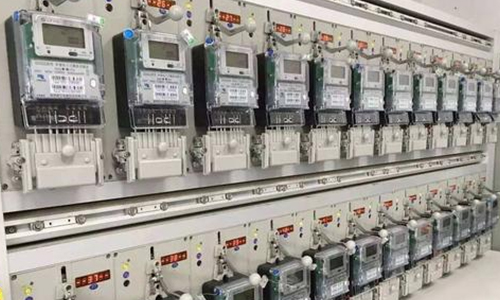

Electricity meter Control and Management

Factory Automation

Cykeo CK-T8D RFID Gate Access Control System Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-T8D RFID GATE ACCESS CONTROL SYSTEM

360° Coverage

Quad-polarized antennas eliminate dead zones

Dual Alarm Modes

Online/offline EAS with 100dB buzzer

Multi-Protocol Support

WiFi/4G/RJ45 connectivity options

Industrial Resilience

-20℃~60℃ operation with 90% humidity tolerance

Infrared trigger

Infrared beam activation 0.5-4m adjustable

HD Visual Management

21.5″ 1080p capacitive touch interface

Rapid Deployment

Modular design with <2hr installation

API Integration

RESTful API for SAP/WMS connectivity

Cykeo CK-T8D RFID Gate Access Control System Specifications

Main Specifications

BrandCykeo
ModelCK-T8D
Product NameRFID Gate Access Control System

Physical Parameters

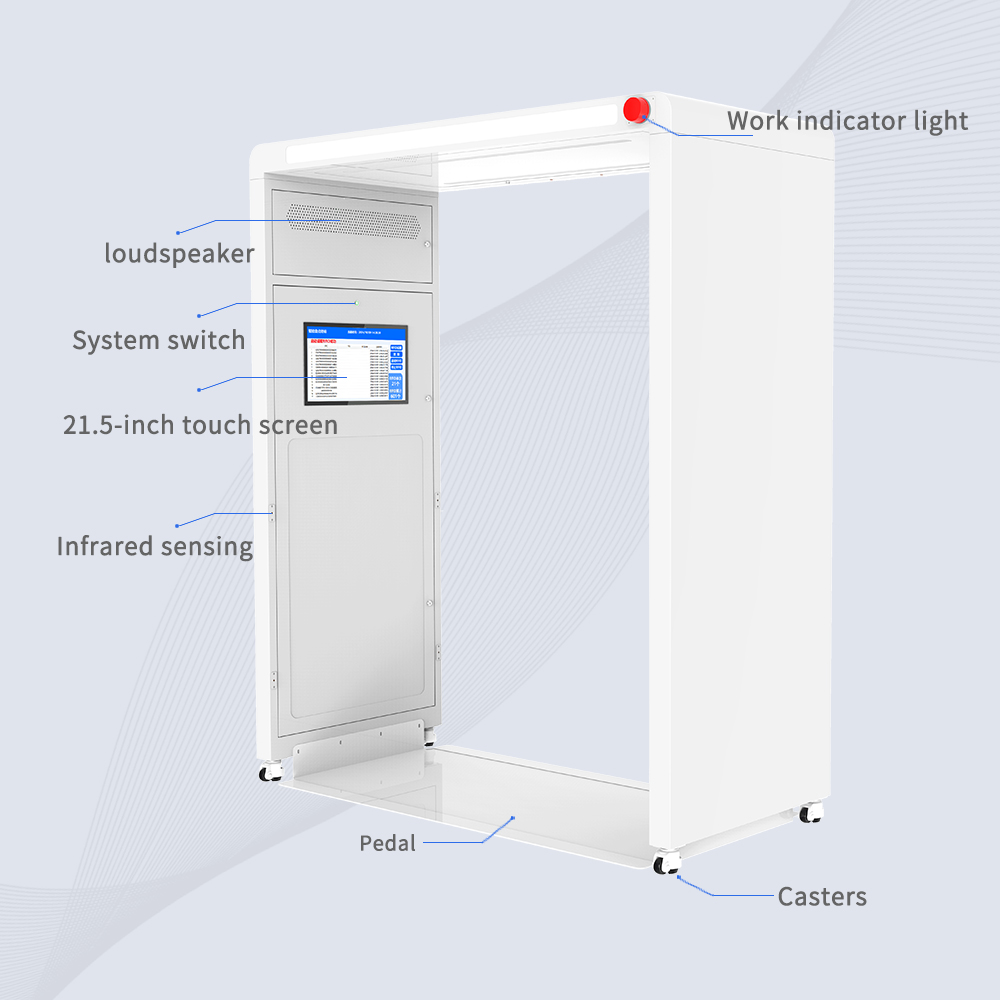

MaterialAluminum profile outer frame, sheet metal +PMMA

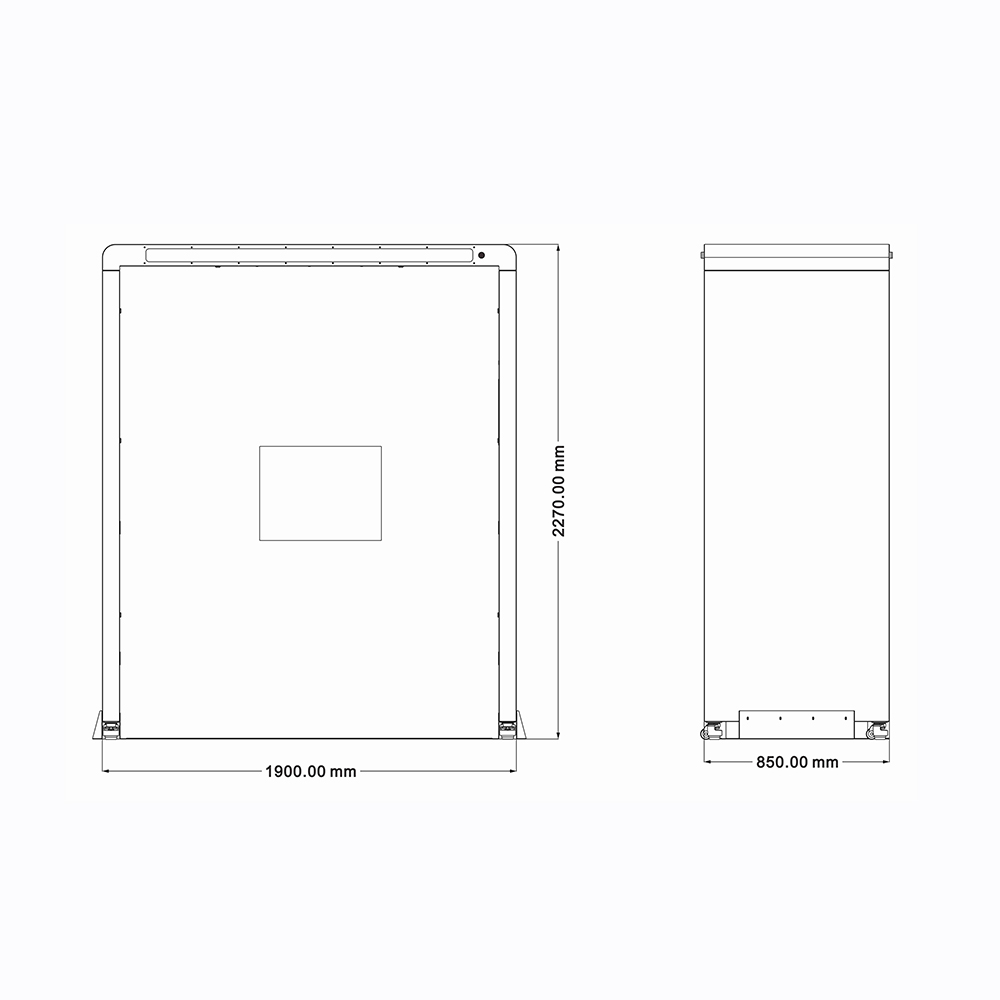

Dimensions2270mm*1900mm*850mm
Screen21.5-inch capacitive touch screen
SystemWindows/Android
Core controlI5-4,8G, 128GBSSD Windows 10 RK3399, 4G+32G, android 7.1，
Trigger modeInfrared trigger
Weight50KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Antenna modeCircular polarization
Antenna power0-33db
Read distance0-30cm
Capacity≥200 tags/batch
ConnectivityRS232, WiFi
Reading and writing functionSupports multi-label recognition, label data filtering, and RSSI perceptible signal strength
Scan Time3-5 sec
standby power＜100w
PowerAC 220V

Operating Environment

InputAC 220V ±10% 50/60Hz
Humidity≤90%
Operating Temp-20℃~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID GATE ACCESS CONTROL SYSTEM FAQS

How Does the CK-T8D Prevent Theft in High-Traffic Exhibition Halls?

Answer:
The CK-T8D RFID gate access control system deploys infrared spatial triggers and real-time EAS alarms to secure exhibit zones. When unauthorized items pass through arches:

EPC C1G2 filtering instantly flags non-registered tags (e.g., unpaid merchandise).
RSSI-based proximity sensing activates alarms only for items within 1-4m range.
Cloud-connected 4G/WiFi sends security alerts to staff devices within 0.5 seconds.
Case Study: A museum reduced artifact theft by 82% using CK-T8D gates at exits, scanning 300+ visitors/hour during peak events.

Can This System Track Inventory While Managing Access Control?

Answer:
Yes. The dual-function design combines:

Batch quantity statistics during entry/exit scans (e.g., 500+ library books/hour).
Access logs synced to cloud databases via Android SDK for SAP/Oracle integration.
Custom threshold alerts for stock anomalies (e.g., trigger if 10%+ items unaccounted).
Tip: Use “silent mode” for inventory counts and “alarm mode” for security checks.

How Does the Arched Design Enhance Gate Access Performance?

Answer:
The industrial arch optimizes RFID gate access control through:

270° antenna coverage eliminating blind spots in crowded passages.
Carbon-steel frame resisting impacts from trolleys/equipment (100kg load rating).
Elevated sensor placement avoiding ground-level interference from metal surfaces.
Performance Data: Achieved 99.4% read rates in warehouse forklift lanes with metal-rich environments.

Cykeo RFID Application

Cykeo RFID solutions empower cross-industry operations, delivering precision tracking for supply chain optimization, industrial IoT deployments, and mission-critical asset management across logistics, healthcare, aviation, smart manufacturing, energy infrastructure, and security systems.

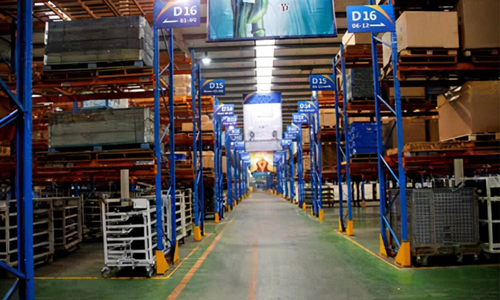

Warehousing
