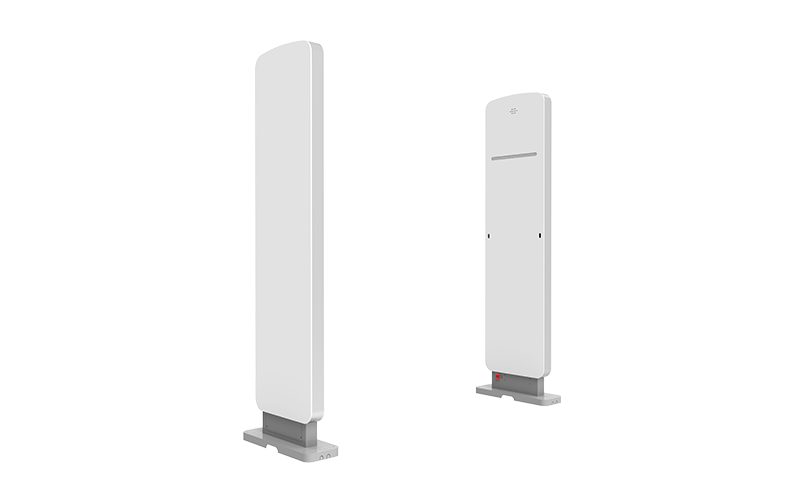

CK-T5 UHF RFID Gate Terminal(images 1)

UHF RFID Gate Terminal

✔️ Reads multiple protocols (ISO 18000-6C/EPC C1G2)


✔️ 6 m detection range with infrared trigger


✔️ Real-time EAS alerts and crowd counting

Talk to an Expert
CK-T5 UHF RFID Gate Terminal(images 2)
CK-T5 UHF RFID Gate Terminal(images 3)
CK-T5 UHF RFID Gate Terminal(images 4)
CK-T5 UHF RFID Gate Terminal(images 5)
CK-T5 UHF RFID Gate Terminal(images 6)
CK-T5 UHF RFID Gate Terminal(images 7)
CK-T5 UHF RFID Gate Terminal(images 8)

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

CK-T5 UHF RFID Gate Terminal Specifications

  • BrandCykeo
  • ModelCK-T5
  • Product NameUHF RFID Gate Terminal
  • ​Communication ProtocolRJ45; RS232 (WiFi/4G optional)
  • ​MaterialCarbon steel plate body; Acrylic surface panel
  • ​AppearanceMain body: Pearl White; Panel: Off-White

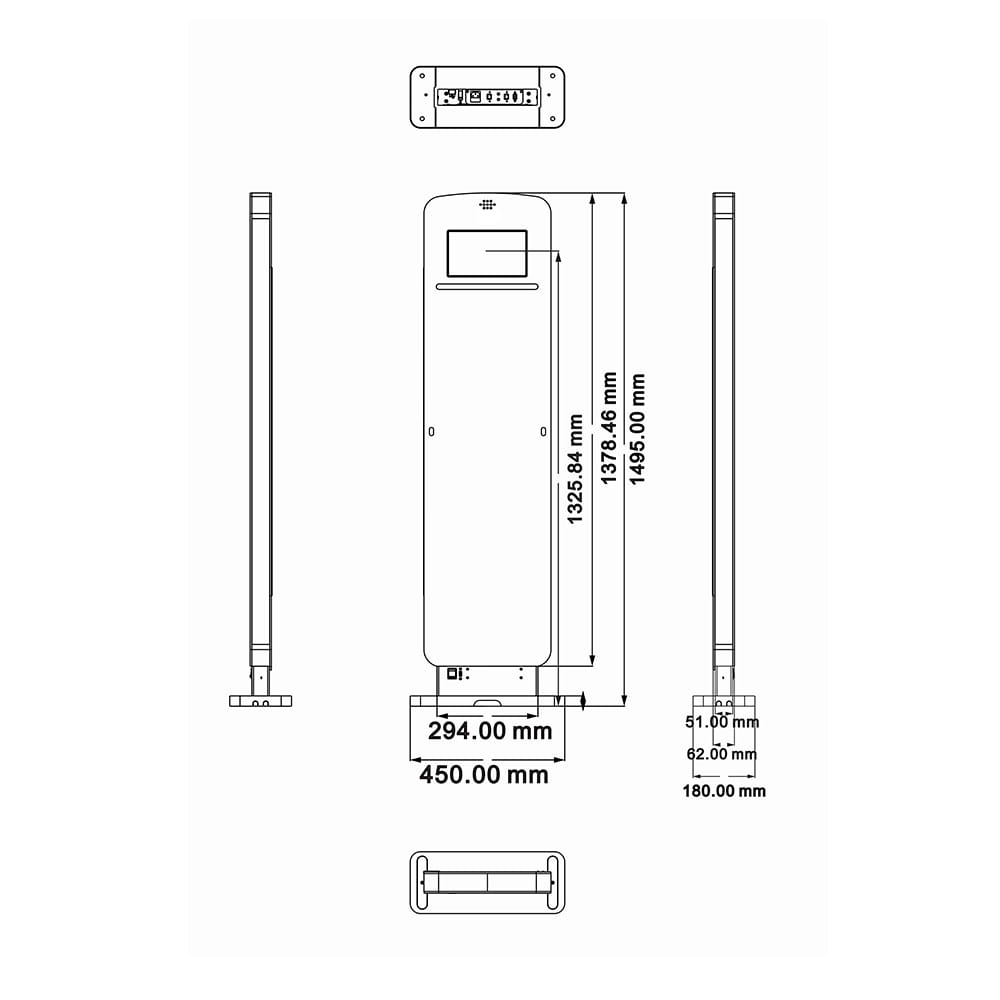

  • Dimensions149.5 x 45 x 18cm
  • ​Alarm FunctionAudible & visual alarm
  • ​Display10.1-inch capacitive touch screen
  • Industrial controlN29 CPU, 2G RAM, 32G ROM RK3288 CPU, 2G RAM, 8G ROM (optional)
  • ​InstallationFlush-mounted installation
  • FeatureInfrared trigger
  • Installation modeCan be top or bottom cable
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz (Adjustable)
  • Air Interface ProtocolEPC C1G2, ISO 18000-6B/C, GB/T29768-2013 (Optional)
  • Output Power0-33dBm (adjustable)
  • RF Output Power (Port)33dBm±1dBm (MAX)
  • Reading Range0-400cm (adjustable)
  • Output Power Adjustment 1dB Step
  • Performance200 tags/sec
  • Network Interface10M/100M Adaptive
  • Alarm Response
  • Operating Temperature-10°C ~ +50°C
  • Operating VoltageAC 220V ±10%
  • Operating Humidity10%RH~90%RH
  • Power supply inputAC220V
  • Power Consumption20W

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
UHF RFID GATE TERMINAL FAQS
How does the CK-T5 avoid false reads?

It focuses the scan with directional antennas and IR, only counts tags seen by both beams fast, and skips weak signals—so you get accurate reads.

Can the CK-T5 work during power outages?

Yep—it can run on a UPS for hours, store 50,000+ events locally, and switch to 4G if the network goes down.

How does the CK-T5 hook into HR or security systems?

It sends events live through API, pulls employee badges from AD, and can trigger cameras when alarms go off.
