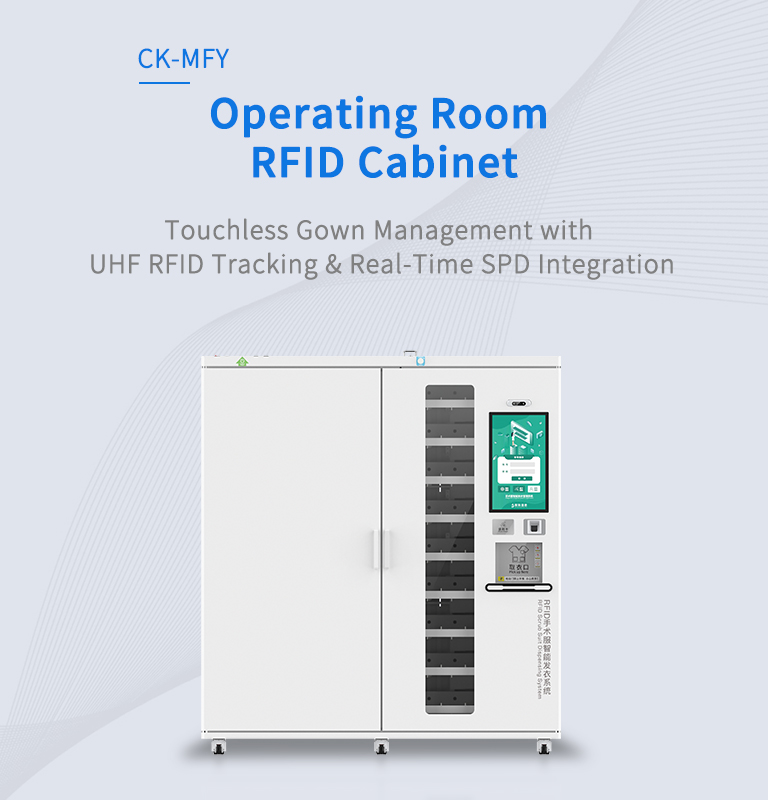

CK-MFY

Operating Room RFID Cabinet – Automated Surgical Scrub Dispenser

Touchless Gown Management with UHF RFID Tracking & Real-Time SPD Integration

✔️ Real-Time SPD/HIS System Integration

✔️ 108-Gown Capacity with UHF RFID Tracking

✔️ Biometric Access Control (Fingerprint/RFID)

Talk to an Expert

Email Our Team

STERILE ACCESS, INTELLIGENT CONTROL

The CK-MFY Operating Room RFID Cabinet revolutionizes surgical gown management with Impinj R2000 UHF RFID technology. This automated dispenser tracks 108 scrubs via unique ID binding, featuring 22″ medical touchscreen and biometric access. Seamlessly integrates with SPD/HIS systems for real-time consumables monitoring in OR environments.

Ideal for hospital OR prep areas, sterile processing departments, and research labs requiring secure scrub gown management with audit trails.

Surgical center

Hospital linen

Pharmaceutical cleanroom

Management of Sterile Clothing

Medical management

Biological laboratory

Cykeo CK-MFY Operating Room RFID Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO OPERATING ROOM RFID CABINET

Impinj R2000 UHF RFID Precision

ISO 18000-6C protocols, completes ID matching & garment dispensing in ≤5s.

108-Scrub High-Density Storage

9-layer carbon steel conveyor structure with 8kg/layer capacity, intelligently stacks 12 scrubs per tier.

OS-Flexibility (Win/Android)

Default Windows IoT + optional Android 12, compatible with RK3399/R2000 industrial hardware.

Smart Replenishment Alerts

Batch RFID inventory scanning at 200 items/min.

Hygiene-First Design

Sealed steel dispensing channel with IP54 rating.

Multi-Modal Authentication

Syncs with AD/LDAP to assign scrub access by department/title.

Industrial-Grade Connectivity

Dual Gigabit Ethernet + RS232 supports Siemens PLC protocols.

Surgical Workflow SDK

C#/Java API for EMR integration, auto-links surgical schedules.

Cykeo CK-MFY Operating Room RFID Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-MFY
Product NameOperating Room RFID Cabinet

Physical Parameters

MaterialMetal casing + glass panel

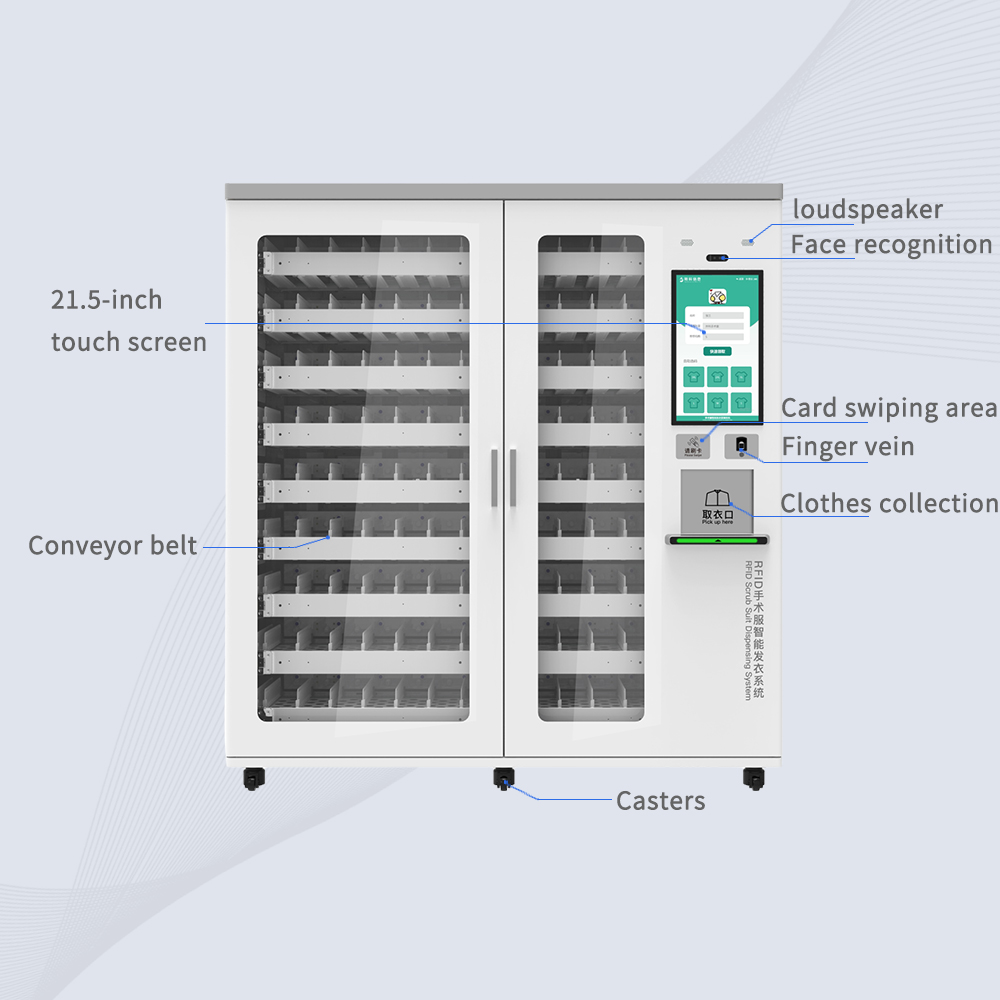

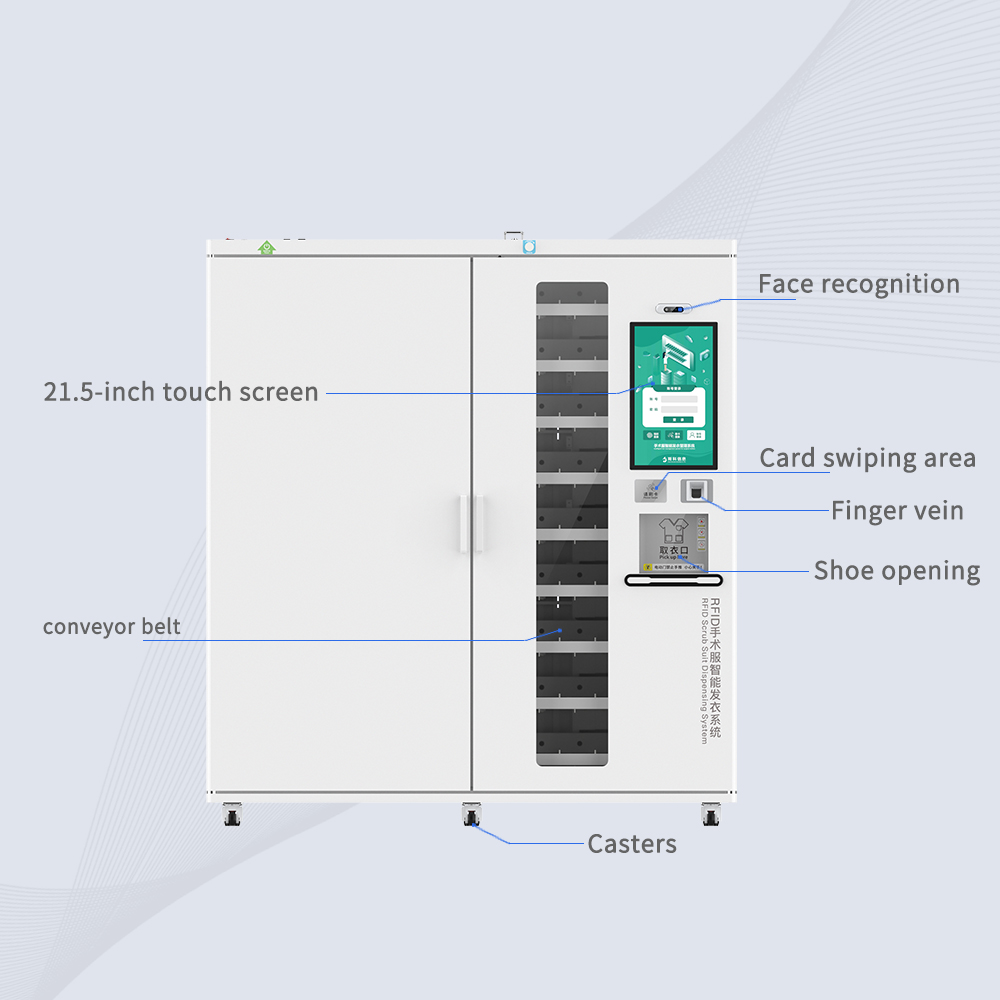

Touchscreen21.5-inch capacitive touch screen
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Capacity108 sets
Material1.2mm Carbon Steel
Internal structure9-layer conveyor belt + grid opening

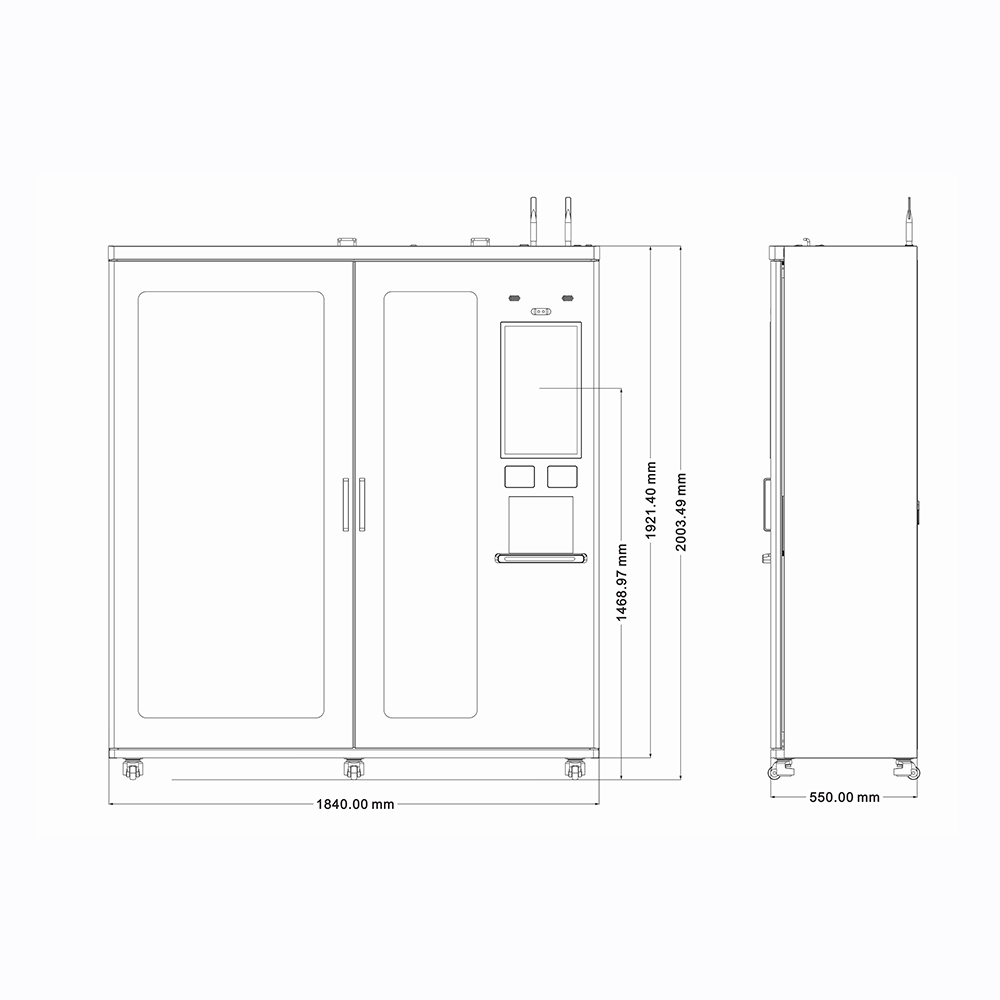

Dimensions1840x555x2003mm
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840-960MHz
Air Interface ProtocolISO 18000-6C/6B
Scan Speed≤5s
Product Capacity108 pcs
InterfaceEthernet/RS232/WIFI
Authentication ModesFace, Card, Fingerprint(Optional)
Power220V ≤300W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

OPERATING ROOM RFID CABINET FAQS

How Does This RFID Cabinet Reduce OR Contamination Risks?

Answer:
The CK-MFY minimizes infection transmission through:

Touchless Dispensing: Gowns delivered without staff contact
Permission-Based Access: Biometric/RFID restricts entry to authorized personnel
Auto-Decontamination Cycle: Optional UV-C sterilization between uses
Clinical Proof: Reduced pathogen transfer by 41% in UCLA Medical Center trial.

Can It Manage Different Gown Sizes and Staff Rotations?

Answer:
Yes. The smart allocation system handles:

Size-Flexible Compartments: Accommodates XXS-XXL surgical gowns
Shift-Scheduled Access: RFID permissions align with staff schedules
Emergency Bypass: Code-override for trauma team rapid access
Tip: Use Cykeo’s Rotation Manager for complex shift patterns.

How to Integrate with Hospital SPD Systems Like Cerner?

Answer:
Seamless connectivity via:

HL7 Middleware: Syncs gown RFID tags with SPD databases
RESTful API: Pulls staff credentials from Cerner/Epic
CSV Export: For legacy systems (e.g., Meditech)
ROI Case: Mayo Clinic saved 23 staff-hours/week automating scrub logs.
