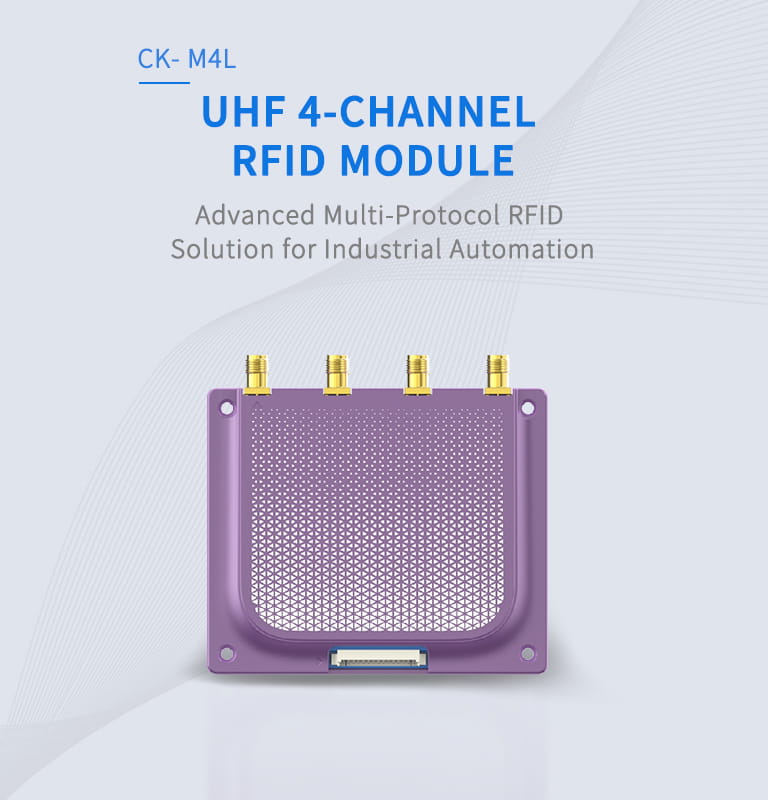

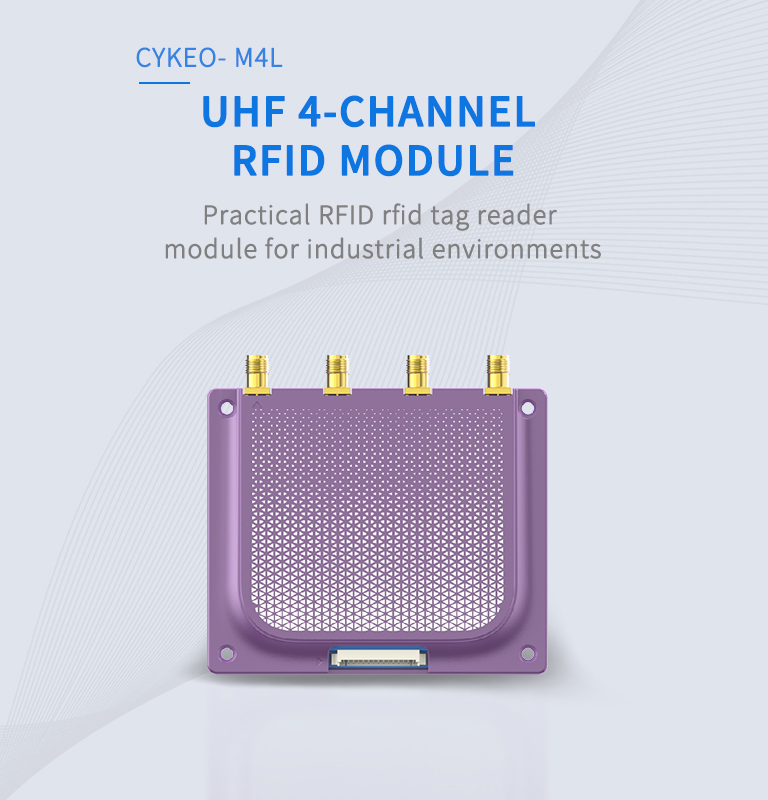

CK-M4L

4-Port UHF RFID MODULE

Advanced Multi-Protocol RFID Solution for Industrial Automation

✔️ 4-Channel UHF Design for High-Density Scanning

✔️ 33dBm Adjustable Power with 1dBm Precision

✔️ Compact Industrial-Grade Aluminum Housing

Talk to an Expert

Email Our Team

POWER IN SMALL, SPEED IN CORE

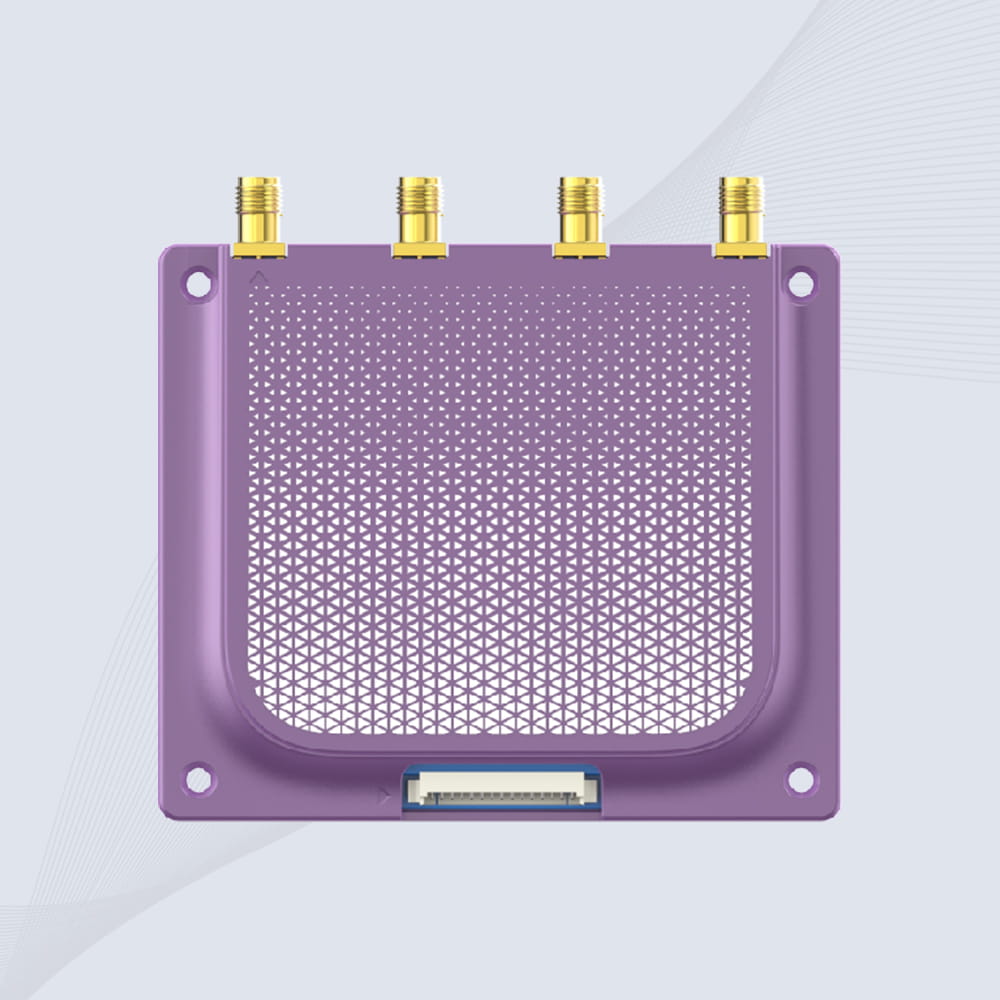

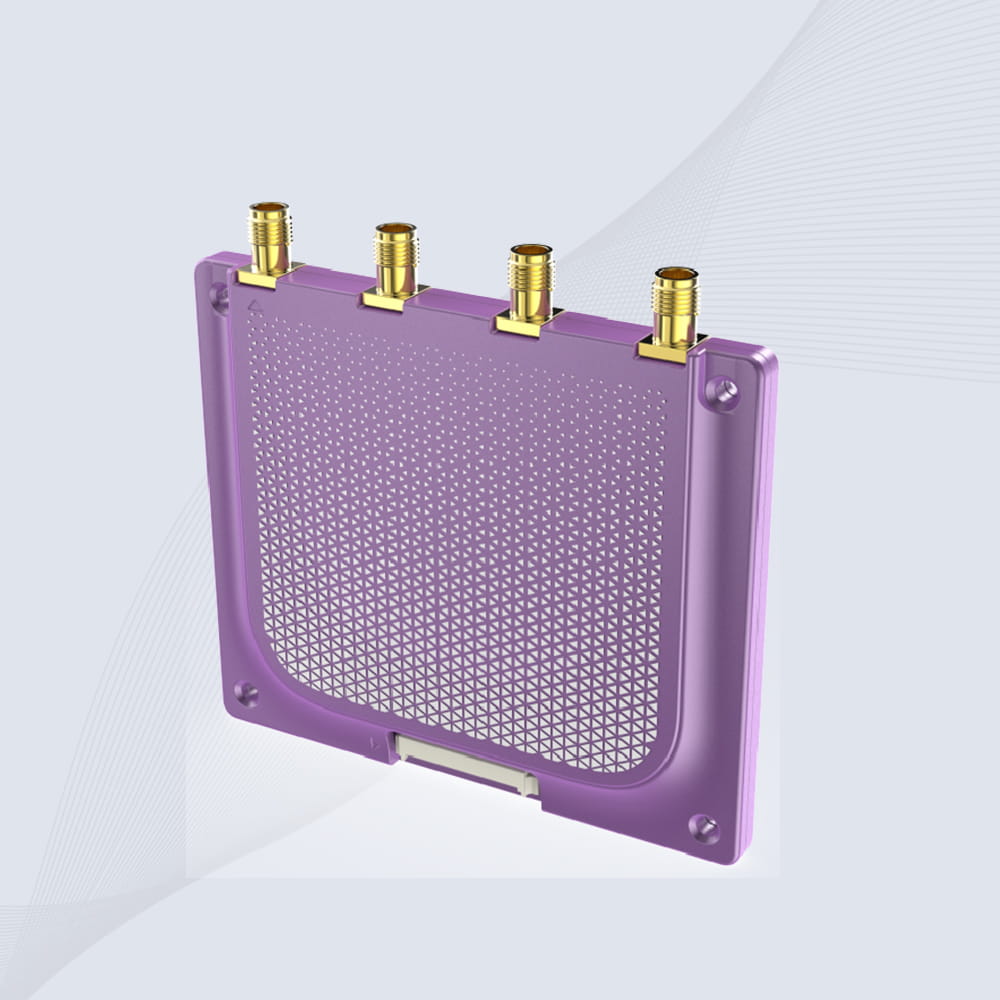

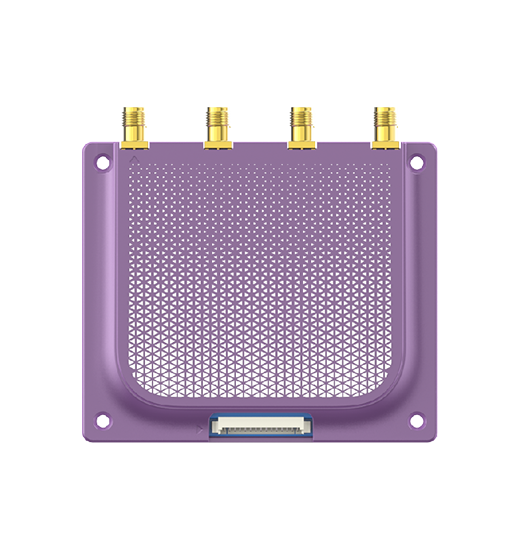

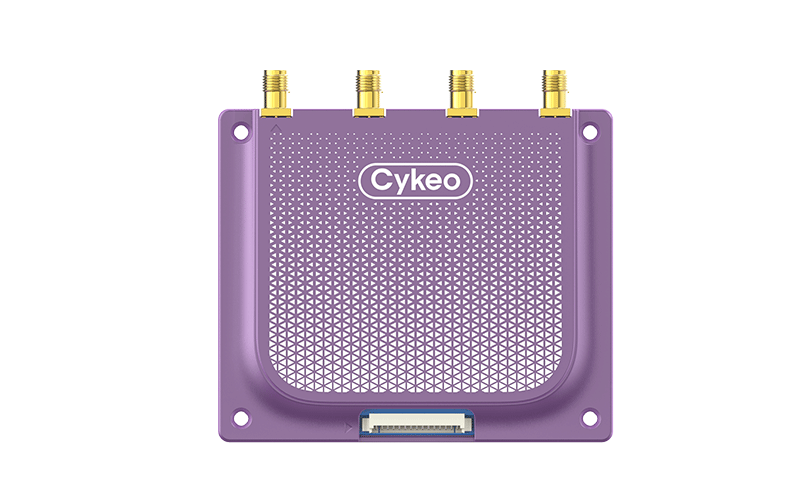

The CK-M4L 4-Port UHF RFID Module Reader is a compact, high-performance RFID solution engineered for industrial automation and IoT deployments. With multi-protocol support (ISO 18000-6B/C, GB/T29768-2013), 4-channel RF output, and a rugged aluminum housing, it enables rapid, reliable tag identification in dense environments. Featuring 400+ tags/sec scanning speed and 10-meter read range, this module integrates seamlessly into asset tracking, smart manufacturing, and logistics systems via TTL/USB interfaces.

Ideal for industrial automation: From warehouse inventory management and production line tracking to container logistics and tool identification in harsh environments.

Tool Tracking

Energy Facility Management

Warehouse Logistics

Automated Manufacturing

Health Care

Hotel facility management

Cykeo CK-M4L 4-Port UHF RFID Module Specification

Download

Online Procurement

KEY FEATURES OF CK-M4L UHF RFID MODULE

4-Channel UHF Coverage

Simultaneous multi-antenna deployment for 360° scanning.

33dBm High Power Output

Adjustable RF power 1dBm steps for optimized performance.

Multi-Protocol Compatibility

Supports ISO 18000-6B/C, EPC C1G2, and Chinese national standards.

Industrial Durability

IP67-rated aluminum casing -20°C to +70°C operation.

400+ Tags/Sec Anti-Collision

Advanced Q-algorithm for high-density environments >95% success rate.

Zero-Configuration Optimization

Auto-tuned RF parameters for immediate peak performance.

Dual Communication Interfaces

TTL serial + USB 2.0 for PLC/PC/Raspberry Pi integration.

Firmware Upgradeable

Field-updatable via USB for future protocol expansions.

CK-M4L 4-Port UHF RFID MODULE SPECIFICATIONS

Main Specifications

ModelCK-M4L
BrandCykeo
Product Name4-Port UHF RFID Module

Physical Parameters

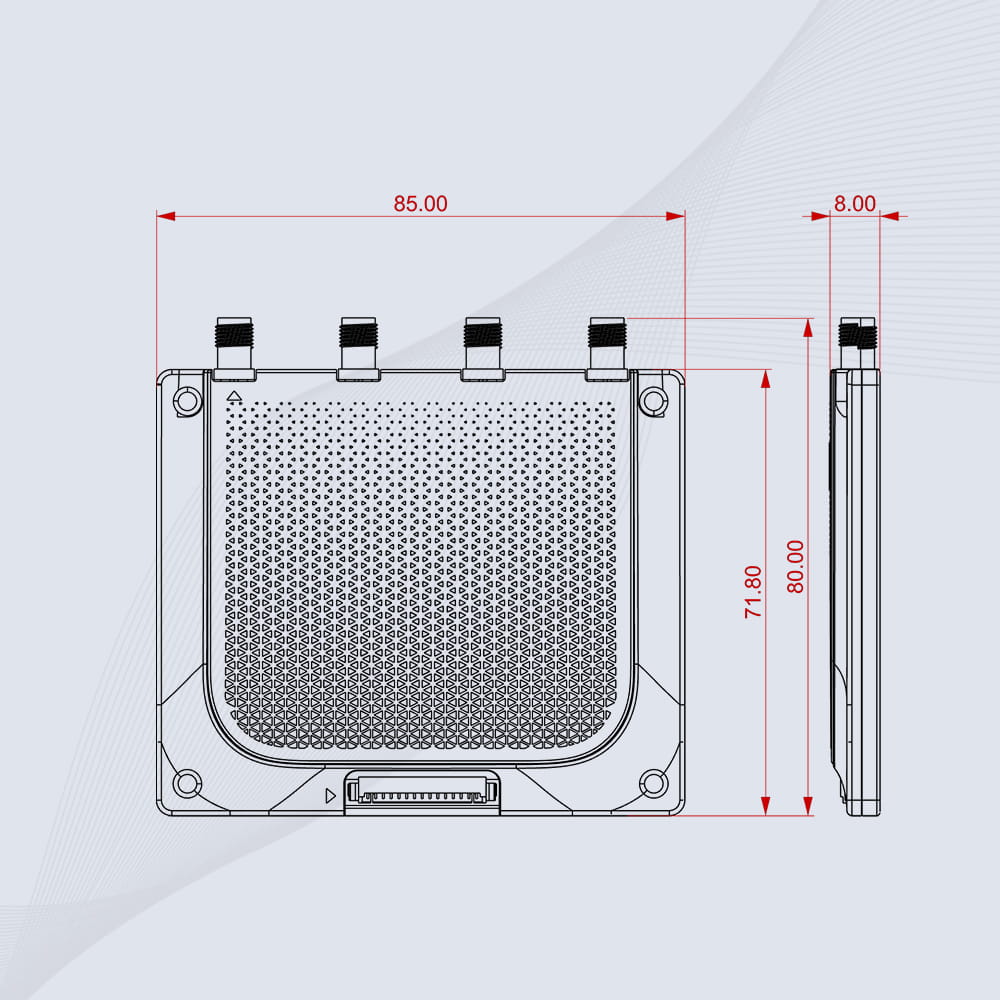

Dimensions85*71.8*8mm
Power Input 5V 4A
Power Consumption8W @ 33dBm

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
LanguagesJava, C# (Cross-Platform Compatibility)
Secondary Development SDKFull toolkit for custom firmware & app development

Performance Parameters

Frequency Range840MHz～960MHz
Bulk Read Speed>600 tags/sec
Reading Range0-10m (EPC Reading), 0-4m (Writing)
Protocol SupportISO 18000-6B/6C, EPC C1G2, GB/T29768-2013
RF Power (Port)33dBm±1dBm (Adjustable)
Power Adjustment1 dB step
Interfaces15-Pin Terminal (UART/USB/GPIO)

Operating Environment

Operating Temperature-20°C to +70°C
Humidity10%RH–95%RH (Non-Condensing)
Storage Temperature-40°C to +85°C
CertificationIP67 Rated

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

UHF RFID MODULE FAQS

What Makes the CK-M4L UHF RFID Module Ideal for High-Density Tag Environments?

The CK-M4L UHF RFID Module is engineered to excel in high-density RFID applications, such as inventory management, logistics, or retail. Key features include:

Multi-Tag Anti-Collision Algorithm: Enables simultaneous identification of 400+ tags per second, even in crowded environments.
Adjustable Output Power (1dBm steps): Optimize performance by tuning RF power from 33dBm (max) to avoid interference or extend coverage.
4-Channel Design: Deploy multiple antennas for 360° coverage or directional setups, ideal for conveyor belts or smart shelves.
Robust Protocol Support: Compliant with ISO 18000-6C/6B, EPC C1G2, and GB/T29768-2013, ensuring compatibility with global RFID standards.

This module’s dense-read capability and adaptive power control ensure reliable operation in warehouses, manufacturing lines, or retail stores with minimal setup.

How Does the CK-M4L UHF RFID Module Ensure Long-Range and Accurate Tag Operations?

The UHF RFID Module combines advanced RF engineering and precision tuning to deliver industry-leading read/write performance:

Extended Read Range: Achieve up to 10 meters for reading EPC tags (95% success rate) using an 8dBi circularly polarized antenna.
High-Sensitivity Receiver: Detects weak tag signals in noisy environments, enhancing accuracy.
Dual Modulation Modes (DSB-ASK/PR-ASK): Improves signal integrity for stable communication at varying distances.
RSSI Support: Measure tag signal strength to optimize antenna placement or troubleshoot coverage gaps.

For write operations, the module maintains a 4-meter range (90% success rate), suitable for asset tagging or IoT deployments.

Can the CK-M4L UHF RFID Module Integrate with Custom IoT or Embedded Systems?

Absolutely. Designed for seamless integration, the module offers:

Flexible Interfaces: A TTL serial port and USB 2.0 (DM/DP pins) for easy connectivity to microcontrollers, PLCs, or industrial PCs.
GPIO Customization: 5 programmable GPIO pins (3x GPO, 2x GPI) to trigger alarms, sensors, or LED indicators (e.g., integrate with infrared scanners via GPI).
Low-Power Design: Operates at 5V/4A with an 8W peak power draw, ideal for portable or battery-powered devices.
Firmware Upgradability: Future-proof your system by adding new protocols (e.g., RAIN RFID) or features via firmware updates.

The compact 85x80x8mm aluminum housing and wide temperature tolerance (-20°C to +70°C) make it suitable for harsh indoor/outdoor installations.
