Cykeo CK-HG3 Medical RFID Smart Shelf Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-HG3
  • Product NameMedical RFID Smart Shelf

Physical Parameters

  • ​MaterialMetal casing + glass panel

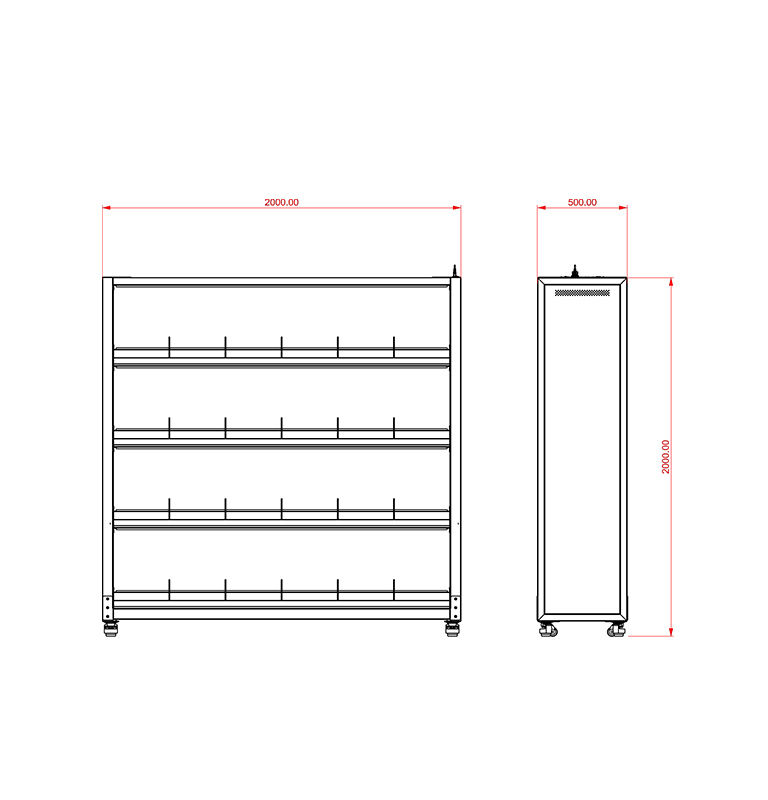

  • Dimensions2000×1550×530mm
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840-960MHz
  • Air Interface ProtocolISO 18000-6C/6B
  • Scan Speed≤5s
  • Product Capacity1000 pcs
  • InterfaceEthernet/RS232/4G
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • ContainerShelf board + hanger
  • Light indicationRed/Blue
  • Power220V ≤125W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

MEDICAL RFID SMART SHELF FAQS

How Does the Medical Smart Shelf Achieve 99.95% Accuracy with Dense Medical Items?

Answer:
The CK-HG3 combines 16 independent weight sensors and UHF RFID spatial filtering to overcome signal interference in high-density medical storage. Its multi-layer anti-collision algorithm scans items vertically while weight pads verify physical presence, reducing false reads. In a Shanghai hospital trial with 800+ tagged surgical kits, the system achieved 99.97% accuracy during peak hours by:

  • Dynamic Frequency Hopping (840-960MHz) to bypass Wi-Fi interference
  • RSSI Thresholding to ignore non-shelf items (e.g., nearby carts)
  • Weight-Data Cross-Validation triggering re-scans for mismatches
Can It Track Controlled Substances in Pharmacy Lockers?

Answer:
Yes. The CK-HG3 meets FDA DSCSA compliance for pharmaceutical tracking. When integrated with Cykeo’s Smart Pharmacy Software, it:

  • Flags expired/near-expiry drugs via automated daily audits
  • Generates chain-of-custody reports for narcotics cabinets
  • Sends real-time alerts for stockouts or unauthorized removals
    A Zhejiang province hospital reduced opioid discrepancies by 73% after deployment, using customizable access logs tied to staff RFID badges.
How Long Does HIS Integration Take?

Answer:
Typical integration requires <3 business days using Cykeo’s pre-built HL7/FHIR connectors. The process includes:

  1. SDK Workflow Mapping – Align RFID data with HIS fields (e.g., item ID, lot#, location)
  2. Test Mode Validation – Simulate 10,000+ transactions before go-live
  3. API Deployment – RESTful APIs for Epic, Cerner, or custom EMR systems
    A Beijing medical warehouse synced 12,000 assets with their Oracle system in 47 hours, cutting monthly inventory labor by 85%.
