All RFID Product

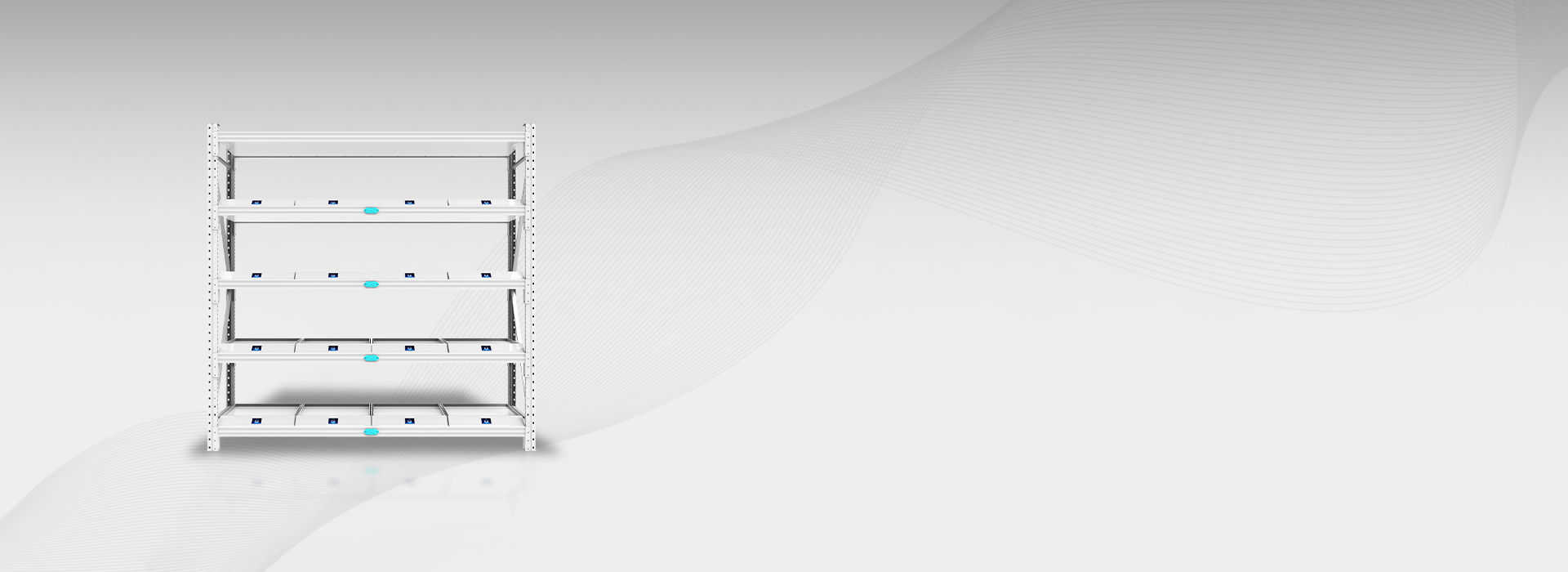

rtsjh

✔️ ​16-Slot 0.1g Precision Weighing

✔️ ​​IP54 Chemical/Impact Resistance

✔️ ​​UHF RFID 99.95% Auto-Tracking

✔️ Seamless ERP Integration via Open API/SDK​

Email Our Team
ASRYHG

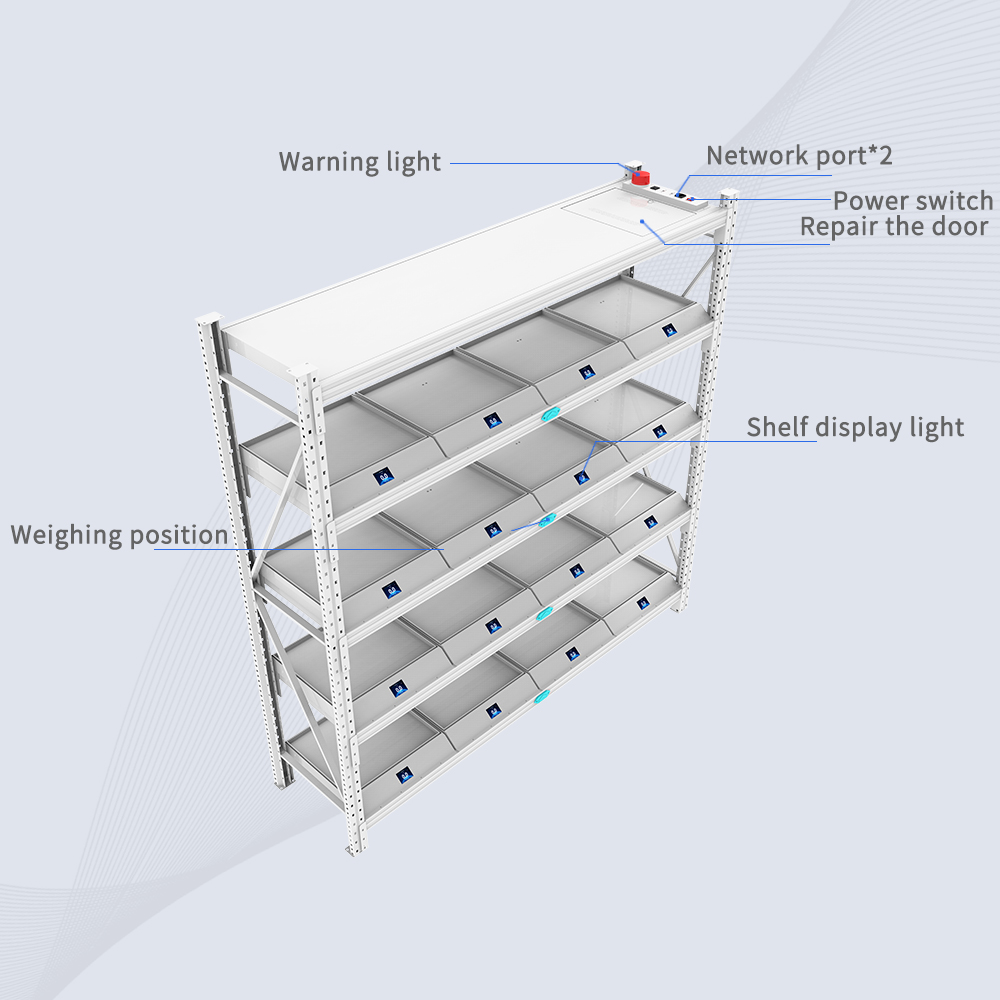

thffg
thffg

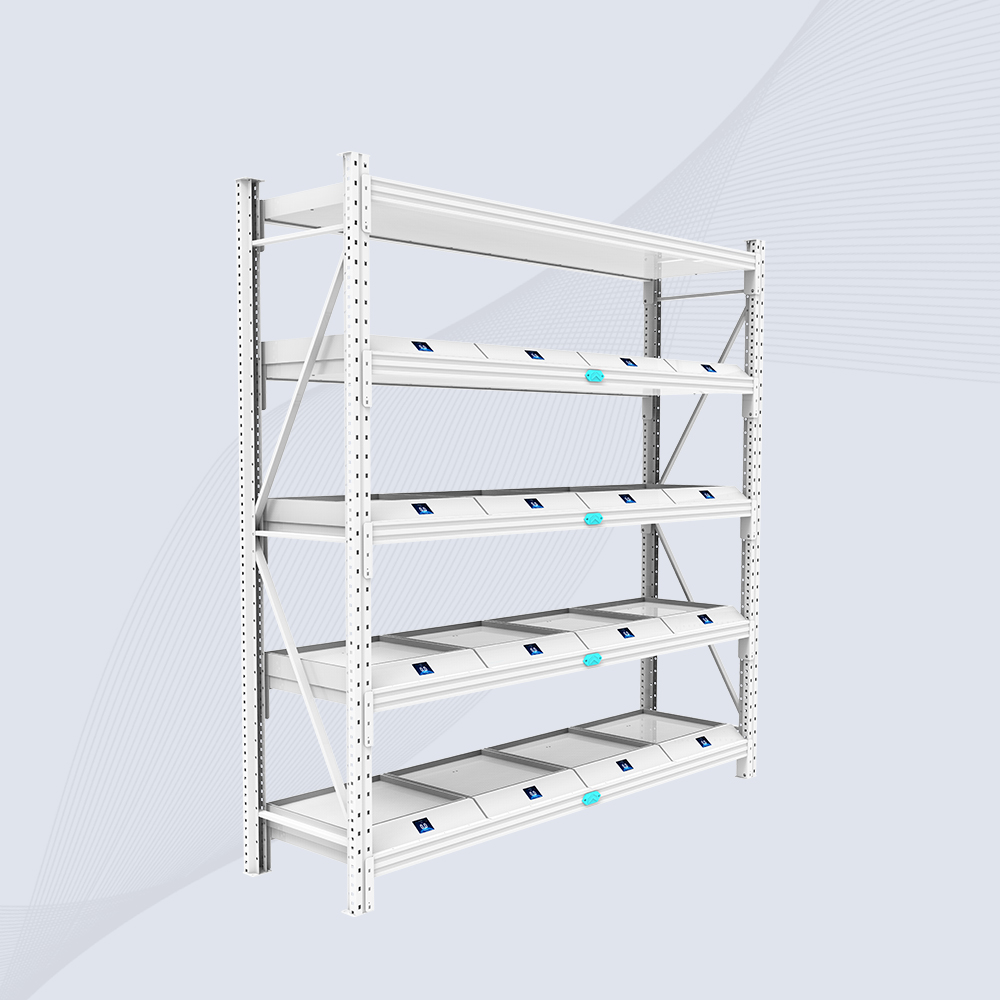

STG

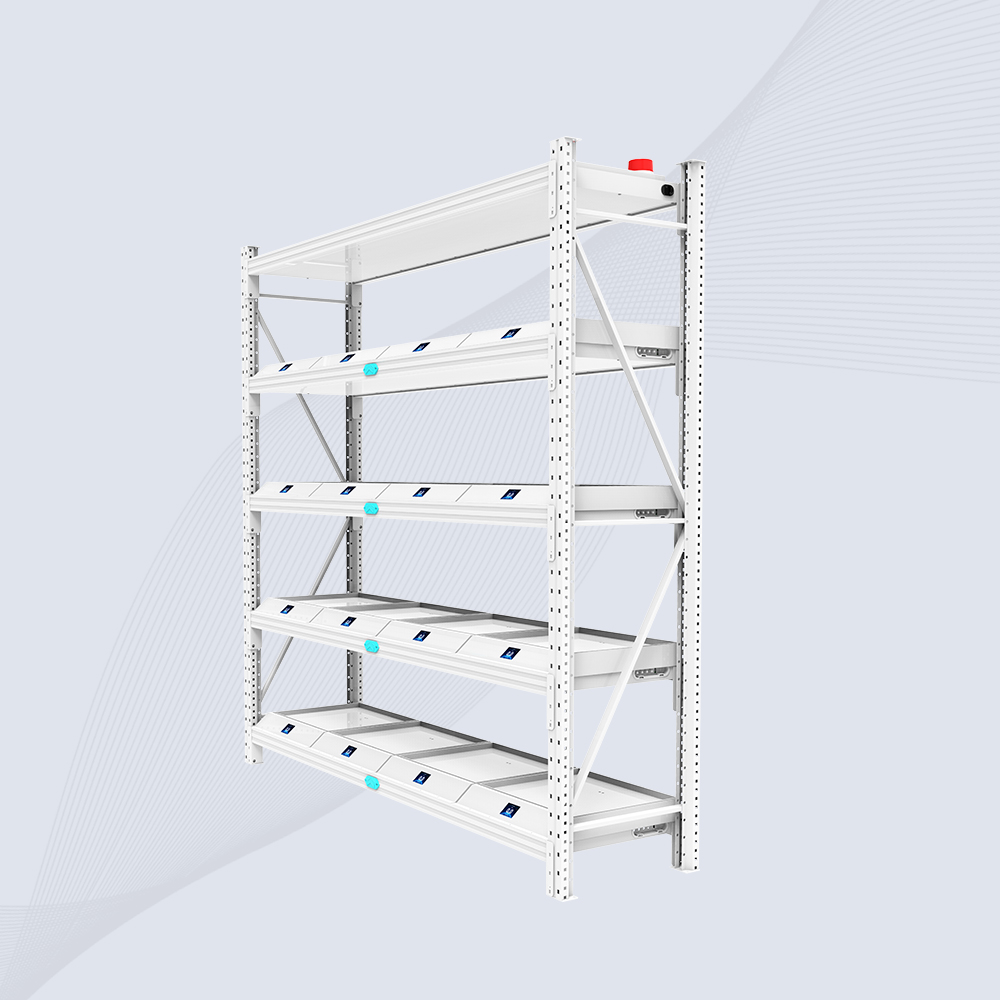

SDHG 1

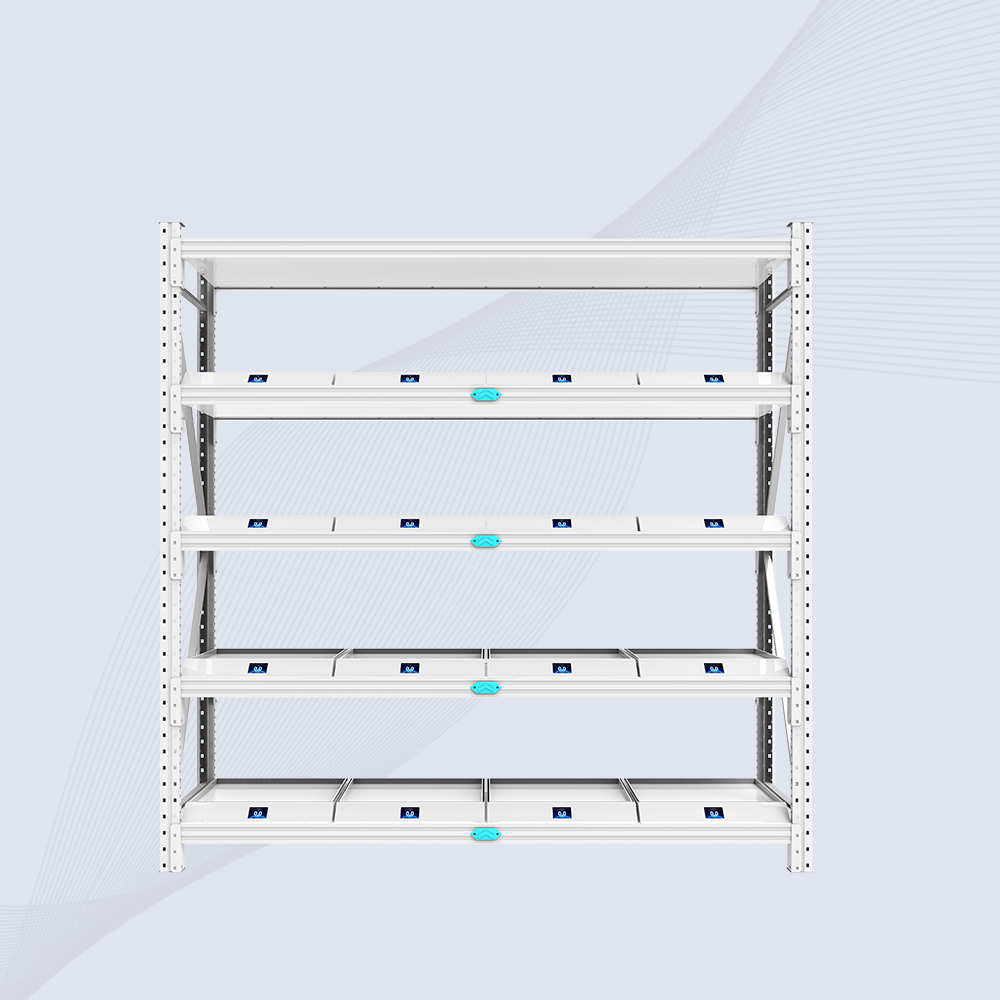

FGHK
ESYL

PRECISION MEETS DURABILITY

Corrosive zones (acid/alkaline exposure)

Freezer warehouses (-25°C stability)

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

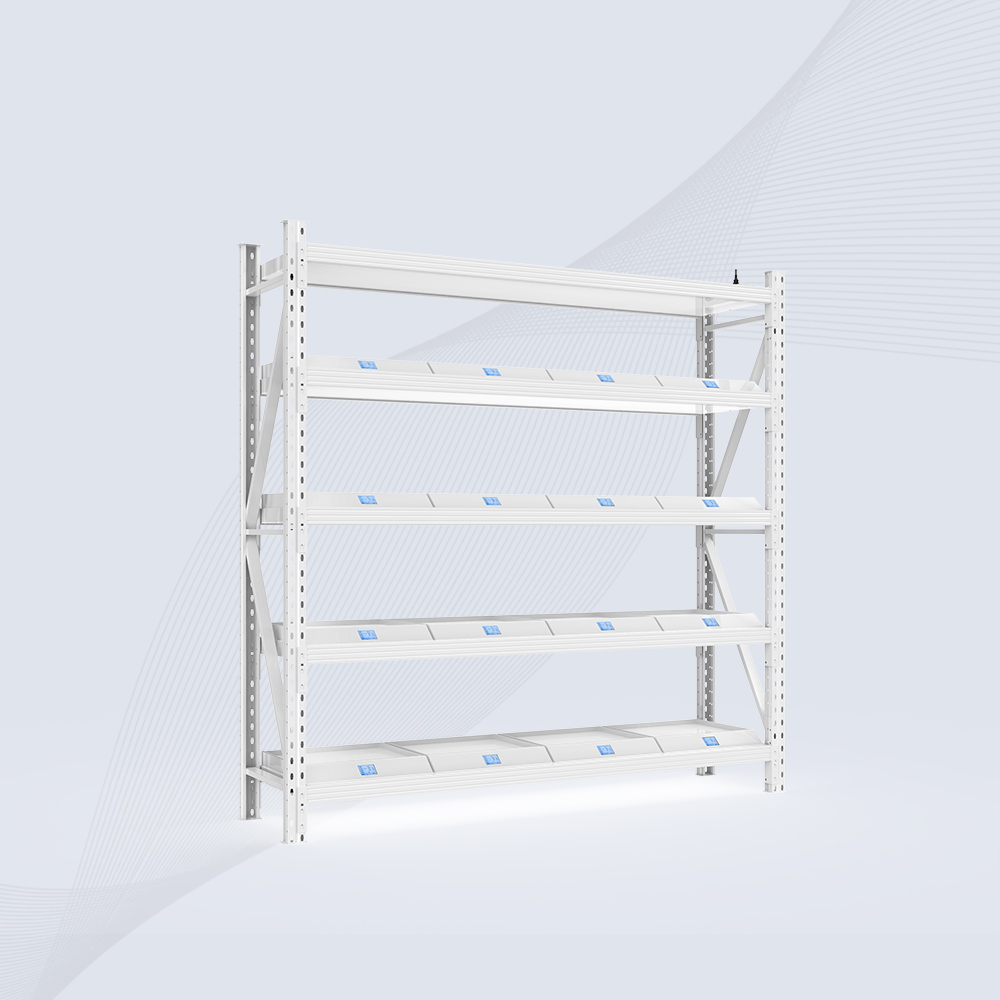

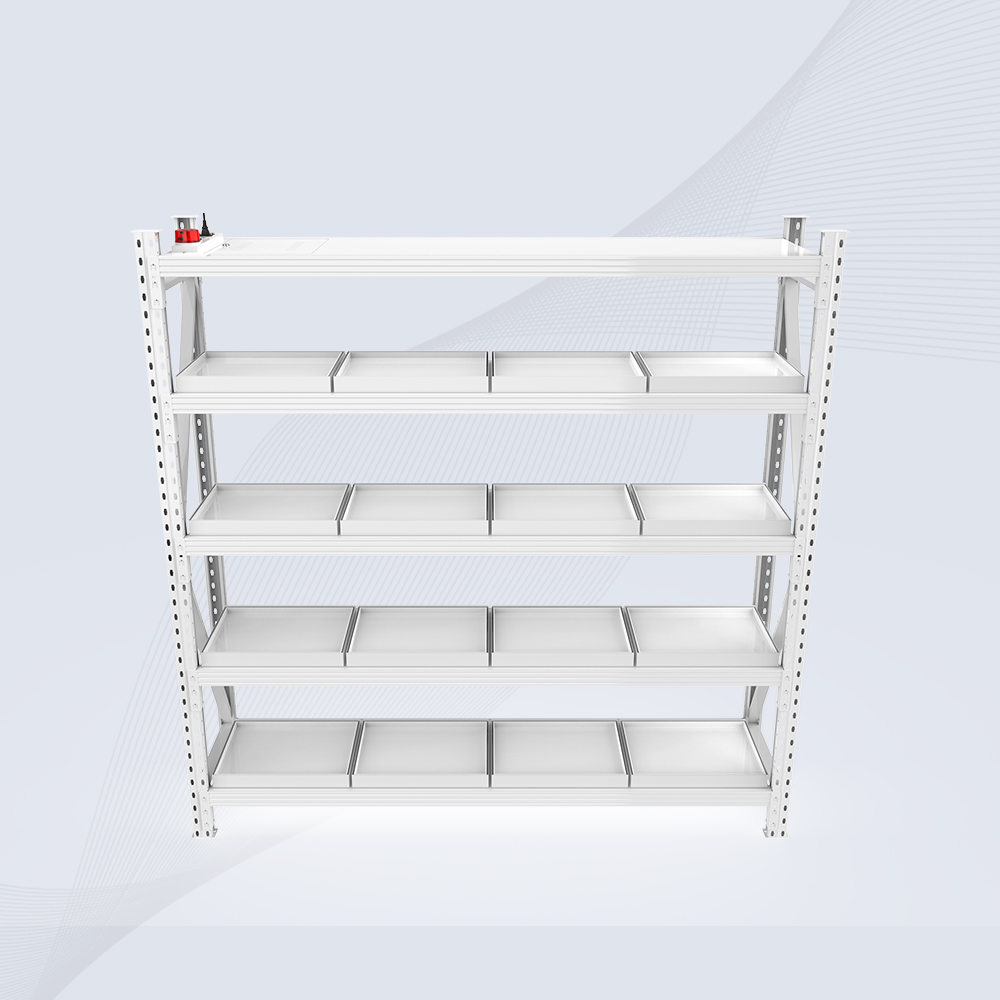

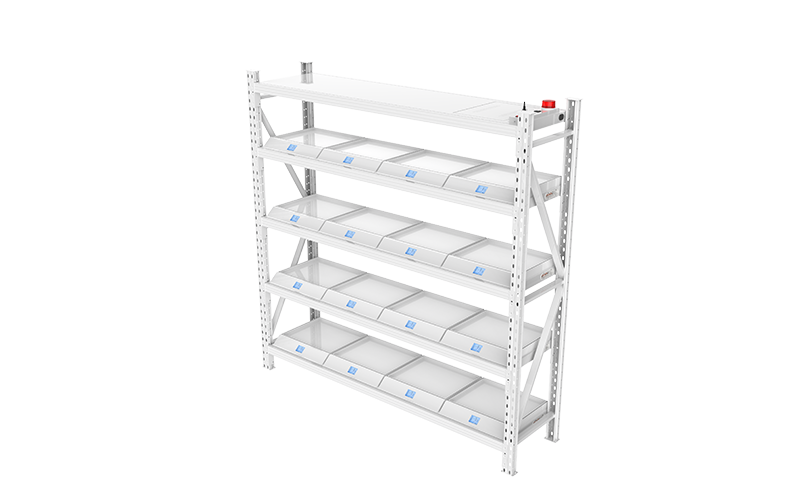

Cykeo CK-HG1 Smart Weighing Shelves Specifications

Main Specifications

  • BrandCykeo
  • ModelCA-HG1
  • Product NameSmart Weighing Shelves

Physical Parameters

  • ​MaterialMetal casing + glass panel

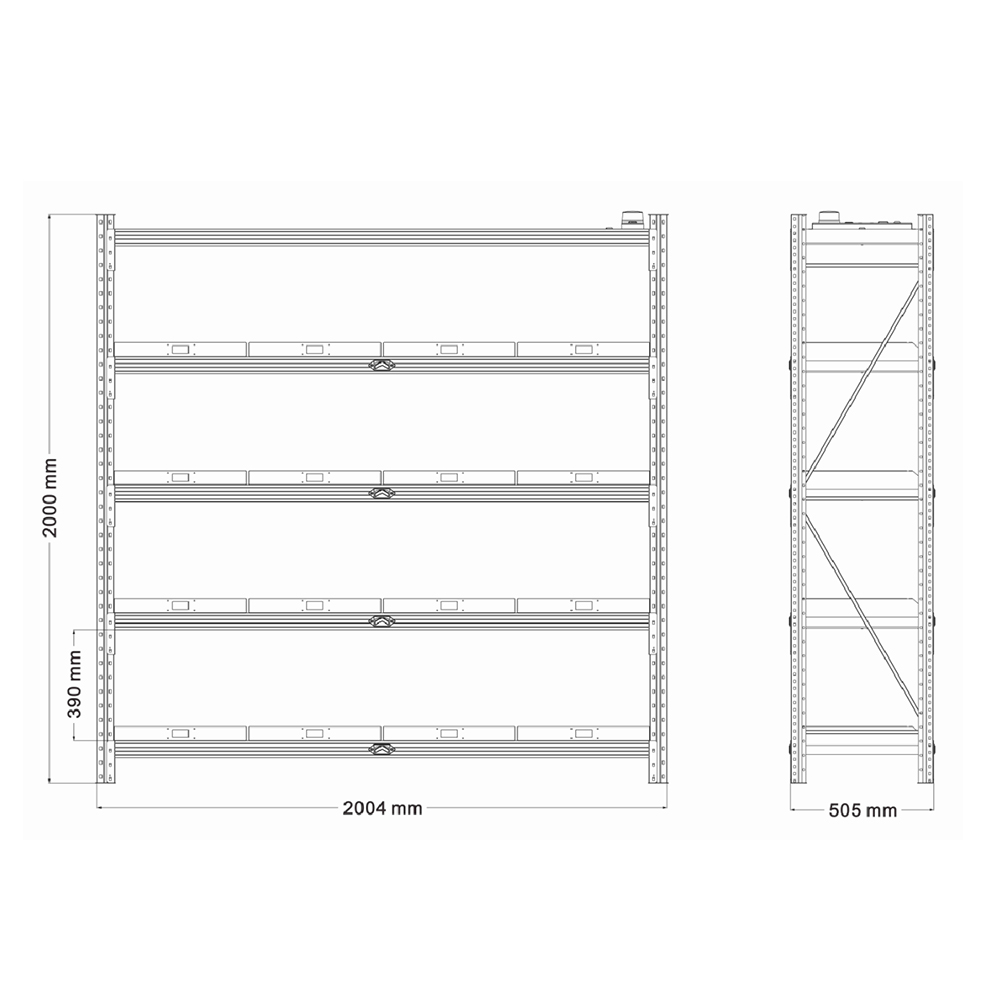

  • Dimensions2004mm(L)*505mm(W)*2000mm(H)
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840-960MHz
  • Air Interface ProtocolISO 18000-6C/6B
  • Scan Speed≤5s
  • InterfaceEthernet/RS232/4G
  • Product Capacity1000 pcs
  • CapacityFour floors

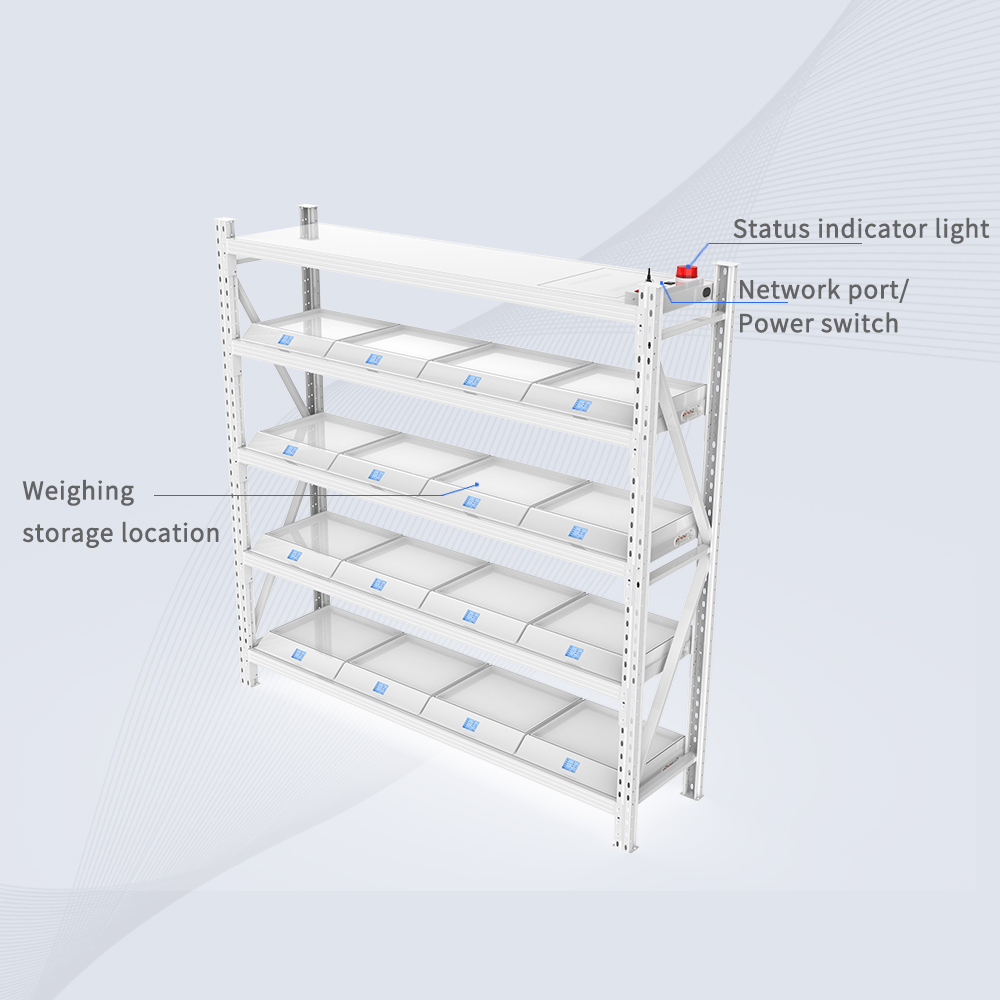

  • Weighing position16 weighing positions
  • Light indicationRed/Blue
  • Screen3.5-inch storage location display screen
  • Measurement range precision range1-50kg
  • Power220V ≤125W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

SMART WEIGHING SHELVES FAQS

How Do Smart Weighing Shelves Achieve 0.1g Accuracy with Heavy Loads?

Answer:
The 16 isolated load cells eliminate cross-interference:

  • Per-Slot Dynamic Calibration: Auto-adjusts for load distribution shifts.
  • Vibration Cancellation: Filters machinery noise below 5Hz.
  • Case Study: Chemical plant reduced waste by 37% tracking 50kg drums ±0.1g.
  • Tip: Use Cykeo’s Android app for real-time calibration alerts.
Can These Shelves Withstand Acid Spills in Pharma Labs?

Yes. These shelves are specifically engineered to withstand harsh laboratory environments, including acid spills common in pharmaceutical settings, thanks to a robust triple-protection design:​

  1. ​316 Stainless Steel Load Cells:​​ This premium grade stainless steel provides inherent resistance to an exceptionally wide range of corrosive chemicals, reliably handling spills across the aggressive pH 1-14 spectrum, ensuring structural integrity isn’t compromised by common pharmaceutical acids, alkalis, or solvents.
  2. ​Epoxy-Coated Electronics:​​ Critical electronic components receive a specialized, heavy-duty epoxy coating. This protective barrier has been rigorously tested and proven effective, having successfully endured over 500 documented bleach splash simulations without failure, safeguarding the vital weighing and measurement systems from corrosive fluid damage.
  3. ​Humidity Resilience:​​ Performance remains unaffected in demanding, moisture-rich environments. The system is designed to maintain ​​100% operational accuracy​​ even when operating continuously under challenging conditions of high humidity reaching up to 90% RH, a common occurrence in many lab settings involving wash-downs or specific processes.

This combination of protective features provides comprehensive defense against the specific chemical and environmental hazards posed by pharmaceutical laboratory work involving acids and other harsh substances.

How to Customize for GMP-Compliant Pharma Warehousing?

Answer:
3-step compliance:

  1. Audit Trail SDK: Java/C# APIs for FDA 21 CFR Part 11 logs.
  2. Weight-Alert Rules: Auto-flag <0.1g deviations in SAP.
  3. CSV/XML Reports: Preformatted for GMP audits.
    ROI Example: Med supplier cut compliance costs by $8,200/month.
