ACCURATE INVENTORY, INSTANT CONTROL

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

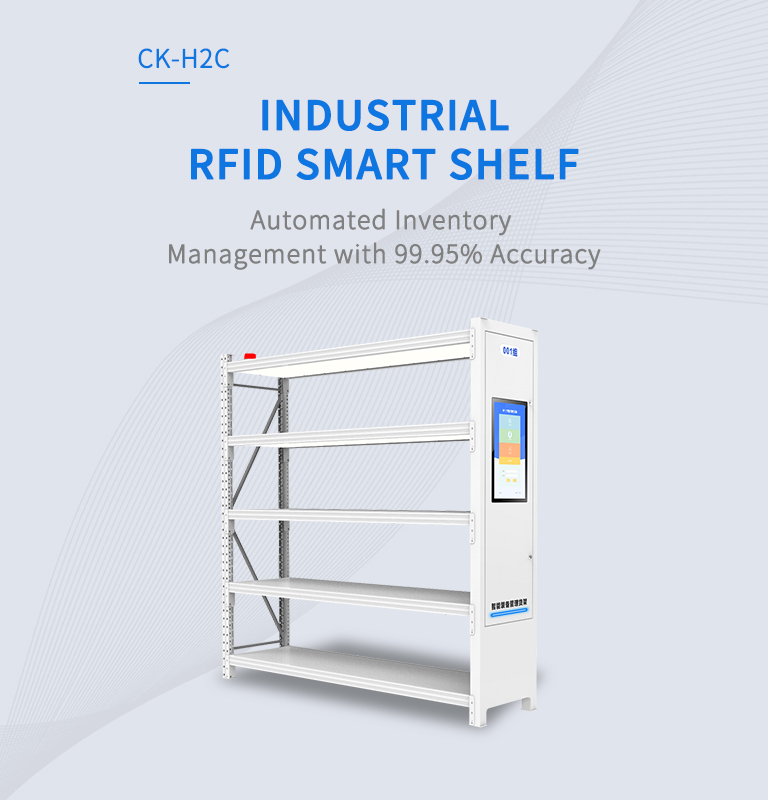

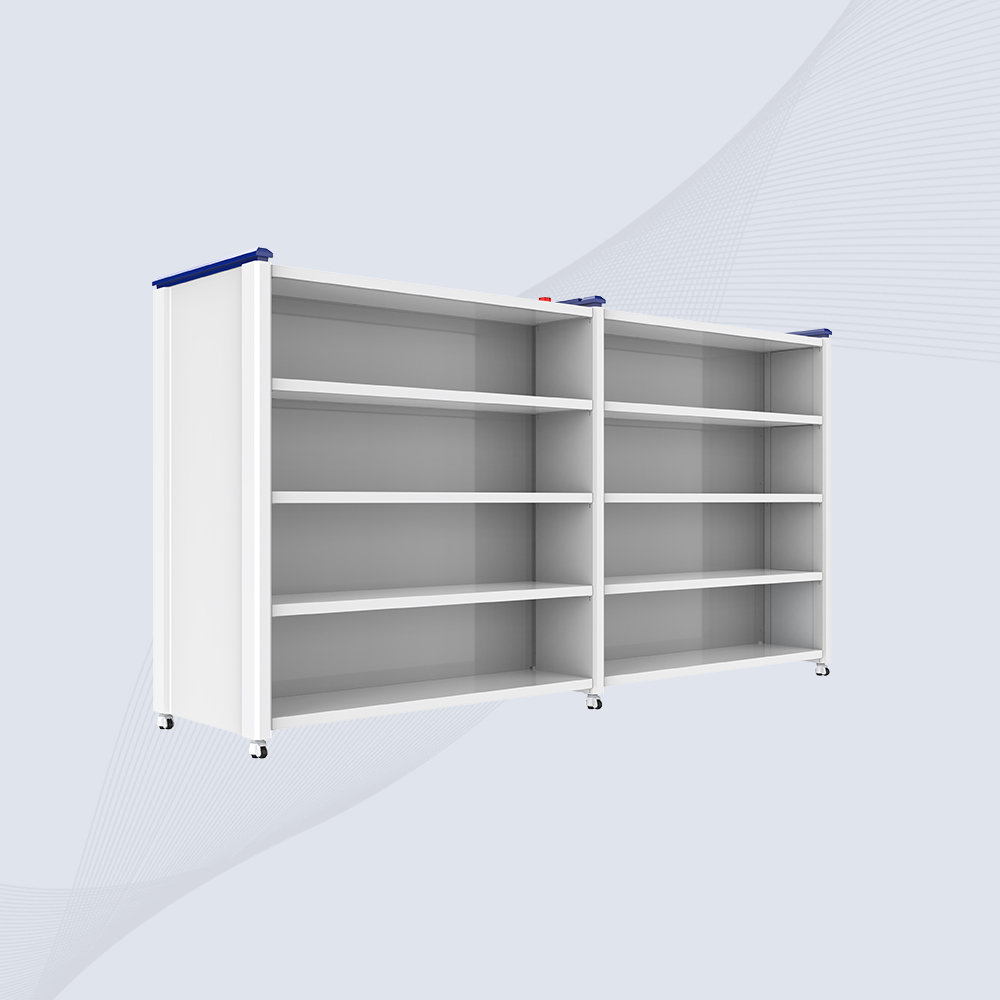

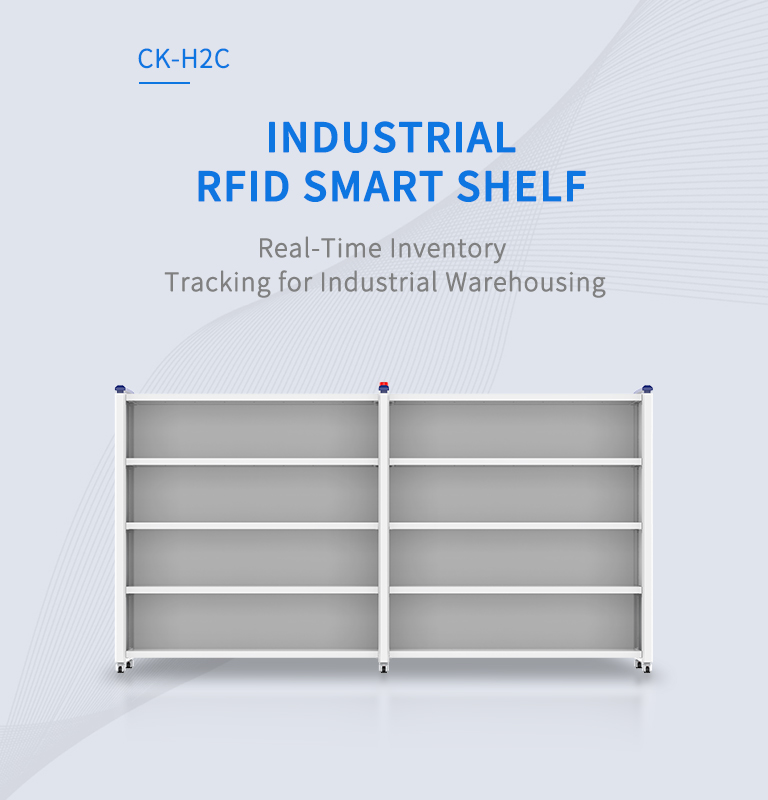

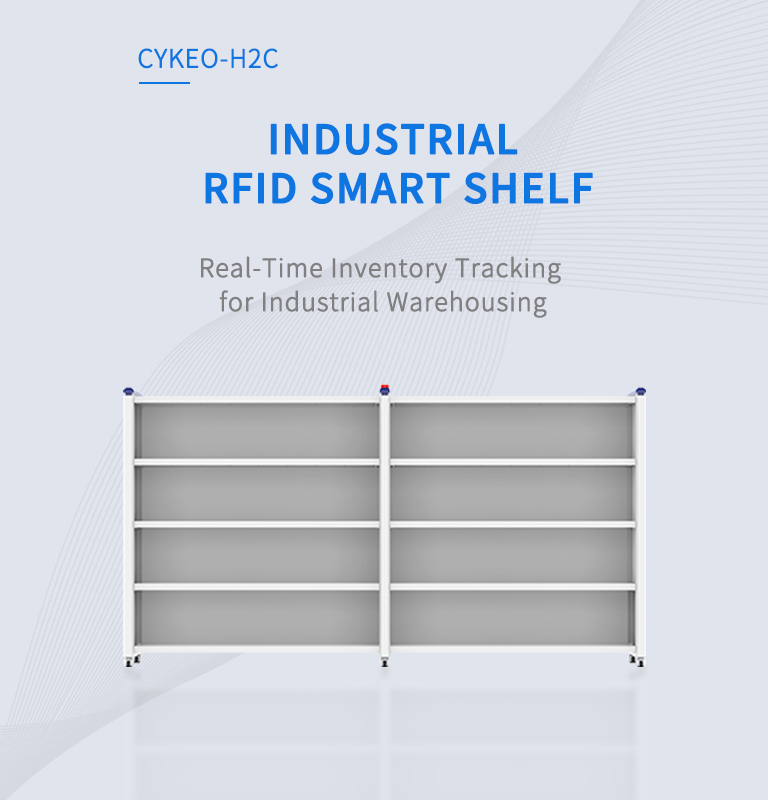

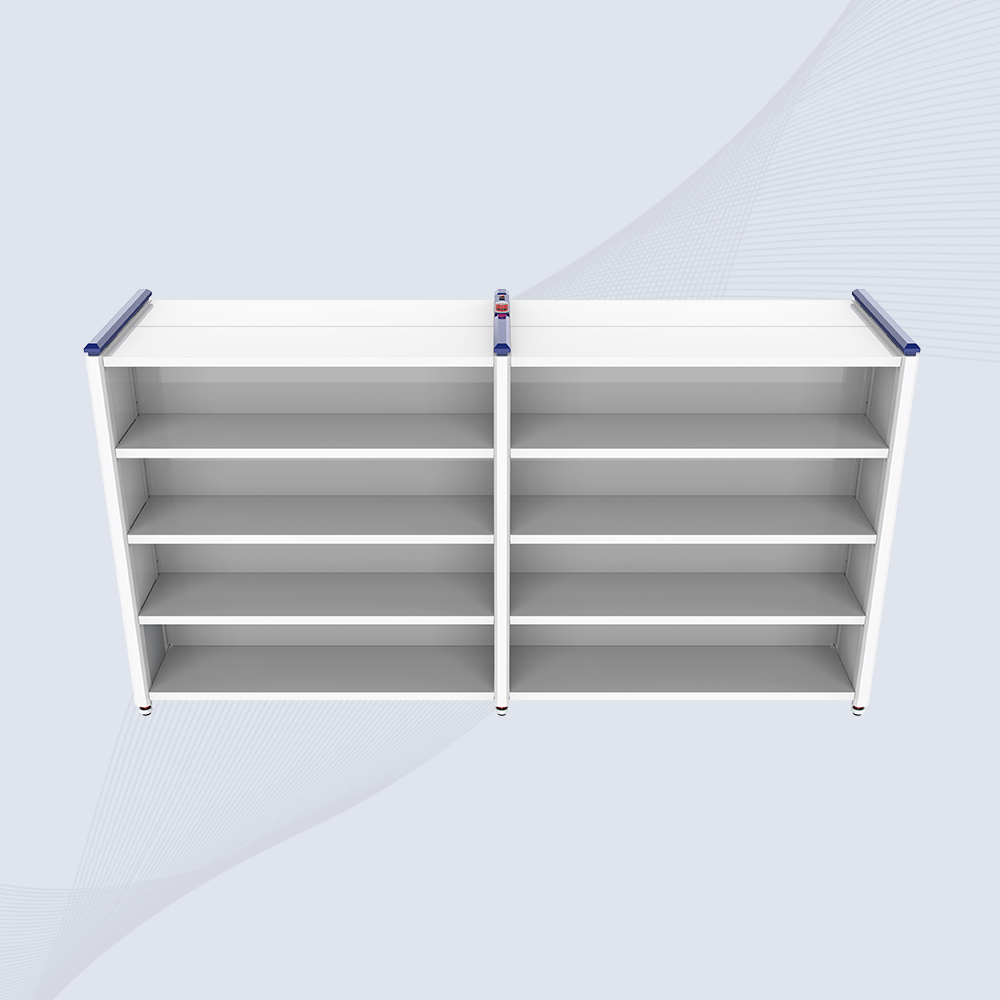

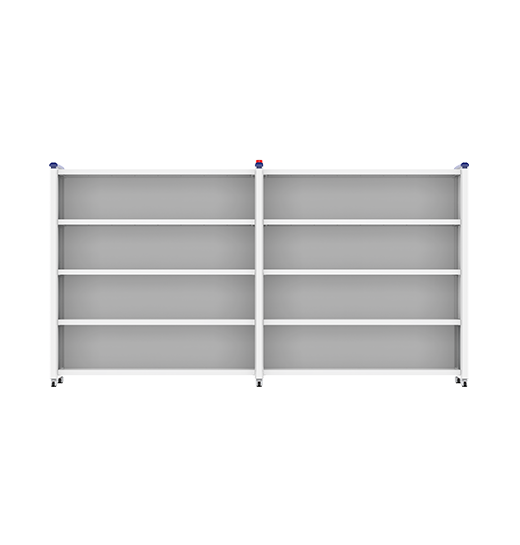

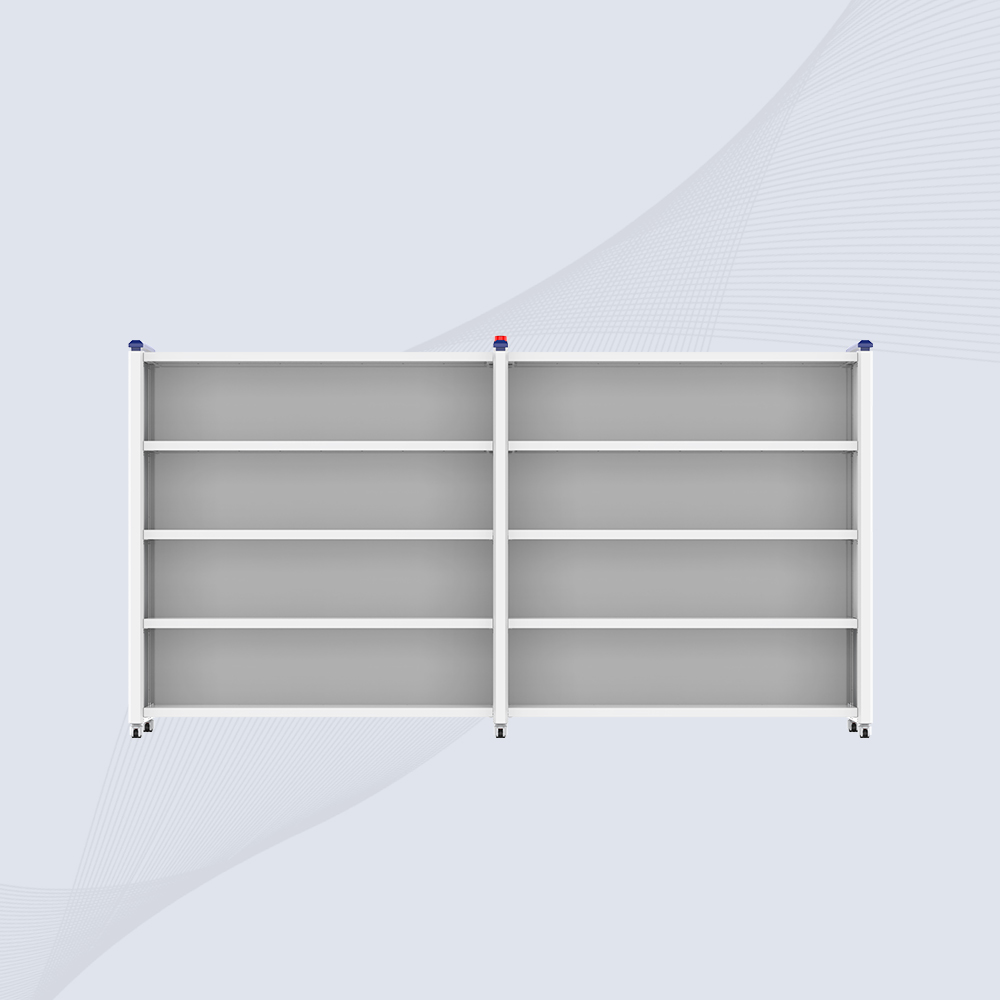

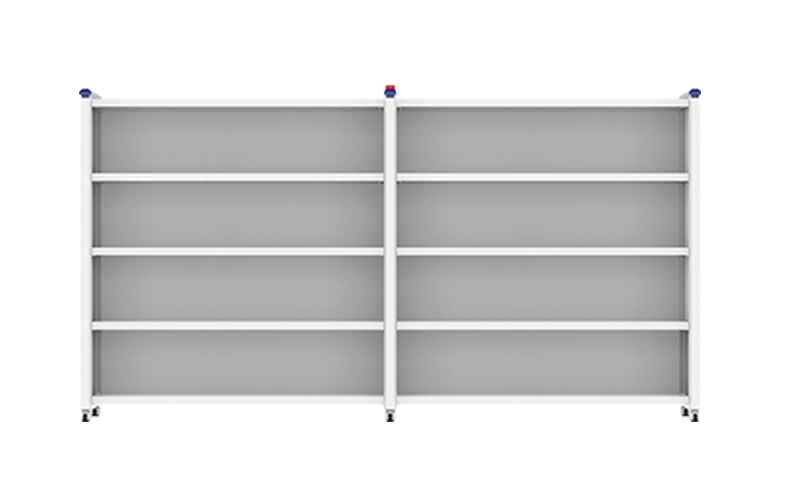

Cykeo CK-H2C Industrial RFID Smart Shelf Specifications

Main Specifications

  • BrandCykeo
  • ModelCA-HG1
  • Product NameIndustrial RFID Smart Shelf

Physical Parameters

  • ​MaterialMetal casing + glass panel

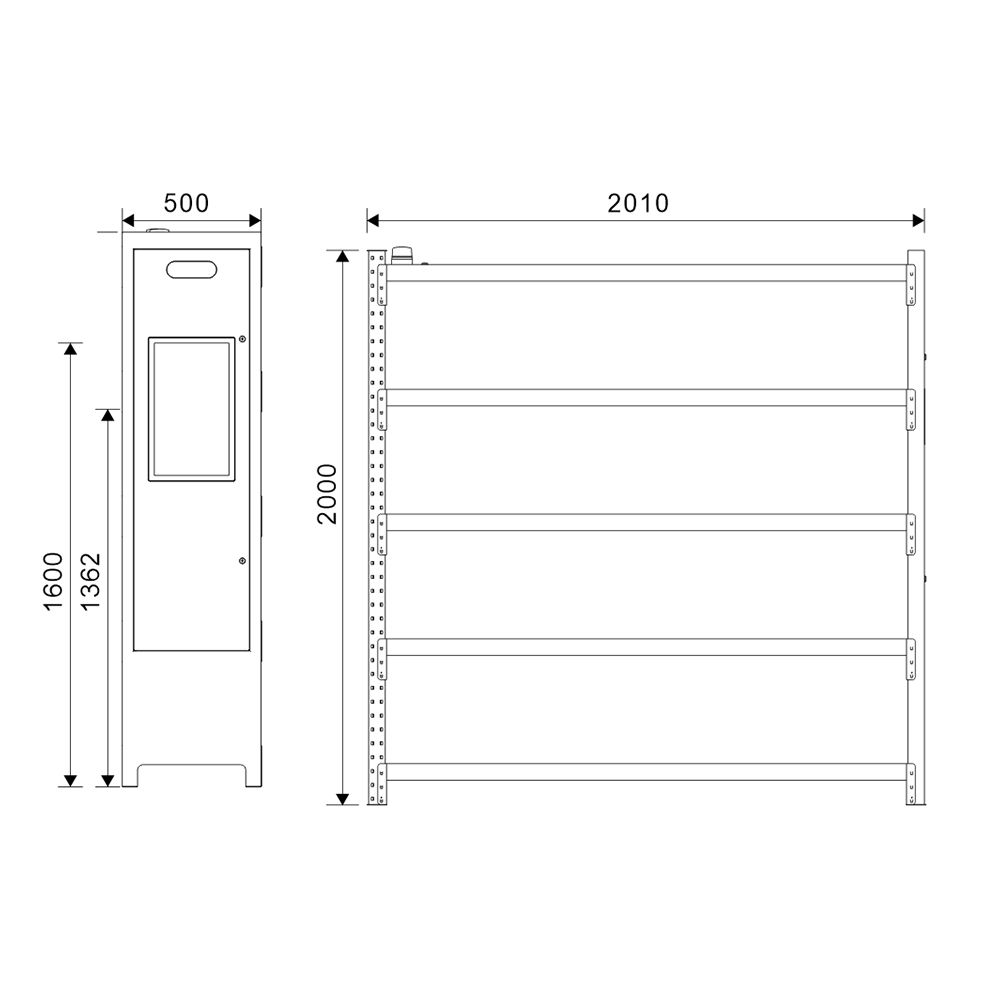

  • Dimensions2004mm(L)*505mm(W)*2000mm(H)
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840-960MHz
  • Air Interface ProtocolISO 18000-6C/6B
  • Scan Speed≤5s
  • InterfaceEthernet/RS232/4G
  • Product Capacity1000 pcs
  • CapacityFour floors
  • Weighing position16 weighing positions
  • Light indicationRed/Blue

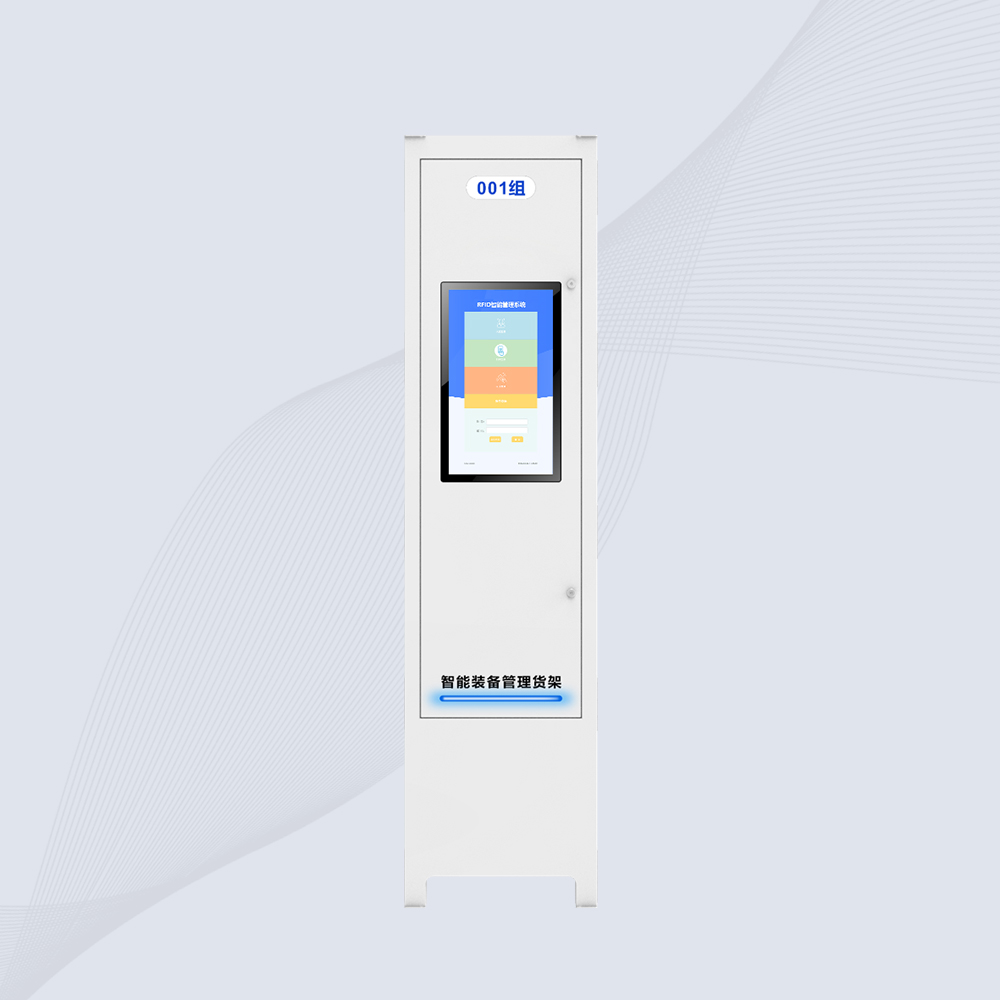

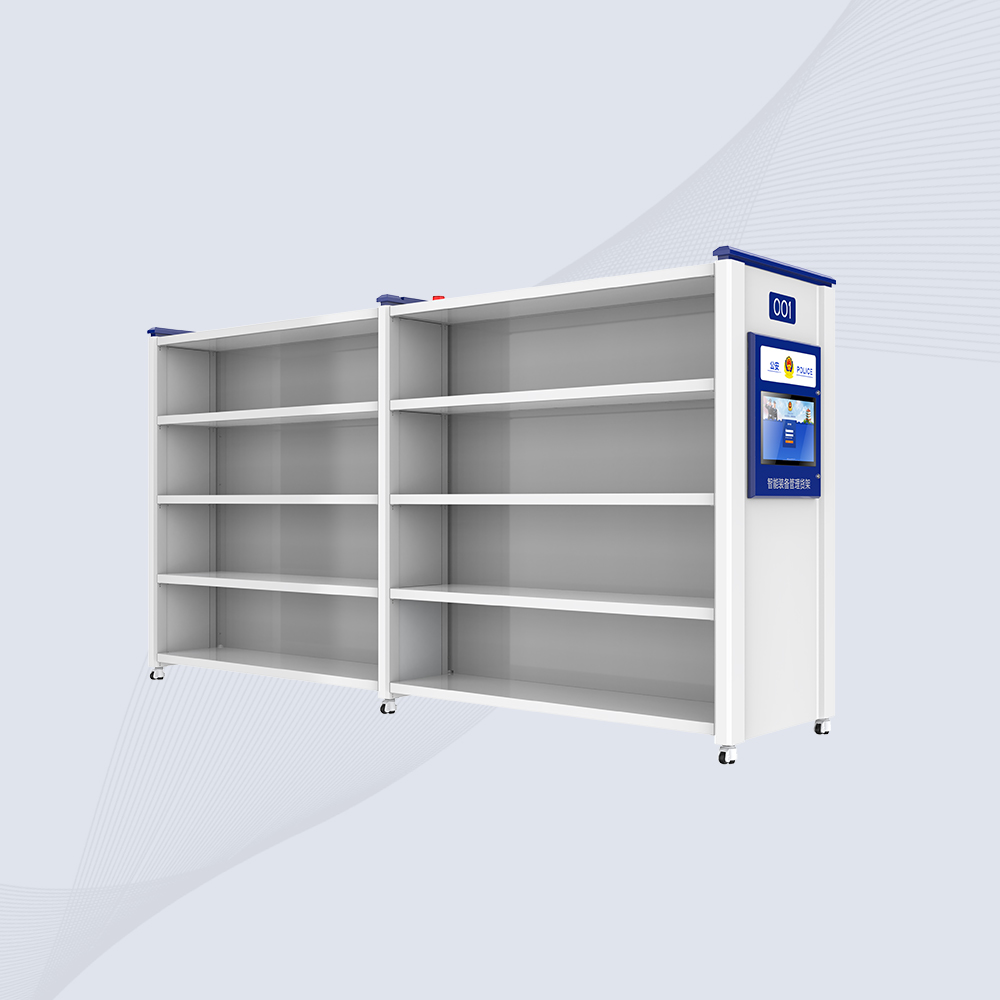

  • Screen3.5-inch storage location display screen
  • Measurement range precision range1-50kg
  • Power220V ≤125W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

INDUSTRIAL RFID SMART SHELF FAQS

How Does the Smart Shelf Achieve 99.95% RFID Accuracy with Dense Items?

Answer:
The CK-H2C uses layered anti-interference technology:

  • Signal Shielding: Carbon steel shelves minimize cross-tag interference.
  • Dynamic Frequency Hopping: Auto-adjusts between 840-960MHz to avoid WiFi/machine noise.
  • RSSI Spatial Filtering: Ignores tags beyond 2m range (e.g., adjacent shelves).

Case Study: A hospital warehouse reduced medical inventory errors by 92% using CK-H2C’s weighing trays and location lighting.
Tip: Mount wall panels vertically for optimal antenna coverage.

Can It Handle Heavy Industrial Tools in Freezer Storage?

Answer:
Yes. Engineered for extreme conditions:

  • Carbon Steel Frame: Supports 50kg/shelf (MIL-STD-810G certified).
  • Low-Temp Operation: Heated RFID tags function at -25°C (optional).
  • IP-Rated Electronics: Resist humidity in cold-chain environments.

Performance: 100% read accuracy at -20°C in meat processing plants.

How to Sync Data with SAP/Oracle Without Coding?

Answer:
Integrate in 3 steps:

  1. Prebuilt Connectors: Sync RFID data to SAP S/4HANA or Oracle WMS via RJ45/WiFi.
  2. Cloud Middleware: Map EPC codes to SKU/location fields on AWS IoT.
  3. Android App: Generate inventory reports with 1-click exports (CSV/XML).

ROI Example: An auto factory cut stock audits from 3 hours to 10 minutes monthly.
