The shelf is specifically engineered for vehicle environments with multiple robustness features:

3. Power Stability Management:​ The integrated power management system handles vehicle electrical system variations, including engine start voltage drops and alternator voltage spikes. Built-in surge protection and voltage regulation ensure consistent operation despite the unstable power environment typical in mobile applications, preventing data corruption or system resets during vehicle operation.

1. Vibration-Resistant Mounting System:​ The shelf incorporates specialized vibration-dampening mounts that absorb road shocks and vehicle vibrations. All electronic components are secured with anti-vibration fasteners, and circuit boards use conformal coating to protect against vibration-induced solder joint failures. The aluminum alloy construction provides inherent shock resistance while maintaining lightweight properties suitable for vehicle applications.

2. Extended Temperature Range Components:​ All electronic components are rated for automotive temperature ranges (-20°C to +60°C operational, -25°C to +70°C storage). The RFID reader, touchscreen, and power systems use industrial-grade components that maintain stable performance despite temperature fluctuations experienced in vehicle trunks, from freezing overnight conditions to hot summer temperatures.

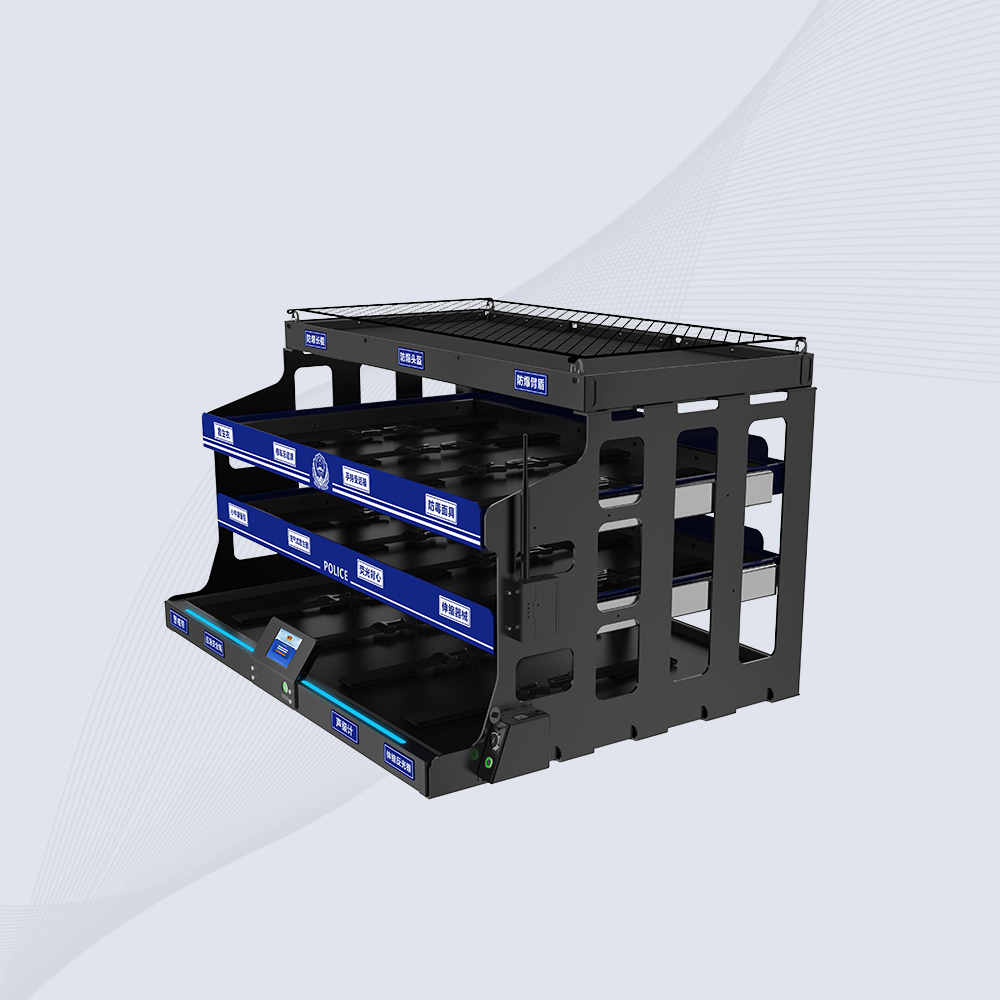

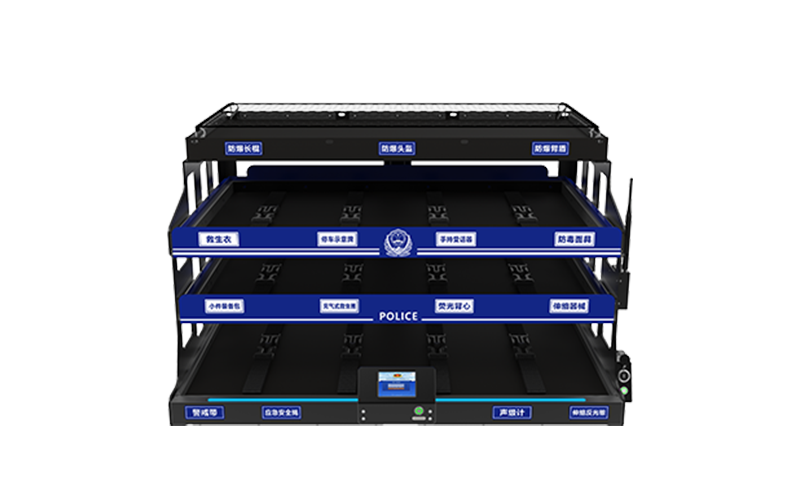

The shelf employs several space-efficient design strategies:

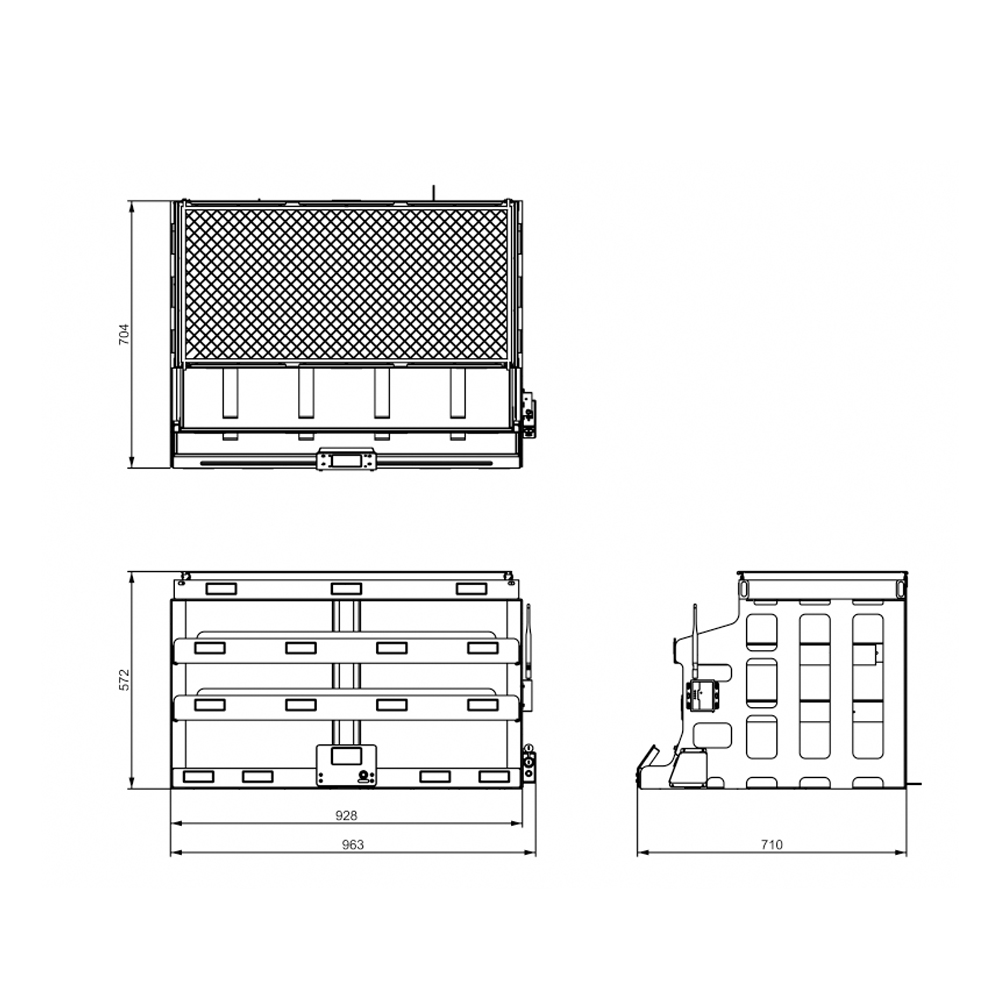

• 1. Multi-Layer Vertical Optimization:​ The 4-layer design with 400mm height intervals maximizes vertical space utilization in vehicle trunks. Each layer is height-adjustable to accommodate different equipment sizes, while the overall 572mm height ensures compatibility with most SUV and MPV trunk compartments without obstructing rear visibility.

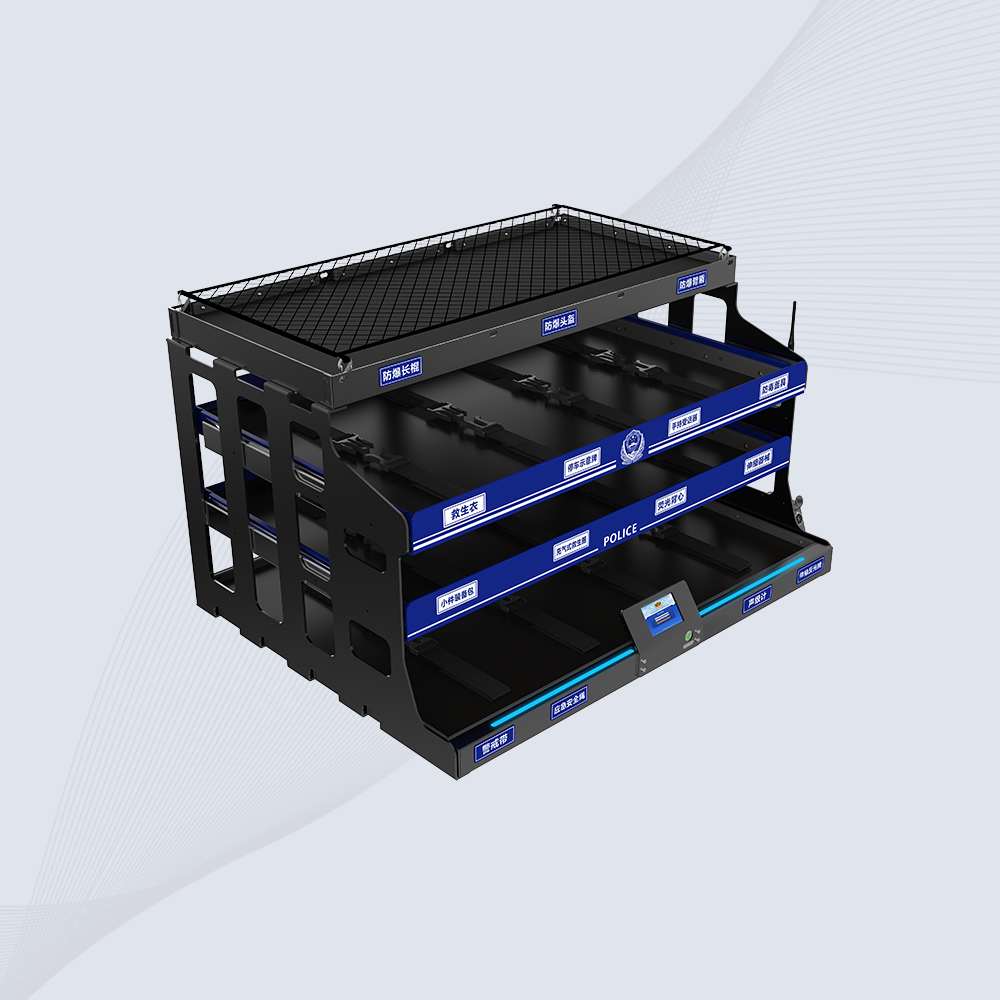

• 2. Slide-Out Layer Accessibility:​ The second and third layers feature smooth slide-out mechanisms that provide full access to equipment without requiring users to reach deep into the shelf. This retrieval system prevents the need to remove front items to access rear equipment, maintaining organization while ensuring all items remain accessible in confined vehicle spaces.
• 3. Integrated Securement System:​ Magic tie-down straps integrated into each shelf surface allow flexible equipment fastening, preventing items from shifting during vehicle movement. The top-layer security netting contains irregularly shaped items like helmets, while the structured organization reduces wasted space between items that typically occurs with loose equipment storage in vehicles.

The system addresses vehicle-specific RF challenges through several technical adaptations:

• 1. Directional Antenna Configuration:​ Specially tuned RFID antennas focus radiation patterns away from vehicle metal surfaces, minimizing signal reflection and absorption by the vehicle body. The antennas are positioned to create reading zones optimized for the shelf’s storage areas while reducing interference from the vehicle’s metal structure.
• 2. Frequency Agility and Power Control:​ The RFID system employs dynamic frequency selection across the 840-960MHz band to avoid interference from vehicle electronics. Real-time power adjustment compensates for RF absorption by equipment and vehicle structures, ensuring consistent read performance regardless of how the vehicle is loaded or equipped with other electronic systems.
• 3. Shielding and Grounding Techniques:​ Strategic shielding around the RFID electronics prevents interference from vehicle ignition systems, alternators, and other automotive electronics. Proper grounding techniques minimize the impact of vehicle electrical noise on the sensitive RFID reception system, maintaining reading accuracy during vehicle operation.
