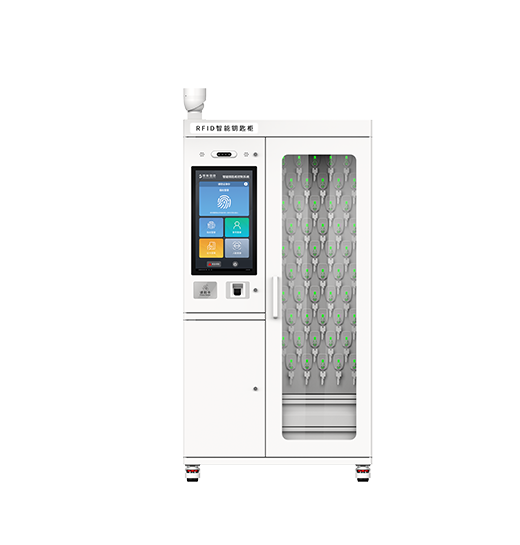

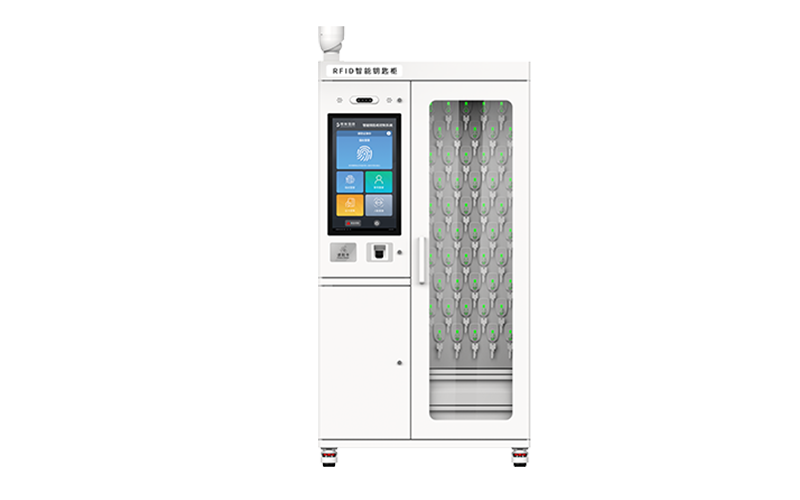

CK-GYC50

INTELLIGENT RFID KEY CABINET

Enterprise-Grade Key Management with ISO 15693/14443A Compliance for Corporate & Rental Facilities

✔️ Solar-Ready IP54 Steel Construction

✔️ Real-Time Access Logs for Audit Trails

✔️ 50-Key Capacity with Individual RFID Tagging

✔️ Dual-Biometric Authentication (Face/Fingerprint)

Talk to an Expert

Email Our Team

SECURE KEYS. AUDIT READY.

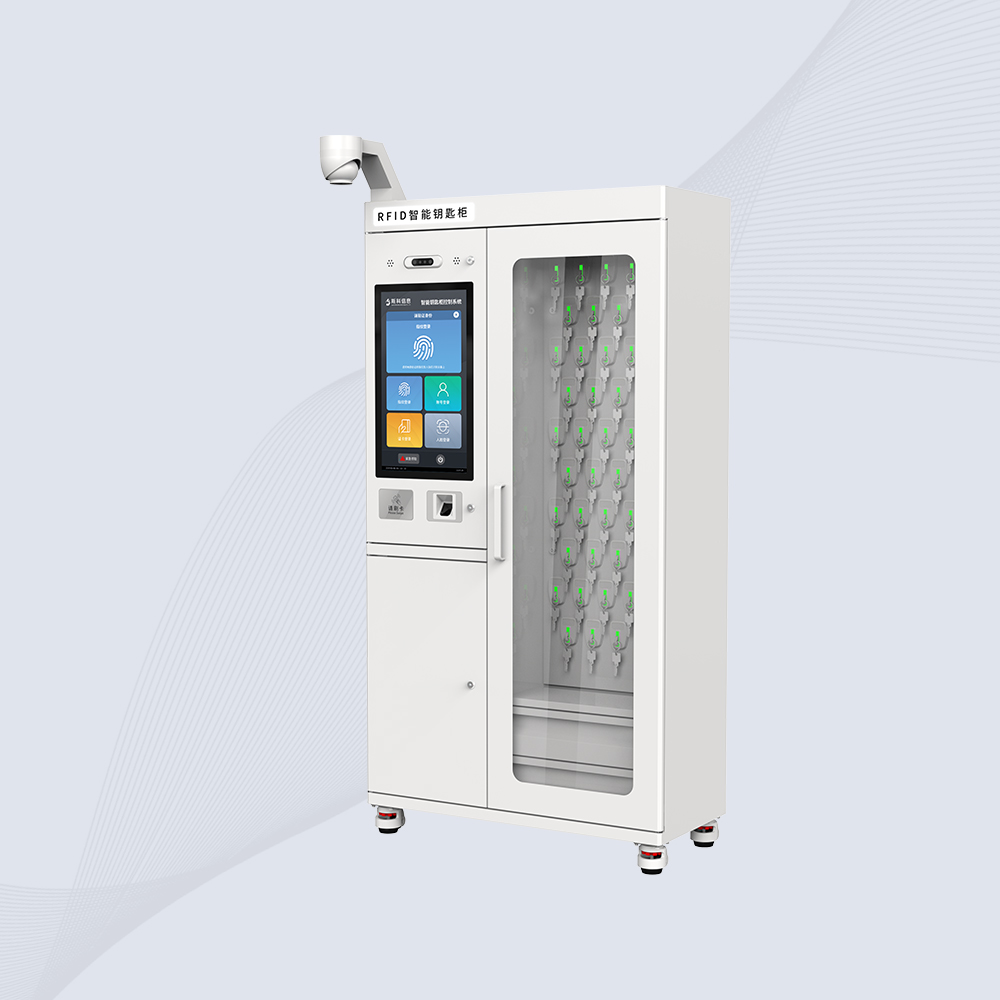

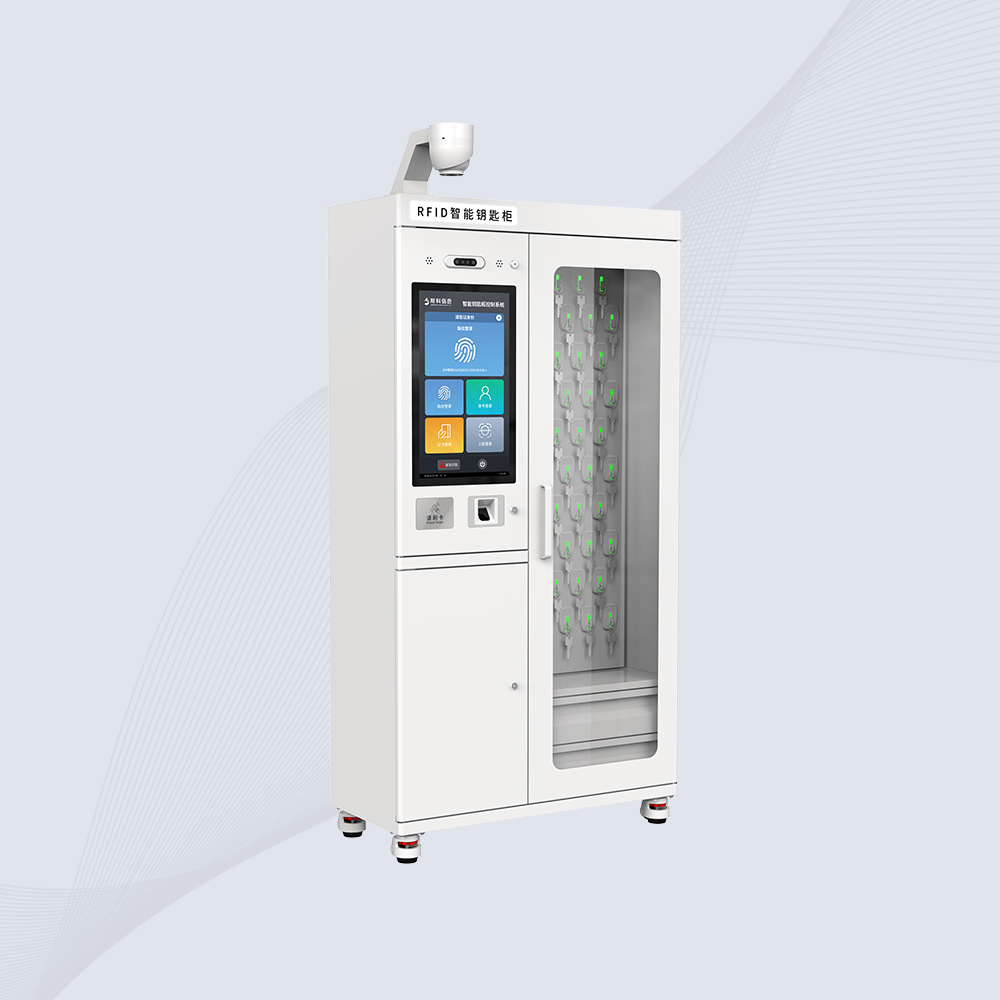

The Cykeo CK-GYC50 RFID Key Cabinet revolutionizes physical access control with HF RFID technology (ISO 15693/14443A). Designed for corporate campuses and rental fleets, it enables instant key check-in/out via 13.56MHz RFID tagging, while facial/fingerprint authentication ensures authorized access. With 22″ touchscreens, solar compatibility, and ERP integration, it delivers military-grade key accountability for property managers, car rental hubs, and industrial facilities.

Essential for regulated key control: Corporate office master key vaults, car rental agency key stations, hotel master key depositories, and manufacturing plant equipment lockers.

4s store

Financial institutions

File management

Key warehouse

Pharmaceutical anesthetics

Enterprise substation

Cykeo CK-GYC50 Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GYC50 RFID KEY CABINET

Military-Grade Security

Dual PSAM 2.0 encryption modules meeting FIPS 140-2 standards

Smart Inventory Management

Auto-generate Excel reports with timestamps ±0.5s accuracy

Expandable Architecture

Supports cascading up to 8 slave cabinets 400-key total capacity

Multi-Protocol Support

Simultaneous RFID ISO 15693, fingerprint FAP20, and IC card ISO 14443A verification

Emergency Access

Dual override methods: mechanical lock + admin PIN code

Real-Time Monitoring

RS485/HTTP API integration with 98% successful command response rate

0~60℃ Operation

IP54-rated components for harsh environments

C#/Java SDK

Seamless integration with SAP/Oracle/Zoho

Cykeo CK-GYC50 RFID Key Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GYC50
Product NameRFID Key Cabinet

Physical Parameters

MaterialMetal casing + glass panel
Appearancetransparent

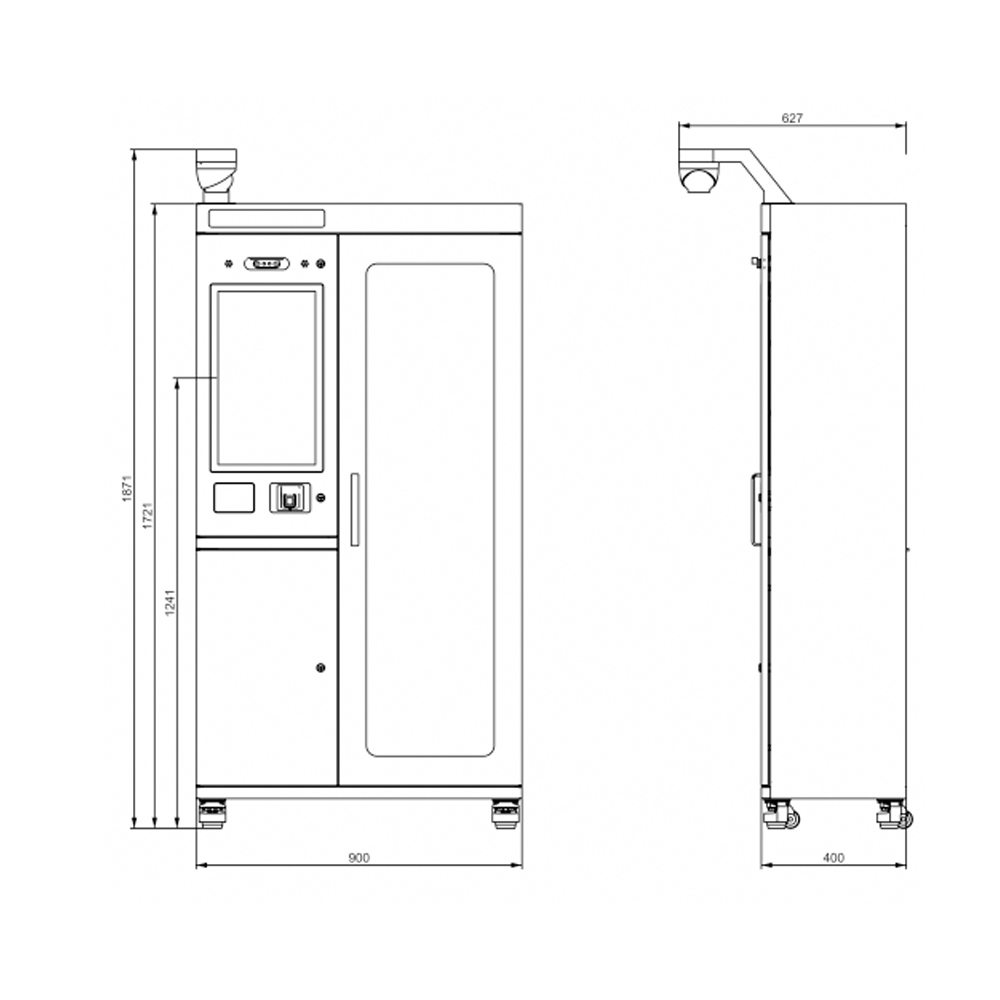

Dimensions90 x 40 x 187 cm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G

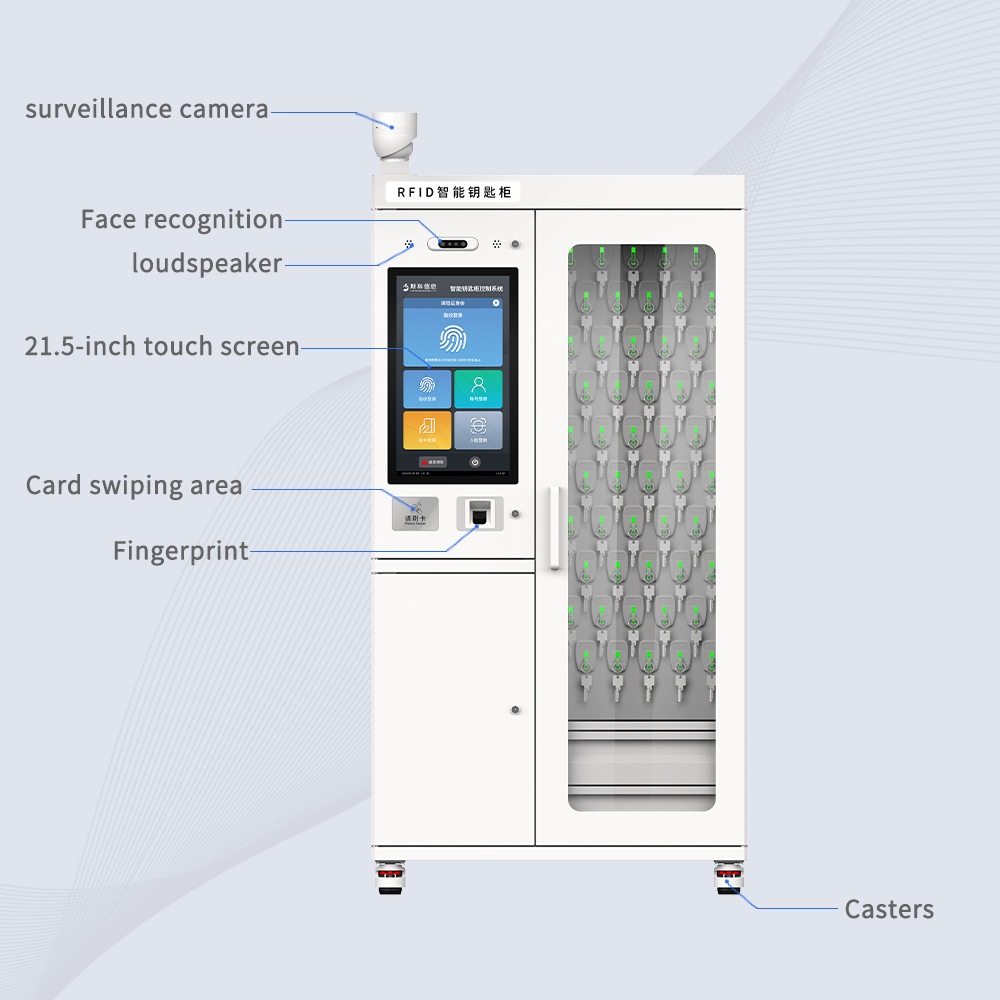

Touchscreen21.5-inch capacitive touch screen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range13.56MHz
Air Interface ProtocolISO15693
Scan Speed50pcs
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
InterfaceEthernet/RS232/4G
Authentication ModesFace, Card, Fingerprint(Optional)
Power220V

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID KEY CABINET FAQS

How Does RFID Tagging Prevent Unauthorized Key Duplication?

Answer:
The encrypted key-tag system implements:

EPC Locking: Tags become unreadable after checkout until returned
Geofencing: Disables keys if moved >100m from cabinet
Usage Caps: Blocks checkout after 3 failed PIN attempts
Case Study: Hertz reduced key fraud by 92% by tagging 15,000 rental car keys. Unauthorized duplication attempts dropped to zero.

Can the Cabinet Operate During Power Outages at Remote Sites?

Answer:
Yes. Hybrid power solutions include:

72hr Battery Backup: Supports 200+ access cycles
150W Solar Panels: Charge during daylight (desert/mining sites)
Mechanical Override: Physical keys for emergency access
Best Practice: Australian mining camps use solar mode for 24/7 operation.

How to Integrate with Property Management Systems Like Yardi or AppFolio?

Answer:
Via RESTful APIs & Webhooks:

Auto-Sync Reservations: Link key checkouts to tenant leases
Maintenance Alerts: Notify when keys exceed max usage hours
Compliance Exports: Generate CALEA/FIPS audit reports
ROI Example: CBRE saved $18,000/month automating 12,000+ property key audits.
