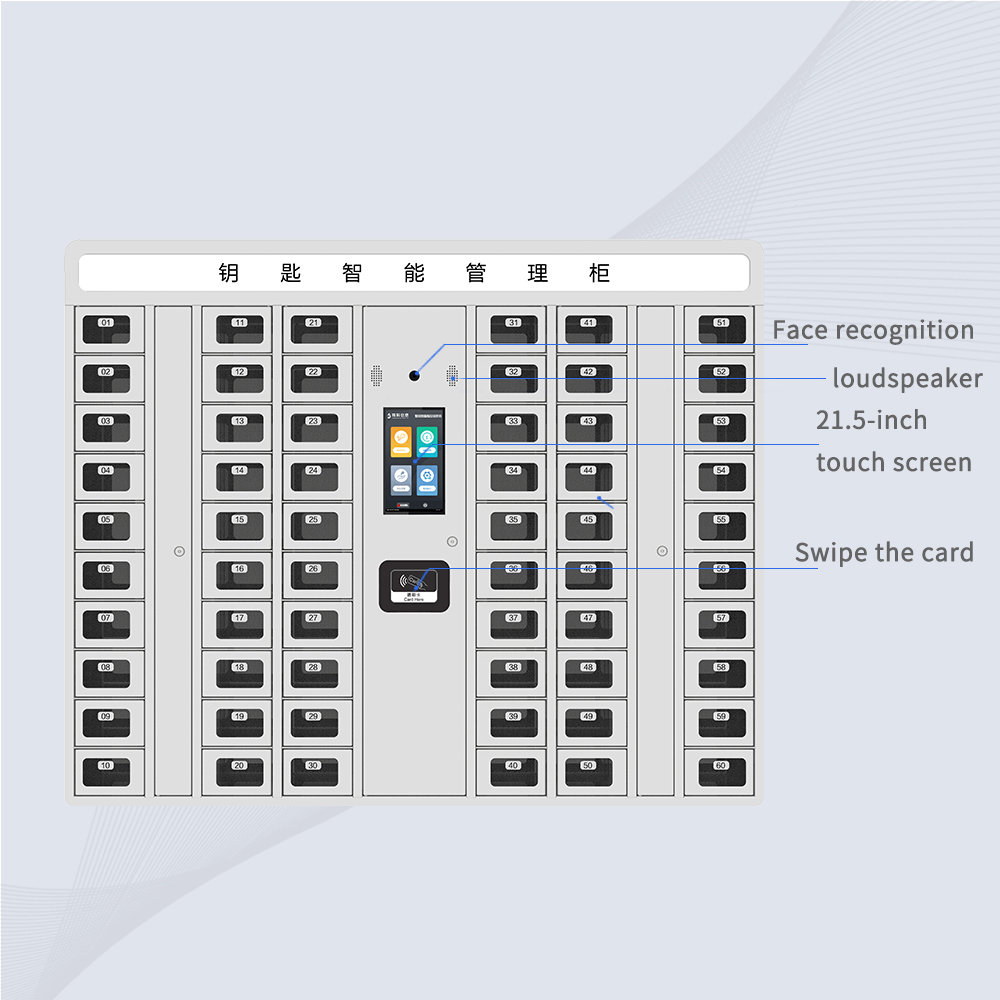

✔️ IP54 Steel & Emergency Unlock Function

✔️ ​​Dual OS: Windows/Android Offline Operation

✔️ 60 RFID-Secured Key Slots with LED Guidance

Talk to an Expert
SDHXFG
ASG
ASG
TY
TFJMK
SRTH
AWESYTGR

GUARD KEYS. AUDIT ACCESS.

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

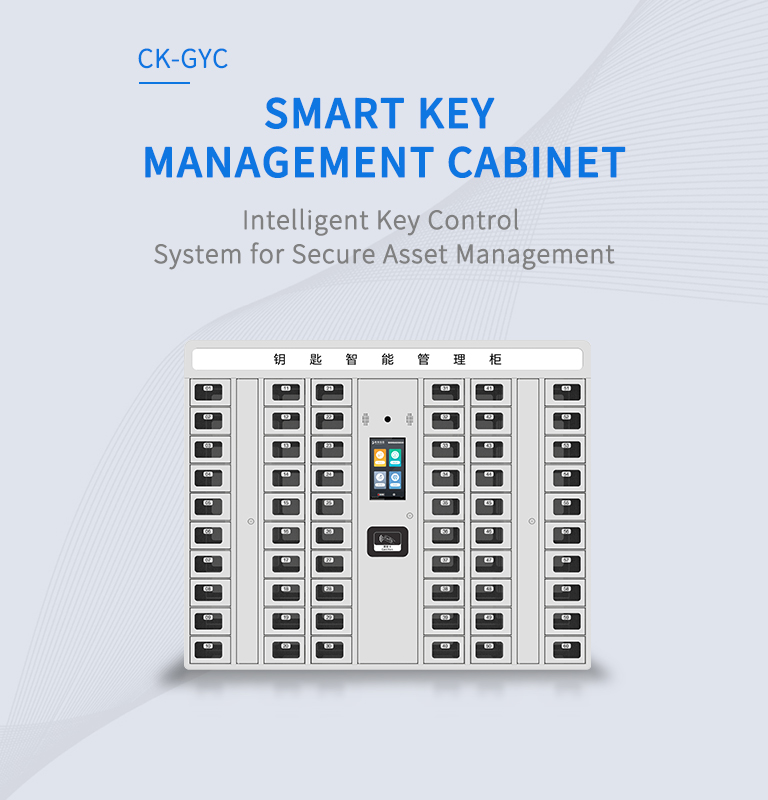

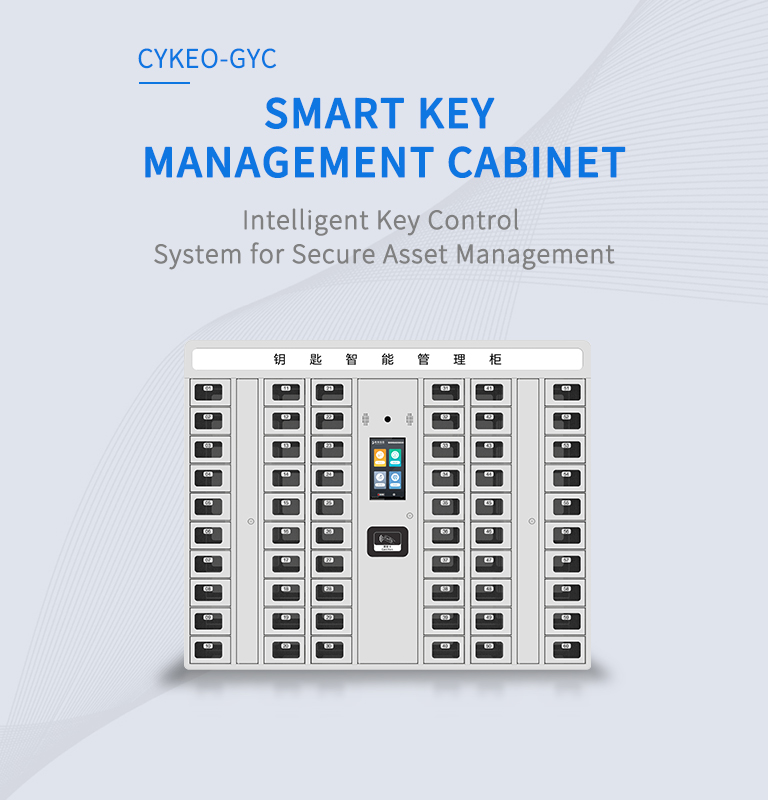

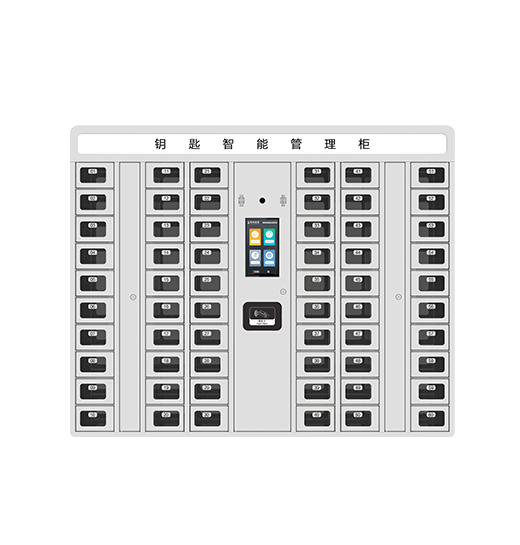

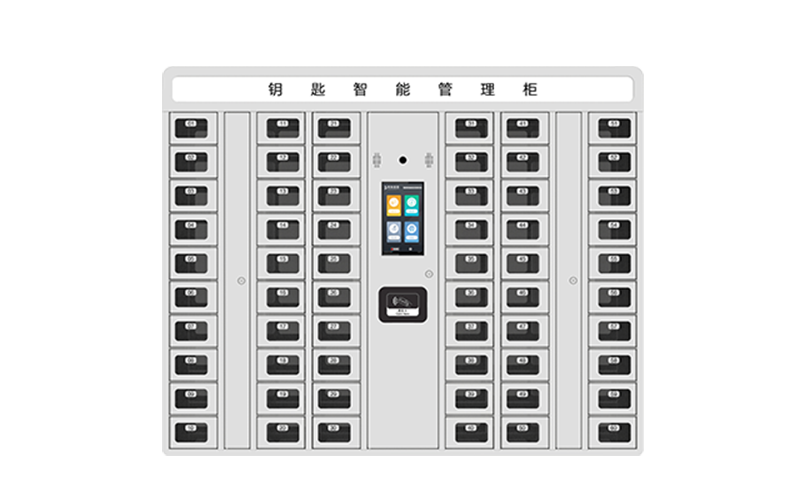

Cykeo CK-GYC RFID Smart Key Cabinet Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-GYC50
  • Product NameRFID Smart Key Cabinet

Physical Parameters

  • ​MaterialMetal casing + glass panel
  • ​Appearancetransparent
  • Dimensions90 x 40 x 180.2 cm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Touchscreen21.5-inch capacitive touch screen
  • Weight200KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range13.56MHz
  • Air Interface ProtocolISO15693
  • Scan Speed50pcs
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • InterfaceEthernet/RS232/4G
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power220V

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID SMART KEY CABINET FAQS

How to Retrieve Keys During Power Failures?

Answer:
The CK-GYC RFID Smart Key Cabinet features dual contingency protocols:

  • Emergency Unlock: Supervisor override with mechanical key + biometric scan
  • 48H Backup Battery: Powers critical functions during outages
  • Offline Logging: Stores 50,000+ access events locally
    Performance Data:
    In hurricane-prone Florida prisons, cabinets maintained 100% uptime during 72h grid failures using Cykeo’s PowerReserve System.
Can It Manage Keys Across Multiple Buildings?

Answer:

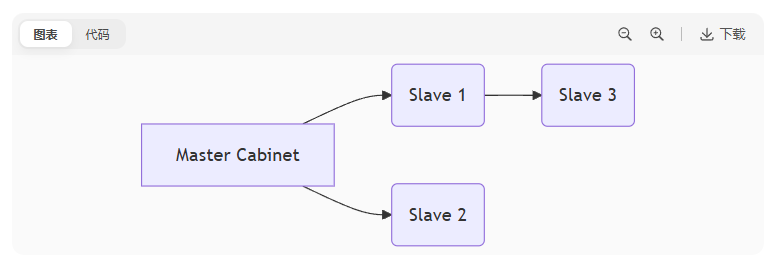

Yes. With Cykeo GridSync Technology, up to 20 cabinets connect via:

ighgfgfdfd
  • Centralized Control: Single dashboard for all locations
  • GPS Tagging: Tracks key movements between sites
  • Case Study: A German auto plant linked 8 cabinets across 4 buildings, reducing key retrieval time by 83%.
How Does Face Recognition Work in Low Light?

Answer:
The optional infrared facial system operates in 0~50,000 lux environments:

  • 3D Depth Sensing: Uses 30,000 invisible dots for dark-area mapping
  • Anti-Spoofing: Detects skin texture/blood flow to block masks
  • Speed: <1.2 second authentication at 0.1 lux (moonlight level)
    Certification: Passed FBI PIV-I biometric accuracy standards.
