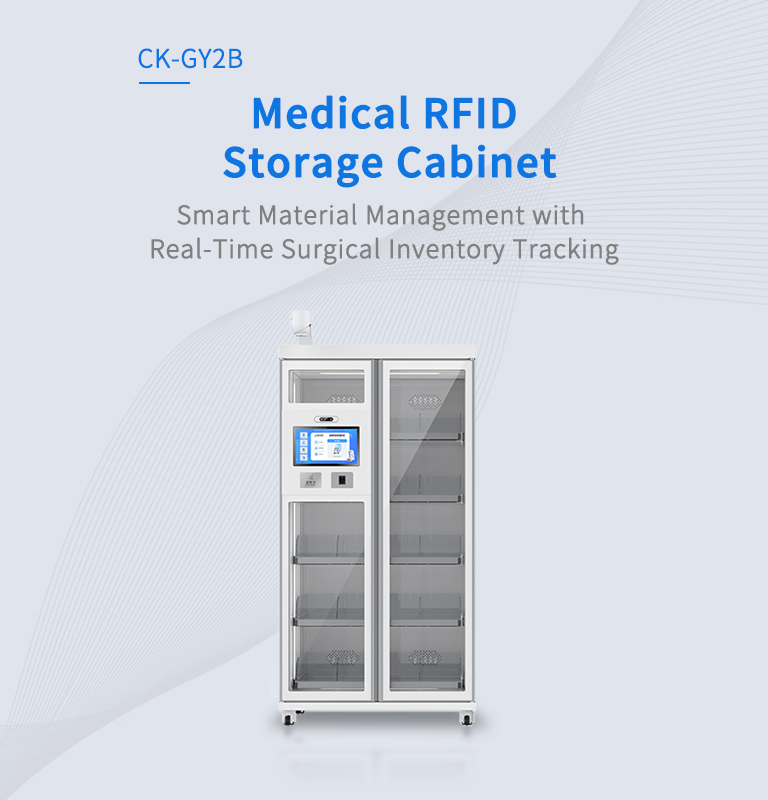

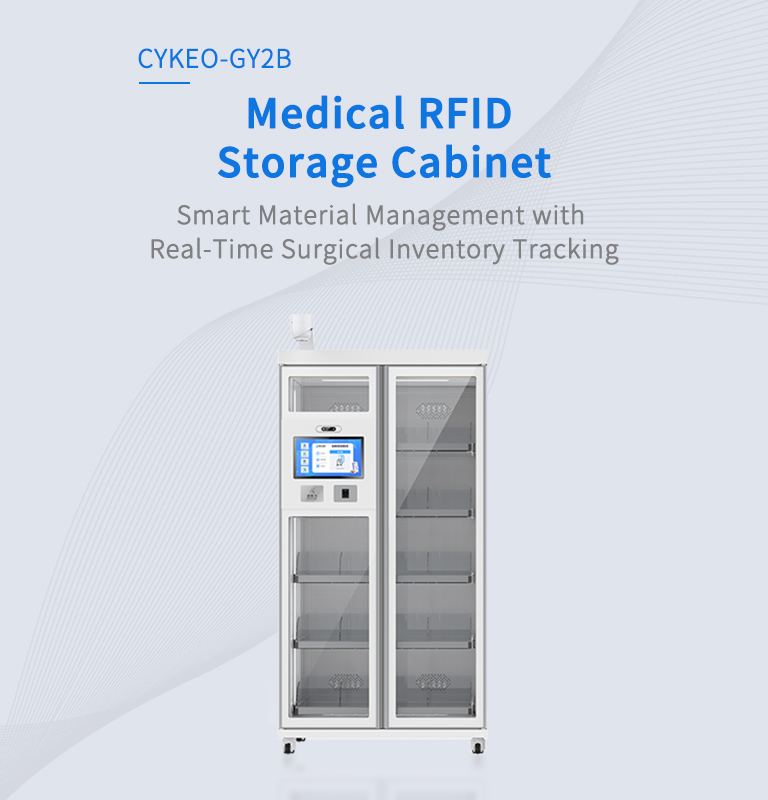

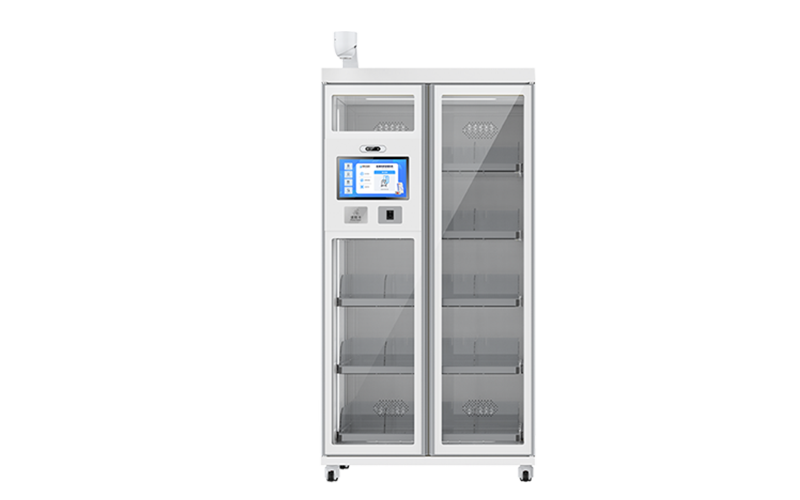

CK-GY2B

Medical RFID Storage Cabinet | 600 Tags/Sec Surgical Inventory

Reinforced Steel Security with 14″ Touch Control for High-Value Medical Assets

✔️ 1.2mm Reinforced Steel Construction

✔️ 70% Staff Workload Reduction via Auto-Alerts

✔️ 600 Tags/Sec Identification Speed with Impinj R2000

Talk to an Expert

Email Our Team

SPEED SECURES. INVENTORY PROTECTS.

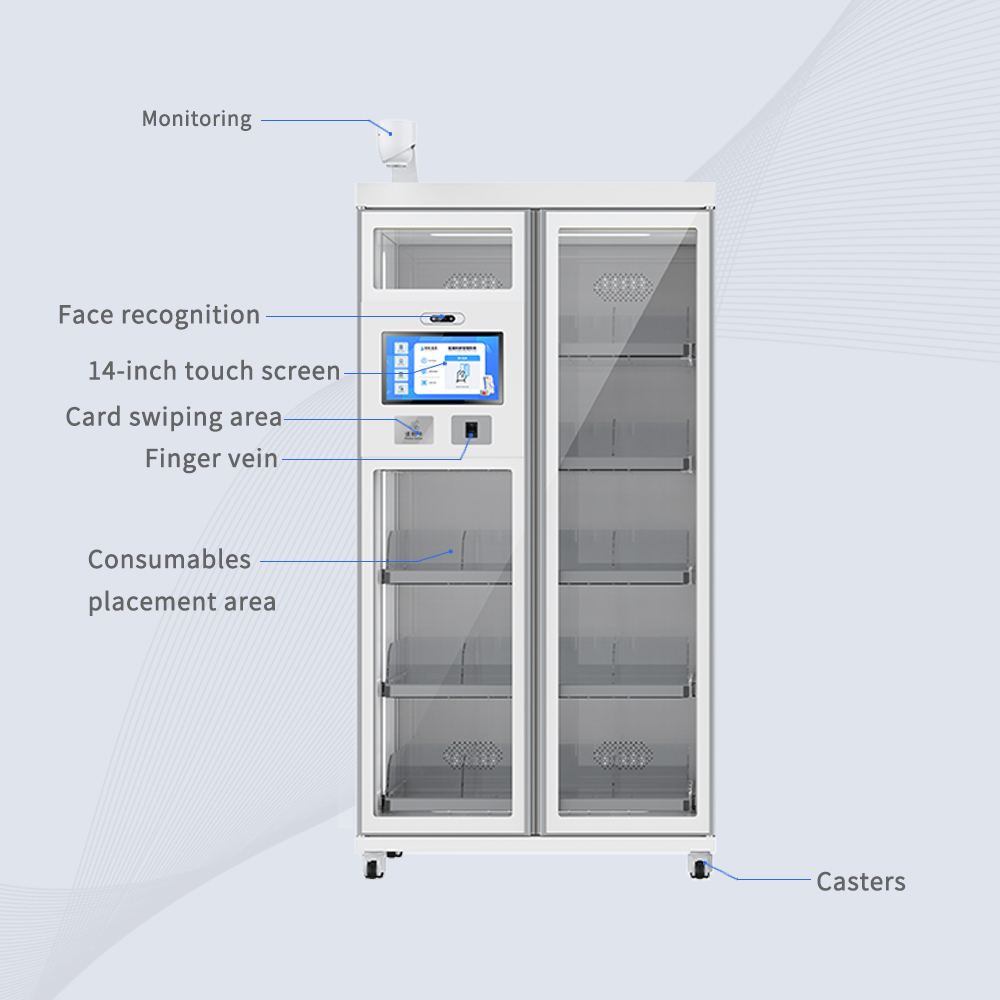

The Cykeo CK-GY2B Medical RFID Storage Cabinet automates surgical inventory with UHF RFID technology. Featuring a 14″ touchscreen and 1.2mm reinforced steel body, it tracks 500+ high-value consumables at 600 tags/second with Windows/Android OS support. Engineered for clinical efficiency, it reduces staff workload by 70% through automated replenishment alerts and real-time expiry monitoring.

Critical for medical asset security: Operating room consumables storage, cath lab supply management, pharmacy controlled substance lockers, and biomedical research vaults.

Surgical center

Operating room instruments

Pharmaceutical cleanroom

Pharmacy anesthetics

Medical management

Biological laboratory

Cykeo CK-GY2B Medical RFID Storage Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GY2B MEDICAL STORAGE CABINET

600+ Tags/Sec UHF Scanning

Impinj R2000 chipset enables bulk item identification in 3.8 seconds.

Surgical-Grade Security

Dual authentication via RFID + optional vein recognition for DEA-controlled substances.

Real-Time Replenishment Alerts

AI-driven inventory prediction reduces stockouts by 92% in OR environments.

HL7/FHIR Healthcare Integration

Direct API connectivity with Epic, Cerner, and Meditech EMR systems.

Auto-Adjusting Shelf System

Modular compartments adapt to implants 1cm³–30cm³ without manual reconfiguration.

Cold Chain Compliance

Optional -20°C to 60°C thermal control with ±0.5°C accuracy for biologics.

Multi-Layer Access Logging

4K dual cameras + RFID audit trails meet Joint Commission Standard EC.02.01.01.

Rugged Hospital-Grade Build

IP54-rated 1.2mm steel housing withstands 500+ chemical disinfections/month.

Cykeo CK-GY2B Medical RFID Storage Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GY2B
Product NameMedical RFID Storage Cabinet

Physical Parameters

MaterialMetal casing + glass panel

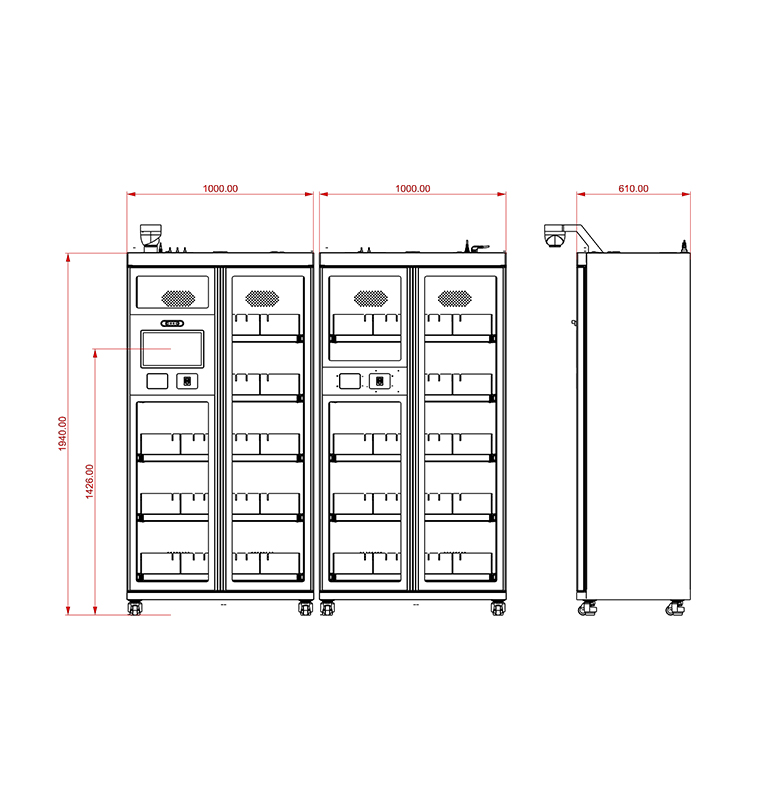

Dimensions1941mm*1002mm*608mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen14-inch capacitive touch screen
Cabinet combinationShelf board/hanger
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840-960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6C
Scan Speed≤5s
Product Capacity400 pcs
InterfaceEthernet/RS232/4G
Authentication ModesFace, Card, Fingerprint(Optional)
Power220V ≤125W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

MEDICAL RFID STORAGE CABINET FAQS

How Does 600 Tags/Sec Speed Benefit Busy ORs?

Answer:
The high-speed scanning enables real-time inventory updates during procedures:

Surgical Tray Verification: Scan 200-instrument sets in <0.5 seconds
Emergency Restocking: Detect consumed items instantly
Multi-Cabinet Sync: Update networked cabinets simultaneously
Case: A New York hospital reduced post-surgery inventory time from 45 minutes to 2 minutes using this system.

Can the Steel Cabinet Withstand Forced Entry Attempts?

Answer:
Yes. The 1.2mm reinforced steel passes UL 1037 standards:

Anti-Pry Hinges: Resist crowbar attacks
Tempered Glass: 5x stronger than standard glass
Vibration Sensors: Trigger alarms during tampering
Certification: Achieves Level II security rating per EN 1143-1 standards.

How to Set Up Automated Replenishment Alerts?

Answer:
Configure in 3 steps via touchscreen:

Threshold Setting: Define min stock (e.g., <5 suture packs)
Alert Method: Choose SMS/email/on-screen flashing
Approval Workflow: Require supervisor RFID badge confirmation
A London clinic cut stockout incidents by 92% using location-specific alerts.
