CK-GWHA

RFID Chemical Management Cabinet – VOC Detection & Hazardous Material Control

Automated Chemical Tracking with 400 Tags/Sec RFID & OSHA Compliance

✔️ Real-Time ERP Sync with VOC Gas Alerts

✔️ Dual Authentication (Face Recognition + Lock)

✔️ Corrosion-Resistant Flame-Retardant Construction

Talk to an Expert

Email Our Team

HAZMAT SECURITY, INTELLIGENT CONTROL

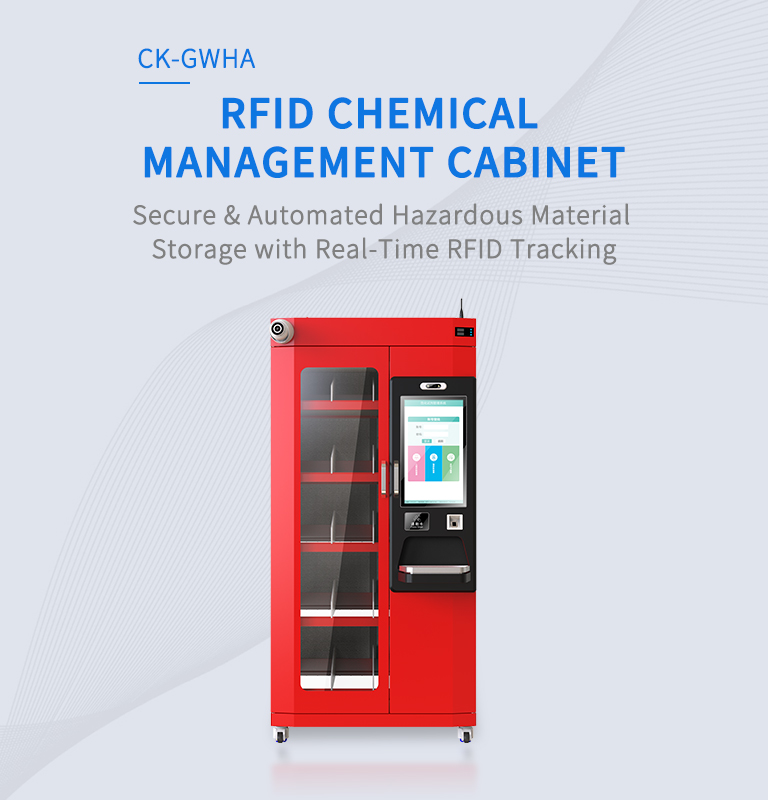

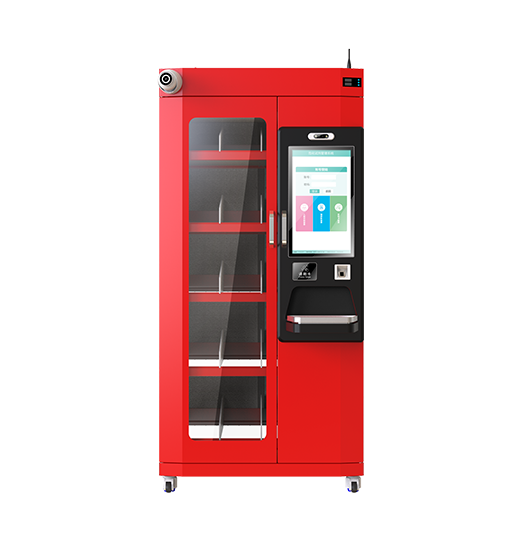

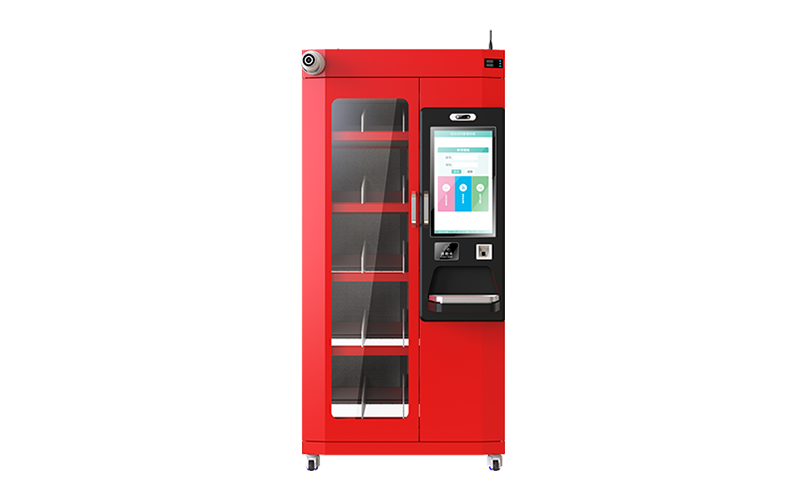

The CK-GWHA RFID Chemical Management Cabinet revolutionizes hazardous material handling with UHF RFID technology (400 tags/sec scanning) and integrated VOC gas detection. Its corrosion-resistant carbon steel body features detachable leakage tanks and independent air outlets, while the 21.5″ industrial touchscreen enables dual-authentication access (face recognition + multi-user lock). Real-time inventory data syncs with SAP/Oracle via RESTful APIs, ensuring compliance with OSHA and ISO 14001 standards in labs, pharma, and industrial plants.

Essential for pharmaceutical raw material storage, university lab solvent management, industrial chemical plants, and wastewater treatment facilities requiring strict safety audits.

Reagent Control

Laboratory Management

Inventory control of industrial solvents

University laboratory

Storage of pharmaceutical raw materials

Management of hazardous chemicals

Cykeo CK-GWHA RFID Chemical Management Cabinet Specification

Download

Online Procurement

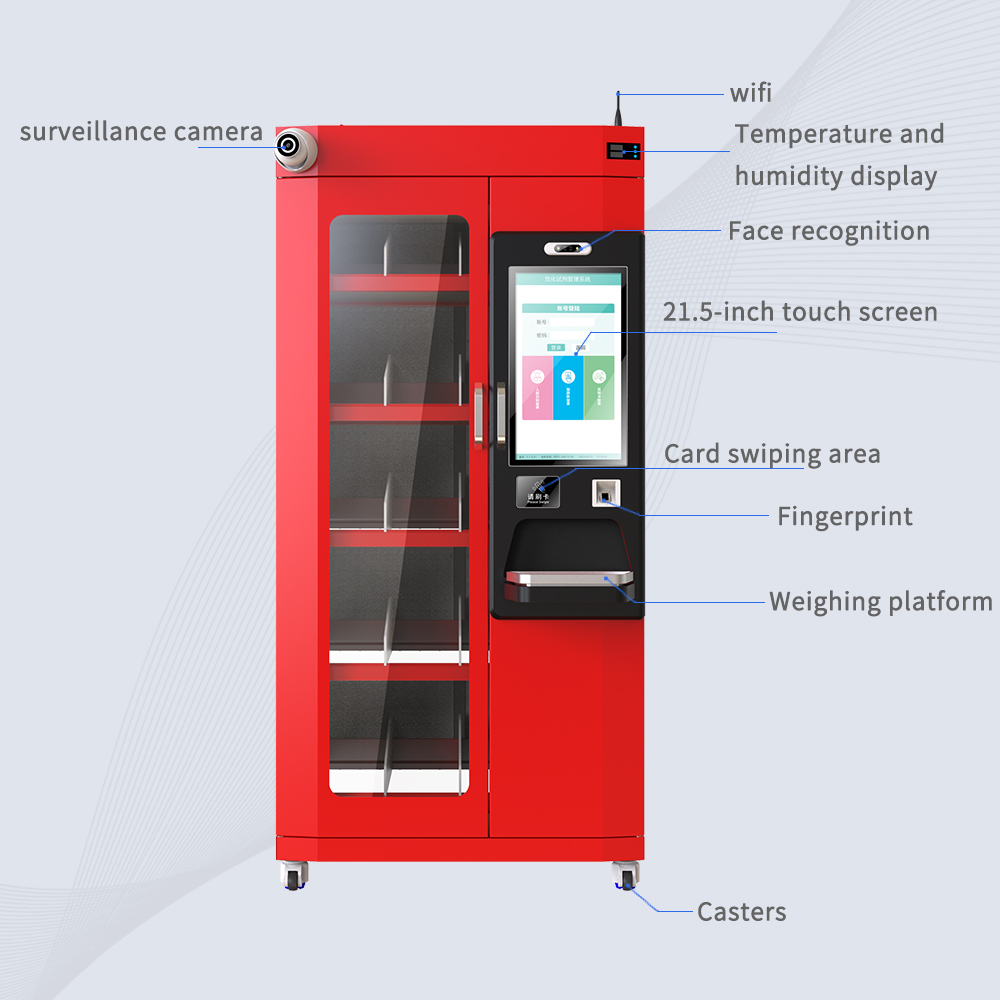

KEY FEATURES OF CYKEO CK-GWHA RFID CHEMICAL MANAGEMENT CABINET

Military-Grade Security

Dual-user authentication card/face/fingerprint + 1.0mm carbon steel fireproof construction

Instant Inventory Scan

EPC C1G2 RFID with 100+ tags/sec auto-check post-closure.

VOC Gas Detection

Real-time toxic gas monitoring 0-1000ppm with audible alerts.

Leakproof Design

Spill containment tray + corrosion-resistant coating ASTM B117 certified.

Multi-Protocol Compatibility

Supports ISO18000-6B/C, GB/T29768-2013 RFID standards.

Centralized Control

21.5″ touchscreen + Windows/Android OS for ERP/WMS integration.

24/7 Surveillance

Optional CCTV + motion-triggered recording.

Scalable Architecture

Multi-cabinet network support via Ethernet/4G.

Cykeo CK-GWHA RFID Chemical Management Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GWHA
Product NameRFID Chemical Management Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel
Appearancetransparent

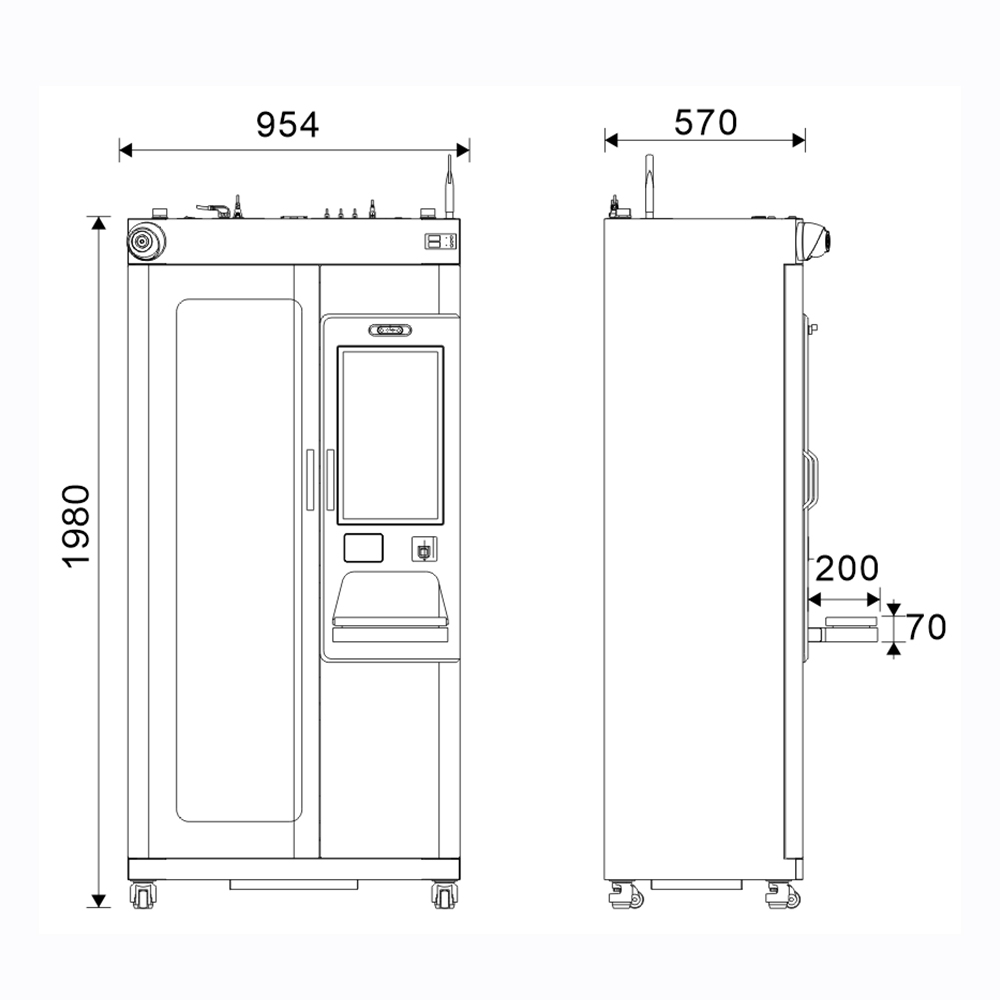

Dimensions954×570×1980mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen21.5-inch capacitive touch screen
Flame retardant of the cabinet bodyFireproof design of the cabinet body and anti-corrosion design inside
Leakage tankIt is equipped with a leakage groove for easy disassembly, assembly and cleaning
Exhaust airIt has an independent exhaust port design that can be connected to external pipes
Weighing0.1g－5kg/1g－30kg
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Scan Speed≤5s/200pcs
Gas detectionvoc detection module
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
InterfaceEthernet/RS232/4G
Authentication ModesFace, Card, Fingerprint(Optional)
Power150W
Solar power160W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID CHEMICAL MANAGEMENT CABINET FAQS

How Does the Cabinet Prevent Chemical Leaks and Toxic Fume Exposure?

Answer:
The CK-GWHA employs triple-safeguard technology:

VOC Sensors: Trigger alarms at 10ppm thresholds
Sealed Leakage Tanks: Capture spills in 5L detachable containers
Negative Pressure Venting: Activates exhaust fans during door openings
During a nitric acid leak test, the system contained 100% of vapors within 8 seconds, with automatic SMS alerts sent to safety officers via SAP EHS module.

Can the System Track Chemical Expiry Dates and Auto-Generate MSDS Reports?

Answer:
Yes. Barcode/RFID scanning links chemicals to:

Expiry Dates: Auto-alerts 30 days pre-expiry
MSDS Sheets: Instant digital access via touchscreen
Consumption Logs: Gram-level usage tracking
A chemical plant reduced waste by 42% by setting auto-reorder rules in Oracle Inventory Cloud when acetone levels dropped below 500g.

How to Restrict Access to High-Risk Chemicals Like Cyanides?

Answer:
Enable Tiered Authorization Protocol:

Admin Approval: Request access via mobile app
Dual Authentication: Face scan + physical key
Time-Limited Access: Auto-lock after 5 minutes
All entries generate blockchain-secured audit trails. A pharma client achieved zero unauthorized access in 2 years, passing FDA 21 CFR Part 11 audits.
