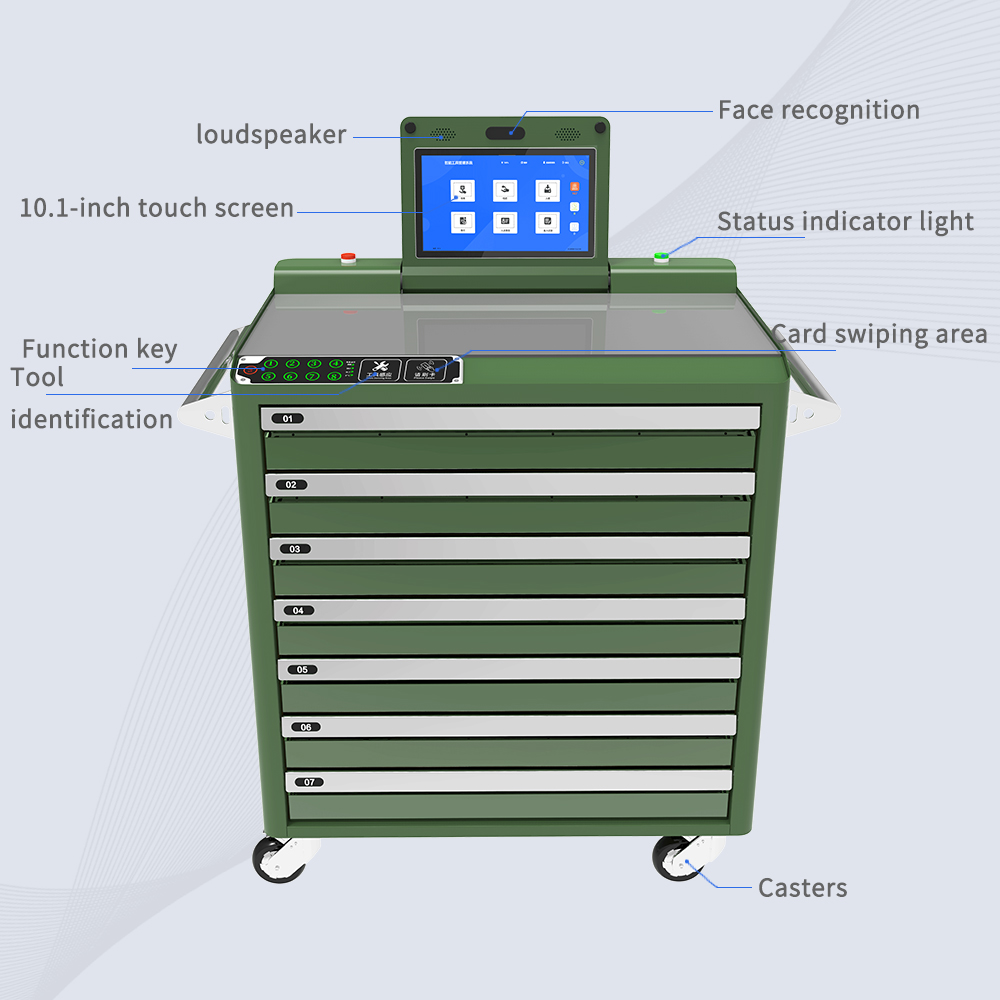

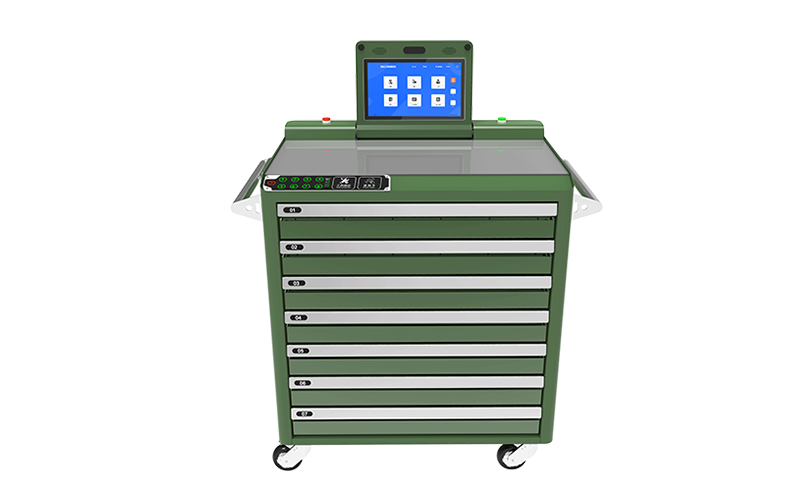

CK-GTC7C RFID Tool Cart(images 1)

RFID Tool Cart

✔️ Handles 400+ RFID-tagged tools without slowing down

✔️ Full inventory scan in about 5 seconds

✔️ Carbon-steel body, built like aviation equipment

Talk to an Expert
CK-GTC7C RFID Tool Cart(images 2)
CK-GTC7C RFID Tool Cart(images 3)
CK-GTC7C RFID Tool Cart(images 4)
CK-GTC7C RFID Tool Cart(images 5)
CK-GTC7C RFID Tool Cart(images 6)
CK-GTC7C RFID Tool Cart(images 7)
CK-GTC7C RFID Tool Cart(images 8)
CK-GTC7C RFID Tool Cart(images 9)

Online Procurement
Name*
Email Address*
TEL*
Company/Unit Name*
Quantity*
Content*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

Cykeo CK-GTC7C RFID Tool Cart Specifications

  • BrandCykeo
  • ModelCK-GTC7C
  • Product NameRFID Tool Cart
  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialMetal casing + glass panel
  • ​Appearancetransparent

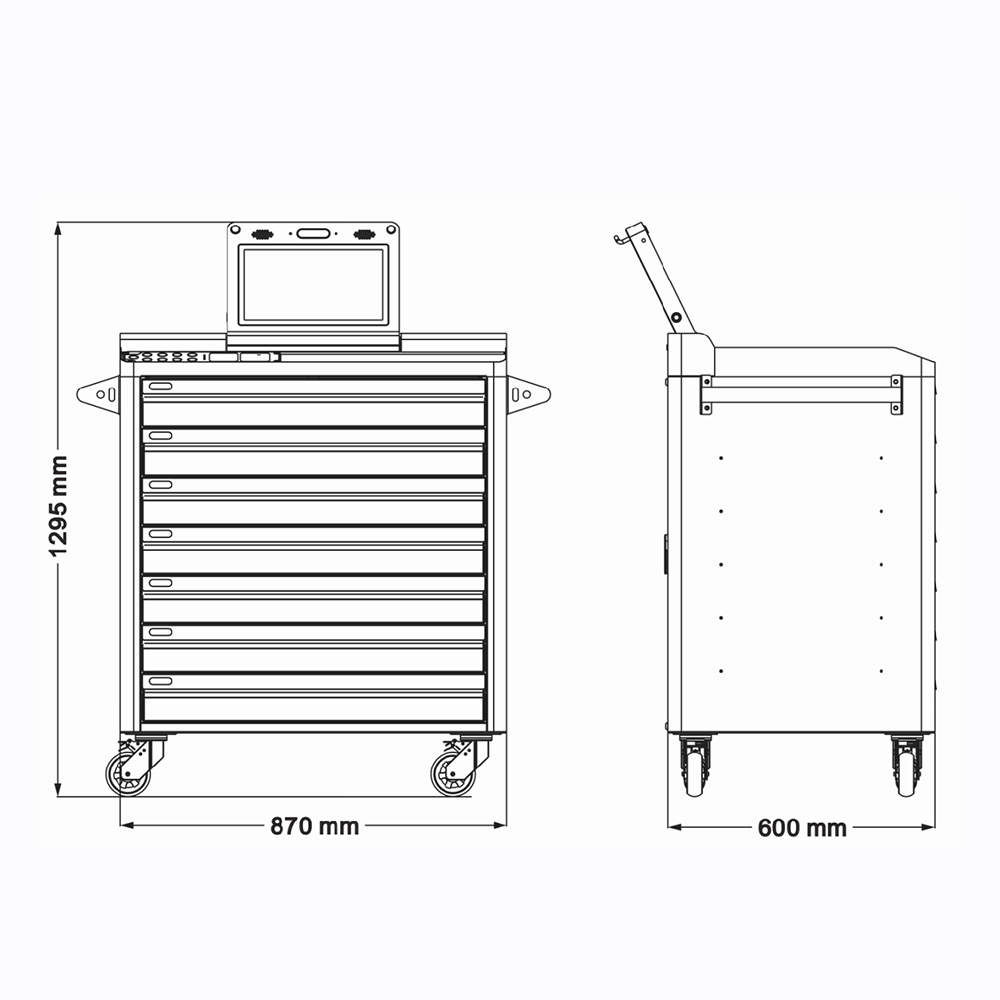

  • Dimensions1295mm*870mm*600mm
  • Drawer size724*443*146mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G
  • Touchscreen14-inch capacitive (10-point touch)
  • Weight100KG
  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)
  • Frequency Range840MHz~960MHz (Adjustable);13.56MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c/ISO15693
  • Read Range5-50cm Adjustable
  • Scan Speed≤5s/300pcs
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • InterfaceEthernet/RS232/4G
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • Power150W
  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!
RFID TOOL CART FAQS
How does this cart stop tools from being left behind during aircraft maintenance?

It double-checks everything. RFID knows which tools are out, and the drawers feel the weight, so the cart notices when something’s missing—even if someone forgets. If a torque wrench doesn’t come back, the cart makes noise, lights up the right spot, and won’t let the issue slide. In real hangar use, this cut tool losses fast and shrank pre-flight checks from a long wait into a quick pass.

Can it handle rough construction sites without falling apart?

Yes. This thing is built to be knocked around. The steel frame takes drops, the wheels absorb shock, and the electronics don’t panic over dust or splashes. Cold mornings aren’t a problem either—the screen stays readable. On long railway jobs, carts like this ran daily for months with barely any downtime.

How hard is it to connect with CMMS systems like IBM Maximo?

It’s straightforward. Once the tool tags are matched to your asset records, the cart just talks to the system in the background. Check-outs, returns, approvals—it all syncs automatically. Teams using it usually notice one thing right away: people stop chasing paper logs, and tools get found much faster.
