✔️ ​Dual-Antenna UHF for 300-Tool/7s Scan

✔️ ​​MIL-STD-810G Certified Carbon Steel Frame

✔️ Predictive Maintenance & Real-Time FOD Alerts

Email Our Team
EDHF
hctgvk
hctgvk
UGO
UFJF
RTFD

PRECISION TRACKING, ZERO FOD

Online Procurement
Quantity*
SpecificationsStandard EditionCustomized Edition*
Name*
Company/Unit Name*
Email Address*
Submitting…
Submission Successful! We will arrange the connection shortly.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

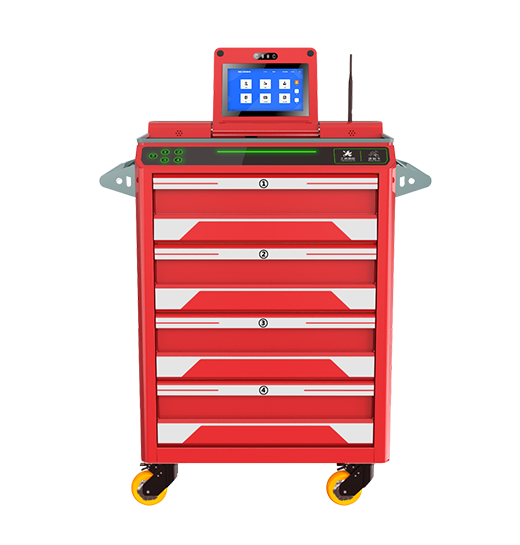

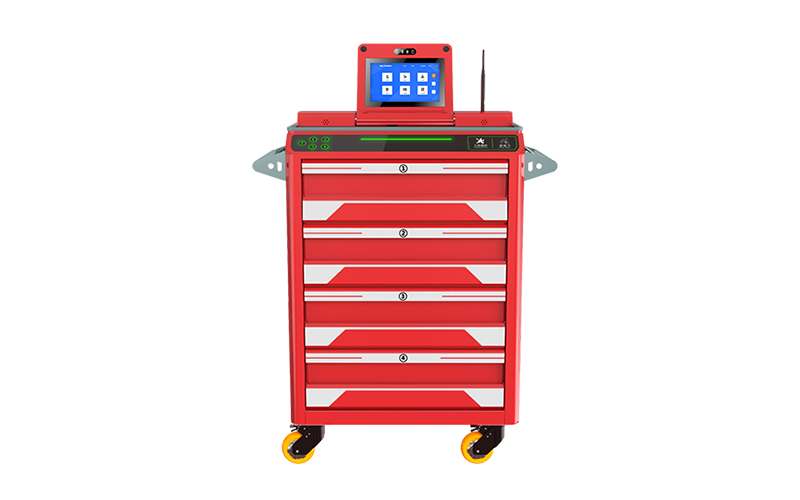

Cykeo CK-GTC4D RFID Tool Tracking Cart Specifications

Main Specifications

  • BrandCykeo
  • ModelCK-GTC4D
  • Product NameRFID Tool Tracking Cart

Physical Parameters

  • ​Communication ProtocolEthernet (RJ45), optional WiFi/4G
  • ​MaterialMetal casing + glass panel
  • ​Appearancetransparent

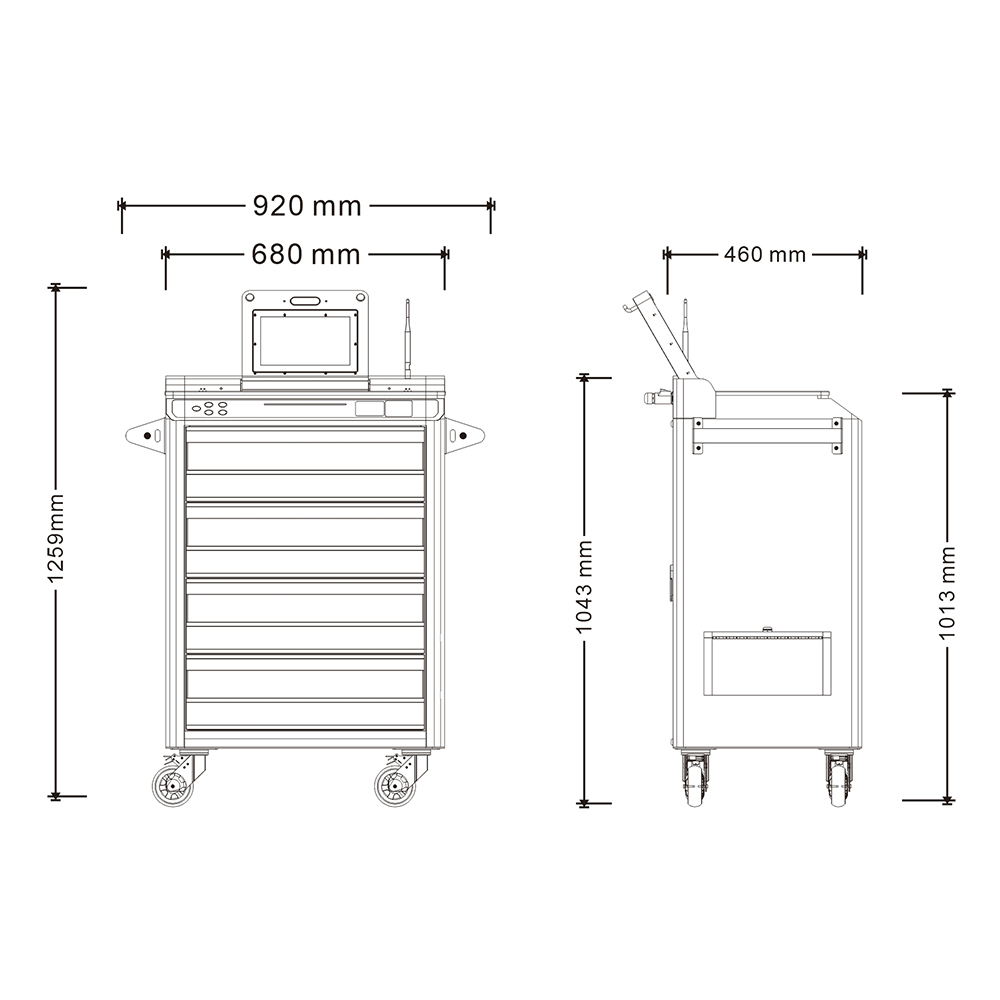

  • Dimensions1259×680×460mm
  • Operating SystemWindows /Android
  • ControllerIntel i5 4G+128G / RK3399 4G+16G

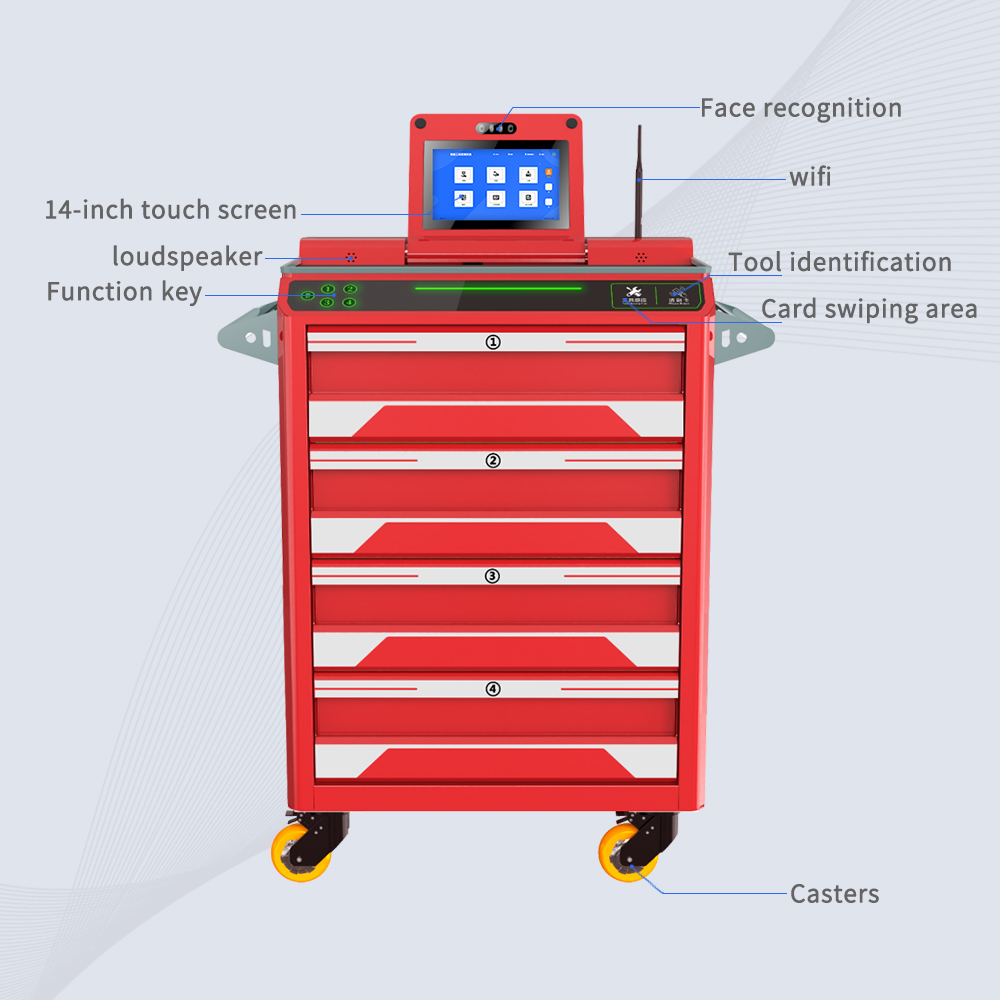

  • Touchscreen14-inch capacitive (10-point touch)
  • Battery10h Continuous Use
  • Weight50KG

Developer Support

  • API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
  • ​Secondary Development SDKFull toolkit for ​custom firmware & app development
  • ​LanguagesJava, C# (Cross-Platform Compatibility)

Performance Parameters

  • Frequency Range840MHz~960MHz
  • Air Interface ProtocolEPC C1G2, ISO 18000-6c
  • Read Range5-50cm Adjustable
  • Inventory Speed300 tools/7s
  • Drawer Capacity4 layers
  • Authentication ModesFace, Card, Fingerprint(Optional)
  • ​​Connectivity​Ethernet, WiFi (Optional), 4G (Optional)
  • Power150W

Operating Environment

  • ​​Power​AC220V, ≤150W
  • Humidity≤90%
  • Operating Temp0~60℃
  • Humidity Range10%~90% RH (non-condensing)
  • IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

*
*
*
Submitting…
Ok, thanks.
Submission Failed! Please try again later.
Invalid Email Address!
Invalid Phone Number!

RFID TOOL TRACKING CART FAQS

How Does Dual-Antenna RFID Improve Tool Tracking in Noisy Environments?

Answer:
The CK-GTC4D uses spatially separated antennas to create overlapping read zones, doubling coverage while canceling interference. In EMI-heavy power plants, this enables:

  • Phase Diversity: Antennas scan at offset frequencies (e.g., 865MHz and 915MHz) to avoid machinery noise.
  • Redundancy Validation: If Antenna 1 misses a tag in Drawer 3, Antenna 2 cross-verifies.
  • Case Study: At a wind turbine facility, dual-antenna scanning achieved 99.9% accuracy amid 50kV transformers, versus 82% with single-antenna carts.
Can This Cart Prevent Tools Left in Aircraft Engines (FOD)?

Answer:
Yes. Integrated FOD Alert 3.0 combines:

  • Weight Sensors: Detect mass changes ≥5g per drawer.
  • Scan-to-Close Protocol: Requires RFID verification before locking.
  • Audit Trail: Photos tool positions via optional CCTV pre/post-task.
    Safety Impact: An airline MRO reduced FOD incidents by 93% after deployment, using automated “tool check” voice prompts before engine cover installation.
How Long Does the Battery Last During Winter Hangar Operations?

Answer:
The polar-grade battery delivers 8+ hours at -20°C via:

  • Ceramic Heating Pads: Keep cells at -5°C minimum.
  • Low-Temp LCD Fluid: Prevents screen lag.
  • Power Stats: 50W AC operation ↔ 8hrs battery (standard mode), 5hrs (heating mode at -20°C).
    Tip: Use solar accessory for Arctic deployments.
