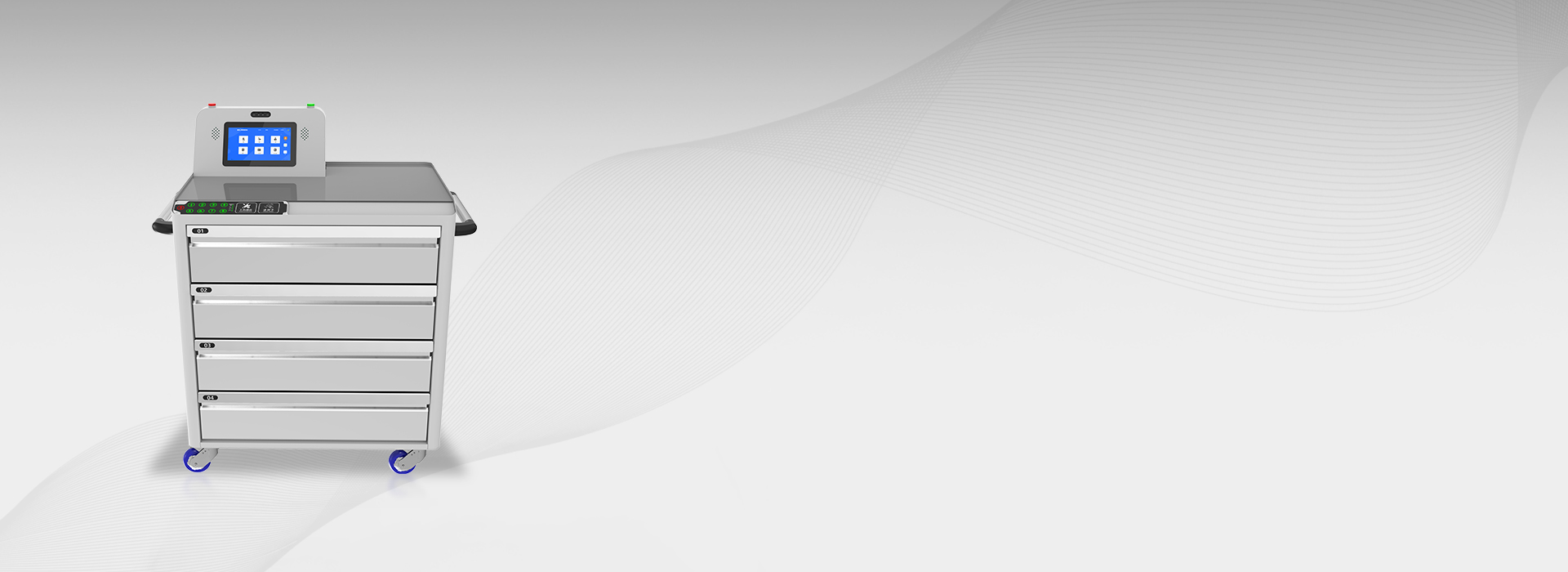

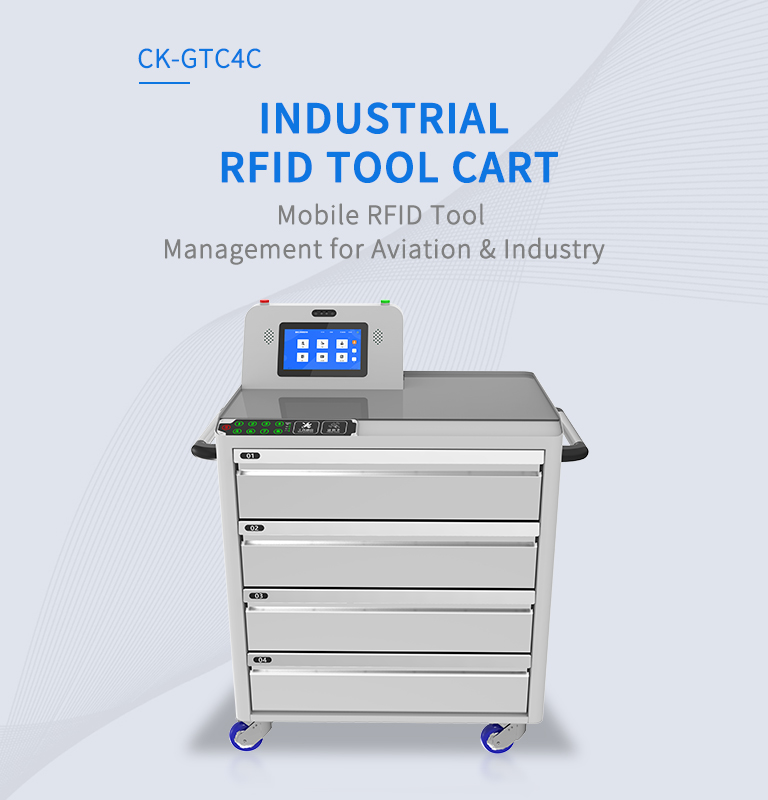

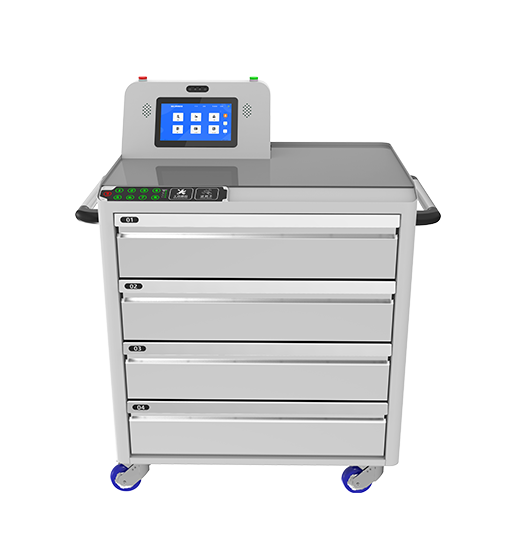

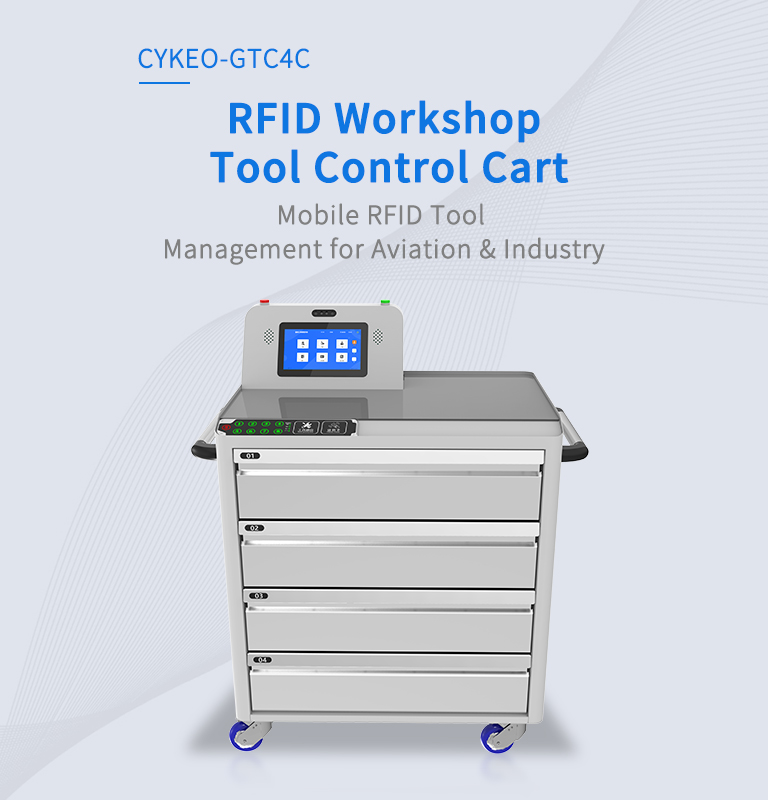

CK-GTC4C

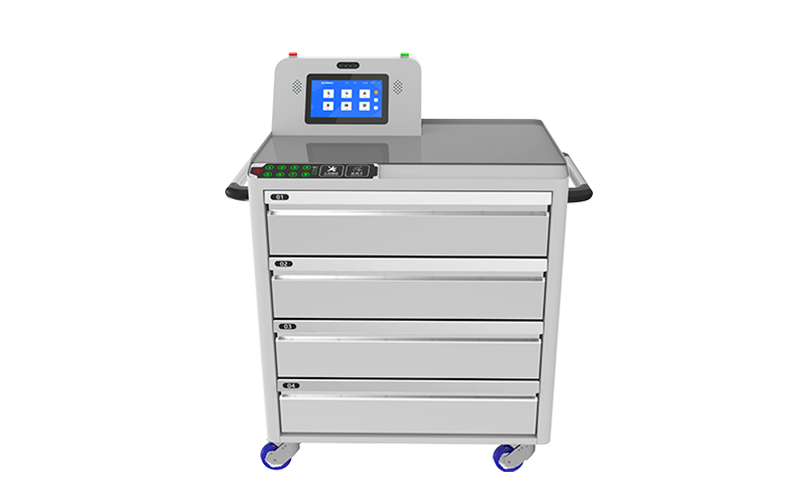

RFID Workshop Tool Control Cart

3-Second Inventory & Real-Time Alerts for Zero-FOD Manufacturing

✔️ 3-Second 300-Tool Inventory Verification

✔️ Automated SAP/Oracle Check-In/Out Reporting

✔️ 10+ Hour Battery for Continuous Workshop Operation

Talk to an Expert

Email Our Team

PRECISION TOOLS, ZERO DOWNTIME

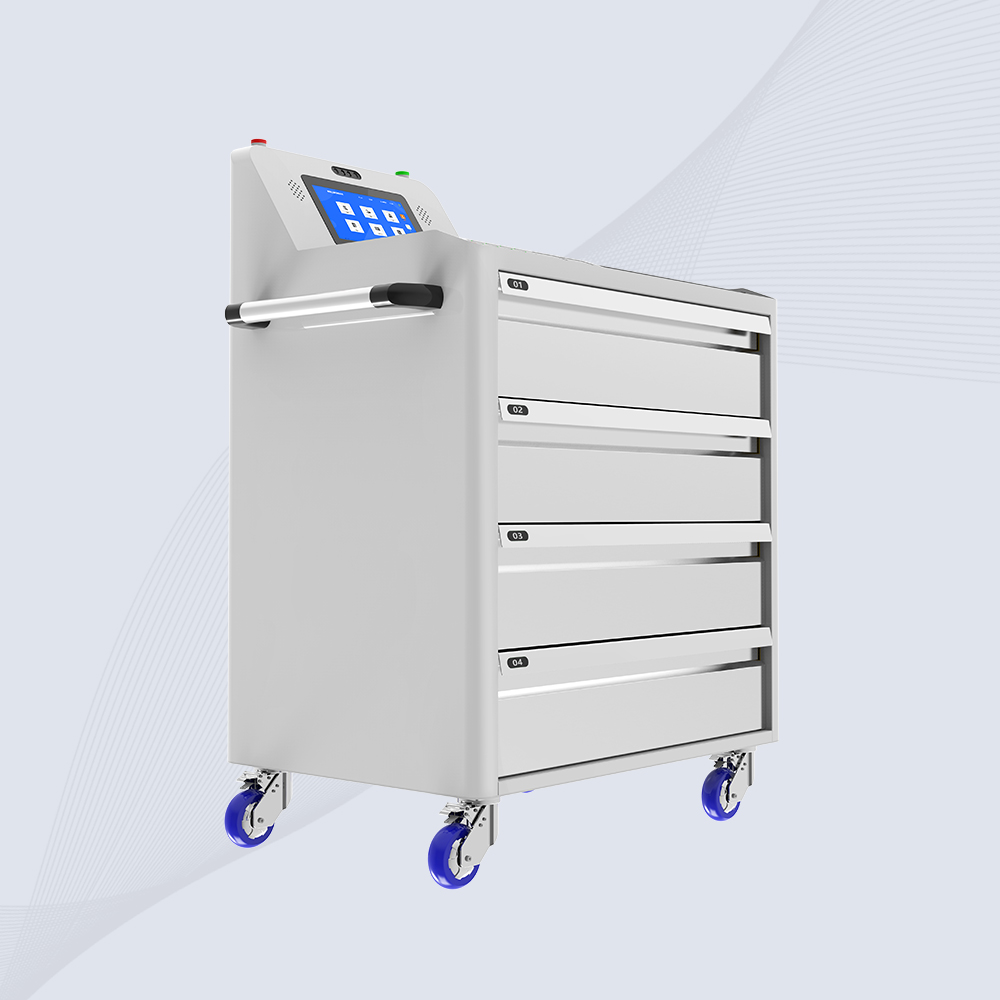

The CK-GTC4C RFID Workshop Tool Control Cart revolutionizes industrial tool management with ISO 18000-6C UHF RFID technology, completing 300-tool inventories in 3 seconds. Its military-grade 1.2mm carbon steel construction and IP54-rated 10.1″ touchscreen withstand harsh workshop environments, while real-time missing tool alerts integrated with SAP/Oracle reduce FOD risks by 90%. With 10+ hours battery life, it ensures uninterrupted production line tool control, delivering unparalleled efficiency, enhanced safety compliance, and significant cost savings through minimized downtime and lost tool replacement.

Ideal for aviation maintenance hangars, automotive assembly lines, and power plant workshops requiring rapid tool accountability and FOD prevention.

Tool management

Aviation management

Power grid maintenance control

Warehouse Logistics

Railway tool maintenance

Factory Automation

Cykeo-CK-GTC4C RFID Workshop Tool Control Cart Specification

Download

Online Procurement

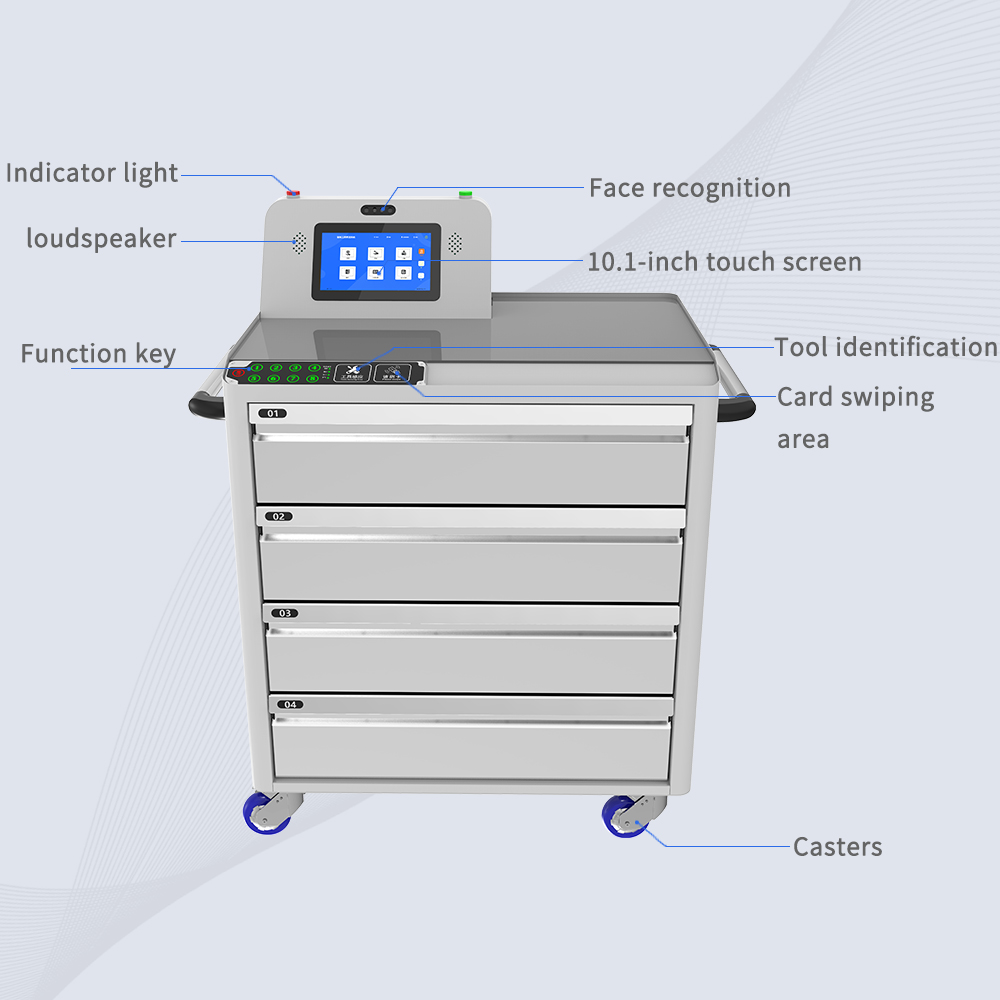

KEY FEATURES OF CYKEO CK-GTC4C RFID WORKSHOP TOOL CONTROL CART

7-Second 300-Tool Inventory

Impinj R2000 UHF RFID

FOD Prevention Mode

Instant alerts for misplaced tools

10.1″ HD Touchscreen

1366×768 resolution

Portable & Rugged

10hr battery, 1.2mm steel body

Multi-Layer Storage

4/8 drawers 724×443mm

4G/WiFi Connectivity

Real-time ERP integration

Dual security

Face Recognition + RFID Auth

C#/Java SDK

Custom WMS compatibility

Cykeo CK-GTC4C RFID Workshop Tool Control Cart Specifications

Main Specifications

BrandCykeo
ModelCK-GTC4C
Product NameRFID Workshop Tool Control Cart

Physical Parameters

MaterialMetal casing + glass panel

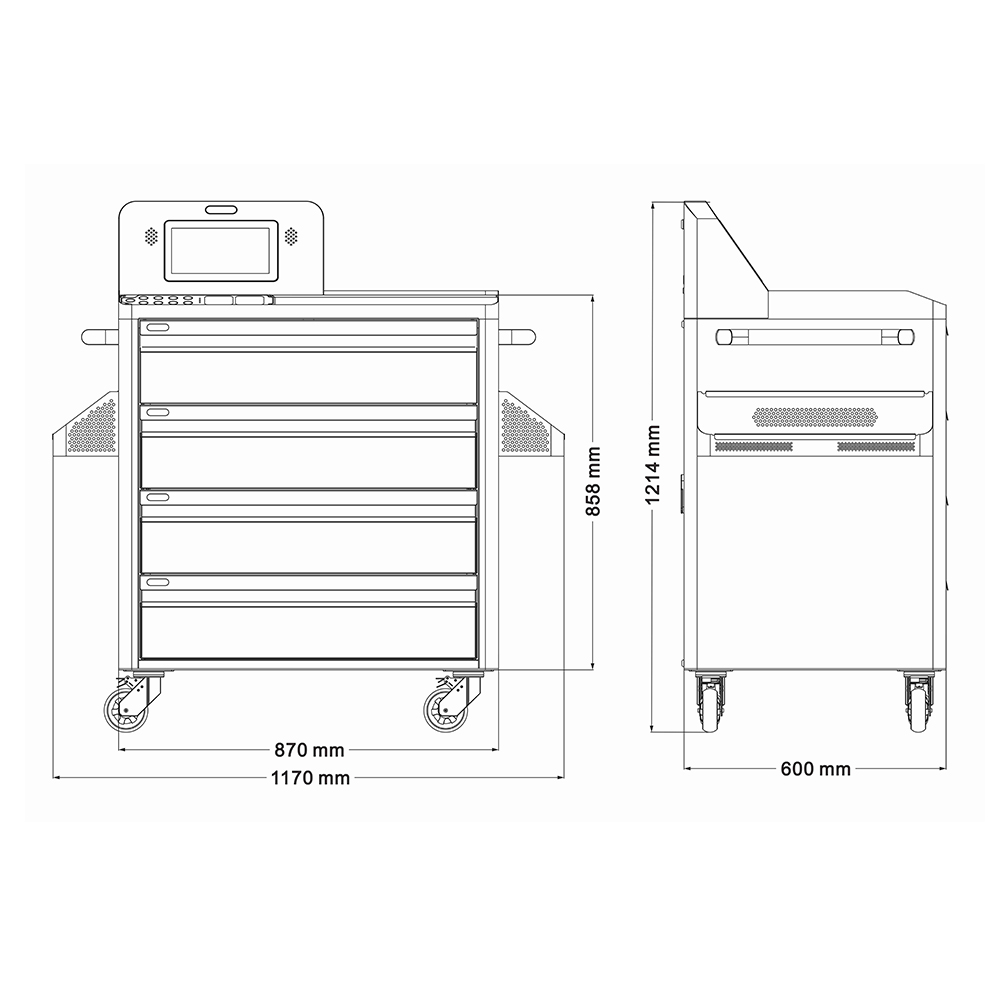

Dimensions1214×1170×600mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen10.1-inch capacitive (10-point touch)
Battery10h Continuous Use
Weight50KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Inventory Speed300 tools/7s
Drawer Capacity4 layers
Authentication ModesFace, Card, Fingerprint(Optional)
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Power150W

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID WORKSHOP TOOL CONTROL CART FAQS

How Does the 3-Second Inventory Prevent Production Delays?

Answer:
The CK-GTC4C eliminates manual counts through:

Multi-drawer parallel scanning processing 120+ tools/sec per layer
Automated gap detection flagging missing items before shift changes
SAP-integrated work order sync auto-assigning tools to production tasks
Case Study: Reduced tool setup time by 78% at Toyota assembly line

Can It Withstand Metal Interference in Welding Workshops?

Answer:
Yes. Military-grade RF shielding features:

Frequency-adaptive algorithms maintaining 99.2% accuracy near arc welders
Ferrite-loaded drawers containing RFID signals within 20cm range
EMI-hardened electronics passing MIL-STD-461G certification
Performance Data: Achieved 98.7% read rate in shipyard welding zone

How Does the 10-Hour Battery Enable 24/7 Operations?

Answer:
Smart power management includes:

Hot-swappable battery packs supporting continuous operation
Solar-ready charging extending runtime to 72hrs off-grid
Task-based power profiles reducing consumption by 40% during scans
Mobility Feature: Optional trailer hitch for moving between workstations
