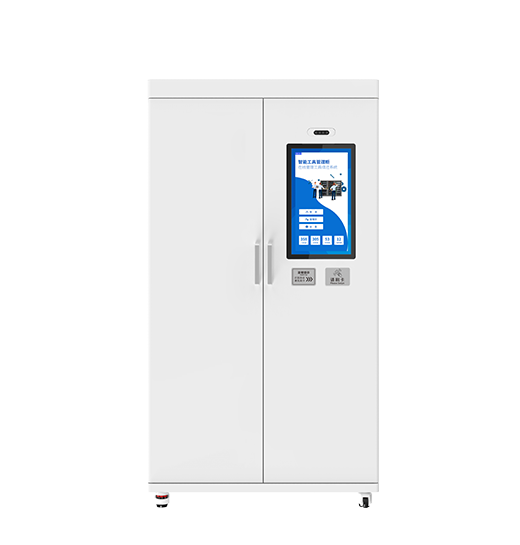

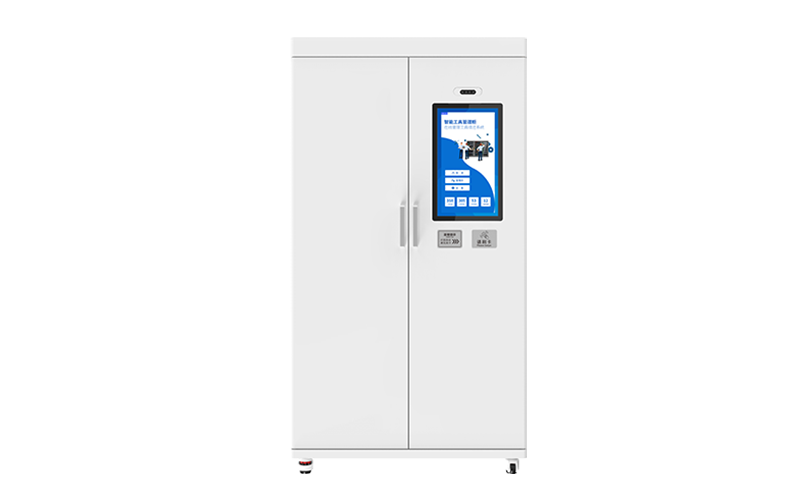

CK-GT3C

RFID Tool Checkout System Cabinet

280-Layer Smart Cabinet for Precision Tool Control

✔️ Industrial-Grade Operation (-20°C~60°C)

✔️ Millimeter-Wave RFID with 99.9% Accuracy

✔️ Dual OS (Windows/Android) & SAP/Oracle Sync

Talk to an Expert

Email Our Team

AUTO CHECKOUT, ZERO LOSS

The CK-GT3C RFID Tool Checkout System Cabinet revolutionizes industrial asset management with 14-antenna millimeter-wave technology and 280-layer adaptive storage. Featuring dual authentication (RFID + biometrics), this EPC Gen2-compliant cabinet ensures real-time tool tracking, auto check-in/out, and calibration alerts. Its carbon steel construction and 21.5″ FHD touchscreen withstand harsh environments for aviation, utilities, and semiconductor cleanrooms.

Ideal for high-value tool control: Aviation MRO hangars, power plant maintenance centers, semiconductor fab tool rooms, and precision manufacturing facilities requiring zero-error audits.

Tool management

Aviation management

Power grid maintenance control

Warehouse Logistics

Railway tool maintenance

Factory Automation

Cykeo CK-GT3C RFID Tool Checkout System Cabinet Specification

Download

Online Procurement

KEY FEATURES OF CYKEO CK-GT3C RFID TOOL CHECKOUT SYSTEM CABINET

ISO 18000-6C UHF Standard

14-antenna array covers 2m³ detection zone

5-sec Full Inventory

Batch reads 200+ tools simultaneously

Multi-Layer Security

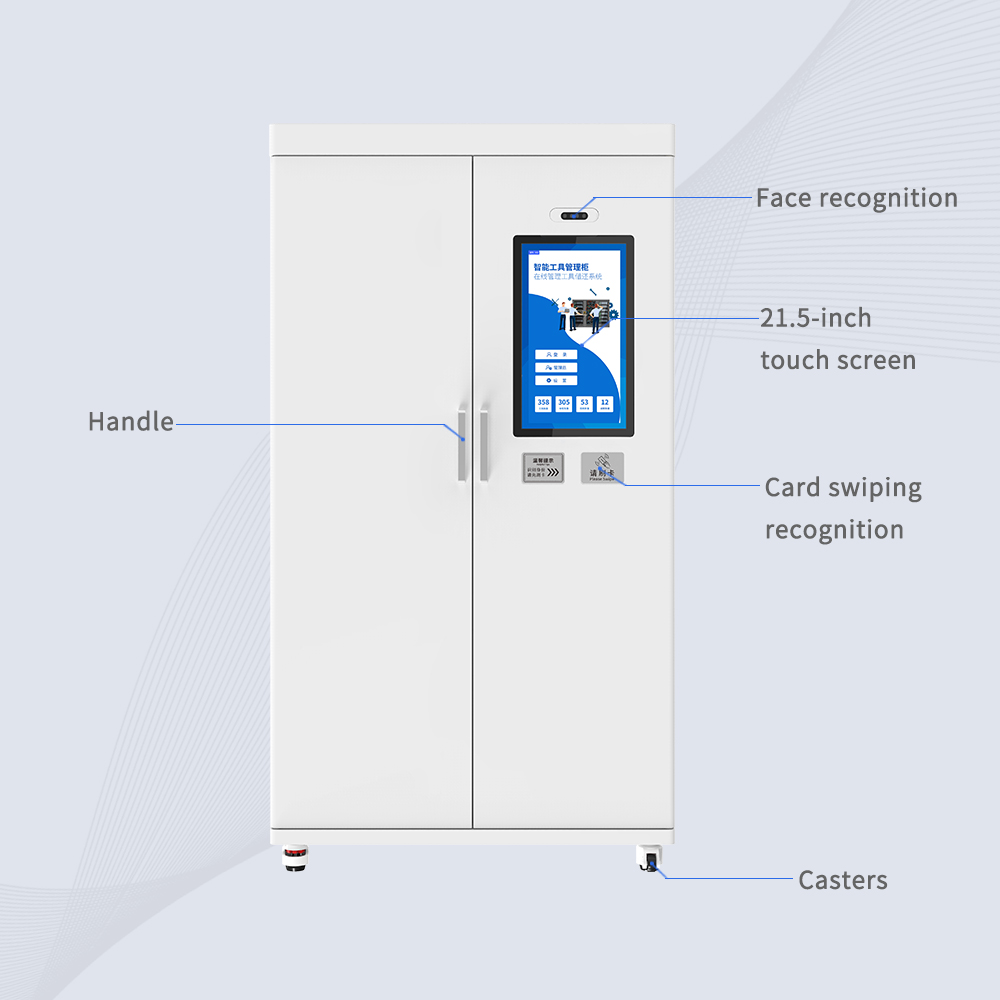

HF card/fingerprint/face recognition options

Industrial Windows/Android

RK3399 4-core 1.8GHz processor

Smart Alert System

Overdue tool reminders via SMS/email

ERP Integration Ready

SAP PM/Oracle EAM compatible SDK

Smart Power Management

≤150W consumption with eco-cooling system

Extreme Environment Ready

Reliable 0-60℃ operation range

Cykeo CK-GT3C RFID Tool Checkout System Cabinet Specifications

Main Specifications

BrandCykeo
ModelCK-GT3C
Product NameRFID Tool Checkout System Cabinet

Physical Parameters

Communication ProtocolEthernet (RJ45), optional WiFi/4G
MaterialMetal casing + glass panel

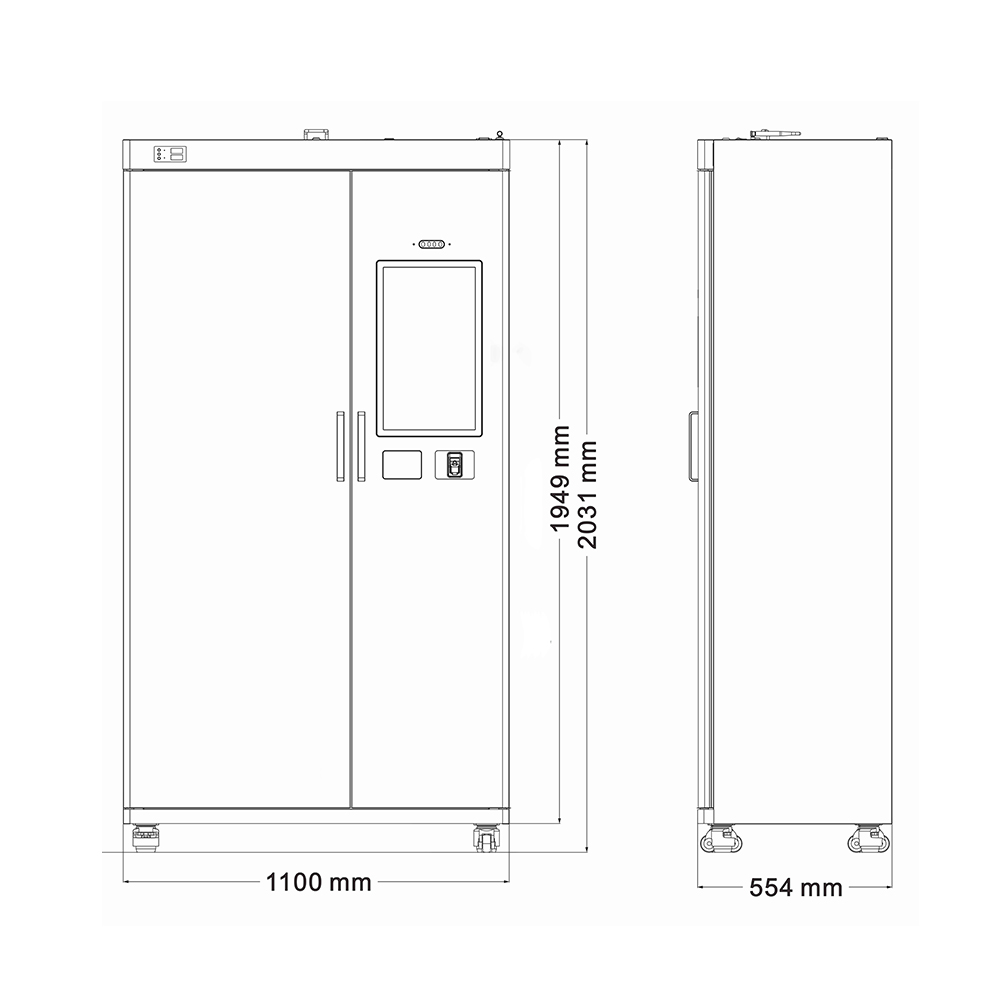

Dimensions2031mm*1100mm*554mm
Operating SystemWindows /Android
ControllerIntel i5 4G+128G / RK3399 4G+16G
Touchscreen21.5-inch capacitive touch screen
Weight200KG

Developer Support

API InterfacesRESTful & Native APIs (IoT/ERP Integration Ready)
Secondary Development SDKFull toolkit for custom firmware & app development
LanguagesJava, C# (Cross-Platform Compatibility)

* Product performance is based on testing in a controlled environment. Depending on the environment, your results may vary.

Performance Parameters

Frequency Range840MHz~960MHz
Air Interface ProtocolEPC C1G2, ISO 18000-6c
Read Range5-50cm Adjustable
Scan Speed≤5s/200pcs
Capacity4 floors / 6 floors
ConnectivityEthernet, WiFi (Optional), 4G (Optional)
Power150W
Authentication ModesFace, Card, Fingerprint(Optional)

Operating Environment

PowerAC220V, ≤150W
Humidity≤90%
Operating Temp0~60℃
Humidity Range10%~90% RH (non-condensing)
IP RatingIP54 (dust/water resistant)

NEED A CUSTOM SOLUTION?

Submit your requirements and valid contact details – Our engineers will deliver a custom solution within 24 hours.

RFID TOOL CHECKOUT SYSTEM CABINET FAQS

How Does the RFID Tool Checkout System Achieve 99.9% Inventory Accuracy?

Answer:
The CK-GT3C integrates 14 UHF antennas and millimeter-wave positioning to scan tools within 50cm depth. Key technologies include:

Layer-Specific Scanning: Each of 280 storage layers has dedicated RFID coverage
EPC Gen2 Anti-Collision: Processes 200+ tools in 5 seconds with signal filtering
Real-Time Discrepancy Alerts: Triggers lights/sirens if unchecked tools are removed
Case Study: A semiconductor fab reduced tool loss by 98% and saved $250,000/year in misplaced asset costs.

Can It Operate in Sterile Cleanroom Environments?

Answer:
Yes. Designed for ISO Class 5-8 cleanrooms with:

Sealed IP54 Enclosure: Prevents particle ingress
Antistatic Coatings: Glass/touchscreen resist 15kV discharge
HEPA-Compatible Ventilation: Maintains air purity during dehumidification
Certification: Passes IEC 61340-5-1 ESD standards for semiconductor use.

How to Set Up Multi-Cabinet Networks for Large Facilities?

Answer:
Deploy via Cykeo’s Centralized IoT Platform:

Daisy-Chain Cabinets: Connect up to 32 units via RJ45/4G
Cloud Dashboard: Monitor all tools on single interface (AWS/Azure)
Role-Based Access: Assign permissions per cabinet/department
ROI Example: An airline MRO center managed 8,000+ tools across 12 cabinets, cutting audit time by 80%.
